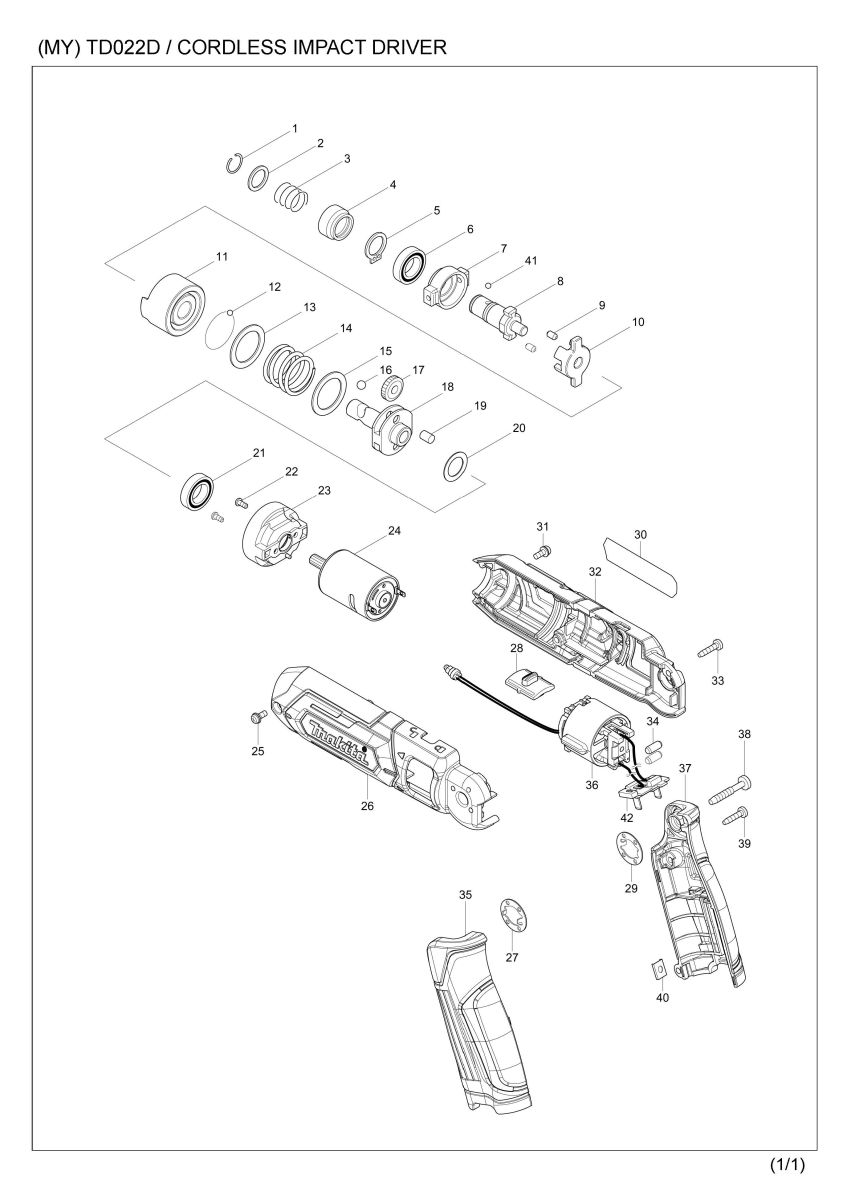

Part Diagram
Total: 58 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 231965-7 | RING SPRING 10 | 1 | |
| 002 | 267143-3 | FLAT WASHER 11 | 1 | |
| 003 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 004 | 324711-6 | BIT SLEEVE | 1 | |
| 005 | 961072-9 | RETAINING RING S-12 | 1 | |
| 006 | 210108-4 | BALL BEARING 6801LLU | 1 | |
| 007 | 313136-9 | LOCK RING | 1 | |
| 008 | 324712-4 | SPINDLE N | 1 | |
| 009 | 268160-6 | PIN 3.5 | 2 | |
| 010 | 324713-2 | ANVIL | 1 | |
| 011 | 324714-0 | HAMMER | 1 | |
| 012 | 216019-1 | STEEL BALL 3 | 23 | |
| 013 | 267335-4 | FLAT WASHER 20 | 1 | |
| 014 | 233481-5 | COMPRESSION SPRING 20 | 1 | |
| 015 | 267335-4 | FLAT WASHER 20 | 1 | |
| 016 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 017 | 227173-6 | SPUR GEAR 27 | 2 | |
| 018 | 324715-8 | SPINDLE | 1 | |
| 019 | 268161-4 | PIN 5 | 2 | |
| 020 | 253052-2 | FLAT WASHER 12 | 1 | |
| 021 | 210108-4 | BALL BEARING 6801LLU | 1 | |
| 022 | 265172-0 | +PAN HEAD SCREW M2.6X6 | 2 | |
| 023 | 451522-7 | INTERNAL GEAR CASE | 1 | |
| 024 | 629235-0 | DC MOTOR | 1 | |
| 025 | 265173-8 | PAN HEAD SCREW M3X8 | 1 | |
| 026 | 183F00-2 | MOTOR HOUSING SET | 1 | |
| 026 | D10 | INC. 32 | ||
| 027 | 267803-7 | LOCK WASHER | 1 | |
| 028 | 451523-5 | LOCK LEVER | 1 | |
| 029 | 267803-7 | LOCK WASHER | 1 | |
| 030 | 852V05-6 | TD022D NAME PLATE | 1 | |
| 031 | 265173-8 | PAN HEAD SCREW M3X8 | 1 | |
| 032 | 183F00-2 | MOTOR HOUSING SET | 1 | |
| 032 | D10 | INC. 26 | ||
| 033 | 266404-8 | TAPPING SCREW BIND 3X14 | 3 | |
| 034 | 263027-3 | RUBBER PIN 4 | 2 | |
| 035 | 183E72-1 | HANDLE SET | 1 | |
| 035 | D10 | INC. 37 | ||
| 036 | 650783-8 | SWITCH C3YW | 1 | |
| 036 | D10 | INC. 42 | ||
| 037 | 183E72-1 | HANDLE SET | 1 | |
| 037 | D10 | INC. 35 | ||
| 038 | 266374-1 | TAPPING SCREW 4X25 | 1 | |
| 039 | 266404-8 | TAPPING SCREW BIND 3X14 | 2 | |
| 040 | 345749-8 | SET PLATE | 2 | |
| 041 | 216019-1 | STEEL BALL 3 | 2 | |
| 042 | 643817-4 | TERMINAL | 1 | |
| A01 | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A01-1 | 784043-7 | +BIT 2-45 | 1 | |
| A02 | 168435-2 | HOLSTOR | 1 | |
| A03 | 831277-4 | TOOL BAG | 1 | |
| A04 | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A04 | D10 | COMPO-PARTS | ||
| A05 | 198000-3 | BATTERY BL0715 SET | 2 | |
| A05-1 | 1913W2-7 | BATTERY BL0715 SET | 2 | |
| F01 | 194731-2 | REBAR BINDING ATTACHMENT SET | 1 | |
| F02 | 198000-3 | BATTERY BL0715 SET | 1 | |
| F02-1 | 1913W2-7 | BATTERY BL0715 SET | 1 |
