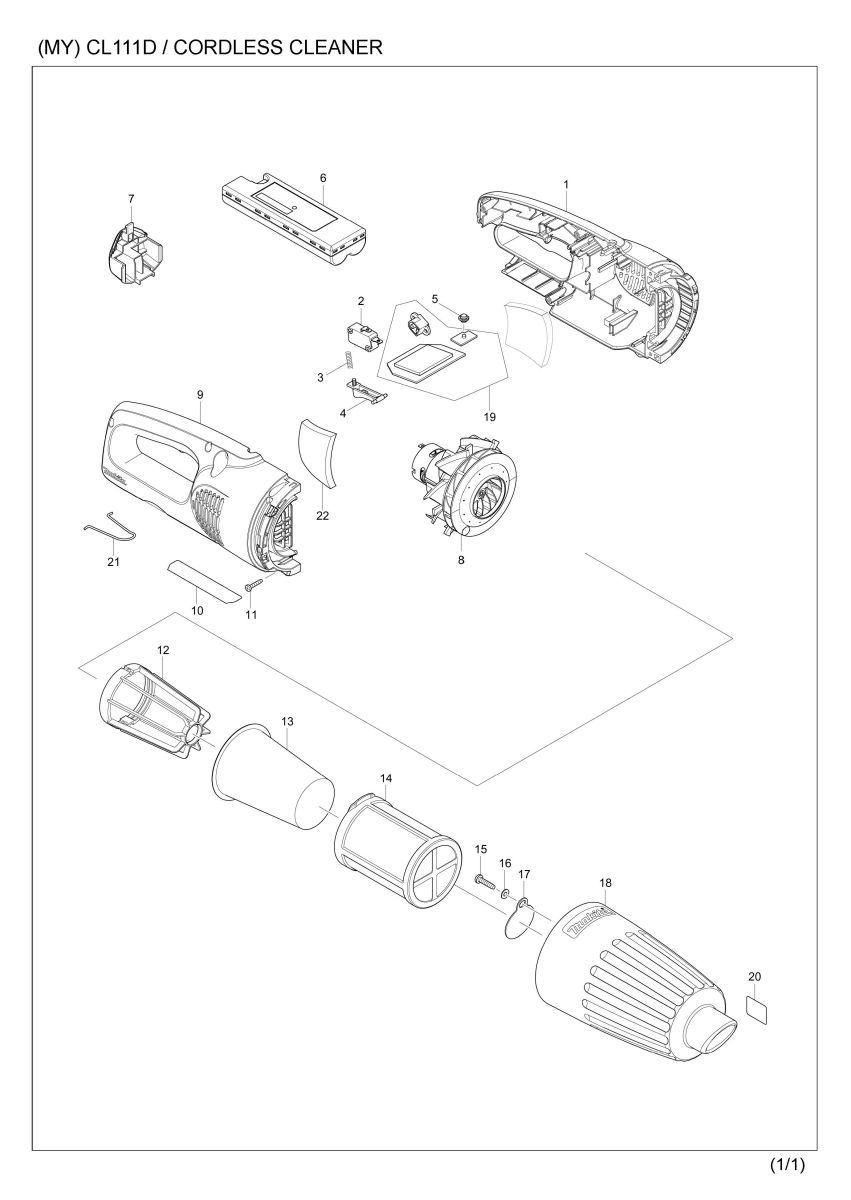

Part Diagram
Total: 71 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001A | 183G27-8 | HOUSING SET | 1 | |
| 001B | 183G28-6 | HOUSING SET | 1 | |
| 001B | D10 | INC. 9 | ||
| 001-1A | 183K02-8 | HOUSING SET | 1 | |
| 001-1B | 183K03-6 | HOUSING SET | 1 | |
| 001-1B | D10 | INC. 9,22 | ||
| 2 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 3 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 4 | 451210-6 | SWITCH LEVER | 1 | |
| 5 | 450522-4 | LENS | 1 | |
| 6 | 632C23-4 | BATTERY | 1 | |
| 007A | 454080-2 | COVER | 1 | |
| 007B | 455348-9 | COVER | 1 | |
| 8 | 123997-7 | MOTOR ASSEMBLY | 1 | |
| 009A | 183G27-8 | HOUSING SET | 1 | |
| 009B | 183G28-6 | HOUSING SET | 1 | |
| 009B | D10 | INC. 1 | ||
| 009-1A | 183K02-8 | HOUSING SET | 1 | |
| 009-1B | 183K03-6 | HOUSING SET | 1 | |
| 009-1B | D10 | INC. 1,22 | ||
| 10 | 853L54-6 | CL111D NAME PLATE | 1 | |
| 11 | 266429-2 | TAPPING SCREW 3X16 | 5 | |
| 12 | 410237-5 | STAY | 1 | |
| 012-1 | 458467-0 | STAY | 1 | |
| 13 | 443060-3 | FILTER | 1 | |
| 14 | 451208-3 | PRE-FILTER | 1 | |
| 15 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 015-1 | 251530-6 | TAPPING SCREW 4X18 | 1 | |
| 16 | 941051-3 | FLAT WASHER 4 | 1 | |
| 17 | 424208-6 | VALVE | 1 | |
| 018A | 457643-3 | CAPSULE | 1 | |
| 018B | 457646-7 | CAPSULE | 1 | |
| 19 | 632K44-4 | CONTROLLER UNIT | 1 | |
| 20 | 809293-4 | INDICATION LABEL | 1 | |
| 21 | 324885-3 | HANGER | 1 | |
| 22 | 422152-1 | SPONGE SHEET 43-58 | 2 | |
| 022-1 | 422152-1 | SPONGE SHEET 43-58 | 2 | |
| 23 | 422268-2 | SPONGE SHEET 57 | 1 | |
| A01A | 198150-4 | FLOOR/CARPET T-NOZZLE IVO | 1 | |
| A01B | 198524-9 | FLOOR/CARPET T-NOZZLE RED | 1 | |
| A01-1A | 198149-9 | FLOOR/CARPET T-NOZZLE IVO | 1 | |
| A01-1B | 198522-3 | FLOOR/CARPET T-NOZZLE RED EU | 1 | |
| A02A | 416041-0 | SASH NOZZLE 28 IVO | 1 | |
| A02B | 416225-0 | SASH NOZZLE 28 RED | 1 | |
| A02-1A | 413769-1 | SASH NOZZLE | 1 | |
| A02-1B | 413860-5 | SASH NOZZLE | 1 | |
| A03A | 416043-6 | SASH NOZZLE HOLDER (IVORY) | 1 | |
| A03B | 416227-6 | SASH NOZZLE HOLDER (RED) | 1 | |
| A04A | 451424-7 | PIPE | 1 | |
| A04B | 451425-5 | PIPE (RED) | 1 | |
| A05 | ***DC1001 | DC1001 BATTERY CHARGER SET | 1 | |
| F04 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F05 | 191496-7 | FLEXIBLE HOSE SET28(IVO) | 1 | |
| F08 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F11 | 198539-6 | SHELF BRUSH SET28 RED EU | 1 | |
| F15 | 198554-0 | ROUND BRUSH SET 28 RED EU | 1 | |
| F17 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F19 | 198915-4 | FILTER SET | 1 | |
| F21 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F23 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F25 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F27 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F29 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F31 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F33 | 198751-8 | PRE FILTER SET EU | 1 | |
| F35 | 198753-4 | EASY SHAKE OFF FILTER SET | 1 | |
| F36 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F37 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F40 | 191D75-5 | CYCLONE ATTACHMENT SET | 1 | |
| F42 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F92 | 1911L1-0 | CLEANER STAND SET | 1 |
