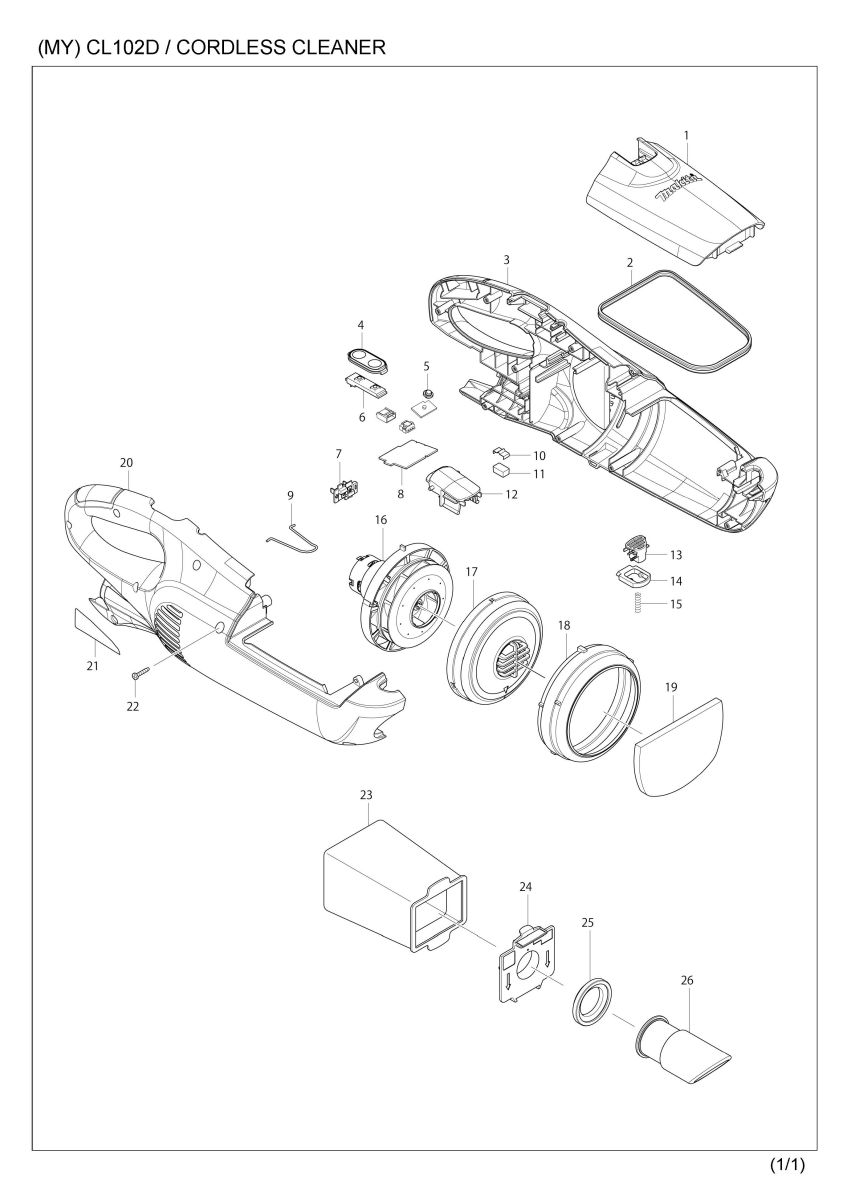

Part Diagram
Total: 48 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 452360-0 | FRONT COVER | 1 | |
| 2 | 424093-7 | SEAL | 1 | |
| 3 | 187000-8 | HOUSING SET | 1 | |
| 3 | C10 | 452359-5 | SPONGE SHEET 40-70 | 2 |
| 3 | D10 | INC. 20 | ||
| 4 | 140463-9 | SWITCH PLATE COMPLETE | 1 | |
| 4 | C10 | 816528-6 | SWITCH LABEL | 1 |
| 5 | 450522-4 | LENS | 1 | |
| 6 | 631973-2 | SWITCH UNIT | 1 | |
| 7 | 643817-4 | TERMINAL | 1 | |
| 008-2 | 632H38-1 | CONTROLLER UNIT | 1 | |
| 9 | 324885-3 | HANGER | 1 | |
| 10 | 232264-0 | LEAF SPRING | 1 | |
| 11 | 424367-6 | RUBBER | 1 | |
| 012-1 | 452364-2 | FRONT COVER JOINT | 1 | |
| 13 | 452362-6 | BUTTON | 1 | |
| 14 | 452352-9 | STOPPER | 1 | |
| 015-1 | 233344-5 | COMPRESSION SPRING 4 | 1 | |
| 16 | 125862-6 | MOTOR ASSEMBLY | 1 | |
| 16 | C10 | 240102-2 | FAN 82 | 1 |
| 16 | C20 | 265199-0 | + PAN HEAD SCREW M3X8 | 2 |
| 16 | C30 | 452455-9 | BASE | 1 |
| 17 | 416030-5 | FAN COVER | 1 | |
| 18 | 424320-2 | RUBBER RING | 1 | |
| 019-1 | 424804-0 | SUPONGE SHEET 76-110 | 1 | |
| 20 | 187000-8 | HOUSING SET | 1 | |
| 20 | C10 | 452359-5 | SPONGE SHEET 40-70 | 2 |
| 20 | D10 | INC. 3 | ||
| 21 | 868815-9 | CL102D NAME PLATE | 1 | |
| 22 | 266429-2 | TAPPING SCREW 3X16 | 10 | |
| 23 | 166084-9 | DUST BAG | 1 | |
| 024-1 | 141088-2 | VALVE STAY COMPLETE | 1 | |
| 024-2 | 143677-9 | VALVE STAY COMPLETE | 1 | |
| 25 | 424094-5 | PACKING | 1 | |
| 26 | 450521-6 | INLET | 1 | |
| 27 | 268271-7 | PIN 3 | 1 | |
| 28 | 233580-3 | TORSION SPRING 4 | 1 | |
| A01-1 | 123485-4 | FLOOR T-NOZZLE 28 IVO | 1 | |
| A01-1 | C10 | 451410-8 | ROLLER | 4 |
| A01-1 | C20 | 268208-4 | PIN 3 | 4 |
| A01-1 | C30 | 424096-1 | WIPER | 1 |
| A02 | 416041-0 | SASH NOZZLE 28 IVO | 1 | |
| A03 | 416043-6 | SASH NOZZLE HOLDER (IVORY) | 1 | |
| A04 | 451424-7 | PIPE | 1 | |
| A05 | 194566-1 | PAPER FILTER SET (5PCS/SET) | 1 | |
| A06A | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A07A | 194550-6 | BATTERY BL1013 SET | 1 | |
| A07-1A | 196066-7 | BATTERY BL1013 SET | 1 |
