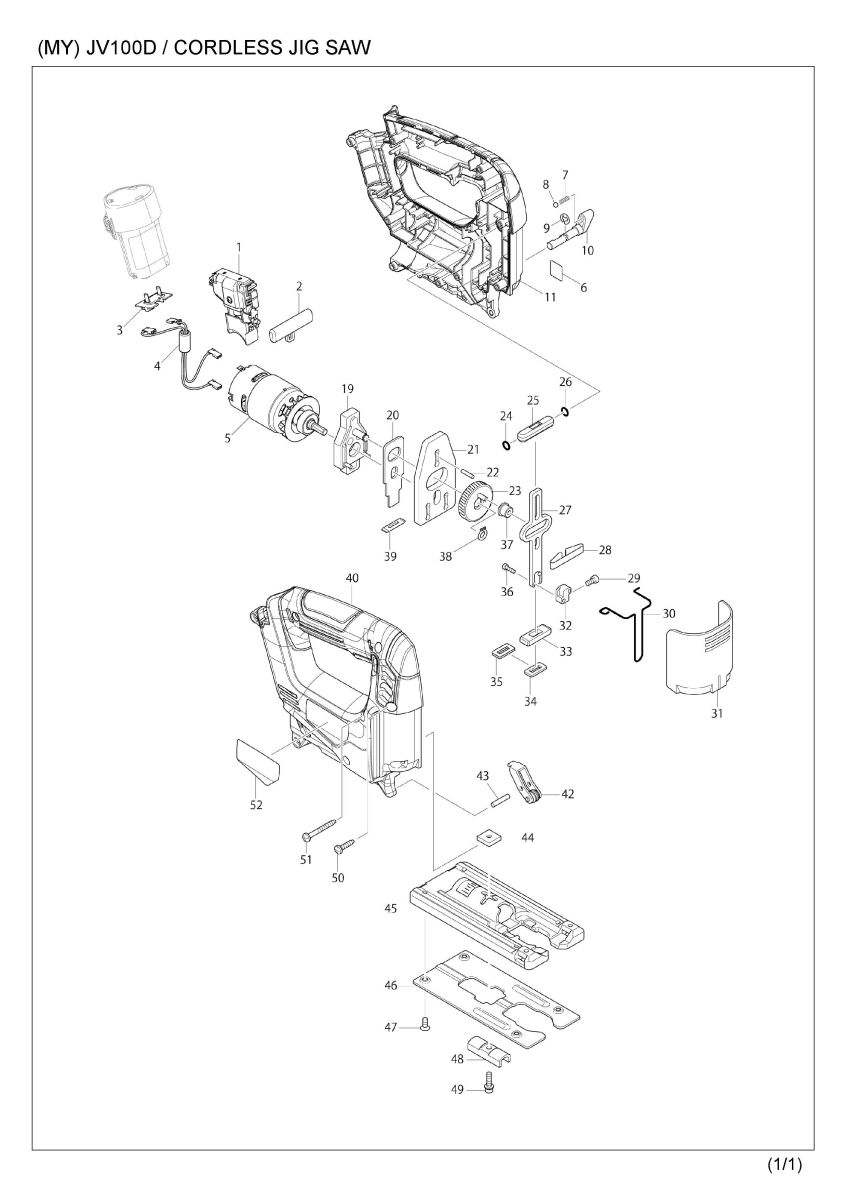

Part Diagram
Total: 70 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 650679-3 | SWITCH C3HW-3A-M | 1 | |
| 002 | 417880-1 | F/R CHANGE LEVER | 1 | |
| 003 | 643830-2 | TERMINAL | 1 | |
| 005 | 629926-3 | DC MOTOR | 1 | |
| 007 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 008 | 216008-6 | STEEL BALL 4 | 1 | |
| 009 | 961011-9 | STOP RING E-4 | 1 | |
| 010 | 272267-2 | LEVER 19 | 1 | |
| 011 | 187216-5 | HOUSING SET | 1 | |
| 011 | D10 | INC. 40 | ||
| 019 | 152600-3 | BEARING CASE COMPLETE | 1 | |
| 020 | 344683-9 | PUSH PLATE | 1 | |
| 021 | 344614-8 | BALANCE PLATE | 1 | |
| 022 | 256254-9 | PIN 3 | 1 | |
| 023 | 153260-4 | GEAR COMPLETE | 1 | |
| 024 | 213038-8 | O RING 5 | 1 | |
| 025 | 313082-6 | SLIDER GUIDE | 1 | |
| 026 | 213038-8 | O RING 5 | 1 | |
| 027 | 344613-0 | SLIDER | 1 | |
| 028 | 232183-0 | LEAF SPRING | 1 | |
| 029 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 030 | 323748-0 | SAFETY WIRE | 1 | |
| 031 | 416476-5 | DUST COVER | 1 | |
| 032 | 313140-8 | BLADE CLAMP | 1 | |
| 033 | 313086-8 | SLIDER SUPPORT | 1 | |
| 034 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | |
| 035 | 344686-3 | SEAL PLATE | 1 | |
| 036 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 037 | 257683-9 | COLLAR SLEEVE | 1 | |
| 038 | 961002-0 | RETAINING RING S-6 | 1 | |
| 039 | 416703-0 | DUST SEAL | 1 | |
| 040 | 187216-5 | HOUSING SET | 1 | |
| 040 | D10 | INC. 11 | ||
| 042 | 158392-2 | RETAINER COMPLETE | 1 | |
| 043 | 256117-9 | PIN 4 | 1 | |
| 044 | 343540-8 | HOLDER | 1 | |
| 045 | 317796-9 | BASE | 1 | |
| 046 | 345441-6 | BASE PLATE | 1 | |
| 047 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 4 | |
| 048-1 | 344685-5 | CLAMP PLATE | 1 | |
| 049 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 050 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 051 | 266351-3 | TAPPING SCREW 4X35 | 1 | |
| 052 | 896564-8 | JV100D NAME PLATE | 1 | |
| A01 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A03 | 192732-4 | GUIDE RULE SET | 1 | |
| A03 | C10 | 165217-3 | GUIDE RULE | 1 |
| A03 | C20 | 323802-0 | GUIDE PIN | 1 |
| A03 | C30 | 271601-3 | KNOB 20 | 1 |
| A03 | C40 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 |
| A04 | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A05 | 194550-6 | BATTERY BL1013 SET | 2 | |
| A05-1 | 196066-7 | BATTERY BL1013 SET | 2 | |
| A06 | 821508-9 | PLASTIC CARRYING CASE | 1 | |
| A06 | C10 | 162315-4 | LATCH | 2 |
| A06 | C20 | 452137-3 | HANDLE | 1 |
| A07 | 890653-1 | JV100DWE PLASTIC CASE LABEL | 2 | |
| F01 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F02 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F03 | 192557-6 | ANTI-SPLITERING DEVICE | 1 | |
| F04 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F05 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F06 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F07-1 | 196066-7 | BATTERY BL1013 SET | 1 | |
| F12 | 194416-0 | SHEET 10000 SET | 1 | |
| F13 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F14 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F15 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F17 | 198704-7 | GUIDE RAIL ADAPTER SET | 1 |
