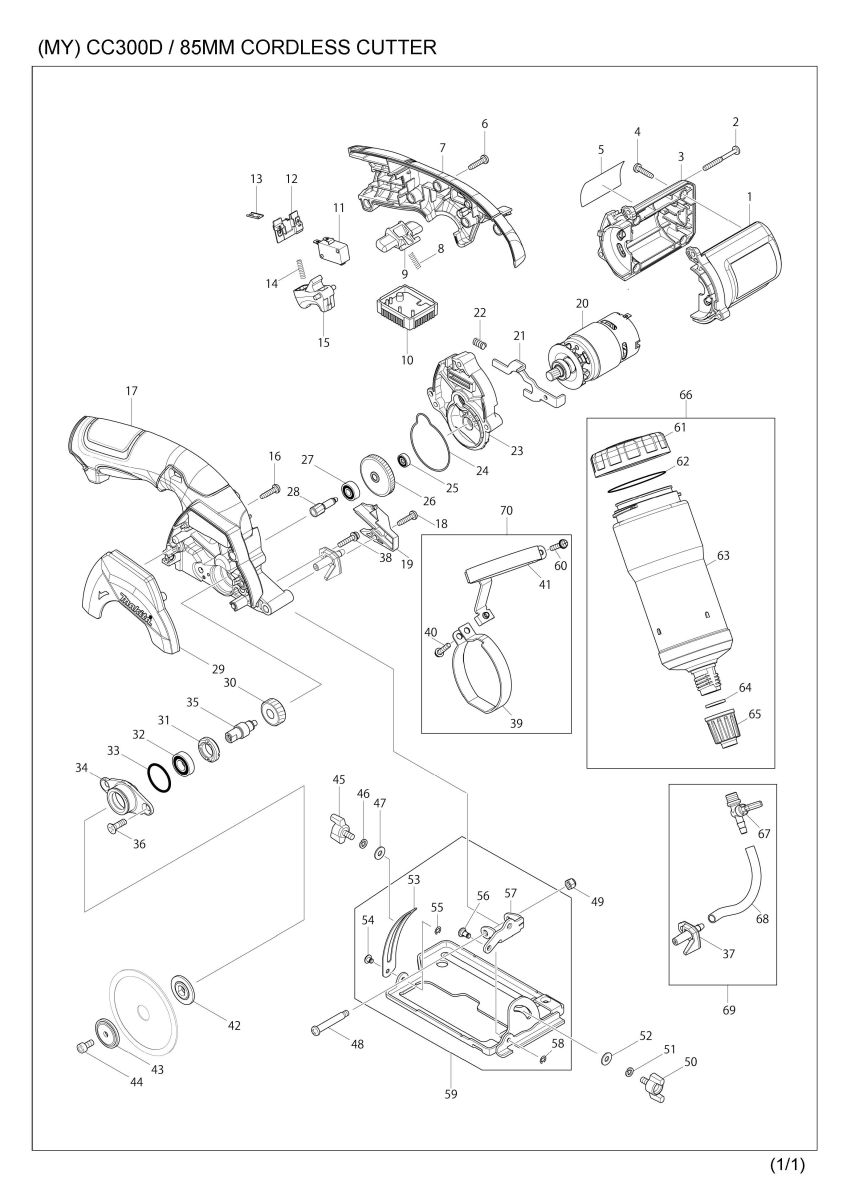

Part Diagram
Total: 94 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 188941-1 | MOTOR HOUSING SET | 1 | |
| 1 | D10 | INC. 3 | ||
| 2 | 266560-4 | TAPPING SCREW 4X40 | 3 | |
| 3 | 188941-1 | MOTOR HOUSING SET | 1 | |
| 3 | D10 | INC. 1 | ||
| 4 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 5 | 896666-0 | CC300D NAME PLATE | 1 | |
| 6 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 7 | 187282-2 | HANDLE SET | 1 | |
| 7 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 7 | D10 | INC. 17 | ||
| 8 | 231469-9 | COMPRESSION SPRING 4 | 1 | |
| 9 | 419664-3 | LOCK OFF LEVER | 1 | |
| 10 | 638892-3 | CONTROLLER UNIT | 1 | |
| 010-1 | 632L89-8 | CONTROLLER UNIT | 1 | |
| 11 | 651891-8 | SWITCH V-15-3A6 | 1 | |
| 12 | 643830-2 | TERMINAL | 1 | |
| 13 | 345998-7 | SET PLATE | 1 | |
| 14 | 231469-9 | COMPRESSION SPRING 4 | 1 | |
| 15 | 419665-1 | SWITCH LEVER | 1 | |
| 16 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 17 | 187282-2 | HANDLE SET | 1 | |
| 17 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 17 | D10 | INC. 7 | ||
| 18 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 19 | 452234-5 | DUCT | 1 | |
| 20 | 629885-1 | DC MOTOR | 1 | |
| 21 | 346337-4 | SHAFT LOCK | 1 | |
| 22 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 23 | 140625-9 | GEAR HOUSING COMPLETE | 1 | |
| 23 | C10 | 213325-5 | O RING 19 | 1 |
| 23 | C10 | 213325-5 | O RING 19 | 1 |
| 24 | 424358-7 | PACKING | 1 | |
| 25 | 210036-3 | BALL BEARING 604ZZ | 1 | |
| 26 | 227737-6 | HELICAL GEAR 47 | 1 | |
| 27 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 28 | 227735-0 | HELICAL GEAR 9B | 1 | |
| 029-1 | 454833-9 | BLADE COVER | 1 | |
| 30 | 227736-8 | HELICAL GEAR 28 | 1 | |
| 31 | 285847-5 | BEARING RETAINER 14-23 | 1 | |
| 32 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 33 | 213435-8 | O RING 26 | 1 | |
| 34 | 318660-7 | BEARING BOX | 1 | |
| 35 | 325983-6 | SPINDLE | 1 | |
| 36 | 265034-2 | + COUNTERSUNK HEAD SCREW M5X1 | 2 | |
| 37 | 453555-8 | NOZZLE | 1 | |
| 38 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 39 | 346578-2 | BAND B | 1 | |
| 40 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 41 | 346579-0 | TANK HOLDER | 1 | |
| 42 | 224435-3 | INNER FLANGE 28 | 1 | |
| 43 | 224177-9 | OUTER FLANGE 28 | 1 | |
| 44 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | |
| 45 | 265760-3 | THUMB SCREW M5X10 | 1 | |
| 46 | 942101-7 | SPRING WASHER 5 | 1 | |
| 046-1 | 253427-5 | SPRING WASHER 5 | 1 | |
| 47 | 941101-4 | FLAT WASHER 5 | 1 | |
| 48 | 265056-2 | + PAN HEAD SCREW M5 | 1 | |
| 49 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 50 | 265760-3 | THUMB SCREW M5X10 | 1 | |
| 51 | 942101-7 | SPRING WASHER 5 | 1 | |
| 051-1 | 253427-5 | SPRING WASHER 5 | 1 | |
| 52 | 941101-4 | FLAT WASHER 5 | 1 | |
| 53 | 346587-1 | DEPTH GUIDE | 1 | |
| 54 | 268004-0 | PIN 4 | 1 | |
| 55 | 961017-7 | STOP RING E-3 | 1 | |
| 56 | 268028-6 | PIN 5 | 1 | |
| 57 | 346586-3 | ANGULAR GUIDE | 1 | |
| 58 | 961017-7 | STOP RING E-3 | 1 | |
| 59 | 135503-6 | BASE ASS'Y | 1 | |
| 59 | D10 | INC. 53-58 | ||
| 60 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 61 | 453557-4 | CAP B | 1 | |
| 62 | 213605-9 | O RING 50 | 1 | |
| 63 | 453556-6 | WATER SUPPLY TANK | 1 | |
| 64 | 261056-0 | RUBBER WASHER 12 | 1 | |
| 064-1 | 261173-6 | RUBBER WASHER 12 | 1 | |
| 65 | 453554-0 | CAP A | 1 | |
| 66 | 187277-5 | WATER SUPPLY TANK SET | 1 | |
| 66 | D10 | INC. 61-65 | ||
| 066-1 | 183U11-7 | WATER SUPPLY TANK SET | 1 | |
| 066-1 | D10 | INC. 61-65 | ||
| 67 | 152536-6 | WATER SUPPLY COCK COMPLETE | 1 | |
| 68 | 412107-4 | VINYL TUBE 5 | 1 | |
| 69 | 187278-3 | WATER SUPPLY COCK SET | 1 | |
| 69 | D10 | INC. 37,67,68 | ||
| 70 | 187276-7 | TANK HOLDER SET | 1 | |
| 70 | D10 | INC. 39-41,60 | ||
| A01 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A02 | B-21082 | DIAMOND WHEEL 85MM RIM WET | 1 | |
| A03A | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A04A | 194550-6 | BATTERY BL1013 SET | 1 | |
| A04-1A | 196066-7 | BATTERY BL1013 SET | 1 | |
| F01-1 | 196066-7 | BATTERY BL1013 SET | 1 |
