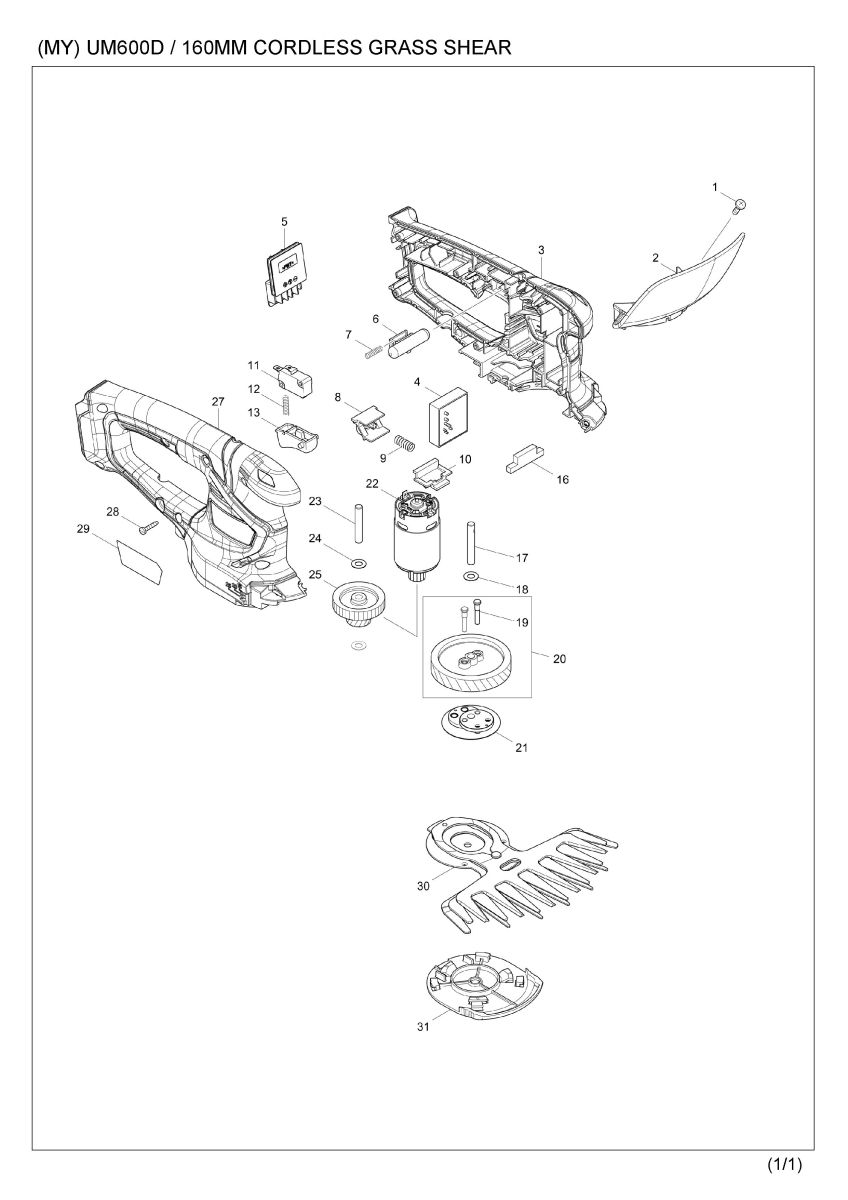

Part Diagram
Total: 70 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 915116-7 | BINDING HEAD SCREW M4X12 | 1 | |
| 002 | 144342-3 | PROTECTOR COMPLETE | 1 | |
| 002 | C10 | 819948-3 | CAUTION LABEL | 1 |
| 002-1 | 140V97-0 | PROTECTOR COMPLETE | 1 | |
| 002-1 | C10 | 819948-3 | CAUTION LABEL | 1 |
| 002-1 | C11 | 819948-3 | CAUTION LABEL | 1 |
| 002-2 | 1410D3-4 | PROTECTOR COMPLETE | 1 | |
| 002-2 | C12 | 8072W3-6 | CAUTION LABEL | 1 |
| 003 | 183G04-0 | HOUSING SET | 1 | |
| 003 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 003 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 003 | C30 | 346275-0 | PLATE | 2 |
| 003 | D10 | INC. 27 | ||
| 003-1 | 183U51-5 | HOUSING SET | 1 | |
| 003-1 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 003-1 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 003-1 | C30 | 346275-0 | PLATE | 2 |
| 003-1 | D10 | INC. 27 | ||
| 004 | 632K10-1 | CONTROLLER UNIT | 1 | |
| 004-1 | 632R77-1 | CONTROLLER UNIT | 1 | |
| 004-1 | C20 | 654086-2 | RECEPTACLE | 2 |
| 005 | 644813-5 | TERMINAL | 1 | |
| 006 | 452438-9 | LOCK OFF BUTTON | 1 | |
| 006-1 | 413A16-6 | LOCK OFF BUTTON | 1 | |
| 007 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 008 | 457534-8 | SLIDE PLATE | 1 | |
| 009 | 234339-1 | COMPRESSION SPRING 6 | 1 | |
| 010 | 454879-5 | LOCK LEVER | 1 | |
| 011 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 012 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 013 | 417564-1 | SWITCH LEVER | 1 | |
| 016 | 451814-4 | DUST GUARD | 1 | |
| 017 | 268254-7 | PIN 6 | 1 | |
| 018 | 253715-0 | FLAT WASHER 6 | 1 | |
| 019 | 268256-3 | PIN 4 | 2 | |
| 020 | 135883-0 | HELICAL GEAR 47 ASS'Y | 1 | |
| 020 | D10 | INC. 19 | ||
| 021 | 161598-3 | CRANK COMPLETE | 1 | |
| 022 | 629258-8 | DC MOTOR | 1 | |
| 023 | 268076-5 | PIN 6 | 1 | |
| 024 | 253715-0 | FLAT WASHER 6 | 2 | |
| 025 | 226831-1 | GEAR 12-31 | 1 | |
| 027 | 183G04-0 | HOUSING SET | 1 | |
| 027 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 027 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 027 | C30 | 346275-0 | PLATE | 2 |
| 027 | D10 | INC. 3 | ||
| 027-1 | 183U51-5 | HOUSING SET | 1 | |
| 027-1 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 027-1 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 027-1 | C30 | 346275-0 | PLATE | 2 |
| 027-1 | D10 | INC. 3 | ||
| 028 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| 029 | 852Y86-8 | UM600D NAME PLATE | 1 | |
| 030 | 195267-4 | SHEAR BLADE ASSEMBLY SET | 1 | |
| 030 | C10 | 188369-3 | OIL VESSEL SET | 1 |
| 030-1 | 195267-4 | SHEAR BLADE ASSEMBLY SET | 1 | |
| 030-1 | C10 | 188369-3 | OIL VESSEL SET | 1 |
| 031 | 140451-6 | UNDER COVER COMPLETE | 1 | |
| A01 | 452055-5 | BLADE COVER | 1 | |
| A02 | 457426-1 | GRASS RECEIVER 160 | 1 | |
| A06B | 456128-6 | BATTERY COVER | 1 | |
| A07B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A08B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A08-1B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A08-2B | 191B85-0 | BATTERY BL1021B SET | 1 | |
| A08-3B | 197396-9 | BATTERY BL1021B SET | 1 | |
| F02-1 | 195267-4 | SHEAR BLADE ASSEMBLY SET | 1 | |
| F07 | 198401-5 | CHIP RECEIVER SET | 1 | |
| F09 | 198408-1 | SHEAR BLADE ASSEMBLY 200 S SET | 1 |
