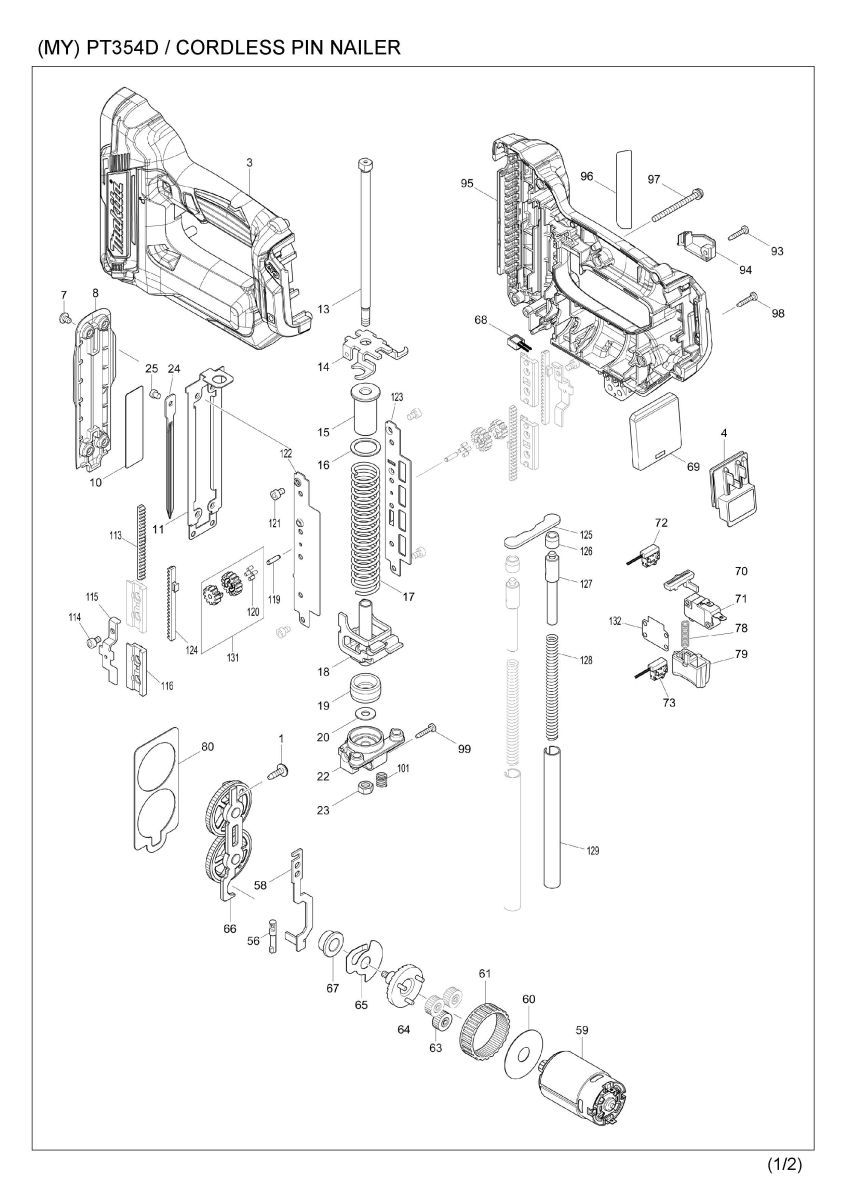

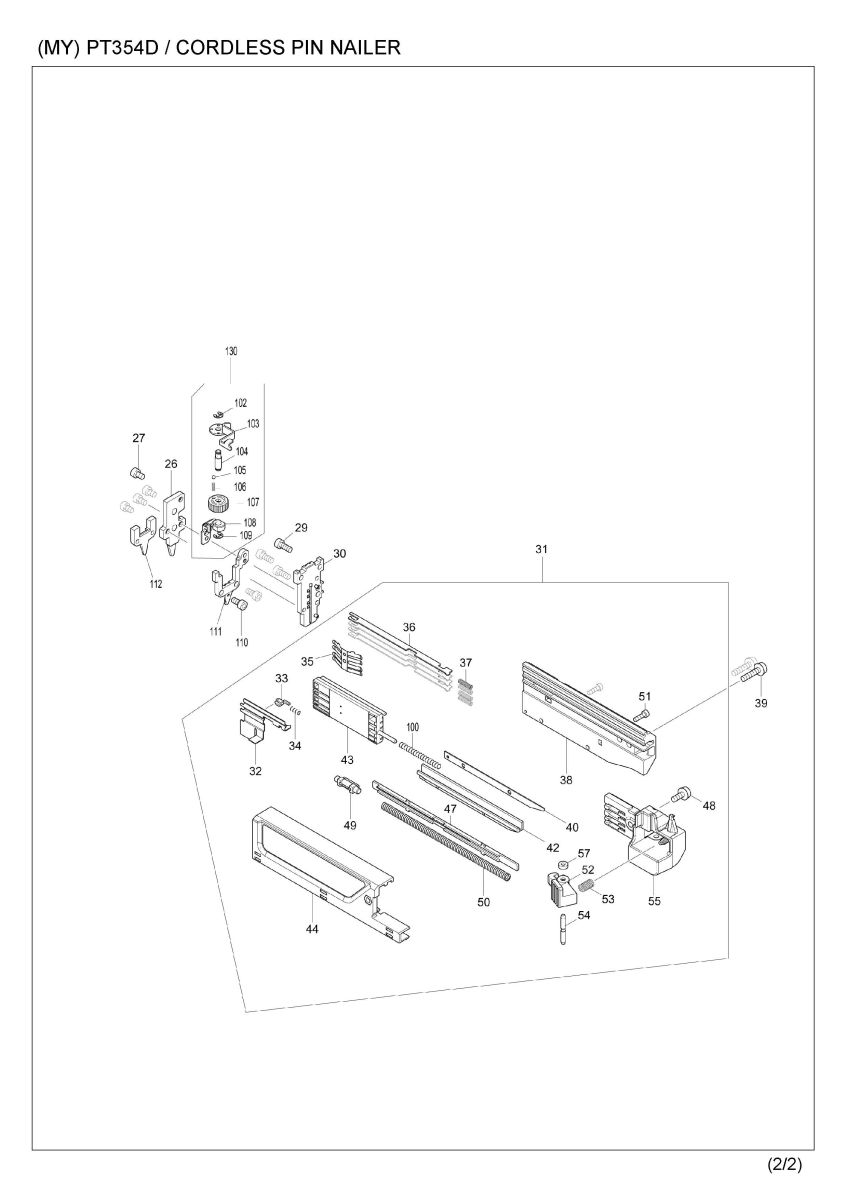

Part Diagram
Total: 146 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266901-4 | TAPPING SCREW 4X14 | 1 | |
| 3 | 183G24-4 | HOUSING SET | 1 | |
| 3 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 3 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 3 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 3 | D10 | INC. 95 | ||
| 4 | 644813-5 | TERMINAL | 1 | |
| 7 | 915101-0 | BINDING HEAD SCREW M4X6 | 4 | |
| 8 | 457384-1 | FRONT COVER | 1 | |
| 008-1 | 459308-3 | FRONT COVER | 1 | |
| 10 | 345704-0 | UPPER PLATE | 1 | |
| 010-1 | 347528-0 | UPPER PLATE | 1 | |
| 11 | 347140-6 | RAIL | 1 | |
| 13 | 326903-3 | GUIDE BOLT | 1 | |
| 14 | 347143-0 | BOTTOM PLATE | 1 | |
| 014-1 | 347671-5 | BOTTOM PLATE | 1 | |
| 15 | 457389-1 | SPRING HOLDER | 1 | |
| 16 | 347148-0 | SPRING BASE | 1 | |
| 17 | 232364-6 | COMPRESSION SPRING 17 | 1 | |
| 18 | 347141-4 | HAMMER | 1 | |
| 19 | 424952-5 | CUSHION | 1 | |
| 20 | 253804-1 | FLAT WASHER 6 | 1 | |
| 22 | 319537-9 | HOLDER | 1 | |
| 022-1 | 319981-0 | HOLDER | 1 | |
| 23 | 931302-2 | HEX. NUT M6 | 1 | |
| 023-1 | 252273-3 | HEX. NUT M6 | 1 | |
| 24 | 345702-4 | DRIVER | 1 | |
| 25 | 268157-5 | PIN 4 | 1 | |
| 025-1 | 256882-0 | FLAT FILLISTER HD. PIN 4 | 1 | |
| 26 | 144291-4 | DRIVER GUIDE COVER COMPLETE | 1 | |
| 026-1 | 140H39-0 | DRIVER GUIDE COVER COMPLETE | 1 | |
| 026-2 | 144291-4 | DRIVER GUIDE COVER COMPLETE | 1 | |
| 27 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 4 | |
| 29 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 3 | |
| 30 | 144330-0 | DRIVER GUIDE COMPLETE | 1 | |
| 31 | 135897-9 | MAGAZINE ASSY | 1 | |
| 31 | D10 | INC. 32-38,40,42-44,47-55,57, | ||
| 31 | D20 | INC. 100 | ||
| 32 | 347138-3 | PUSHER | 1 | |
| 33 | 310176-8 | STOPPER | 1 | |
| 033-1 | 310176-8 | STOPPER | 1 | |
| 34 | 233018-8 | COMPRESSION SPRING 3 | 1 | |
| 35 | 232362-0 | LEAF SPRING | 1 | |
| 36 | 346239-4 | NAIL STOPPER | 4 | |
| 37 | 232367-0 | COMPRESSION SPRING 3 | 4 | |
| 38 | 457379-4 | MAGAZINE | 1 | |
| 038-1 | 458195-7 | MAGAZINE | 1 | |
| 39 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 40 | 347137-5 | SPACER | 1 | |
| 42 | 144335-0 | LOWER RAIL COMPLETE | 1 | |
| 43 | 457382-5 | NAIL GUIDE HOLDER | 1 | |
| 44 | 457380-9 | UPPER RAIL | 1 | |
| 44 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 47 | 457387-5 | SPRING COVER | 1 | |
| 48 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 49 | 457383-3 | SHOULDER PIN 5-6 | 1 | |
| 50 | 232366-2 | COMPRESSION SPRING 5 | 1 | |
| 51 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 52 | 457388-3 | LEVER | 1 | |
| 53 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 54 | 256793-9 | PIN 3 | 1 | |
| 55 | 457381-7 | SLIDE DOOR CAP | 1 | |
| 56 | 268158-3 | PIN 5 | 1 | |
| 57 | 262054-7 | URETHANE RING 3 | 1 | |
| 58 | 347139-1 | LOCK ARM | 1 | |
| 59 | 629268-5 | DC MOTOR | 1 | |
| 60 | 267053-4 | FLAT WASHER 12 | 1 | |
| 61 | 227166-3 | INTERNAL GEAR 69 | 1 | |
| 63 | 221961-3 | SPUR GEAR 27 | 3 | |
| 64 | 154973-0 | SPUR GEAR 7 COMPLETE | 1 | |
| 65 | 345773-1 | ANTI BACK PLATE | 1 | |
| 66 | 144290-6 | SPUR GEAR 55 COMPLETE | 1 | |
| 066-1 | 140U73-8 | SPUR GEAR 55 COMPLETE | 1 | |
| 67 | 214060-8 | PLANE BEARING 10 | 1 | |
| 68 | 620507-6 | LED CIRCUIT | 1 | |
| 69 | 632J92-7 | CONTROLLER UNIT | 1 | |
| 69 | C10 | 654069-2 | RECEPTACLE | 2 |
| 069-1 | 632J92-7 | CONTROLLER UNIT | 1 | |
| 069-1 | C10 | 654069-2 | RECEPTACLE | 2 |
| 70 | 456799-9 | TRIGGER LOCK | 1 | |
| 71 | 632J09-0 | SWITCH UNIT | 1 | |
| 071-1 | 632M82-8 | SWITCH UNIT | 1 | |
| 72 | 632G60-2 | SWITCH UNIT | 1 | |
| 73 | 632K06-2 | SWITCH UNIT | 1 | |
| 78 | 232370-1 | COMPRESSION SPRING 5 | 1 | |
| 79 | 457386-7 | TRIGGER | 1 | |
| 80 | 347142-2 | GEAR PLATE | 1 | |
| 93 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 94 | 457385-9 | HOUSING R COVER | 1 | |
| 95 | 183G24-4 | HOUSING SET | 1 | |
| 95 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 95 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 95 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 95 | D10 | INC. 3 | ||
| 96 | 853C64-9 | PT354D NAME PLATE | 1 | |
| 97 | 911173-3 | PAN HEAD SCREW M4X45 | 1 | |
| 98 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 99 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 100 | 233459-8 | COMPRESSION SPRING 3 | 1 | |
| 101 | 232365-4 | COMPRESSION SPRING 7 | 1 | |
| 102 | 961017-7 | STOP RING E-3 | 1 | |
| 103 | 347136-7 | CONTACT ARM | 1 | |
| 104 | 326905-9 | ADJUSTER SHAFT | 1 | |
| 105 | 216031-1 | STEEL BALL 2.3 | 1 | |
| 106 | 234254-9 | COMPRESSION SPRING 2 | 1 | |
| 107 | 457378-6 | ADJUSTER | 1 | |
| 108 | 310778-0 | ARM | 1 | |
| 109 | 961017-7 | STOP RING E-3 | 1 | |
| 110 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 2 | |
| 111 | 144329-5 | CENTER PLATE COMPLETE | 1 | |
| 112 | 310777-2 | CONTACT TOP COVER | 1 | |
| 112-1 | 310922-9 | CONTACT TOP COVER | 1 | |
| 112-2 | 310777-2 | CONTACT TOP COVER | 1 | |
| 113 | 310780-3 | COUNTER WEIGHT A | 2 | |
| 113-1 | 310924-5 | COUNTER WEIGHT A | 2 | |
| 114 | 251566-5 | H.S.H BOLT M4X6 WITH W | 2 | |
| 115 | 347146-4 | PINION GUIDE | 2 | |
| 116 | 457390-6 | COUNTER WEIGHT HOLDER | 4 | |
| 119 | 326902-5 | PINION SHAFT | 2 | |
| 120 | 424953-3 | DUMPER RUBBER | 8 | |
| 121 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 4 | |
| 122 | 347145-6 | GUIDE RAIL R | 1 | |
| 123 | 347144-8 | GUIDE RAIL L | 1 | |
| 124 | 310781-1 | COUNTER WEIGHT B | 2 | |
| 125 | 347147-2 | COUNTER STOPPER | 1 | |
| 125-1 | 347672-3 | COUNTER STOPPER | 1 | |
| 126 | 424954-1 | COUNTER CUSHION | 2 | |
| 127 | 326904-1 | WEIGHT | 2 | |
| 128 | 232363-8 | COMPRESSION SPRING 7 | 2 | |
| 129 | 326901-7 | GUIDE PIPE | 2 | |
| 129-1 | 327550-3 | GUIDE PIPE | 2 | |
| 130 | 135857-1 | CONTACT ARM ASSY | 1 | |
| 130 | D10 | INC. 102-109 | ||
| 131 | 135855-5 | SPUR GEAR ASSEMBLY | 2 | |
| 131 | D10 | INC. 120 | ||
| 131-1 | 136153-0 | SPUR GEAR ASSY | 2 | |
| 131-2 | 136104-3 | SPUR GEAR ASSEMBLY | 2 | |
| 132 | 457809-5 | SWITCH GUARD | 1 | |
| A01 | 195246-2 | SAFETY GOGGLE | 1 | |
| A02 | 251314-2 | + SCREW M4X12 | 1 | |
| A03 | 346909-5 | HOOK | 1 | |
| A04 | 424955-9 | NOSE ADAPTER | 2 | |
| A04-1 | 422372-7 | NOSE ADAPTER | 2 | |
| A05 | 783201-2 | HEX. WRENCH 3 | 1 | |
| B01 | 127762-6 | CENTER PLATE ASSEMBLY | 1 | |
| B01 | D10 | INC. 110-112 |
