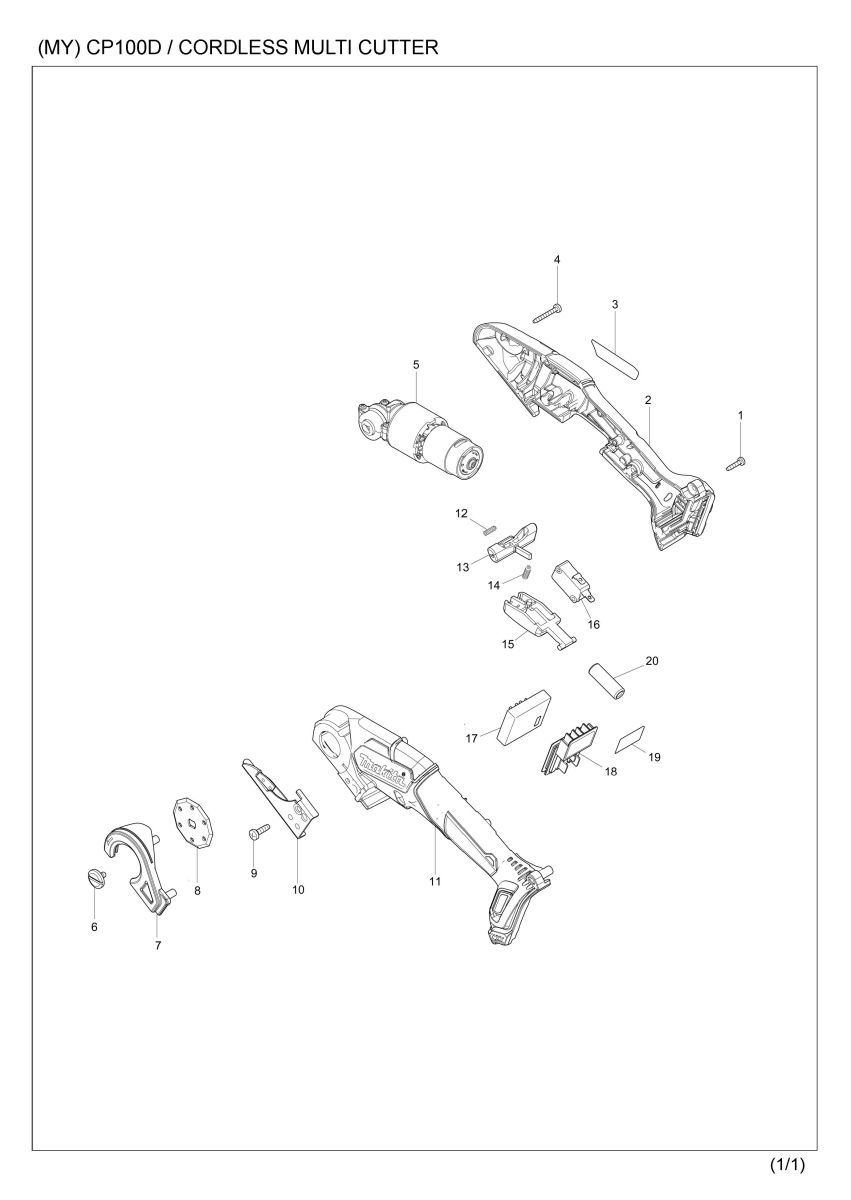

Part Diagram
Total: 32 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266404-8 | TAPPING SCREW BIND 3X14 | 6 | |
| 2 | 183G66-8 | HOUSING SET | 1 | |
| 2 | D10 | INC. 11 | ||
| 3 | 853H52-6 | CP100D NAME PLATE | 1 | |
| 4 | 251574-6 | TAPPING SCREW BIND 3X24 | 2 | |
| 5 | 126614-8 | GEAR ASSEMBLY | 1 | |
| 6 | 251571-2 | - FLAT HEAD SCREW M4X8 | 1 | |
| 7 | 457828-1 | BLADE COVER | 1 | |
| 8 | 198604-1 | MULTI CUTTER BLADE SET | 1 | |
| 9 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 10 | 144620-1 | UNDER BLADE COMPLETE | 1 | |
| 11 | 183G66-8 | HOUSING SET | 1 | |
| 11 | D10 | INC. 2 | ||
| 12 | 231469-9 | COMPRESSION SPRING 4 | 1 | |
| 13 | 457829-9 | LOCKOFF LEVER | 1 | |
| 14 | 233438-6 | COMPRESSION SPRING 4 | 1 | |
| 15 | 457830-4 | SWITCH LEVER | 1 | |
| 16 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 17 | 620687-8 | CONTROLLER | 1 | |
| 18 | 644813-5 | TERMINAL | 1 | |
| 19 | 853H60-7 | CP100D SERIAL NO. LABEL | 1 | |
| A01B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A01B | D10 | COMPO-PARTS | ||
| A01C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A01C | D10 | COMPO-PARTS | ||
| A02B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A02C | 197406-2 | BATTERY BL1041B SET | 1 | |
| A02-1B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A02-1C | 197406-2 | BATTERY BL1041B SET | 1 | |
| A02-2B | 191B85-0 | BATTERY BL1021B SET | 1 | |
| A02-2C | 191B86-8 | BATTERY BL1041B SET | 1 | |
| A03 | 198589-1 | TOOL BAG SET | 1 |
