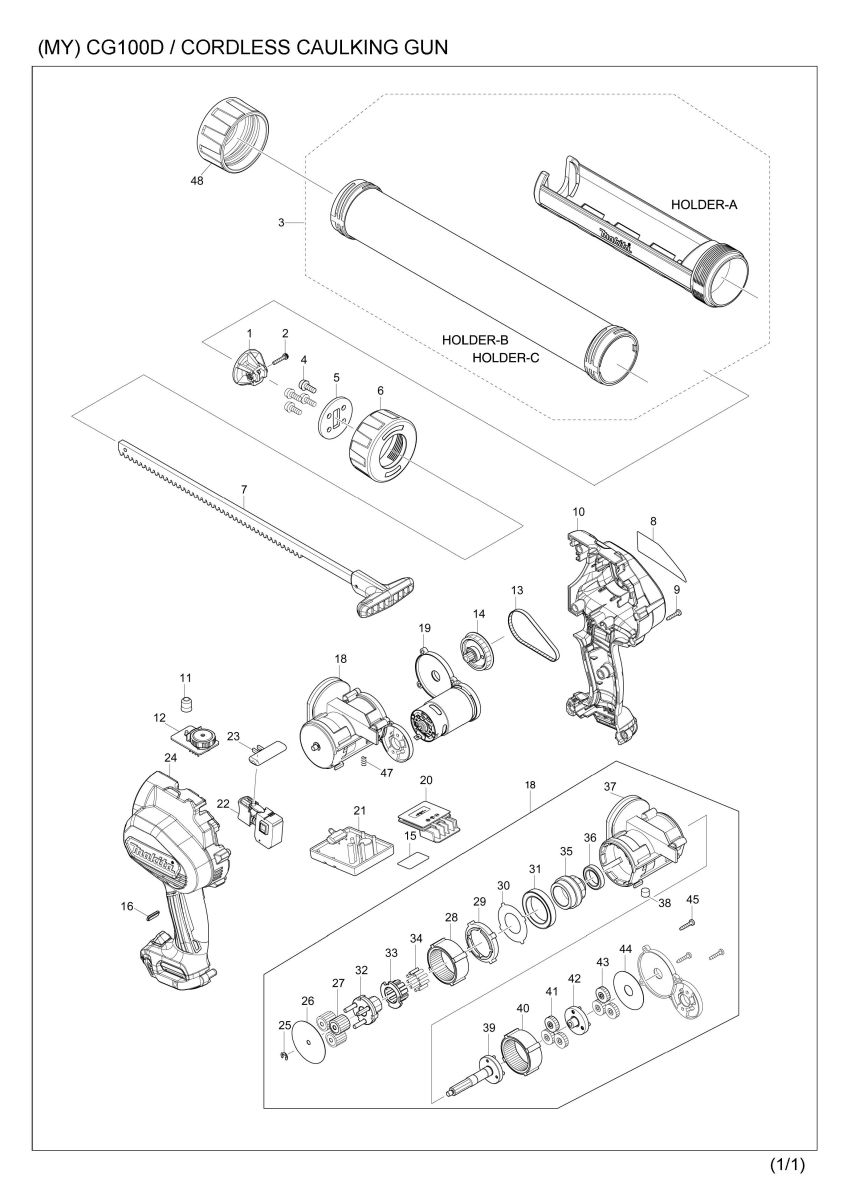

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 142071-2 | PISTON A COMPLETE | 1 | |
| 1 | 142072-0 | PISTON B COMPLETE | 1 | |
| 1 | 143221-2 | PISTON D COMPLETE | 1 | |
| 2 | 266827-0 | PAN HEAD SCREW M3X18 WITH WR | 1 | |
| 3 | 454275-7 | HOLDER A | 1 | |
| 3 | 141861-0 | HOLDER B COMPLETE | 1 | |
| 3 | 455951-6 | HOLDER C | 1 | |
| 4 | 265074-0 | PAN HEAD SCREW M5X16 | 4 | |
| 5 | 346649-5 | PLATE | 1 | |
| 6 | 143223-8 | HOLDER JOINT C COMPLETE | 1 | |
| 006E | C10 | 231985-1 | RING SPRING 43 | 1 |
| 006E | C20 | 326538-0 | RETAINER | 1 |
| 006E | C30 | 455952-4 | HOLDER JOINT C | 1 |
| 6 | 454223-6 | HOLDER JOINT A | 1 | |
| 6 | 318958-2 | HOLDER JOINT B | 1 | |
| 7 | 142041-1 | RACK 42 COMPLETE | 1 | |
| 7 | 142042-9 | RACK 64 COMPLETE | 1 | |
| 7 | 143220-4 | RACK 53 COMPLETE | 1 | |
| 8 | 853S36-0 | CG100D NAME PLATE | 1 | |
| 9 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 10 | 183H54-1 | HOUSING SET | 1 | |
| 10 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 10 | D10 | INC. 24 | ||
| 11 | 418821-0 | LENS | 1 | |
| 12 | 620180-2 | SUB CONTROLLER | 1 | |
| 13 | 225097-0 | SYNCHRO BELT 4-176 | 1 | |
| 14 | 142038-0 | SPUR GEAR 9A COMPLETE | 1 | |
| 15 | 853S38-6 | CG100D SERIAL NO. LABEL | 1 | |
| 16 | 454230-9 | LENS | 1 | |
| 18 | 126253-4 | GEAR ASSEMBLY | 1 | |
| 18 | D10 | INC. 25-45 | ||
| 19 | 144863-5 | MOTOR COMPLETE | 1 | |
| 20 | 644813-5 | TERMINAL | 1 | |
| 21 | 632K95-7 | CONTROLLER UNIT | 1 | |
| 21 | C10 | 620762-0 | LED CIRCUIT | 1 |
| 22 | 650632-9 | SWITCH | 1 | |
| 23 | 451162-1 | LOCK LEVER | 1 | |
| 24 | 183H54-1 | HOUSING SET | 1 | |
| 24 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 24 | D10 | INC. 10 | ||
| 25 | 961011-9 | STOP RING E-4 | 1 | |
| 26 | 267465-1 | FLAT WASHER 5 | 1 | |
| 27 | 227311-0 | SPUR GEAR 19B | 3 | |
| 28 | 227309-7 | INTERNAL GEAR 48 | 1 | |
| 29 | 144375-8 | SPACER COMPLETE | 1 | |
| 30 | 346721-3 | PLATE 23 | 1 | |
| 31 | 211294-4 | BALL BEARING 6806LLU | 1 | |
| 32 | 141860-2 | CARRIER A COMPLETE | 1 | |
| 33 | 313253-5 | CARRIER B | 1 | |
| 34 | 256255-7 | PIN 3 | 9 | |
| 35 | 227312-8 | SPUR GEAR 10 | 1 | |
| 36 | 211482-3 | BALL BEARING 6803LLU | 1 | |
| 37 | 454219-7 | GEAR HOUSING | 1 | |
| 38 | 313257-7 | MAGNET | 1 | |
| 39 | 141859-7 | SPUR GEAR 9C COMPLETE | 1 | |
| 40 | 227309-7 | INTERNAL GEAR 48 | 1 | |
| 41 | 227310-2 | SPUR GEAR 19A | 3 | |
| 42 | 141858-9 | SPUR GEAR 9B COMPLETE | 1 | |
| 43 | 227310-2 | SPUR GEAR 19A | 3 | |
| 44 | 267466-9 | FLAT WASHER 12 | 1 | |
| 45 | 266429-2 | TAPPING SCREW 3X16 | 3 | |
| 47 | 234315-5 | COMPRESSION SPRING 6 | 1 | |
| 48 | 318958-2 | HOLDER JOINT B | 1 | |
| 48 | 455952-4 | HOLDER JOINT C | 1 | |
| A01 | 195246-2 | SAFETY GOGGLE | 1 | |
| A02 | 821710-4 | PLASTIC CASE | 1 | |
| A02B | C10 | 162271-8 | LATCH | 2 |
| A02 | 123221-8 | PISTON C ASSEMBLY | 1 | |
| A02C | C10 | 424546-6 | RUBBER SEAL | 1 |
| A03 | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A03 | 142071-2 | PISTON A COMPLETE | 1 | |
| A04 | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04 | 266827-0 | PAN HEAD SCREW M3X18 WITH WR | 2 | |
| A04-1 | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04-2 | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A05 | 456128-6 | BATTERY COVER | 2 | |
| A05 | 424547-4 | RUBBER RING | 1 | |
| A06 | 454226-0 | NOZZLE | 3 | |
| A07D | 821710-4 | PLASTIC CASE | 1 | |
| A07D | C10 | 162271-8 | LATCH | 2 |
| A08D | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A08D | D10 | COMPO-PARTS | ||
| A09D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A09-1D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A09-2D | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A10D | 456128-6 | BATTERY COVER | 2 |
