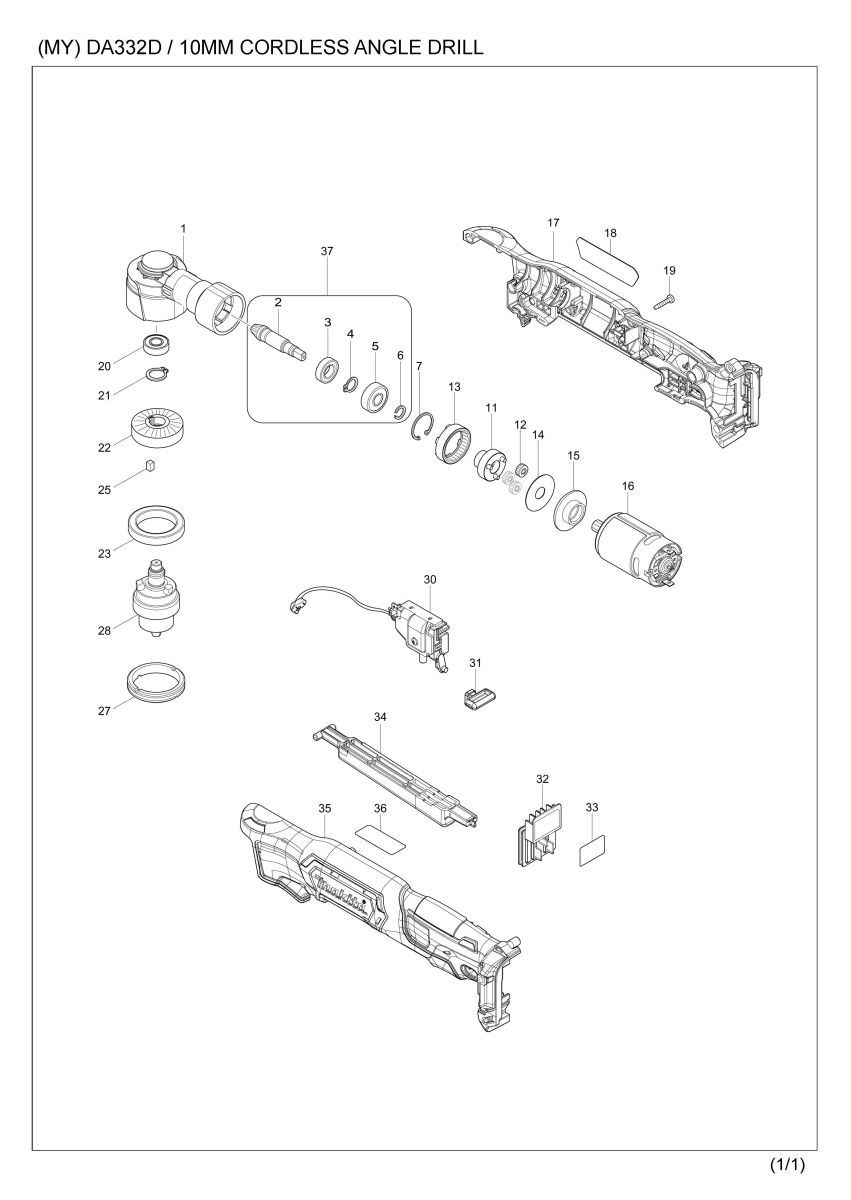

Part Diagram
Total: 57 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 319634-1 | GEAR HOUSING | 1 | |
| 2 | 221570-8 | SPIRAL BEVEL GEAR 6 | 1 | |
| 002-1 | 226195-3 | SPIRAL BEVEL GEAR 6 | 1 | |
| 3 | 210171-7 | BALL BEARING 6800ZZ | 1 | |
| 4 | 961006-2 | RETAINING RING S-10 | 1 | |
| 5 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 6 | 961034-7 | RETAINING RING | 1 | |
| 7 | 962102-9 | RETAINING RING R-22 | 1 | |
| 11 | 144701-1 | CARRIER COMPLETE | 1 | |
| 12 | 221572-4 | SPUR GEAR 17 | 3 | |
| 13 | 221569-3 | INTERNAL GEAR 48 | 1 | |
| 14 | 253396-0 | FLAT WASHER 10 | 1 | |
| 15 | 457972-4 | MOTOR BRACKET | 1 | |
| 16 | 629289-7 | DC MOTOR | 1 | |
| 17 | 183H38-9 | HOUSING SET | 1 | |
| 17 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 17 | D10 | INC. 35 | ||
| 18 | 853T44-7 | DA332D NAME PLATE | 1 | |
| 19 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 20 | 211166-3 | BALL BEARING 698DDW | 1 | |
| 21 | 961052-5 | RETAINING RING S-12 | 1 | |
| 22 | 227601-1 | SPIRAL BEVEL GEAR 31 | 1 | |
| 23 | 211423-9 | BALL BEARING 6806DDW | 1 | |
| 25 | 254201-4 | KEY 4 | 1 | |
| 27 | 285842-5 | BEARING RETAINER 36-43 | 1 | |
| 28 | 763245-8 | DRILL CHUCK S10 | 1 | |
| 30 | 651097-8 | SWITCH C3HW-3A-PLF5MS-W | 1 | |
| 31 | 450126-2 | FR CHANGE LEVER | 1 | |
| 32 | 644813-5 | TERMINAL | 1 | |
| 33 | 853T61-7 | DA332D SERIAL NO. LABEL | 1 | |
| 34 | 457973-2 | SWITCH LEVER | 1 | |
| 35 | 183H38-9 | HOUSING SET | 1 | |
| 35 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 35 | D10 | INC. 17 | ||
| 37 | 135922-6 | GEAR ASSEMBLY | 1 | |
| 37 | D10 | INC. 2-6 | ||
| 037-1 | 135922-6 | GEAR ASSEMBLY | 1 | |
| 037-1 | D10 | INC. 2-6,38 | ||
| 037-2 | 135977-1 | GEAR ASS'Y | 1 | |
| 037-2 | D10 | INC. 2-6 | ||
| 38 | 253310-6 | THIN WASHER 10 | 1 | |
| A01 | 784244-7 | + BIT 2-50 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03 | 251314-2 | + SCREW M4X12 | 2 | |
| A04 | 763450-7 | CHUCK KEY S10 | 1 | |
| A05 | 457974-0 | KEY HOLDER | 1 | |
| A06B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A06C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A07B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A07-1B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07-1C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A07-2B | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A07-2C | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A08 | 456128-6 | BATTERY COVER | 1 | |
| A09 | 821723-5 | PLASTIC CARRYING CASE | 1 | |
| A09B | C10 | 162315-4 | LATCH | 2 |
