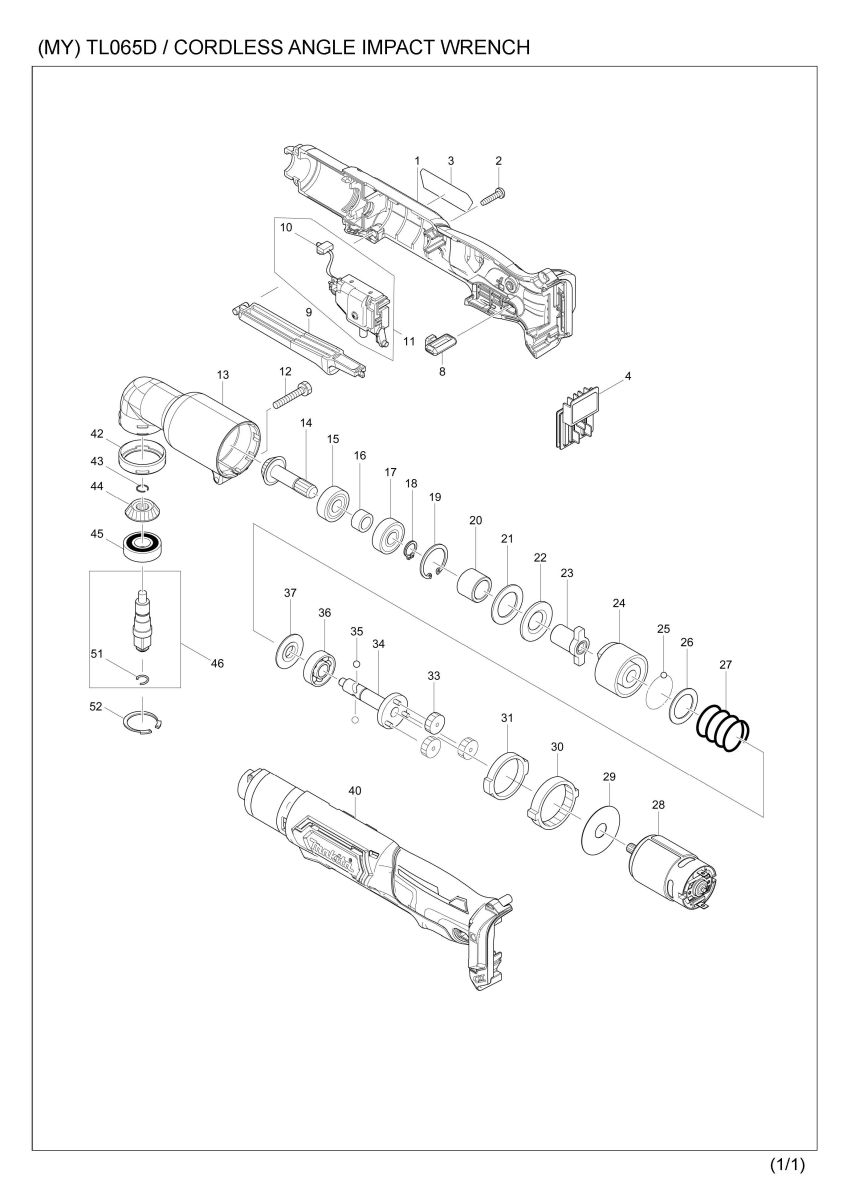

Part Diagram
Total: 77 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183G43-0 | HOUSING SET | 1 | |
| 001 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 40 | ||
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 003 | 853H04-7 | TL065D NAME PLATE | 1 | |
| 004 | 644813-5 | TERMINAL | 1 | |
| 008 | 450126-2 | FR CHANGE LEVER | 1 | |
| 009 | 450125-4 | SWITCH LEVER | 1 | |
| 010 | 620690-9 | LED CIRCUIT | 1 | |
| 011 | 632K58-3 | SWITCH UNIT | 1 | |
| 011 | D10 | INC. 10 | ||
| 012 | 265409-5 | + HEX. BOLT M5X30 | 1 | |
| 013 | 152461-1 | ANGLE HEAD COMPLETE | 1 | |
| 014 | 226720-0 | ZEROL BEVEL GEAR 13 | 1 | |
| 014-1 | 227A73-6 | ZEROL BEVEL GEAR 13 | 1 | |
| 015 | 210067-2 | BALL BEARING 6000ZZ | 1 | |
| 016 | 257428-5 | SLEEVE 10 | 1 | |
| 017 | 210067-2 | BALL BEARING 6000ZZ | 1 | |
| 018 | 961006-2 | RETAINING RING S-10 | 1 | |
| 019 | 962105-3 | RETAINING RING R-26 | 1 | |
| 020 | 257429-3 | SLEEVE 15 | 1 | |
| 021 | 261095-0 | RUBBER WASHER 21 | 1 | |
| 022 | 267120-5 | FLAT WASHER 15 | 1 | |
| 023 | 322689-7 | ANVIL | 1 | |
| 023-1 | 327000-8 | ANVIL | 1 | |
| 024 | 322688-9 | HAMMER | 1 | |
| 024-1 | 326999-4 | HAMMER | 1 | |
| 025 | 216001-0 | STEEL BALL 3.5 | 22 | |
| 026 | 267121-3 | FLAT WASHER 20 | 1 | |
| 027 | 233107-9 | COMPRESSION SPRING 22 | 1 | |
| 028 | 629271-6 | DC MOTOR | 1 | |
| 029 | 267053-4 | FLAT WASHER 12 | 1 | |
| 030 | 226280-2 | INTERNAL GEAR 69 | 1 | |
| 031 | 257187-1 | RING 32 | 1 | |
| 033 | 226279-7 | SPUR GEAR 29 | 3 | |
| 034 | 154416-2 | SPINDLE COMPLETE | 1 | |
| 034-1 | 140K00-5 | SPINDLE COMPLETE | 1 | |
| 035 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 036 | 211472-6 | BALL BEARING 6000 | 1 | |
| 037 | 322719-4 | WASHER 10 | 1 | |
| 040 | 183G43-0 | HOUSING SET | 1 | |
| C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 | |
| D10 | INC. 1 | |||
| 042 | 424044-0 | RUBBER RING 32 | 1 | |
| 043 | 231990-8 | RING SPRING 9 | 1 | |
| 044 | 226721-8 | ZEROL BEVEL GEAR 13 | 1 | |
| 044-1 | 227A74-4 | ZEROL BEVEL GEAR 13 | 1 | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 046 | 135899-5 | SPINDLE ASS'Y | 1 | |
| D10 | INC. 51 | |||
| 051 | 231964-9 | RING SPRING 7 | 1 | |
| 052 | 962116-8 | RETAINING RING R-28 | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03B | 456128-6 | BATTERY COVER | 1 | |
| A03C | 456128-6 | BATTERY COVER | 1 | |
| A04B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A04C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A05B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A05-1B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-1C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A05-2B | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A05-2C | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A05-3B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-3C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06B | 821709-9 | PLASTIC CARRYING CASE | 1 | |
| A06B | C10 | 162315-4 | LATCH | 2 |
| A06B | C20 | 452137-3 | HANDLE | 1 |
| A06B | C30 | 452143-8 | SHAFT | 2 |
| A06C | 821709-9 | PLASTIC CARRYING CASE | 1 | |
| A06C | C10 | 162315-4 | LATCH | 2 |
| A06C | C20 | 452137-3 | HANDLE | 1 |
| A06C | C30 | 452143-8 | SHAFT | 2 |
| F01 | 192439-2 | RATCHET HEAD | 1 | |
| F02 | 192440-7 | STRAIGHT HEAD | 1 | |
| F40 | 347C56-3 | HOOK | 1 |
