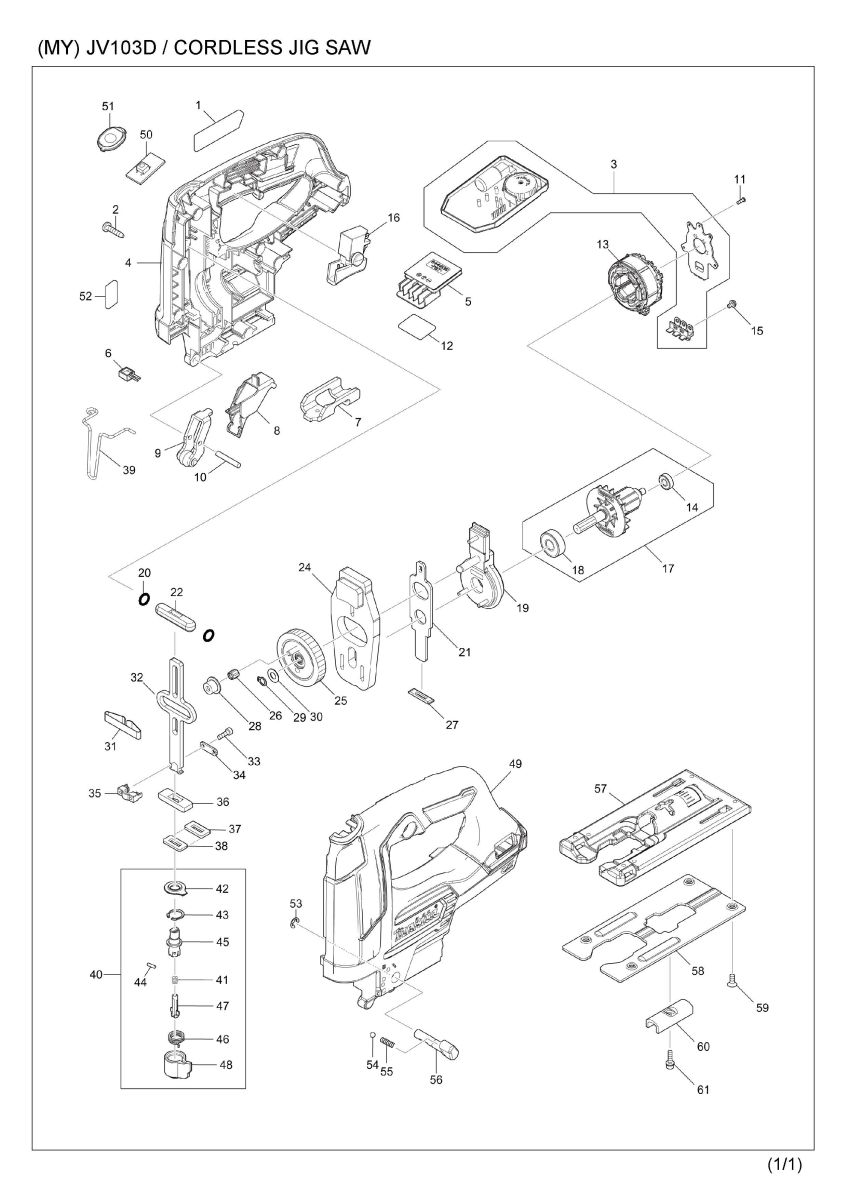

Part Diagram
Total: 114 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 853P71-0 | JV103D NAME PLATE | 1 | |
| 002 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 003 | 620711-7 | CONTROLLER | 1 | |
| 003-1 | 620907-0 | CONTROLLER | 1 | |
| 004 | 183H18-5 | HOUSING SET | 1 | |
| 004 | D10 | INC. 49 | ||
| 005 | 644813-5 | TERMINAL | 1 | |
| 006 | 620713-3 | LED CIRCUIT | 1 | |
| 007 | 347251-7 | HOLDER | 1 | |
| 008 | 457866-3 | RETAINER GUIDE | 1 | |
| 009 | 144629-3 | RETAINER COMPLETE | 1 | |
| 010 | 256206-0 | PIN 4 | 1 | |
| 011 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 012 | 853P79-4 | JV103D SERIAL NO. LABEL | 1 | |
| 013 | 629281-3 | STATOR | 1 | |
| 014 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 015 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 016 | 650251-1 | SWITCH SGEL106C-4 | 1 | |
| 017 | 519452-9 | ROTOR ASSY | 1 | |
| 017 | D10 | INC. 14,18 | ||
| 017-1 | 519452-9 | ROTOR ASSY | 1 | |
| 017-1 | D10 | INC. 14,18 | ||
| 018 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 019 | 144820-3 | BEARING CASE COMPLETE | 1 | |
| 020 | 213038-8 | O RING 5 | 2 | |
| 021 | 347249-4 | PUSH PLATE | 1 | |
| 022 | 313082-6 | SLIDER GUIDE | 1 | |
| 024 | 310812-6 | BALANCE PLATE | 1 | |
| 025 | 144630-8 | GEAR COMPLETE | 1 | |
| 026 | 212965-6 | NEEDLE CAGE 407 | 1 | |
| 027 | 416703-0 | DUST SEAL | 1 | |
| 028 | 257804-3 | SHOULDER SLEEVE 7 | 1 | |
| 029 | 961002-0 | RETAINING RING S-6 | 1 | |
| 030 | 253715-0 | FLAT WASHER 6 | 1 | |
| 031 | 232183-0 | LEAF SPRING | 1 | |
| 032 | 347250-9 | SLIDER | 1 | |
| 033 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 034 | 347247-8 | PLATE | 1 | |
| 035 | 310811-8 | BLADE CLAMP | 1 | |
| 036 | 313086-8 | SLIDER SUPPORT | 1 | |
| 037 | 344686-3 | SEAL PLATE | 1 | |
| 038 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | |
| 039 | 323748-0 | SAFETY WIRE | 1 | |
| 040 | 135941-2 | BLADE GUIDE ASS'Y | 1 | |
| 040 | D10 | INC. 41-48 | ||
| 041 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 042 | 424437-1 | DUST COVER | 1 | |
| 043 | 962063-3 | RETAINING RING R-13 | 1 | |
| 044 | 256528-8 | PIN 2 | 1 | |
| 045 | 310810-0 | BLADE GUIDE | 1 | |
| 046 | 233591-8 | TORSION SPRING 10 | 1 | |
| 047 | 310485-5 | LOCK PIN | 1 | |
| 048 | 452850-3 | INSERT HOLDER | 1 | |
| 049 | 183H18-5 | HOUSING SET | 1 | |
| 049 | D10 | INC. 4 | ||
| 050 | 620715-9 | SWITCH UNIT | 1 | |
| 051 | 142303-7 | SWITCH PLATE COMPLETE | 1 | |
| 053 | 961011-9 | STOP RING E-4 | 1 | |
| 054 | 216008-6 | STEEL BALL 4 | 1 | |
| 055 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 056 | 271441-9 | LEVER 19 | 1 | |
| 057 | 319620-2 | BASE | 1 | |
| 058 | 345441-6 | BASE PLATE | 1 | |
| 059 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 4 | |
| 060 | 344685-5 | CLAMP PLATE | 1 | |
| 061 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| A01 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A03 | 457867-1 | COVER PLATE | 1 | |
| A04B | 821549-5 | CONNECTOR PLASTIC CASE (TYPE1) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A04C | 821549-5 | CONNECTOR PLASTIC CASE (TYPE1) | 1 | |
| A04C | C10 | 453974-8 | LATCH | 4 |
| A04D | 821549-5 | CONNECTOR PLASTIC CASE (TYPE1) | 1 | |
| A04D | C10 | 453974-8 | LATCH | 4 |
| A05B | 839186-1 | INNER TRAY | 1 | |
| A05C | 839186-1 | INNER TRAY | 1 | |
| A05D | 839186-1 | INNER TRAY | 1 | |
| A06B | 813P28-3 | JV103DWYJ INDICATION LABEL | 1 | |
| A06C | 813P39-8 | JV103DWAJ INDICATION LABEL | 1 | |
| A06D | 813P57-6 | JV103DSMJ INDICATION LABEL | 1 | |
| A06-1C | 813P40-3 | JV103DWAJ INDICATION LABEL | 1 | |
| A06-1D | 813P58-4 | JV103DSMJ INDICATION LABEL | 1 | |
| A07B | 813P32-2 | JV103DWYJ PLASTIC CASE LABEL | 2 | |
| A07C | 813P42-9 | JV103DWAJ PLASTIC CASE LABEL | 2 | |
| A07D | 813P61-5 | JV103DSMJ PLASTIC CASE LABEL | 2 | |
| A08B | 197393-5 | BATTERY BL1016 SET | 2 | |
| A08C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A08D | 197406-2 | BATTERY BL1041B SET | 2 | |
| A08-1B | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A08-1C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A08-1D | 197406-2 | BATTERY BL1041B SET | 2 | |
| A08-2B | 197393-5 | BATTERY BL1016 SET | 2 | |
| A08-2C | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A08-2D | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A08-3C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A08-3D | 197406-2 | BATTERY BL1041B SET | 2 | |
| A09B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A09C | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A09D | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A10B | 456128-6 | BATTERY COVER | 1 | |
| A10C | 456128-6 | BATTERY COVER | 1 | |
| A10D | 456128-6 | BATTERY COVER | 1 | |
| F01 | 192557-6 | ANTI-SPLITERING DEVICE | 1 | |
| F03 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F04 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F05 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F06-1 | 198704-7 | GUIDE RAIL ADAPTER SET | 1 | |
| F07 | 194416-0 | SHEET 10000 SET | 1 | |
| F08 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F14 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F15 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F16 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F17 | 194910-2 | POSITION SHEET 1900 SET | 1 |
