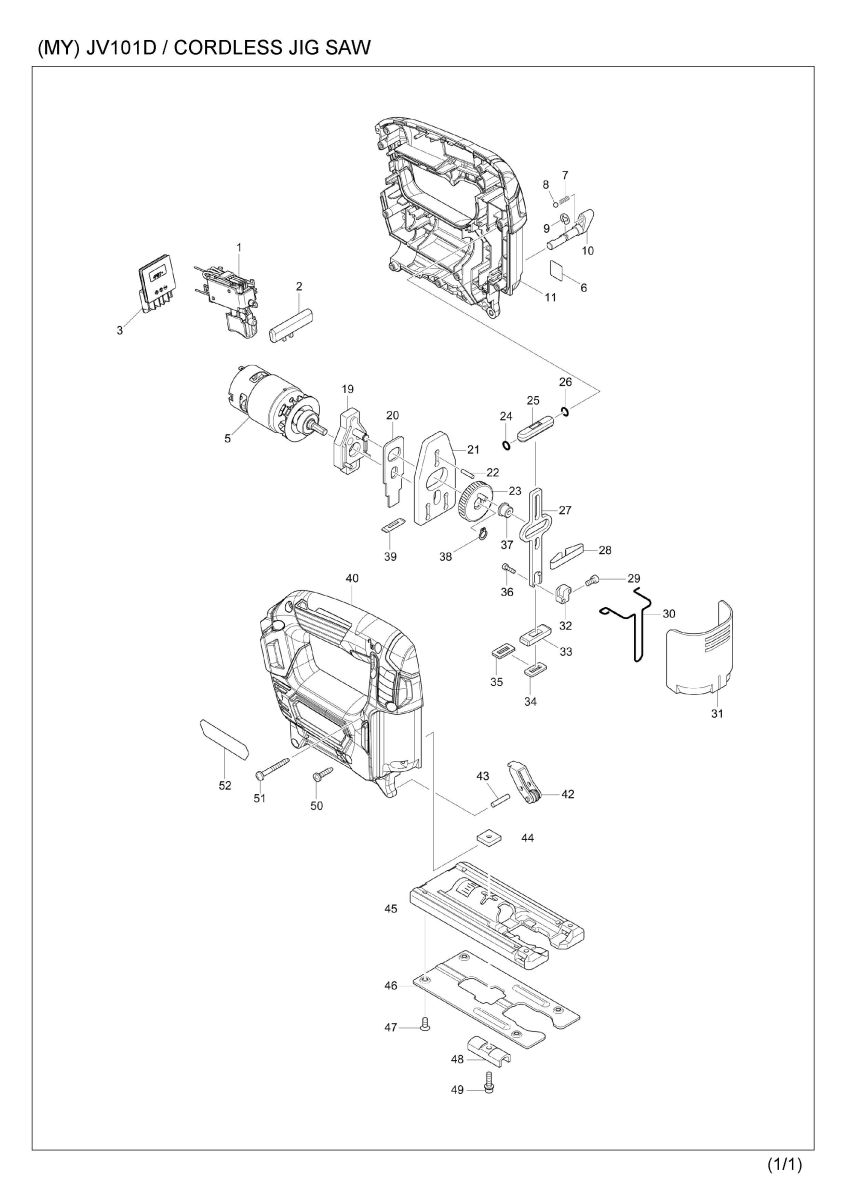

Part Diagram
Total: 65 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 632G54-7 | SWITCH UNIT | 1 | |
| 2 | 454742-2 | LOCK OFF BUTTON | 1 | |
| 3 | 644813-5 | TERMINAL | 1 | |
| 5 | 629211-4 | DC MOTOR | 1 | |
| 7 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 8 | 216008-6 | STEEL BALL 4 | 1 | |
| 9 | 961011-9 | STOP RING E-4 | 1 | |
| 10 | 272267-2 | LEVER 19 | 1 | |
| 11 | 183E13-7 | HOUSING SET | 1 | |
| 11 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 11 | D10 | INC. 40 | ||
| 19 | 152600-3 | BEARING CASE COMPLETE | 1 | |
| 20 | 344683-9 | PUSH PLATE | 1 | |
| 21 | 344614-8 | BALANCE PLATE | 1 | |
| 22 | 256254-9 | PIN 3 | 1 | |
| 23 | 153260-4 | GEAR COMPLETE | 1 | |
| 24 | 213038-8 | O RING 5 | 1 | |
| 25 | 313082-6 | SLIDER GUIDE | 1 | |
| 26 | 213038-8 | O RING 5 | 1 | |
| 27 | 344613-0 | SLIDER | 1 | |
| 28 | 232183-0 | LEAF SPRING | 1 | |
| 29 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 30 | 323748-0 | SAFETY WIRE | 1 | |
| 31 | 416476-5 | DUST COVER | 1 | |
| 32 | 313140-8 | BLADE CLAMP | 1 | |
| 33 | 313086-8 | SLIDER SUPPORT | 1 | |
| 34 | 423307-1 | POLY URETANE SPONGE SEAL | 1 | |
| 35 | 344686-3 | SEAL PLATE | 1 | |
| 36 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 37 | 257683-9 | COLLAR SLEEVE | 1 | |
| 38 | 961002-0 | RETAINING RING S-6 | 1 | |
| 39 | 416703-0 | DUST SEAL | 1 | |
| 40 | 183E13-7 | HOUSING SET | 1 | |
| 40 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 40 | D10 | INC. 11 | ||
| 42 | 158392-2 | RETAINER COMPLETE | 1 | |
| 43 | 256117-9 | PIN 4 | 1 | |
| 44 | 343540-8 | HOLDER | 1 | |
| 45 | 317796-9 | BASE | 1 | |
| 46 | 345441-6 | BASE PLATE | 1 | |
| 47 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 4 | |
| 48 | 344685-5 | CLAMP PLATE | 1 | |
| 048-1 | 344685-5 | CLAMP PLATE | 1 | |
| 49 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 50 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 51 | 266351-3 | TAPPING SCREW 4X35 | 1 | |
| 52 | 852E10-1 | JV101D NAME PLATE | 1 | |
| 052-1 | 852E09-6 | JV101D NAME PLATE | 1 | |
| A01 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A03 | 192732-4 | GUIDE RULE SET | 1 | |
| A03B | C10 | 165217-3 | GUIDE RULE | 1 |
| A03B | C20 | 323802-0 | GUIDE PIN | 1 |
| A03B | C30 | 271601-3 | KNOB 20 | 1 |
| A03B | C40 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 |
| A04 | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 197393-5 | BATTERY BL1016 SET | 2 | |
| A05C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-1B | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A05-1C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-2C | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A06 | 456128-6 | BATTERY COVER | 1 | |
| A07 | 821691-2 | PLASTIC CARRYING CASE | 1 | |
| A07B | C10 | 162315-4 | LATCH | 2 |
