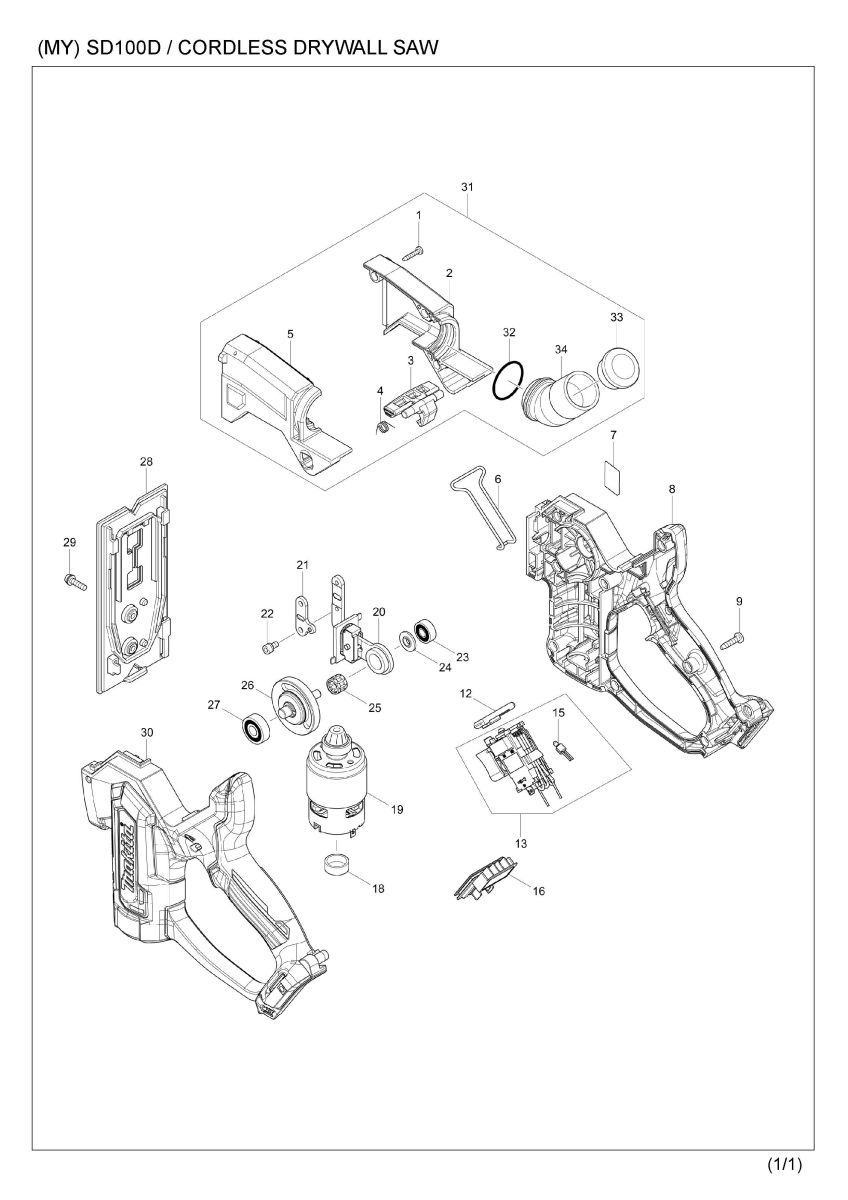

Part Diagram
Total: 77 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | |
| 2 | 183C66-4 | DUST COLLECTOR SET | 1 | |
| 2 | D10 | INC. 5 | ||
| 3 | 456628-6 | HOOK | 1 | |
| 4 | 231661-7 | TORSION SPRING 9 | 1 | |
| 5 | 183C66-4 | DUST COLLECTOR SET | 1 | |
| 5 | D10 | INC. 2 | ||
| 6 | 326680-7 | SAFETY WIRE | 1 | |
| 7 | 852T60-6 | SD100D NAME PLATE | 1 | |
| 007D | 852T59-1 | SD100D NAME PLATE | 1 | |
| 007-1 | 852T59-1 | SD100D NAME PLATE | 1 | |
| 8 | 183F65-4 | HOUSING SET | 1 | |
| 8 | C10 | 263002-9 | RUBBER PIN 4 | 3 |
| 8 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 8 | C30 | 252173-7 | SQUARE NUT | 2 |
| 8 | D10 | INC. 30 | ||
| 9 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 12 | 457192-0 | LOCK OFF BUTTON | 1 | |
| 13 | 632H97-5 | SWITCH UNIT | 1 | |
| 13 | D10 | INC. 15 | ||
| 15 | 620604-8 | LED CIRCUIT | 1 | |
| 16 | 644813-5 | TERMINAL | 1 | |
| 18 | 421940-3 | CAP | 1 | |
| 19 | 629230-0 | DC MOTOR | 1 | |
| 20 | 143694-9 | SLIDER COMPLETE | 1 | |
| 20 | C10 | 256305-8 | PIN 4 | 1 |
| 20 | C20 | 257391-2 | RING 4 | 1 |
| 20 | C30 | 310686-5 | SLIDER PLATE | 1 |
| 20 | C40 | 310687-3 | SLIDER GUIDE | 1 |
| 21 | 347010-9 | BLADE HOLDER | 1 | |
| 22 | 922106-3 | HEX. SOCKET HEAD BOLT M4X8 | 2 | |
| 23 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 24 | 326679-2 | SHOULDER WASHER | 1 | |
| 25 | 212077-5 | NEEDLE CAGE | 1 | |
| 26 | 143690-7 | CRANK SHAFT COMPLETE | 1 | |
| 27 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 027-1 | 210223-4 | BALL BEARING 608ZZ | 1 | |
| 28 | 456623-6 | BASE | 1 | |
| 29 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 30 | 183F65-4 | HOUSING SET | 1 | |
| 30 | C10 | 263002-9 | RUBBER PIN 4 | 3 |
| 30 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 30 | C30 | 252173-7 | SQUARE NUT | 2 |
| 30 | D10 | INC. 8 | ||
| 31 | 123559-1 | DUST COLLECTOR ASSEMBLY | 1 | |
| 31 | D10 | INC. 1-5,32-34 | ||
| 32 | 213412-0 | O RING 29 | 1 | |
| 33 | 286268-4 | CAP 31 | 1 | |
| 34 | 451177-8 | DUST NOZZLE | 1 | |
| A01 | 456624-4 | BASE COVER | 1 | |
| A02 | 456632-5 | BLADE COVER | 1 | |
| A03 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A04 | B-49703 | BOARD CUTTER BLADE | 1 | |
| A05 | 456128-6 | BATTERY COVER | 1 | |
| A06 | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A06 | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A06C | D10 | COMPO-PARTS | ||
| A07B | 197393-5 | BATTERY BL1016 SET | 2 | |
| A07 | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07D | 197406-2 | BATTERY BL1041B SET | 2 | |
| A07-1B | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A07-1 | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07-1D | 197406-2 | BATTERY BL1041B SET | 2 | |
| A07-2 | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A07-2D | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A08 | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A08B | C10 | 453974-8 | LATCH | 4 |
| A09 | 839016-6 | INNER TRAY | 1 | |
| A10B | 810T73-3 | SD100DWYJ INDICATION LABEL | 1 | |
| A10C | 810T84-8 | SD100DSAJ INDICATION LABEL | 1 | |
| A10D | 810T87-2 | SD100DSMJ INDICATION LABEL | 1 | |
| A10E | 810T76-7 | SD100DWAJ INDICATION LABEL | 1 | |
| A11B | 810T75-9 | SD100DWYJ PLASTIC CASE LABEL | 2 | |
| A11C | 810T86-4 | SD100DSAJ PLASTIC CASE LABEL | 2 | |
| A11D | 810T89-8 | SD100DSMJ PLASTIC CASE LABEL | 2 | |
| A11E | 810T78-3 | SD100DWAJ PLASTIC CASE LABEL | 2 |
