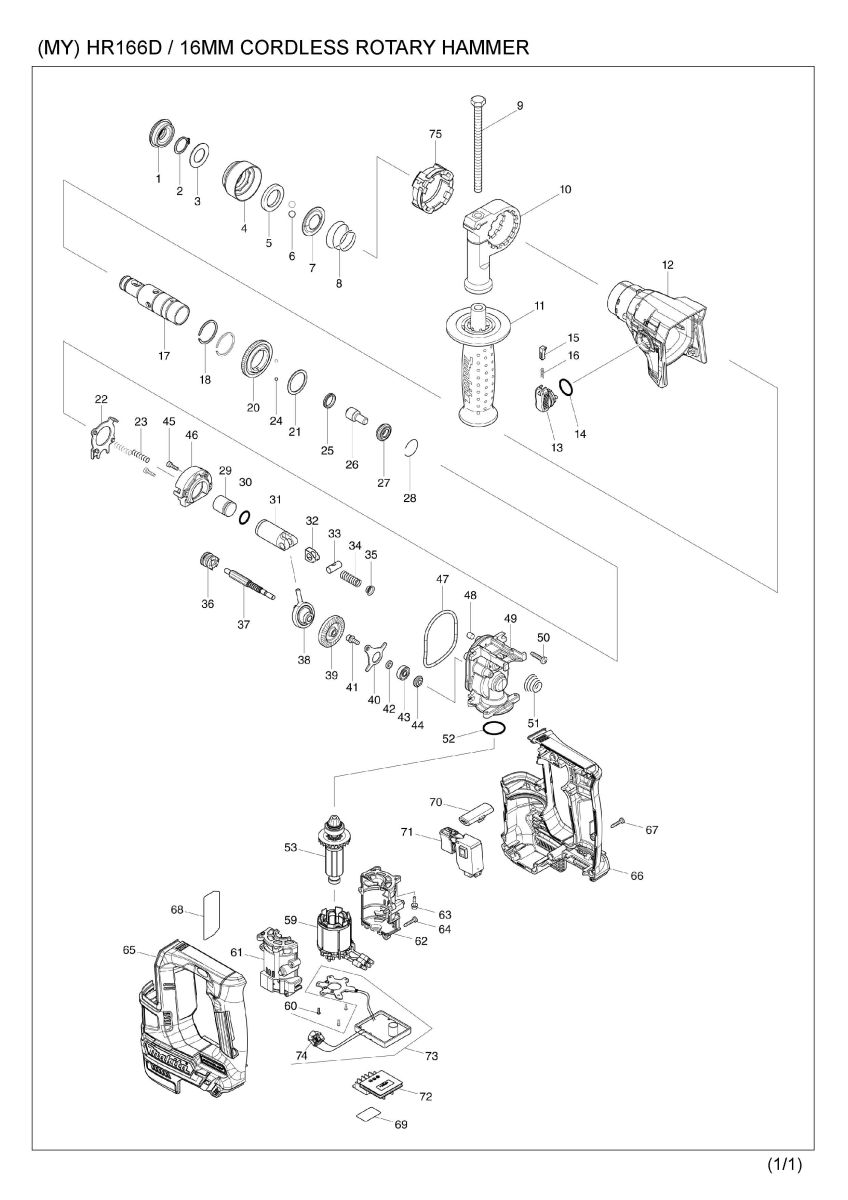

Part Diagram
Total: 304 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286037-3 | CAP 34 | 1 | |
| 002 | 961057-5 | RETAINING RING S-17 | 1 | |
| 003 | 253377-4 | FLAT WASHER 17 | 1 | |
| 004 | 457214-6 | CHUCK COVER | 1 | |
| 005 | 257416-2 | RING 21 | 1 | |
| 006 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 007 | 346177-0 | GUIDE WASHER | 1 | |
| 008 | 232347-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 009 | 921923-8 | HEX. BOLT M8X120 | 1 | |
| 010 | 417911-6 | GRIP BASE | 1 | |
| 011 | 158057-6 | GRIP 36 COMPLETE | 1 | |
| 012 | 144218-4 | GEAR HOUSING COMPLETE | 1 | |
| 012 | C10 | 211375-4 | BALL BEARING 6805LLB | 1 |
| 012 | C20 | 213788-5 | OIL SEAL 25 | 1 |
| 013 | 161569-0 | CHANGE LEVER COMPLETE | 1 | |
| 014 | 213278-8 | O RING 17 | 1 | |
| 015 | 161568-2 | LOCK BUTTON COMPLETE | 1 | |
| 016 | 232344-2 | COMPRESSION SPRING 3 | 1 | |
| 017 | 326841-9 | TOOL HOLDER | 1 | |
| 017-1 | 326841-9 | TOOL HOLDER | 1 | |
| 018 | 961135-1 | RETAINING(EXT) WR-25 | 2 | |
| 020 | 221483-3 | SPUR GEAR 57 | 1 | |
| 021 | 267175-0 | FLAT WASHER 24 | 1 | |
| 022 | 161570-5 | CHANGE PLATE COMPLETE | 1 | |
| 023 | 233194-8 | COMPRESSION SPRING 4 | 2 | |
| 024 | 216019-1 | STEEL BALL 3 | 2 | |
| 025 | 213183-9 | X RING 13 | 1 | |
| 026 | 326843-5 | IMPACT BOLT | 1 | |
| 027 | 326842-7 | RING 10 | 1 | |
| 028 | 232343-4 | RING SPRING 23 | 1 | |
| 029 | 326844-3 | STRIKER | 1 | |
| 030 | 213128-7 | O RING 12 | 1 | |
| 031 | 319510-9 | PISTON CYLINDER | 1 | |
| 032 | 347101-6 | GUIDE PLATE | 1 | |
| 033 | 326846-9 | PISTON JOINT | 1 | |
| 034 | 232346-8 | COMPRESSION SPRING 8 | 1 | |
| 035 | 347102-4 | SPRING GUIDE | 1 | |
| 036 | 326845-1 | CLUTCH CAM | 1 | |
| 037 | 221482-5 | SPUR GEAR 8 | 1 | |
| 038 | 219026-3 | SWASH BEARING 6 | 1 | |
| 039 | 221481-7 | SPIRAL BEVEL GEAR 37 | 1 | |
| 040 | 347100-8 | BEARING RETAINER | 1 | |
| 041 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 042 | 257415-4 | RING 5 | 1 | |
| 043 | 210065-6 | BALL BEARING 625ZZ | 1 | |
| 044 | 326847-7 | RING 5 | 1 | |
| 045 | 265910-0 | HEX. SOCKET HEAD BOLT M3X12 | 2 | |
| 046 | 144219-2 | INNER SUPPORT COMPLETE | 1 | |
| 047 | 213092-2 | O-RING 60 | 1 | |
| 047-1 | 213889-9 | O-RING 58 | 1 | |
| 048 | 443138-2 | FILTER | 1 | |
| 049 | 319508-6 | INNER HOUSING | 1 | |
| 049-1 | 140N37-0 | INNER HOUSING COMPLETE | 1 | |
| 049-2 | 312B69-7 | INNER HOUSING | 1 | |
| 050 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 051 | 232345-0 | CONICAL COMP. SPRING 8-19 | 1 | |
| 052 | 213008-7 | O RING 22.4 | 1 | |
| 053 | 619421-1 | ROTOR | 1 | |
| 053-1 | 619421-1 | ROTOR | 1 | |
| 059 | 629244-9 | STATOR | 1 | |
| 060 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 061 | 183G09-0 | MOTOR CASE SET | 1 | |
| 061 | D10 | INC. 62 | ||
| 062 | 183G09-0 | MOTOR CASE SET | 1 | |
| 062 | D10 | INC. 61 | ||
| 063 | 251510-2 | H. S. HEAD BOLT M3X12 WITH WRM | 4 | |
| 064 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 065 | 183G15-5 | HOUSING SET | 1 | |
| 065 | C10 | 262182-8 | RUBBER RING 6 | 2 |
| 065 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 065 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 065 | D10 | INC. 66 | ||
| 066 | 183G15-5 | HOUSING SET | 1 | |
| 066 | C10 | 262182-8 | RUBBER RING 6 | 2 |
| 066 | C20 | 263002-9 | RUBBER PIN 4 | 2 |
| 066 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 066 | D10 | INC. 65 | ||
| 067 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 068 | 853A74-4 | HR166D NAME PLATE | 1 | |
| 069 | 853A95-6 | HR166D SERIAL NO. LABEL | 1 | |
| 070 | 457210-4 | F/R CHANGE LEVER | 1 | |
| 071 | 650689-0 | SWITCH C3JW-2B | 1 | |
| 072 | 644813-5 | TERMINAL | 1 | |
| 073 | 620578-3 | CONTROLLER | 1 | |
| 073 | D10 | INC. 74 | ||
| 074 | 620553-9 | LED CIRCUIT | 1 | |
| A01 | 415486-9 | DEPTH GAUGE | 1 | |
| A02B | 456128-6 | BATTERY COVER | 1 | |
| A02C | 456128-6 | BATTERY COVER | 1 | |
| A02D | 456128-6 | BATTERY COVER | 1 | |
| A02E | 456128-6 | BATTERY COVER | 1 | |
| A03B | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A03C | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A03C | D10 | COMPO-PARTS | ||
| A03D | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A03D | D10 | COMPO-PARTS | ||
| A03E | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A03E | D10 | COMPO-PARTS | ||
| A04B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A04C | 197393-5 | BATTERY BL1016 SET | 2 | |
| A04D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04E | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04-1B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A04-1C | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A04-1D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04-1E | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04-2B | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A04-2C | 197393-5 | BATTERY BL1016 SET | 2 | |
| A04-2D | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A04-2E | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A04-3B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A04-3D | 197396-9 | BATTERY BL1021B SET | 2 | |
| A04-3E | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05B | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A05B | C10 | 453974-8 | LATCH | 4 |
| A05C | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A05C | C10 | 453974-8 | LATCH | 4 |
| A05D | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A05D | C10 | 453974-8 | LATCH | 4 |
| A05E | 821736-6 | PLASTIC CASE | 1 | |
| A05E | C10 | 455522-9 | SLIDE LATCH | 2 |
| A05-1E | 183H61-4 | PLASTIC CASE SET | 1 | |
| A05-1E | C10 | 455522-9 | SLIDE LATCH | 2 |
| A06B | 838683-4 | INNER FITMENT | 1 | |
| A06C | 838683-4 | INNER FITMENT | 1 | |
| A06D | 838683-4 | INNER FITMENT | 1 | |
| A06-1B | 839245-1 | INNER TRAY | 1 | |
| A06-1C | 839245-1 | INNER TRAY | 1 | |
| A06-1D | 839245-1 | INNER TRAY | 1 | |
| A07B | 812K53-1 | HR166DSMJ INDICATION LABEL | 1 | |
| A07C | 812K57-3 | HR166DWYJ INDICATION LABEL | 1 | |
| A07D | 812K63-8 | HR166DWAJ INDICATION LABEL | 1 | |
| A08B | 812K56-5 | HR166DSMJ PLASTIC CASE LABEL | 2 | |
| A08C | 812K60-4 | HR166DWYJ PLASTIC CASE LABEL | 2 | |
| A08D | 812K67-0 | HR166DWAJ PLASTIC CASE LABEL | 2 | |
| A08-1B | 812K55-7 | HR166DSMJ PLASTIC CASE LABEL | 2 | |
| A09B | 835121-7 | SPONGE 60-80 | 1 | |
| A09C | 835121-7 | SPONGE 60-80 | 1 | |
| A09D | 835121-7 | SPONGE 60-80 | 1 | |
| A10E | 443122-7 | CLOTH | 1 | |
| A11E | B-57043 | 65PCS BIT SET | 1 | |
| A12E | 181573-3 | GREASE VESSEL 93G | 1 | |
| A12-1E | 1914C6-5 | GREASE SET | 1 | |
| B01 | 198564-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 1 |
| B01 | D10 | INC. 1,2,6,25,28,30 | ||
| B02 | 191D07-2 | SIDE GRIP SET | 1 | |
| B02 | D10 | INC. 9-11,A01 | ||
| E01 | 818S14-7 | CLEAR LABEL | 1 | |
| F20 | 199245-6 | DUSTCUP SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
