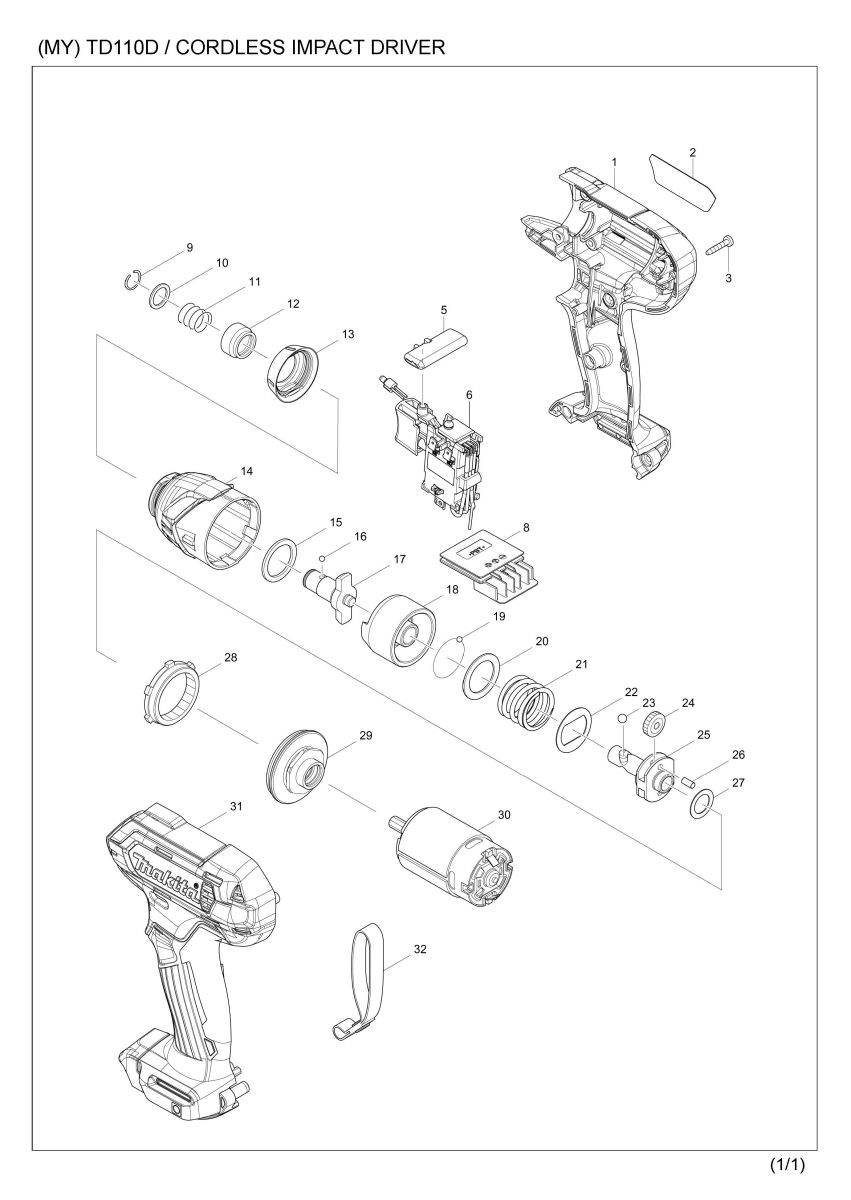

Part Diagram
Total: 82 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183B49-8 | HOUSING SET | 1 | |
| 001 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 31 | ||
| 002 | 851G86-7 | TD110D NAME PLATE | 1 | |
| 002-1 | 851G85-9 | TD110D NAME PLATE | 1 | |
| 003 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 005 | 456039-5 | F/R CHANGE LEVER | 1 | |
| 006 | 632F43-6 | SWITCH UNIT | 1 | |
| 006 | C10 | 620463-0 | LED CIRCUIT | 1 |
| 006-1 | 632J77-3 | SWITCH UNIT | 1 | |
| 006-1 | C10 | 620625-0 | LED CIRCUIT | 1 |
| 008 | 644813-5 | TERMINAL | 1 | |
| 009 | 231965-7 | RING SPRING 10 | 1 | |
| 010 | 267143-3 | FLAT WASHER 11 | 1 | |
| 011 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 012 | 324711-6 | BIT SLEEVE | 1 | |
| 013 | 424737-9 | BUMPER | 1 | |
| 014 | 143277-5 | HAMMER CASE COMPLETE | 1 | |
| 015 | 261140-1 | NYLON WASHER 20 | 1 | |
| 016 | 216019-1 | STEEL BALL 3 | 2 | |
| 017 | 324896-8 | ANVIL N | 1 | |
| 018 | 324894-2 | HAMMER | 1 | |
| 019 | 216019-1 | STEEL BALL 3 | 24 | |
| 020 | 267380-9 | FLAT WASHER 20 | 1 | |
| 021 | 234064-4 | COMPRESSION SPRING 21 | 1 | |
| 022 | 267813-4 | WASHER 21 | 1 | |
| 023 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 024 | 227213-0 | SPUR GEAR 17 | 2 | |
| 025 | 324897-6 | SPINDLE | 1 | |
| 026 | 268217-3 | PIN 3.5 | 2 | |
| 027 | 253052-2 | FLAT WASHER 12 | 1 | |
| 028 | 227215-6 | INTERNAL GEAR 43 | 1 | |
| 029 | 158671-8 | BEARING BOX COMPLETE | 1 | |
| 030 | 629163-9 | DC MOTOR | 1 | |
| 031 | 183B49-8 | HOUSING SET | 1 | |
| 031 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 031 | D10 | INC. 1 | ||
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03A | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03B | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03C | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03D | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03-1A | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1B | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1C | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1D | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-2 | A-67511 | SLIM TWIST TORSION PH2-65 3PC | 1 | |
| A04B | 456128-6 | BATTERY COVER | 1 | |
| A04C | 456128-6 | BATTERY COVER | 1 | |
| A04D | 456128-6 | BATTERY COVER | 1 | |
| A05B | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| A05D | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A05D | D10 | COMPO-PARTS | ||
| A06B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06D | 197393-5 | BATTERY BL1016 SET | 2 | |
| A06-1B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-1C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06-1D | 191B84-2 | BATTERY BL1016 SET | 2 | |
| A06-2B | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A06-2C | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A06-2D | 197393-5 | BATTERY BL1016 SET | 2 | |
| A06-3B | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-3C | 197396-9 | BATTERY BL1021B SET | 2 | |
| A07B | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07B | C10 | 417724-5 | LATCH | 2 |
| A07C | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07C | C10 | 417724-5 | LATCH | 2 |
| A07D | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07D | C10 | 417724-5 | LATCH | 2 |
| F03 | 197390-1 | BATTERY BL1015 SET | 1 | |
| F04 | 197391-9 | BATTERY BL1015 SET | 1 | |
| F06 | 197394-3 | BATTERY BL1020B SET | 1 | |
| F07 | 197395-1 | BATTERY BL1020B SET | 1 | |
| F12 | 197402-0 | BATTERY BL1040B SET | 1 | |
| F13 | 197403-8 | BATTERY BL1040B SET | 1 | |
| F14 | 197404-6 | BATTERY BL1040B SET | 1 | |
| F40 | 347C56-3 | HOOK | 1 |
