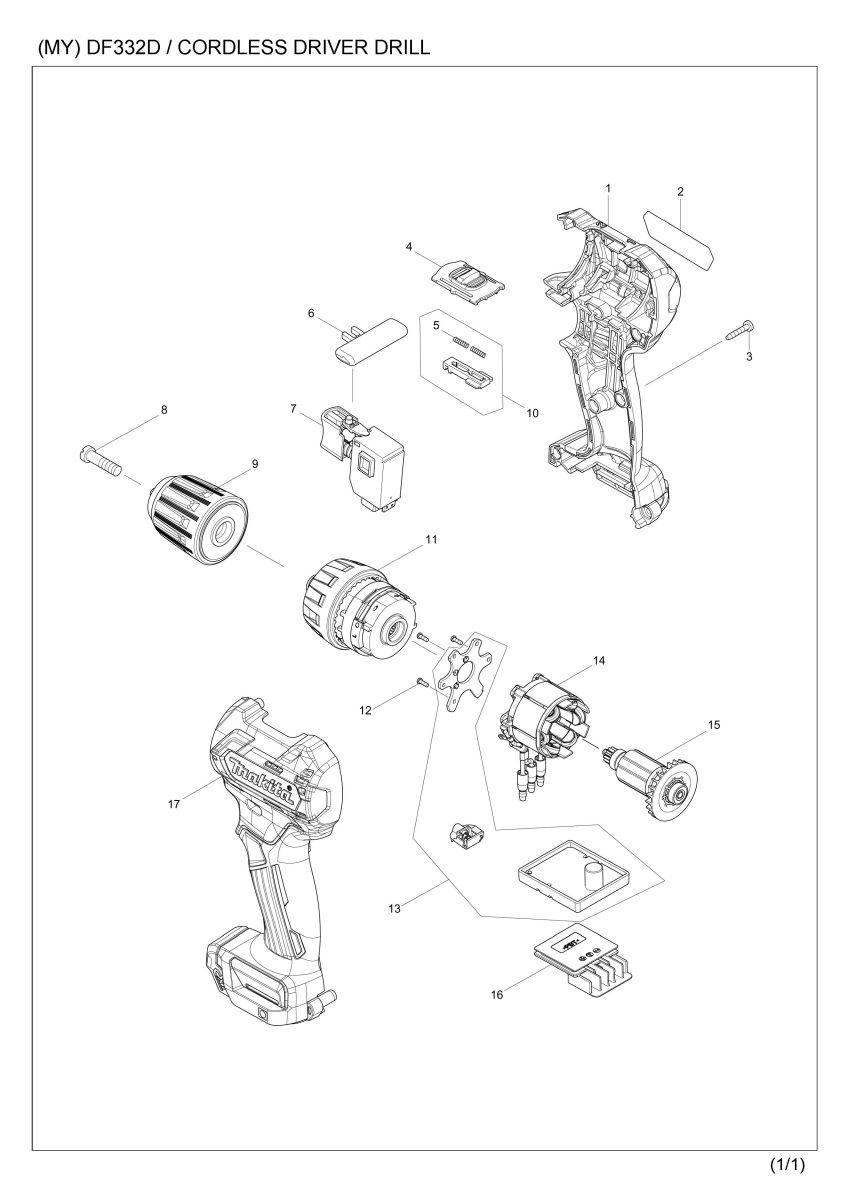

Part Diagram
Total: 63 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183C34-7 | HOUSING SET | 1 | |
| 1 | D10 | INC. 17 | ||
| 2 | 851T91-2 | DF332D NAME PLATE | 1 | |
| 002-1 | 851T90-4 | DF332D NAME PLATE | 1 | |
| 3 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 4 | 456532-9 | SPEED CHANGE LEVER | 1 | |
| 5 | 233025-1 | COMPRESSION SPRING 2 | 2 | |
| 6 | 419041-9 | F/R CHANGE LEVER | 1 | |
| 7 | 650689-0 | SWITCH C3JW-2B | 1 | |
| 8 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | |
| 9 | 763238-5 | KEYLESS DRILL CHUCK 10 | 1 | |
| 10 | 123587-6 | CHANGE LEVER ASS'Y | 1 | |
| 10 | D10 | INC. 5 | ||
| 011A | 123549-4 | GEAR ASSEMBLY | 1 | |
| 011B | 123549-4 | GEAR ASSEMBLY | 1 | |
| 011-1A | 123868-8 | GEAR ASSEMBLY | 1 | |
| 011-1B | 123868-8 | GEAR ASSEMBLY | 1 | |
| 011-1C | 123868-8 | GEAR ASSEMBLY | 1 | |
| 011-2 | 123868-8 | GEAR ASSEMBLY | 1 | |
| 12 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 013A | 620487-6 | CONTROLLER | 1 | |
| 013B | 620487-6 | CONTROLLER | 1 | |
| 013-1A | 620487-6 | CONTROLLER | 1 | |
| 013-1A | C10 | 620553-9 | LED CIRCUIT | 1 |
| 013-1B | 620487-6 | CONTROLLER | 1 | |
| 013-1B | C10 | 620553-9 | LED CIRCUIT | 1 |
| 013-1C | 620487-6 | CONTROLLER | 1 | |
| 013-1C | C10 | 620553-9 | LED CIRCUIT | 1 |
| 013-2 | 620B33-7 | CONTROLLER | 1 | |
| 013-2 | C10 | 620553-9 | LED CIRCUIT | 1 |
| 14 | 629178-6 | STATOR | 1 | |
| 015A | 619393-0 | ROTOR | 1 | |
| 015B | 619393-0 | ROTOR | 1 | |
| 015-1A | 619410-6 | ROTOR | 1 | |
| 015-1B | 619410-6 | ROTOR | 1 | |
| 015-1C | 619410-6 | ROTOR | 1 | |
| 015-2 | 619410-6 | ROTOR | 1 | |
| 16 | 644813-5 | TERMINAL | 1 | |
| 17 | 183C34-7 | HOUSING SET | 1 | |
| 17 | D10 | INC. 1 | ||
| A01 | 251314-2 | + SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03 | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03-1 | 784043-7 | +BIT 2-45 | 1 | |
| A04B | 456128-6 | BATTERY COVER | 1 | |
| A04C | 456128-6 | BATTERY COVER | 1 | |
| A05B | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| A06B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-1B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06-1C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06-2B | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A06-2C | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A06-3B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A06-3C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A07B | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07B | C10 | 417724-5 | LATCH | 2 |
| A07C | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A07C | C10 | 417724-5 | LATCH | 2 |
| F40 | 347C56-3 | HOOK | 1 |
