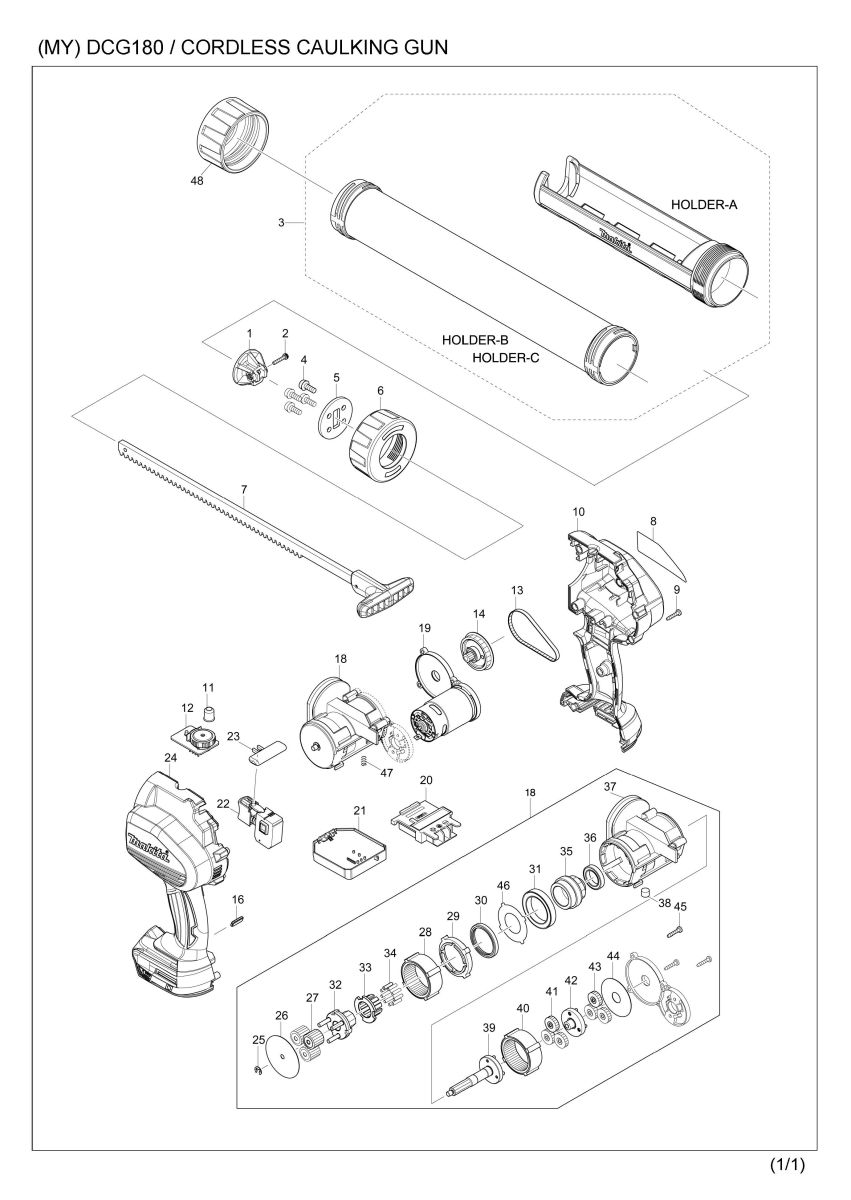

Part Diagram
Total: 75 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 142071-2 | PISTON A COMPLETE | 1 | |
| 1 | 142072-0 | PISTON B COMPLETE | 1 | |
| 2 | 266827-0 | PAN HEAD SCREW M3X18 WITH WR | 1 | |
| 3 | 454275-7 | HOLDER A | 1 | |
| 3 | 141861-0 | HOLDER B COMPLETE | 1 | |
| 4 | 265074-0 | PAN HEAD SCREW M5X16 | 4 | |
| 5 | 346649-5 | PLATE | 1 | |
| 6 | 454223-6 | HOLDER JOINT A | 1 | |
| 6 | 318958-2 | HOLDER JOINT B | 1 | |
| 7 | 142041-1 | RACK 42 COMPLETE | 1 | |
| 7 | 142042-9 | RACK 64 COMPLETE | 1 | |
| 8 | 815F86-5 | DCG180 NAME PLATE | 1 | |
| 9 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 10 | 187618-5 | HOUSING SET | 1 | |
| 10 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 10 | D10 | INC. 24 | ||
| 11 | 418821-0 | LENS | 1 | |
| 12 | 620180-2 | SUB CONTROLLER | 1 | |
| 13 | 225097-0 | SYNCHRO BELT 4-176 | 1 | |
| 14 | 142038-0 | SPUR GEAR 9A COMPLETE | 1 | |
| 16 | 454230-9 | LENS | 1 | |
| 18 | 126253-4 | GEAR ASSEMBLY | 1 | |
| 18 | D10 | INC. 25-46 | ||
| 19 | 142066-5 | MOTOR COMPLETE | 1 | |
| 20 | 643860-3 | TERMINAL | 1 | |
| 21 | 632A63-0 | CONTROLLER UNIT | 1 | |
| 021-1 | 632L35-1 | CONTROLLER UNIT | 1 | |
| 22 | 650632-9 | SWITCH | 1 | |
| 23 | 451162-1 | LOCK LEVER | 1 | |
| 24 | 187618-5 | HOUSING SET | 1 | |
| 24 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 24 | D10 | INC. 10 | ||
| 25 | 961011-9 | STOP RING E-4 | 1 | |
| 26 | 267465-1 | FLAT WASHER 5 | 1 | |
| 27 | 227311-0 | SPUR GEAR 19B | 3 | |
| 28 | 227309-7 | INTERNAL GEAR 48 | 1 | |
| 029-1 | 144375-8 | SPACER COMPLETE | 1 | |
| 31 | 211294-4 | BALL BEARING 6806LLU | 1 | |
| 32 | 141860-2 | CARRIER A COMPLETE | 1 | |
| 33 | 313253-5 | CARRIER B | 1 | |
| 34 | 256255-7 | PIN 3 | 9 | |
| 35 | 227312-8 | SPUR GEAR 10 | 1 | |
| 36 | 211482-3 | BALL BEARING 6803LLU | 1 | |
| 37 | 454219-7 | GEAR HOUSING | 1 | |
| 38 | 313257-7 | MAGNET | 1 | |
| 39 | 141859-7 | SPUR GEAR 9C COMPLETE | 1 | |
| 40 | 227309-7 | INTERNAL GEAR 48 | 1 | |
| 41 | 227310-2 | SPUR GEAR 19A | 3 | |
| 42 | 141858-9 | SPUR GEAR 9B COMPLETE | 1 | |
| 43 | 227310-2 | SPUR GEAR 19A | 3 | |
| 44 | 267466-9 | FLAT WASHER 12 | 1 | |
| 45 | 266429-2 | TAPPING SCREW 3X16 | 3 | |
| 46 | 346721-3 | PLATE 23 | 1 | |
| 47 | 234315-5 | COMPRESSION SPRING 6 | 1 | |
| 48 | 318958-2 | HOLDER JOINT B | 1 | |
| A01 | 195246-2 | SAFETY GOGGLE | 1 | |
| A02A | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02 | 123221-8 | PISTON C ASSEMBLY | 1 | |
| A03A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03 | 142071-2 | PISTON A COMPLETE | 1 | |
| A03-1A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A04A | 821568-1 | PLASTIC CASE | 1 | |
| A04A | C10 | 162271-8 | LATCH | 2 |
| A04 | 266827-0 | PAN HEAD SCREW M3X18 WITH WR | 2 | |
| A05A | 802X73-1 | DCG180RFE PLASTIC CASE LABEL | 2 | |
| A05 | 424547-4 | RUBBER RING | 1 | |
| A06A | 450128-8 | BATTERY COVER | 1 | |
| A06 | 454226-0 | NOZZLE | 1 | |
| A07C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A08C | 197600-6 | BATTERY BL1830B SET | 1 | |
| A08-1C | 197600-6 | BATTERY BL1830B SET | 1 | |
| A09C | 821568-1 | PLASTIC CASE | 1 | |
| A09C | C10 | 162271-8 | LATCH | 2 |
| A10C | 802X74-9 | DCG180RFEB PLASTIC CASE LABEL | 2 | |
| A11C | 450128-8 | BATTERY COVER | 1 |
