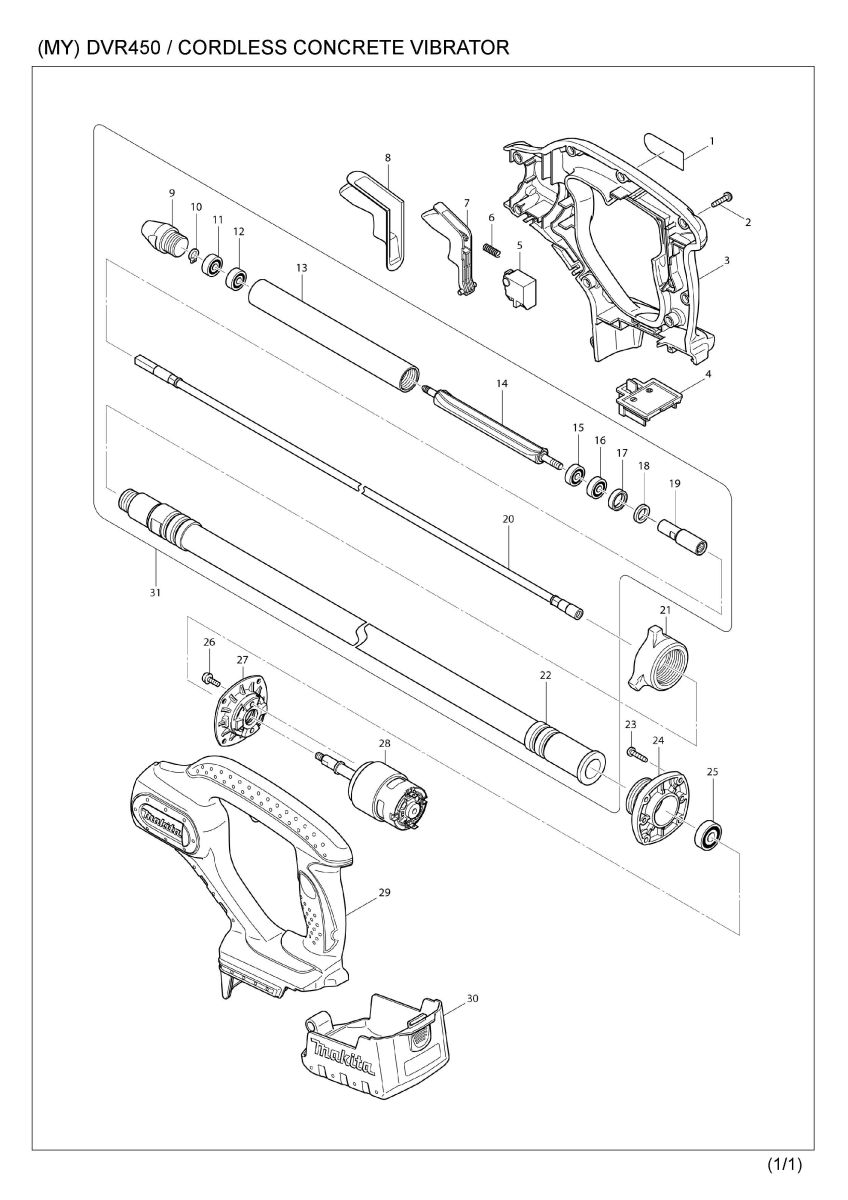

Part Diagram
Total: 37 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 850D48-4 | DVR450 NAME PLATE | 1 | |
| 002 | 266045-0 | TAPPING SCREW 4X20 | 9 | |
| 003 | 187865-8 | HOUSING SET | 1 | |
| 003 | D10 | INC. 29 | ||
| 004 | 643843-3 | TERMINAL | 1 | |
| 005 | 650580-2 | SWITCH SGE120C-4 | 1 | |
| 005-1 | 650580-2 | SWITCH SGE120C-4 | 1 | |
| 006 | 231298-0 | COMPRESSION SPRING 6 | 1 | |
| 007 | 419511-8 | SWITCH LEVER | 1 | |
| 008 | 421961-5 | WATERPROOF COVER | 1 | |
| 009 | 322935-8 | CAP | 1 | |
| 010 | 961002-0 | RETAINING RING S-6 | 1 | |
| 011 | 210018-5 | BALL BEARING 626 | 1 | |
| 012 | 210018-5 | BALL BEARING 626 | 1 | |
| 013 | 331503-6 | PIPE 25 | 1 | |
| 014 | 322934-0 | UNBALANCER | 1 | |
| 015 | 211016-2 | BALL BEARING 626LLB | 1 | |
| 016 | 211016-2 | BALL BEARING 626LLB | 1 | |
| 017 | 421578-4 | RUBBER RING | 1 | |
| 018 | 443101-5 | FELT RING | 1 | |
| 019 | 326203-1 | JOINT | 1 | |
| 020 | 163534-5 | FLEXIBLE WIRE | 1 | |
| 021 | 416244-6 | NUT 36 | 1 | |
| 022 | 163537-9 | FLEXIBLE HOSE | 1 | |
| 023 | 266045-0 | TAPPING SCREW 4X20 | 4 | |
| 024 | 316893-8 | BEARING BOX | 1 | |
| 025 | 211056-0 | BALL BEARING 629LLB | 1 | |
| 026 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 027 | 318038-4 | SUPPORTER | 1 | |
| 028 | 629836-4 | DC MOTOR | 1 | |
| 029 | 187865-8 | HOUSING SET | 1 | |
| 029 | D10 | INC. 3 | ||
| 030 | 158051-8 | COVER COMPLETE | 1 | |
| 030 | C10 | 810196-7 | CAUTION LABEL | 1 |
| 031 | 126206-3 | FLEXIBLE ASSEMBLY | 1 | |
| 031 | D10 | INC. 9-20,22 | ||
| F02-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 |
