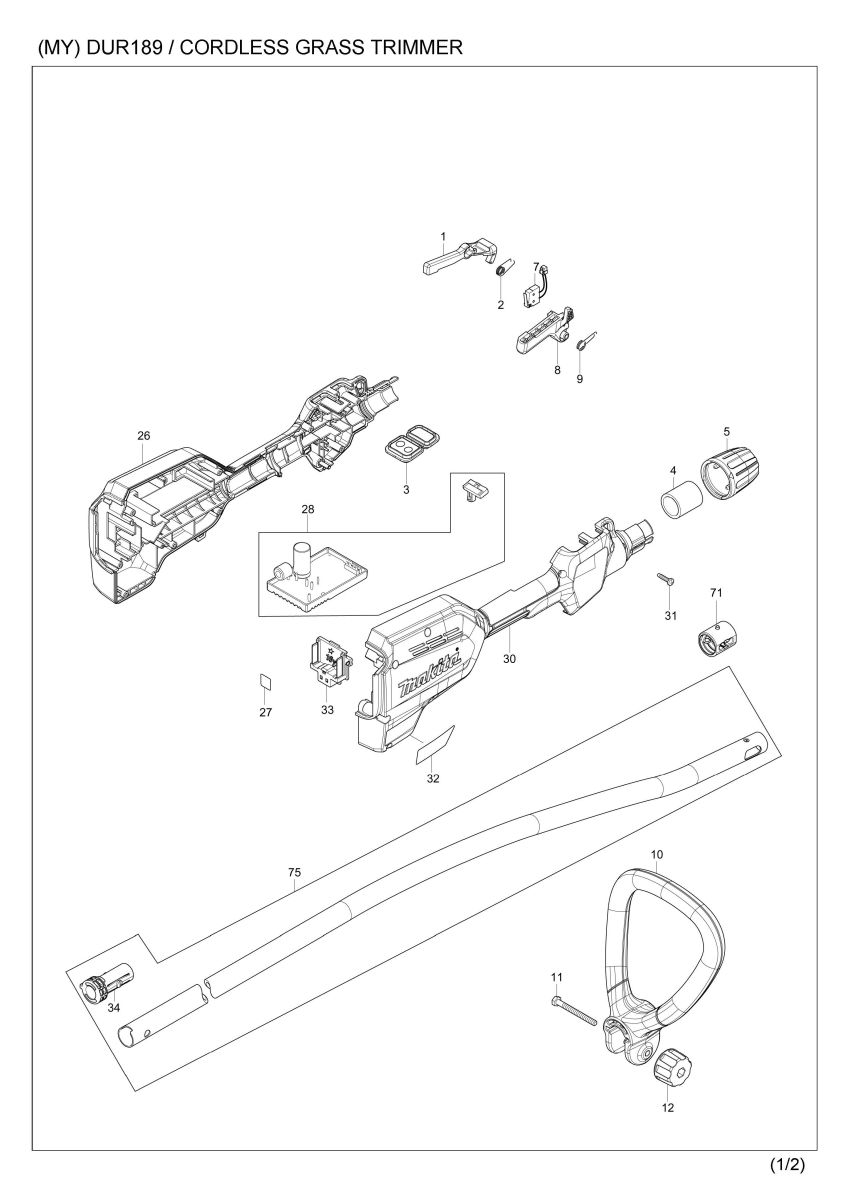

Part Diagram
Total: 81 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 456671-5 | LOCK OFF LEVER | 1 | |
| 2 | 233621-5 | TORSION SPRING 9 | 1 | |
| 3 | 140B61-1 | SUB CONTROLLER COMPLETE | 1 | |
| 3 | C10 | 816X50-7 | SWITCH LABEL | 1 |
| 3 | C20 | 816X51-5 | INDICATION LABEL | 1 |
| 4 | 456647-2 | RUBBER SLEEVE 24 A | 1 | |
| 5 | 453344-1 | LOCK SLEEVE | 1 | |
| 7 | 632E26-0 | SWITCH UNIT | 1 | |
| 8 | 456670-7 | SWITCH LEVER | 1 | |
| 9 | 233612-6 | TORSION SPRING 10 | 1 | |
| 10 | 456423-4 | LOOP HANDLE 24 | 1 | |
| 11 | 921382-6 | HEX. BOLT M6X60 | 1 | |
| 12 | 264072-1 | THUMB NUT M6 | 1 | |
| 12 | C10 | 931302-2 | HEX. NUT M6 | 1 |
| 26 | 183E59-3 | GRIP HOUSING SET | 1 | |
| 26 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 26 | D10 | INC. 30 | ||
| 27 | 854K68-2 | DUR189 SERIAL NO. LABEL | 1 | |
| 28 | 620910-1 | CONTROLLER | 1 | |
| 028-1 | 620910-1 | CONTROLLER | 1 | |
| 028-2 | 620F97-5 | CONTROLLER | 1 | |
| 30 | 183E59-3 | GRIP HOUSING SET | 1 | |
| 30 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 30 | D10 | INC. 26 | ||
| 31 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 32 | 854K62-4 | DUR189 NAME PLATE | 1 | |
| 33 | 644808-8 | TERMINAL | 1 | |
| 34 | 456648-0 | PIPE CAP | 1 | |
| 56 | 183F18-3 | MOTOR HOUSING SET | 1 | |
| 56 | D10 | INC. 69 | ||
| 57 | 629248-1 | STATOR | 1 | |
| 58 | 519429-4 | ROTOR ASS'Y | 1 | |
| 58 | D10 | INC. 59,60 | ||
| 058-1 | 519429-4 | ROTOR ASS'Y | 1 | |
| 058-1 | D10 | INC. 59,60 | ||
| 59 | 210049-4 | BALL BEARING 609ZZ | 1 | |
| 60 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 61 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 62 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 63 | 221492-2 | HELICAL GEAR 26 | 1 | |
| 64 | 327132-1 | CUTTER SHAFT | 1 | |
| 65 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 66 | 144512-4 | RECEIVE WASHER COMPLETE | 1 | |
| 66 | C10 | 213055-8 | O RING 10 | 1 |
| 68 | 346857-8 | GUARD | 1 | |
| 69 | 183F18-3 | MOTOR HOUSING SET | 1 | |
| 69 | D10 | INC. 56 | ||
| 70 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 71 | 424567-8 | RUBBER SLEEVE 24 | 1 | |
| 75 | 135955-1 | PIPE ASS'Y | 1 | |
| 75 | C10 | 816X52-3 | CAUTION LABEL | 1 |
| 75 | D10 | INC. 34 | ||
| 77 | 699114-6 | POWER SUPPLY CORD UNIT | 1 | |
| 77 | C10 | 680391-1 | SPONGE SHEET | 1 |
| 80 | 326348-5 | WIRE GUARD | 1 | |
| 81 | 413143-3 | WASHER | 2 | |
| 82 | 454641-8 | PROTECTOR HOLDER | 1 | |
| 84 | 265647-9 | HEX SOCKET HEAD BOLT M6X30 W | 2 | |
| 85 | 266427-6 | TAPPING SCREW 4X12 | 2 | |
| 86 | 346855-2 | CUTTER | 1 | |
| 87 | 456651-1 | PROTECTOR | 1 | |
| 89 | 135967-4 | GEAR ASSEMBLY | 1 | |
| 89 | D10 | INC. 62-65 | ||
| A01 | 198972-2 | TRIMMER HEAD 95-M8R SET M | 1 | |
| A01-1 | 198971-4 | TRIMMER HEAD 95-M8R SET ME | 1 | |
| A02 | 125516-5 | BAND ASSEMBLY | 1 | |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A06 | 831304-7 | ACCESSORY BAG | 1 | |
| A07B | 450128-8 | BATTERY COVER | 2 | |
| A08B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A08B | D10 | COMPO-PARTS | ||
| A09B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A09-1B | 197600-6 | BATTERY BL1830B SET | 2 | |
| F02 | 197297-1 | TRIMMER HEAD 90-M8R SET ME | 1 | |
| F03 | 196591-8 | NYLON CODE 2.0-15M SET | 1 | |
| F05 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F06 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F07 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F08 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F15 | 191D92-5 | TRIMMER HEAD 96-M8R SET | 1 |
