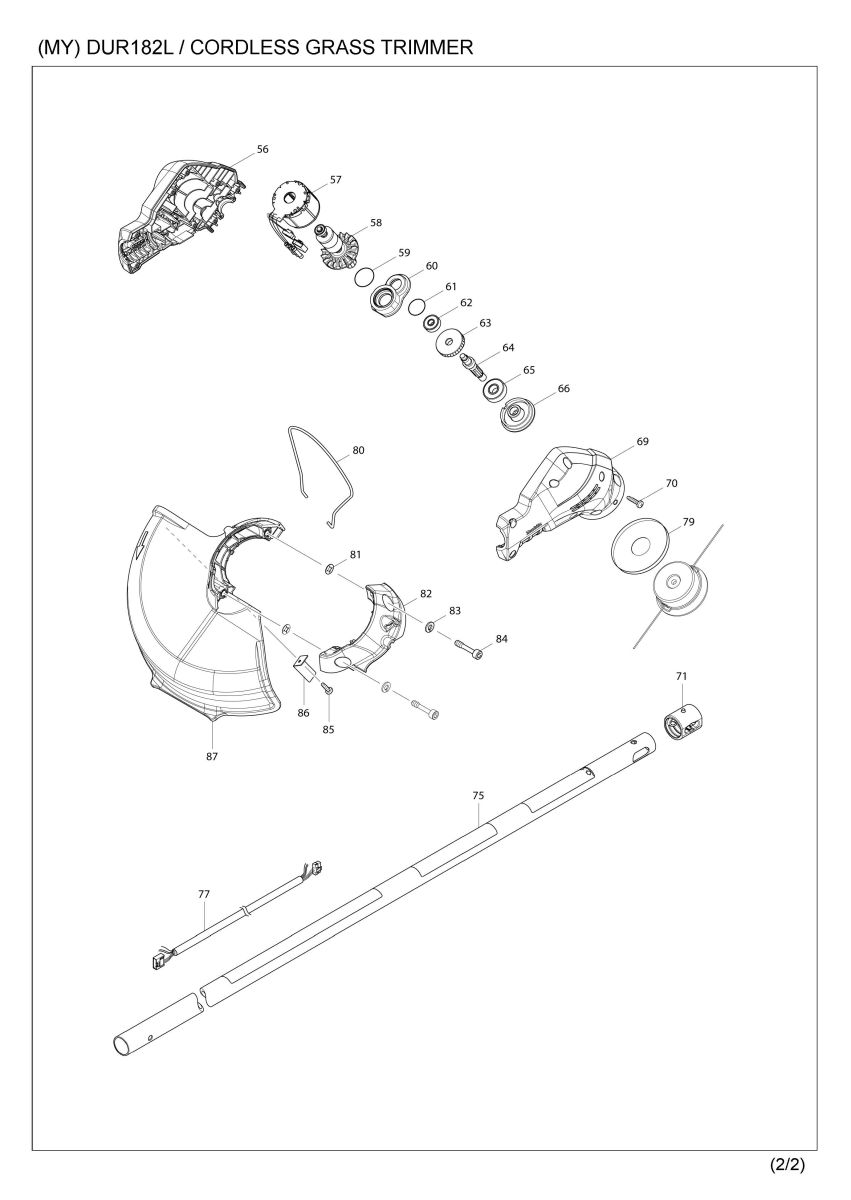

Part Diagram
Total: 96 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 187698-1 | GRIP SET | 1 | |
| 1 | D10 | INC. 15 | ||
| 2 | 454737-5 | LOCK OFF LEVER | 1 | |
| 3 | 454738-3 | LEVER BASE | 1 | |
| 4 | 234079-1 | COMPRESSION SPRING 4 | 2 | |
| 5 | 651533-4 | SWITCH SLE6A2-33 | 1 | |
| 6 | 686015-7 | RECEPTACLE SLEEVE | 1 | |
| 7 | 650704-0 | SWITCH D2SW-P01L1-3M | 1 | |
| 8 | 454736-7 | SWITCH LEVER | 1 | |
| 9 | 233612-6 | TORSION SPRING 10 | 1 | |
| 10 | 451985-7 | LEAD COVER | 1 | |
| 11 | 687261-5 | STRAIN RELIEF | 1 | |
| 12 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 13 | 346248-3 | CLAMP 24 | 2 | |
| 14 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 2 | |
| 15 | 187698-1 | GRIP SET | 1 | |
| 15 | D10 | INC. 1 | ||
| 16 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 22 | 699064-5 | POWER SUPPLY CORD UNIT | 1 | |
| 23 | 187665-6 | HOUSING SET | 1 | |
| 23 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 23 | D10 | INC. 30 | ||
| 24 | 346248-3 | CLAMP 24 | 1 | |
| 25 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 26 | 687261-5 | STRAIN RELIEF | 1 | |
| 27 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 28 | 620196-7 | CONTROLLER A | 1 | |
| 29 | 142134-4 | SUB CONTROLLER COMPLETE | 1 | |
| 30 | 187665-6 | HOUSING SET | 1 | |
| 30 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 30 | D10 | INC. 23 | ||
| 31 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 32 | 814X28-4 | DUR182L NAME PLATE | 1 | |
| 33 | 644808-8 | TERMINAL | 1 | |
| 34 | 451601-1 | SPACER 24 | 1 | |
| 35 | 168478-4 | HANGER | 1 | |
| 36 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 56 | 187585-4 | MOTOR HOUSING SET | 1 | |
| 56 | D10 | INC. 69 | ||
| 57 | 629985-7 | STATOR | 1 | |
| 58 | 619324-9 | ROTOR | 1 | |
| 059-1 | 213373-4 | O RING 22 | 1 | |
| 60 | 318978-6 | BEARING BOX | 1 | |
| 61 | 213325-5 | O RING 19 | 1 | |
| 62 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 062-1 | 210143-2 | BALL BEARING 626ZZ | 1 | |
| 63 | 227773-2 | HELICAL GEAR 31 | 1 | |
| 64 | 326275-6 | CUTTER SHAFT | 1 | |
| 65 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 66 | 324917-6 | RECEIVE WASHER | 1 | |
| 066-1 | 326906-7 | RECEIVE WASHER | 1 | |
| 69 | 187585-4 | MOTOR HOUSING SET | 1 | |
| 69 | D10 | INC. 56 | ||
| 70 | 265995-6 | TAPPING SCREW 4X18 | 8 | |
| 71 | 424567-8 | RUBBER SLEEVE 24 | 1 | |
| 75 | 142252-8 | PIPE COMPLETE | 1 | |
| 75 | C10 | 801H77-4 | CAUTION LABEL | 1 |
| 75 | C20 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 77 | 699059-8 | POWER SUPPLY CORD UNIT | 1 | |
| 79 | 346622-5 | GUARD | 1 | |
| 80 | 326348-5 | WIRE GUARD | 1 | |
| 81 | 413143-3 | WASHER | 2 | |
| 82 | 454641-8 | PROTECTOR HOLDER | 1 | |
| 83 | 942151-2 | SPRING WASHER 6 | 2 | |
| 083-1 | 253428-3 | SPRING WASHER 6 | 2 | |
| 84 | 266579-3 | HEX SOCKET HEAD BOLT M6X30 | 2 | |
| 85 | 266427-6 | TAPPING SCREW 4X12 | 1 | |
| 085-1 | 266427-6 | TAPPING SCREW 4X12 | 2 | |
| 86 | 346725-5 | CUTTER | 1 | |
| 086-1 | 347274-5 | CUTTER | 1 | |
| 87 | 454640-0 | PROTECTOR | 1 | |
| 087-1 | 457980-5 | PROTECTOR | 1 | |
| 88 | 195626-2 | LOOP HANDLE SET | 1 | |
| 88 | D10 | INC. 89-93 | ||
| 89 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 2 | |
| 90 | 452843-0 | CLAMP COVER B | 1 | |
| 91 | 346468-9 | CLAMP 33 | 1 | |
| 92 | 452841-4 | LOOP HANDLE | 1 | |
| 93 | 346467-1 | CLAMP 24 | 1 | |
| 093-1 | 347094-7 | CLAMP 24 | 1 | |
| A01 | 123235-7 | TRIMMER HEAD ASSEMBLY 90-M8L | 1 | |
| A01 | D10 | COMPO-PARTS | ||
| A02 | 125516-5 | BAND ASSEMBLY | 1 | |
| A03 | 195246-2 | SAFETY GOGGLE | 1 | |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A06 | 831304-7 | ACCESSORY BAG | 1 | |
| A07 | 450128-8 | BATTERY COVER | 1 | |
| A08 | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A09B | 194204-5 | BATTERY BL1830 SET | 1 | |
| A09-1B | 194204-5 | BATTERY BL1830 SET | 1 | |
| A09-1C | 196399-0 | BATTERY BL1840 SET | 1 | |
| A09-2B | 197600-6 | BATTERY BL1830B SET | 1 | |
| A09-2C | 197265-4 | BATTERY BL1840B SET | 1 | |
| A09-3B | 197600-6 | BATTERY BL1830B SET | 1 | |
| A09-3C | 197265-4 | BATTERY BL1840B SET | 1 |
