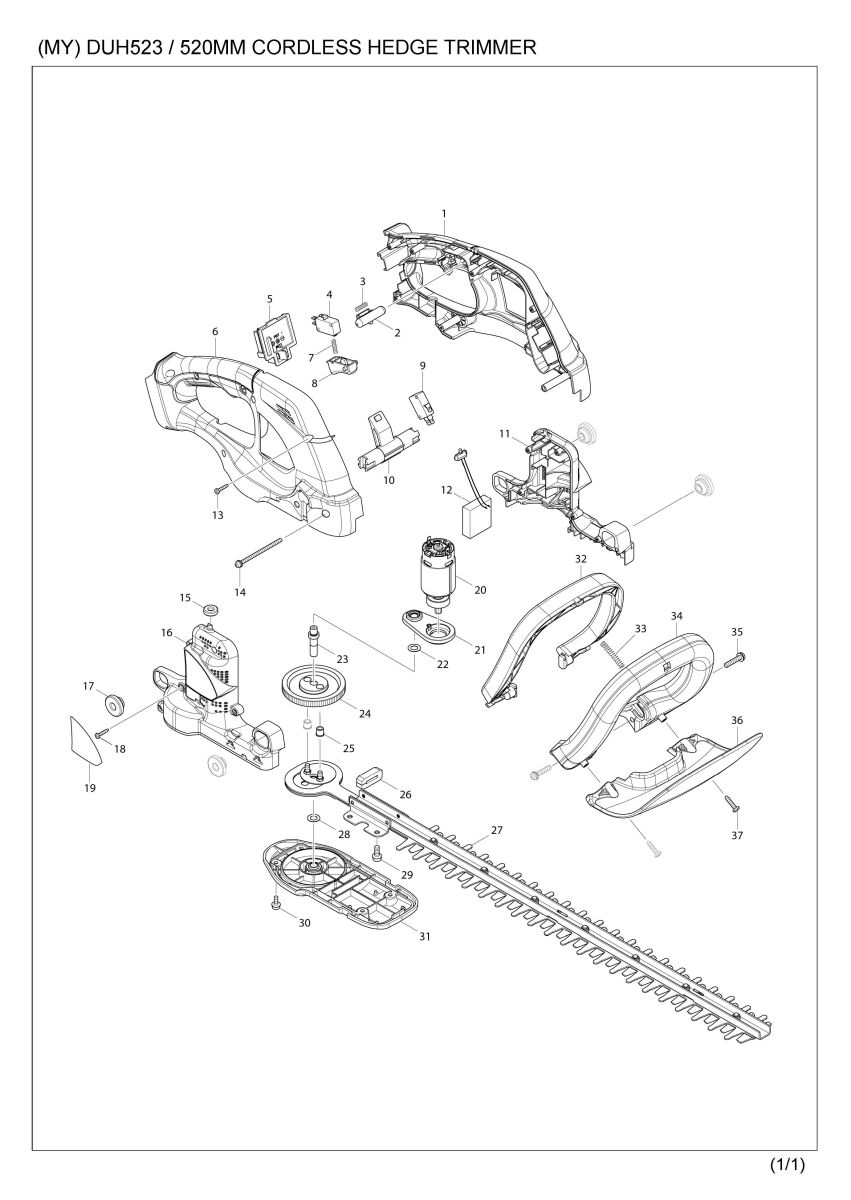

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 187286-4 | HANDLE SET | 1 | |
| 1 | D10 | INC. 6 | ||
| 001-1 | 183K17-5 | HANDLE SET | 1 | |
| 001-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001-1 | D10 | INC. 6 | ||
| 2 | 452438-9 | LOCK OFF BUTTON | 1 | |
| 3 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 4 | 651852-8 | SWITCH V-15-1A5 | 1 | |
| 5 | 643852-2 | TERMINAL | 1 | |
| 6 | 187286-4 | HANDLE SET | 1 | |
| 6 | D10 | INC. 1 | ||
| 006-1 | 183K17-5 | HANDLE SET | 1 | |
| 006-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 006-1 | D10 | INC. 1 | ||
| 7 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 8 | 417564-1 | SWITCH LEVER | 1 | |
| 9 | 651852-8 | SWITCH V-15-1A5 | 1 | |
| 10 | 452681-0 | SWITCH ARM | 1 | |
| 11 | 187285-6 | MOTOR HOUSING SET | 1 | |
| 11 | D10 | INC. 16 | ||
| 12 | 638967-8 | CONTROLLER UNIT | 1 | |
| 012-1 | 632R09-8 | CONTROLLER UNIT | 1 | |
| 012-2 | 632R82-8 | CONTROLLER UNIT | 1 | |
| 012-2 | C20 | 654086-2 | RECEPTACLE | 2 |
| 13 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| 14 | 911193-7 | PAN HEAD SCREW M4X65 | 1 | |
| 15 | 424195-9 | RUBBER RING 6 | 1 | |
| 16 | 187285-6 | MOTOR HOUSING SET | 1 | |
| 16 | D10 | INC. 11 | ||
| 17 | 424394-3 | RUBBER RING 8 | 4 | |
| 18 | 266429-2 | TAPPING SCREW 3X16 | 5 | |
| 19 | 815U45-9 | DUH523 NAME PLATE | 1 | |
| 20 | 629930-2 | DC MOTOR | 1 | |
| 21 | 141211-9 | BEARING BOX COMPLETE | 1 | |
| 22 | 253215-0 | FLAT WASHER 8 | 1 | |
| 23 | 326034-8 | SPINDLE | 1 | |
| 24 | 227281-3 | SPUR GEAR 93 | 1 | |
| 25 | 262570-9 | NYLON SLEEVE 5 | 2 | |
| 26 | 423417-4 | DUST GUARD | 1 | |
| 27 | 195769-0 | SHEAR BLADE COMPLETE SET | 1 | |
| 27 | C10 | 188605-7 | OIL VESSEL SET | 1 |
| 27 | C20 | 262570-9 | NYLON SLEEVE 5 | 2 |
| 28 | 253215-0 | FLAT WASHER 8 | 1 | |
| 29 | 911218-7 | PAN HEAD SCREW M5X14 | 4 | |
| 30 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 4 | |
| 31 | 453317-4 | UNDER COVER | 1 | |
| 32 | 452678-9 | SWITCH LEVER B | 1 | |
| 33 | 234261-2 | COMPRESSION SPRING 5 | 1 | |
| 34 | 452682-8 | FRONT GRIP | 1 | |
| 35 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | |
| 36 | 453316-6 | PROTECTOR | 1 | |
| 37 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| A01 | 452685-2 | BLADE COVER | 1 | |
| A02B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02D | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A03-1B | 196399-0 | BATTERY BL1840 SET | 1 | |
| A03-2B | 197265-4 | BATTERY BL1840B SET | 1 | |
| A03-2C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03-2D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03-3B | 197265-4 | BATTERY BL1840B SET | 1 | |
| A03-3C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03-3D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A04B | 450128-8 | BATTERY COVER | 1 | |
| A04C | 450128-8 | BATTERY COVER | 2 | |
| A04D | 450128-8 | BATTERY COVER | 2 | |
| F03 | 194513-2 | BATTERY BL1815 SET | 1 | |
| F04 | 195050-9 | CHIP RECEIVER ASSEMBLY SET | 1 | |
| F05-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F06 | 195445-6 | BATTERY BL1815 SET | 1 | |
| F08 | 196167-1 | SHEAR BLADE COMPLETE SET | 1 | |
| F09-2 | 196235-0 | BATTERY BL1815N SET | 1 | |
| F10-1 | 196449-1 | BATTERY BL1815N SET | 1 | |
| F11-2 | 196449-1 | BATTERY BL1815N SET | 1 |
