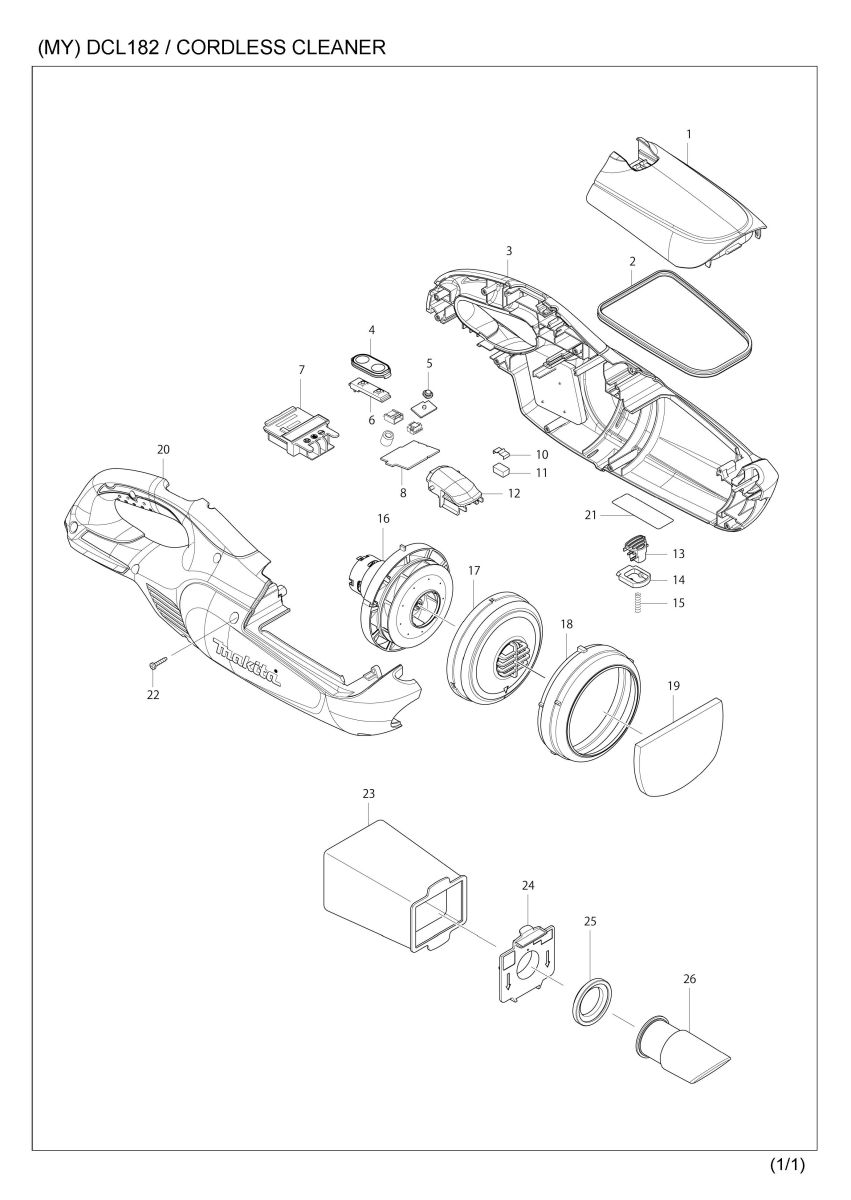

Part Diagram
Total: 93 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001A | 452349-8 | FRONT COVER | 1 | |
| 001B | 456202-0 | FRONT COVER | 1 | |
| 2 | 424093-7 | SEAL | 1 | |
| 003A | 188998-2 | HOUSING SET | 1 | |
| 003B | 183E55-1 | HOUSING SET | 1 | |
| 003B | C10 | 424209-4 | SPONGE SHEET 50-50 | 2 |
| 003B | D10 | INC. 20 | ||
| 4 | 140463-9 | SWITCH PLATE COMPLETE | 1 | |
| 4 | C10 | 816528-6 | SWITCH LABEL | 1 |
| 5 | 450522-4 | LENS | 1 | |
| 6 | 631973-2 | SWITCH UNIT | 1 | |
| 7 | 643860-3 | TERMINAL | 1 | |
| 008-2 | 632H42-0 | CONTROLLER UNIT | 1 | |
| 008-2 | C20 | 654069-2 | RECEPTACLE | 2 |
| 008-2 | C21 | 654086-2 | RECEPTACLE | 2 |
| 10 | 232264-0 | LEAF SPRING | 1 | |
| 11 | 424367-6 | RUBBER | 1 | |
| 012A | 452347-2 | FRONT COVER JOINT | 1 | |
| 012B | 456200-4 | FRONT COVER JOINT | 1 | |
| 013A | 452351-1 | BUTTON | 1 | |
| 013B | 456201-2 | BUTTON | 1 | |
| 14 | 452352-9 | STOPPER | 1 | |
| 015-1 | 233344-5 | COMPRESSION SPRING 4 | 1 | |
| 16 | 125932-1 | MOTOR ASSEMBLY | 1 | |
| 16 | C10 | 240102-2 | FAN 82 | 1 |
| 16 | C20 | 265199-0 | + PAN HEAD SCREW M3X8 | 2 |
| 16 | C30 | 452455-9 | BASE | 1 |
| 17 | 416030-5 | FAN COVER | 1 | |
| 18 | 424320-2 | RUBBER RING | 1 | |
| 019-1 | 424804-0 | SPONGE SHEET 76-110 | 1 | |
| 020A | 188998-2 | HOUSING SET | 1 | |
| 020B | 183E55-1 | HOUSING SET | 1 | |
| 020B | C10 | 424209-4 | SPONGE SHEET 50-50 | 2 |
| 020B | D10 | INC. 3 | ||
| 21 | 815G97-6 | DCL182 NAME PLATE | 1 | |
| 22 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 23 | 166084-9 | DUST BAG | 1 | |
| 024-1 | 143677-9 | VALVE STAY COMPLETE | 1 | |
| 25 | 424094-5 | PACKING | 1 | |
| 026A | 452345-6 | INLET | 1 | |
| 026B | 456199-3 | INLET | 1 | |
| 27 | 268271-7 | PIN 3 | 1 | |
| 28 | 233580-3 | TORSION SPRING 4 | 1 | |
| A01-1A | 123488-8 | FLOOR T-NOZZLE 28 BLU | 1 | |
| A01-1B | 123539-7 | FLOOR T-NOZZLE 28 BLA | 1 | |
| A01-1B | C10 | 451410-8 | ROLLER | 4 |
| A01-1B | C20 | 268208-4 | PIN 3 | 4 |
| A01-1B | C30 | 424096-1 | WIPER | 1 |
| A01-1B | C31 | 422963-4 | WIPER | 1 |
| A02A | 451243-1 | SASH NOZZLE 28 BLU | 1 | |
| A02B | 456586-6 | SASH NOZZLE 28 BLK | 1 | |
| A02-1A | 413859-0 | SASH NOZZLE | 1 | |
| A02-1B | 413809-5 | SASH NOZZLE | 1 | |
| A03A | 451244-9 | PIPE | 1 | |
| A03B | 456587-4 | PIPE | 1 | |
| A04A | 451245-7 | SASH NOZZLE HOLDER | 1 | |
| A04B | 456585-8 | SASH NOZZLE HOLDER | 1 | |
| A05 | 194566-1 | PAPER FILTER SET (5PCS/SET) | 1 | |
| A05-1 | 198745-3 | PAPER FILTER SET | 1 | |
| A06 | ***DC18SD | DC18SD BATTERY CHARGER | 1 | |
| A07-1 | 197600-6 | BATTERY BL1830B SET | 1 | |
| A08 | 450128-8 | BATTERY COVER | 1 | |
| F02 | 191496-7 | FLEXIBLE HOSE SET28(IVO) | 1 | |
| F08 | 198527-3 | FLOOR/CARPET T-NOZZLE BLU | 1 | |
| F12 | 198529-9 | FLOOR/CARPET T-NOZZLE BLK EU | 1 | |
| F13 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F15 | 198538-8 | SHELF BRUSH SET28 BLU | 1 | |
| F17 | 198540-1 | SHELF BRUSH SET28 BLK EU | 1 | |
| F20 | 198545-1 | FLEXIBLE HOSE SET28(BLU) | 1 | |
| F22 | 198547-7 | FLEXIBLE HOSE SET28(BLK)EU | 1 | |
| F24 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F26 | 198553-2 | ROUND BRUSH SET 28 BLU | 1 | |
| F28 | 198555-8 | ROUND BRUSH SET 28 BLK EU | 1 | |
| F29-1 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F34 | 198868-7 | FLEXIBLE HOSE SET28(WHI) | 1 | |
| F36 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F38 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F40 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F42 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F44 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F46 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F48 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F50 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F51 | 198744-5 | PAPER FILTER SET | 1 | |
| F52 | 198745-3 | PAPER FILTER SET | 1 | |
| F54 | 198747-9 | DUST BAG SET EU | 1 | |
| F55 | 194565-3 | PAPER FILTER(10PCS) | 1 | |
| F56 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F57 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F61 | 191D75-5 | CYCLONE ATTACHMENT SET | 1 | |
| F63 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F67 | 199971-7 | HOLDER SET | 1 | |
| F92 | 1911L1-0 | CLEANER STAND SET | 1 |
