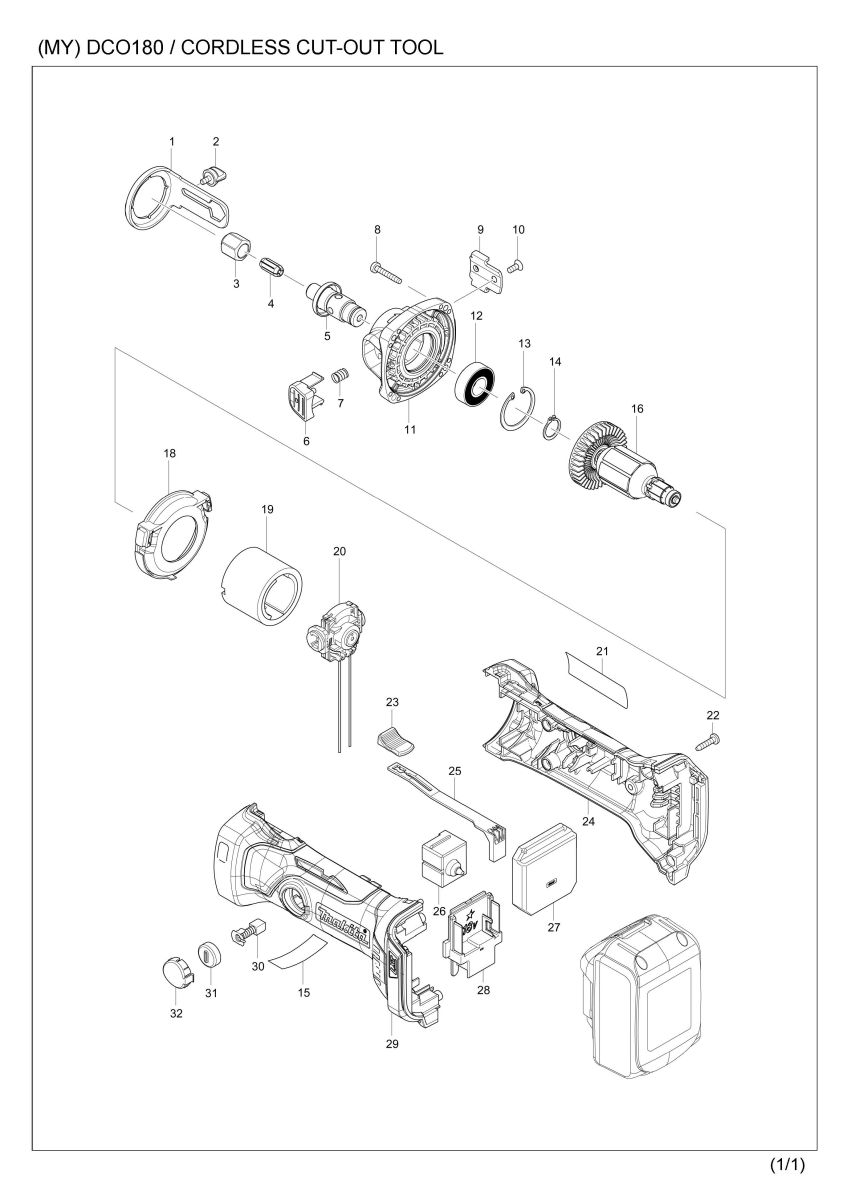

Part Diagram
Total: 40 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 346796-2 | SHOE PLATE | 1 | |
| 2 | 266898-7 | THUMB SCREW M4X8 | 1 | |
| 3 | 763675-3 | COLLET NUT | 1 | |
| 003-1 | 763258-9 | COLLET NUT | 1 | |
| 4 | 763677-9 | COLLET CONE 3.18 | 1 | |
| 5 | 142656-4 | SPINDLE COMPLETE | 1 | |
| 6 | 455181-9 | SHAFT LOCK | 1 | |
| 7 | 234332-5 | COMPRESSION SPRING 7 | 1 | |
| 8 | 266374-1 | TAPPING SCREW 4X25 | 4 | |
| 9 | 346795-4 | SHOE SUPPORT | 1 | |
| 10 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 1 | |
| 11 | 142655-6 | BEARING BOX COMPLETE | 1 | |
| 12 | 211236-8 | BALL BEARING 6002DDW | 1 | |
| 13 | 962151-6 | RETAINING RING R-32 | 1 | |
| 14 | 961055-9 | RETAINING RING S-15 | 1 | |
| 16 | 619344-3 | ARMATURE | 1 | |
| 18 | 455182-7 | BAFFLE PLATE | 1 | |
| 19 | 638627-2 | YOKE UNIT | 1 | |
| 20 | 632C14-5 | ENDBELL COMPLETE | 1 | |
| 21 | 815U77-6 | DCO180 NAME PLATE | 1 | |
| 22 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 23 | 419566-3 | SWITCH KNOB | 1 | |
| 24 | 187871-3 | HOUSING SET | 1 | |
| 24 | D10 | INC. 29 | ||
| 25 | 419519-2 | SWITCH LEVER | 1 | |
| 26 | 650579-7 | SWITCH 1246.3223 | 1 | |
| 27 | 620308-2 | CONTROLLER | 1 | |
| 27 | C10 | 654037-5 | INSULATED TERM. FT1.25-M3 | 1 |
| 27 | C20 | 654077-3 | INSULATED TERMINAL FK2-M3D-5.5 | 1 |
| 27 | C30 | 654208-4 | RECEPTACLE | 2 |
| 27 | C40 | 654281-4 | RECEPTACLE | 1 |
| 27 | C50 | 654304-8 | RECEPTACLE | 2 |
| 28 | 643860-3 | TERMINAL | 1 | |
| 29 | 187871-3 | HOUSING SET | 1 | |
| 29 | D10 | INC. 24 | ||
| 30 | 191971-3 | CARBON BRUSH CB-430 | 1 | |
| 31 | 643929-3 | BRUSH HOLDER CAP | 2 | |
| 32 | 455183-5 | HOLDER CAP COVER | 2 | |
| A01 | 193446-8 | DRYWALL GUIDE BIT 3.18 SET | 2 | |
| A01-1 | 191G69-8 | DRYWALL GUIDE BIT 3.18 SET | 2 |
