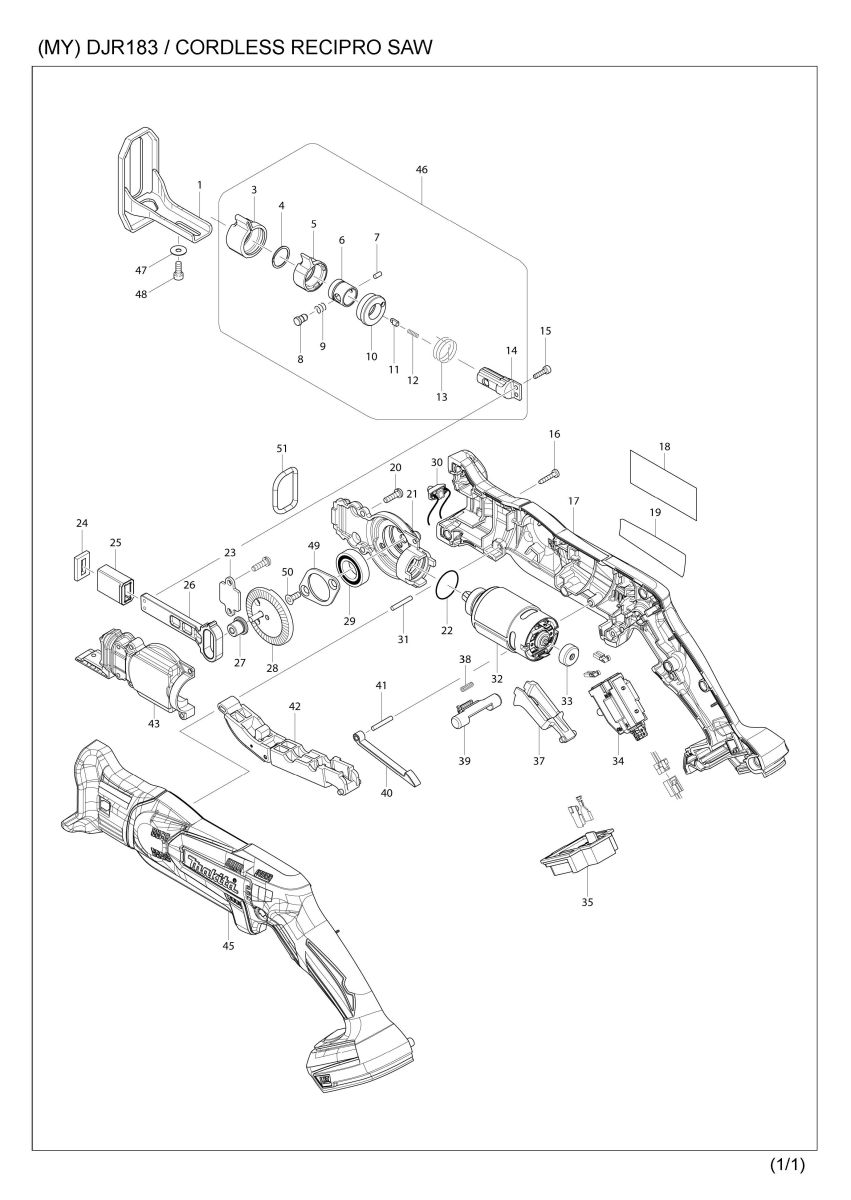

Part Diagram
Total: 72 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 165740-8 | SHOE | 1 | |
| 3 | 424466-4 | PROTECTOR | 1 | |
| 4 | 257981-1 | RETAINING RING (EXT)16 | 1 | |
| 5 | 310496-0 | DRIVING SLEEVE | 1 | |
| 6 | 331963-2 | GUIDE SLEEVE | 1 | |
| 7 | 268094-3 | PIN 3 | 1 | |
| 8 | 256492-3 | SHOULDER PIN 5 | 1 | |
| 9 | 233345-3 | COMPRESSION SPRING 6 | 1 | |
| 10 | 453071-0 | CONNECTING SLEEVE | 1 | |
| 11 | 310495-2 | PUSH PIN | 1 | |
| 011-1 | 310859-0 | PUSH PIN | 1 | |
| 011-2 | 310912-2 | PUSH PIN | 1 | |
| 12 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 012-1 | 232472-3 | COMPRESSION SPRING 2 | 1 | |
| 13 | 233594-2 | TORSION SPRING 17 | 1 | |
| 14 | 326113-2 | BLADE GUIDE | 1 | |
| 15 | 265910-0 | HEX. SOCKET HEAD BOLT M3X12 | 2 | |
| 015-1 | 265D80-9 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 16 | 266429-2 | TAPPING SCREW 3X16 | 10 | |
| 17 | 187760-2 | HOUSING SET | 1 | |
| 17 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 17 | C20 | 423475-0 | SPONGE SHEET | 1 |
| 17 | D10 | INC. 45 | ||
| 19 | 814V98-1 | DJR183 NAME PLATE | 1 | |
| 20 | 266747-8 | PAN HEAD SCREW M4X14 WITH WM | 5 | |
| 21 | 319060-4 | GEAR HOUSING | 1 | |
| 22 | 213961-7 | O RING 22 | 1 | |
| 23 | 346525-3 | PLATE | 1 | |
| 24 | 443185-3 | FELT SEAL | 1 | |
| 25 | 313220-0 | SLIDER GUIDE | 1 | |
| 26 | 313271-3 | SLIDER | 1 | |
| 27 | 313270-5 | COLLARED SLEEVE 4 | 1 | |
| 28 | 142284-5 | GEAR COMPLETE | 1 | |
| 29 | 211242-3 | BALL BEARING 6902ZZ | 1 | |
| 30 | 620237-9 | LED CIRCUIT | 1 | |
| 31 | 256158-5 | PIN 3 | 1 | |
| 32 | 629105-3 | DC MOTOR | 1 | |
| 33 | 424467-2 | CAP | 1 | |
| 34 | 650712-1 | SWITCH C3HY-1A-PRLMS | 1 | |
| 35 | 643852-2 | TERMINAL | 1 | |
| 37 | 453072-8 | SWITCH LEVER R | 1 | |
| 38 | 233438-6 | COMPRESSION SPRING 4 | 1 | |
| 39 | 454661-2 | LOCK OFF LEVER R | 1 | |
| 40 | 313219-5 | LINK | 1 | |
| 41 | 256158-5 | PIN 3 | 1 | |
| 42 | 141128-6 | SWITCH LEVER F COMPLETE | 1 | |
| 43 | 319061-2 | GEAR HOUSING COVER | 1 | |
| 45 | 187760-2 | HOUSING SET | 1 | |
| 45 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 45 | C20 | 423475-0 | SPONGE SHEET | 1 |
| 45 | D10 | INC. 17 | ||
| 46 | 126201-3 | BLADE CLAMP ASSEMBLY | 1 | |
| 46 | D10 | INC. 3-14 | ||
| 47 | 253874-0 | FLAT WASHER 4 | 1 | |
| 48 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 1 | |
| 49 | 285738-0 | BEARING RETAINER 36 | 1 | |
| 50 | 265035-0 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 51 | 424597-9 | RUBBER RING 23 | 1 | |
| A01 | B-20432 | RECIPROSAW BLADE 100MM | 1 | |
| A02 | B-20404 | RECIPROSAW BLADE 100MM | 1 | |
| A03 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A04A | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05-1A | 196399-0 | BATTERY BL1840 SET | 2 | |
| A05-2A | 197265-4 | BATTERY BL1840B SET | 2 | |
| A05-3A | 197265-4 | BATTERY BL1840B SET | 2 | |
| A06A | 450128-8 | BATTERY COVER | 1 | |
| A07A | 821586-9 | PLASTIC CARRYING CASE | 1 | |
| A07A | C10 | 162315-4 | LATCH | 2 |
| A07A | C20 | 452137-3 | HANDLE | 1 |
| F17-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F18-3 | 197600-6 | BATTERY BL1830B SET | 1 | |
| F19-4 | 197599-5 | BATTERY BL1830B SET | 1 |
