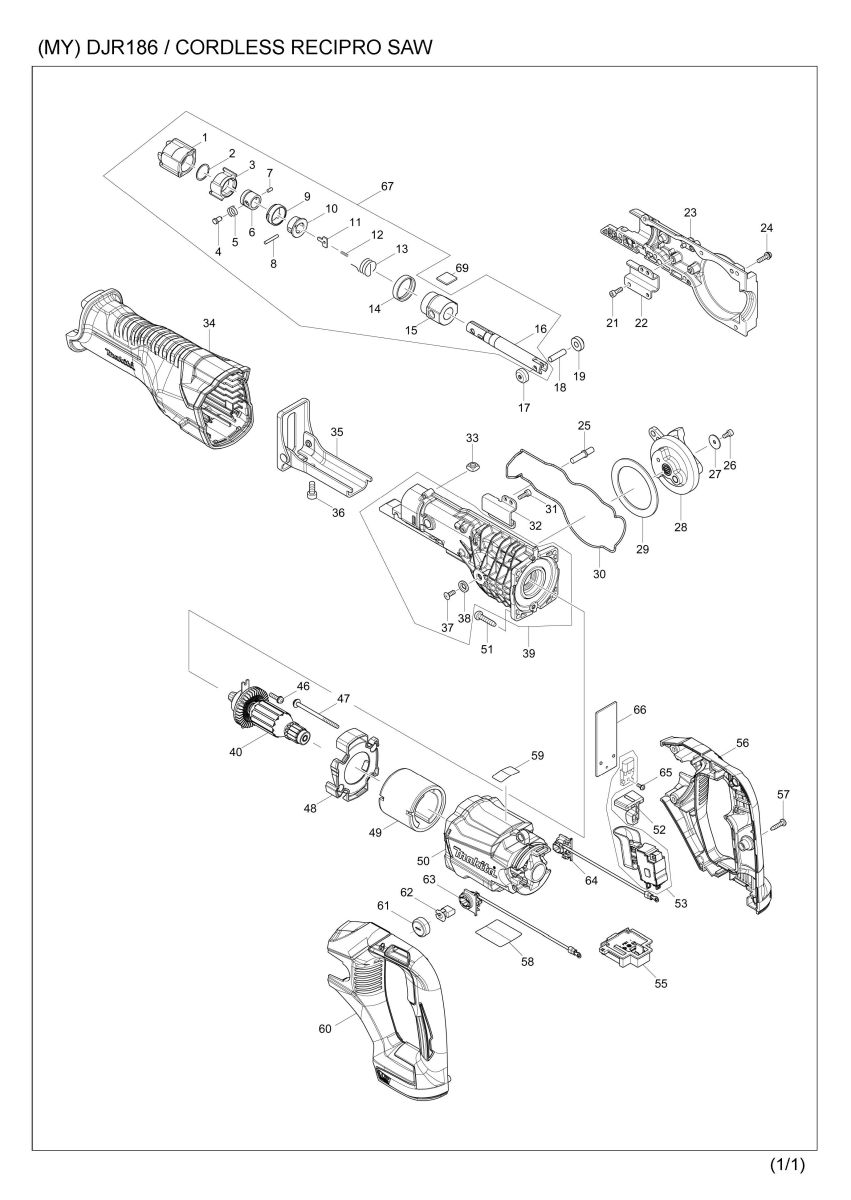

Part Diagram
Total: 133 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 424763-8 | PROTECTOR | 1 | |
| 2 | 257952-8 | RETAINING RING (EXT) 18 | 1 | |
| 002-1 | 257430-8 | RETAINING RING(EXT)18 | 1 | |
| 3 | 310662-9 | DRIVING SLEEVE | 1 | |
| 4 | 256569-4 | SHOULDER PIN 5 | 1 | |
| 5 | 234381-2 | COMPRESSION SPRING 6 | 1 | |
| 6 | 331720-8 | GUIDE SLEEVE | 1 | |
| 006-1 | 327043-0 | GUIDE SLEEVE | 1 | |
| 7 | 268094-3 | PIN 3 | 1 | |
| 8 | 256158-5 | PIN 3 | 1 | |
| 9 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | |
| 10 | 418311-3 | SLEEVE | 1 | |
| 11 | 345214-7 | PUSH PLATE | 1 | |
| 12 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 13 | 231687-9 | TORSION SPRING 17 | 1 | |
| 14 | 424762-0 | RUBBER RING | 1 | |
| 15 | 143365-8 | SLIDER GUIDE COMPLETE | 1 | |
| 15 | C10 | 213151-2 | OIL SEAL 14 | 1 |
| 15 | C20 | 213174-0 | X RING 14 | 1 |
| 16 | 161376-1 | SLIDER | 1 | |
| 17 | 310663-7 | ROLLER | 1 | |
| 18 | 268341-2 | PIN 6 | 1 | |
| 19 | 310663-7 | ROLLER | 1 | |
| 21 | 922117-8 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 021-1 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 22 | 346936-2 | ROD GUIDE R | 1 | |
| 23 | 143381-0 | GEAR HOUSING R COMPLETE | 1 | |
| 24 | 911128-8 | P.H.SCREW M4X16 WITH WR | 7 | |
| 25 | 256567-8 | SHOULDER PIN 6-8 | 1 | |
| 26 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 026-1 | 265911-8 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 27 | 267491-0 | FLAT WASHER 4 | 1 | |
| 28 | 143377-1 | GEAR COMPLETE | 1 | |
| 028-1 | 141V68-0 | GEAR COMPLETE | 1 | |
| 29 | 267490-2 | FLAT WASHER 54 | 1 | |
| 30 | 424764-6 | SEAL RING | 1 | |
| 31 | 922117-8 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 031-1 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 32 | 346935-4 | ROD GUIDE L | 1 | |
| 33 | 252157-5 | SQUARE NUT M6 | 1 | |
| 34 | 424768-8 | INSULATION COVER | 1 | |
| 35 | 161375-3 | SHOE | 1 | |
| 035-1 | 161810-1 | SHOE | 1 | |
| 36 | 265531-8 | HEX.SOCKET HEAD BOLT M6X14 | 1 | |
| 37 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 1 | |
| 037-1 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 | |
| 38 | 253825-3 | FLAT WASHER 6 | 1 | |
| 39 | 123511-9 | GEAR HOUSING L ASSEMBLY | 1 | |
| 39 | D10 | INC. 37,38 | ||
| 039-1 | 126678-2 | GEAR HOUSING L ASSEMBLY | 1 | |
| 039-1 | D10 | INC. 37,38 | ||
| 40 | 519392-1 | ARMATURE ASS'Y 18V | 1 | |
| 40 | C10 | 961055-9 | RETAINING RING S-15 | 1 |
| 40 | C20 | 211247-3 | BALL BEARING 6002DDW | 1 |
| 40 | C30 | 227650-8 | SPIRAL BEVEL GEAR 7 | 1 |
| 40 | C40 | 285740-3 | BEARING RETAINER 66 | 1 |
| 40 | C50 | 210062-2 | BALL BEARING 607ZZ | 1 |
| 40 | D10 | INC. 41-45 | ||
| 040-1 | 510597-6 | ARMATURE ASS'Y 18V | 1 | |
| 040-1 | C10 | 961055-9 | RETAINING RING S-15 | 1 |
| 040-1 | C20 | 211247-3 | BALL BEARING 6002DDW | 1 |
| 040-1 | C30 | 227A05-3 | SPIRAL BEVEL GEAR 7 | 1 |
| 040-1 | C40 | 285740-3 | BEARING RETAINER 66 | 1 |
| 040-1 | C50 | 210062-2 | BALL BEARING 607ZZ | 1 |
| 41 | 961055-9 | RETAINING RING S-15 | 1 | |
| 42 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 43 | 227650-8 | SPIRAL BEVEL GEAR 7 | 1 | |
| 44 | 285740-3 | BEARING RETAINER 66 | 1 | |
| 45 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 46 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 47 | 266292-3 | TAPPING SCREW 4X65 | 2 | |
| 48 | 456207-0 | BAFFLE PLATE | 1 | |
| 49 | 638571-3 | YOKE UNIT | 1 | |
| 50 | 456206-2 | MOTOR HOUSING | 1 | |
| 51 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 52 | 456208-8 | LOCK OFF BUTTON | 1 | |
| 53 | 650760-0 | SWITCH TG573FSB-9V | 1 | |
| 053-1 | 650760-0 | SWITCH TG573FSB-9V | 1 | |
| 55 | 644808-8 | TERMINAL | 1 | |
| 055-1 | 644809-6 | TERMINAL | 1 | |
| 56 | 183C48-6 | HANDLE SET | 1 | |
| 56 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 56 | D10 | INC. 60 | ||
| 056-1 | 183C49-4 | HANDLE SET | 1 | |
| 056-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 056-1 | D10 | INC. 60 | ||
| 57 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 58 | 851R04-1 | DJR186 NAME PLATE | 1 | |
| 60 | 183C48-6 | HANDLE SET | 1 | |
| 60 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 60 | D10 | INC. 56 | ||
| 060-1 | 183C49-4 | HANDLE SET | 1 | |
| 060-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 060-1 | D10 | INC. 56 | ||
| 61 | 643829-7 | HOLDER CAP | 2 | |
| 62 | 194435-6 | CARBON BRUSH CB-441 | 1 | |
| 062-1 | 195022-4 | CARBON BRUSH SET CB-441 | 1 | |
| 63 | 643505-3 | BRUSH HOLDER | 1 | |
| 64 | 643506-1 | BRUSH HOLDER | 1 | |
| 65 | 911011-9 | PAN HEAD SCREW M3X10 | 1 | |
| 66 | 689204-3 | HEAT SINK | 1 | |
| 67 | 123510-1 | SLIDER ASSEMBLY | 1 | |
| 67 | D10 | INC. 1-16 | ||
| 067-1 | 127397-3 | SLIDER ASSEMBLY | 1 | |
| 067-1 | D10 | INC. 1-16 | ||
| 69 | 424858-7 | FELT 16X16 | 1 | |
| A01 | B-05169 | RECIPROSAWBLADE FOR METAL | 1 | |
| A02 | B-05175 | RECIPROSAWBLADE FOR WOOD | 1 | |
| A03B | 821620-5 | PLASTIC CARRYING CASE | 1 | |
| A03B | C10 | 162271-8 | LATCH | 2 |
| A03C | 821620-5 | PLASTIC CARRYING CASE | 1 | |
| A03C | C10 | 162271-8 | LATCH | 2 |
| A03D | 821620-5 | PLASTIC CARRYING CASE | 1 | |
| A03D | C10 | 162271-8 | LATCH | 2 |
| A04B | 808A63-4 | DJR186RME PLASTIC CASE LABEL | 2 | |
| A04C | 808A69-2 | DJR186RFE PLASTIC CASE LABEL | 2 | |
| A04D | 808A63-4 | DJR186RME PLASTIC CASE LABEL | 2 | |
| A05B | 450128-8 | BATTERY COVER | 1 | |
| A05C | 450128-8 | BATTERY COVER | 1 | |
| A05D | 450128-8 | BATTERY COVER | 1 | |
| A06B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A06C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A06C | D10 | COMPO-PARTS | ||
| A06D | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A06D | D10 | COMPO-PARTS | ||
| A07B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A07C | 194204-5 | BATTERY BL1830 SET | 2 | |
| A07D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A07-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A07-1C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A07-1D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A07-2C | 197600-6 | BATTERY BL1830B SET | 2 |
