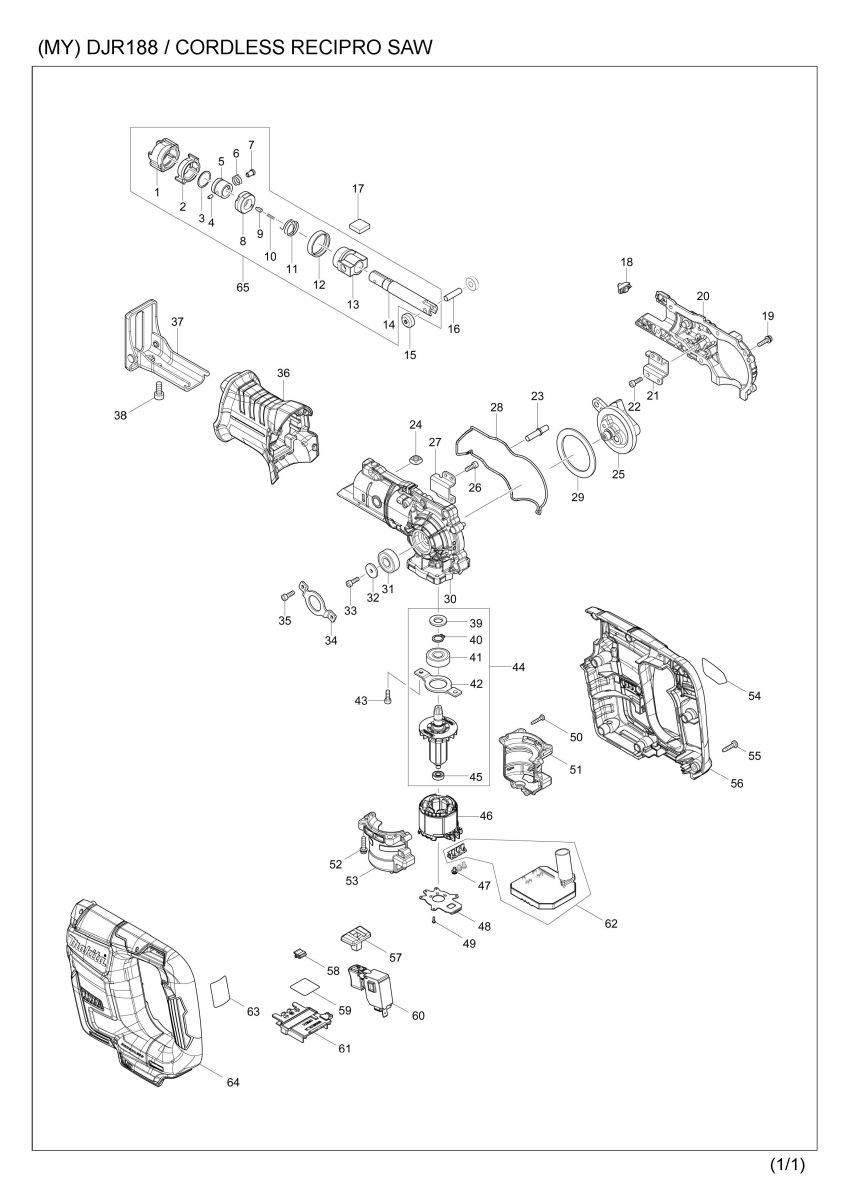

Part Diagram
Total: 94 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 422223-4 | PROTECTOR | 1 | |
| 2 | 310848-5 | DRIVING SLEEVE | 1 | |
| 3 | 257952-8 | RETAINING RING (EXT) 18 | 1 | |
| 003-1 | 257430-8 | RETAINING RING(EXT)18 | 1 | |
| 4 | 268094-3 | PIN 3 | 1 | |
| 5 | 331720-8 | GUIDE SLEEVE | 1 | |
| 005-1 | 327043-0 | GUIDE SLEEVE | 1 | |
| 6 | 234381-2 | COMPRESSION SPRING 6 | 1 | |
| 7 | 256569-4 | SHOULDER PIN 5 | 1 | |
| 8 | 458113-5 | CONNECTING SLEEVE | 1 | |
| 008-1 | 458968-8 | CONNECTING SLEEVE | 1 | |
| 9 | 310859-0 | PUSH PIN | 1 | |
| 009-1 | 310912-2 | PUSH PIN | 1 | |
| 10 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 010-1 | 232472-3 | COMPRESSION SPRING 2 | 1 | |
| 11 | 233594-2 | TORSION SPRING 17 | 1 | |
| 12 | 424762-0 | RUBBER RING | 1 | |
| 13 | 144012-4 | SLIDER GUIDE COMPLETE | 1 | |
| 13 | C10 | 213151-2 | OIL SEAL 14 | 1 |
| 13 | C20 | 213174-0 | X RING 14 | 1 |
| 14 | 161796-9 | SLIDER | 1 | |
| 15 | 310663-7 | ROLLER | 2 | |
| 16 | 268341-2 | PIN 6 | 1 | |
| 17 | 424902-0 | FELT 16X16 | 1 | |
| 18 | 620434-7 | LED CIRCUIT | 1 | |
| 19 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 20 | 144809-1 | GEAR HOUSING R COMPLETE | 1 | |
| 21 | 347303-4 | ROD GUIDE R | 1 | |
| 22 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 23 | 256567-8 | SHOULDER PIN 6-8 | 1 | |
| 24 | 252157-5 | SQUARE NUT M6 | 1 | |
| 25 | 144806-7 | GEAR COMPLETE | 1 | |
| 26 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 27 | 347302-6 | ROD GUIDE L | 1 | |
| 28 | 422224-2 | SEAL RING | 1 | |
| 29 | 267336-2 | FLAT WASHER 45 | 1 | |
| 30 | 144808-3 | GEAR HOUSING L COMPLETE | 1 | |
| 30 | C10 | 213445-5 | O-RING 26 | 1 |
| 31 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 32 | 253400-5 | FLAT WASHER 4 | 1 | |
| 33 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 34 | 285031-2 | BEARING RETAINER 51 | 1 | |
| 35 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 36 | 422221-8 | INSULATION COVER | 1 | |
| 37 | 161795-1 | SHOE | 1 | |
| 38 | 265531-8 | HEX.SOCKET HEAD BOLT M6X14 | 1 | |
| 39 | 422225-0 | FELT RING 10 | 1 | |
| 40 | 961006-2 | RETAINING RING S-10 | 1 | |
| 41 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 42 | 285032-0 | BEARING RETAINER 55 | 1 | |
| 43 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 44 | 519457-9 | ROTOR ASS'Y | 1 | |
| 44 | D10 | INC. 39-42,45 | ||
| 45 | 210039-7 | BALL BEARING 695DDW | 1 | |
| 46 | 629292-8 | STATOR | 1 | |
| 47 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 48 | 620760-4 | CONTROLLER B | 1 | |
| 49 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 50 | 266429-2 | TAPPING SCREW 3X16 | 5 | |
| 51 | 183H44-4 | MOTOR HOUSING SET | 1 | |
| 51 | D10 | INC. 53 | ||
| 52 | 911531-3 | P.H.SCREW M4X18 WITH WRM | 4 | |
| 53 | 183H44-4 | MOTOR HOUSING SET | 1 | |
| 53 | D10 | INC. 51 | ||
| 54 | 853U83-3 | DJR188 NAME PLATE | 1 | |
| 55 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 56 | 183H42-8 | HANDLE SET | 1 | |
| 56 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 56 | D10 | INC. 64 | ||
| 57 | 458114-3 | LOCK OFF BUTTON | 1 | |
| 58 | 424517-3 | CUSHION | 1 | |
| 59 | 853U91-4 | DJR188 SERIAL NO. LABEL | 1 | |
| 60 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 61 | 643874-2 | TERMINAL | 1 | |
| 62 | 620759-9 | CONTROLLER A | 1 | |
| 64 | 183H42-8 | HANDLE SET | 1 | |
| 64 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 64 | D10 | INC. 56 | ||
| 65 | 126722-5 | SLIDER ASSEMBLY | 1 | |
| 65 | D10 | INC. 1-14 | ||
| 065-1 | 127401-8 | SLIDER ASSEMBLY | 1 | |
| 065-1 | D10 | INC. 1-14 | ||
| A01 | B-20432 | RECIPROSAW BLADE 100MM | 1 | |
| A02 | B-20404 | RECIPROSAW BLADE 100MM | 1 | |
| A05B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A06-1B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A07B | 450128-8 | BATTERY COVER | 1 | |
| A08B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A08B | C10 | 453974-8 | LATCH | 4 |
| A09B | 816B23-8 | DJR188RFJ PLASTIC CASE LABEL | 2 | |
| A10B | 816B21-2 | DJR188RFJ INDICATION LABEL | 1 | |
| A11B | 839458-4 | INNER TRAY | 1 |
