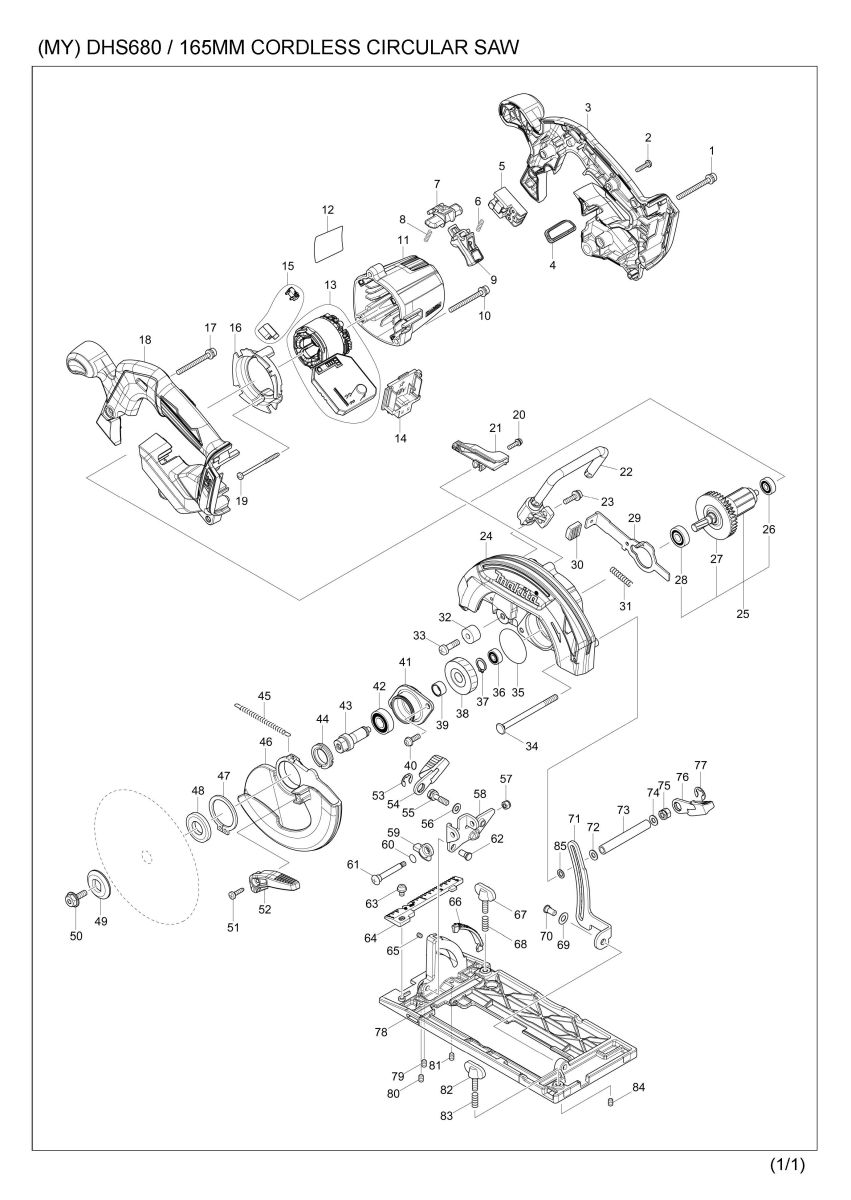

Part Diagram
Total: 156 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 911263-2 | PAN HEAD SCREW M5X40 | 1 | |
| 2 | 265995-6 | TAPPING SCREW 4X18 | 7 | |
| 3 | 183A15-9 | HANDLE SET | 1 | |
| 3 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 3 | D10 | INC. 18 | ||
| 4 | 142948-1 | INDICATION PLATE COMPLETE | 1 | |
| 5 | 650734-1 | SWITCH TG73BDS-2 | 1 | |
| 6 | 231469-9 | COMPRESSION SPRING 4 | 1 | |
| 7 | 419664-3 | LOCK OFF LEVER | 1 | |
| 8 | 231469-9 | COMPRESSION SPRING 4 | 1 | |
| 9 | 455480-9 | SWITCH LEVER | 1 | |
| 10 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | |
| 11 | 455437-0 | MOTOR HOUSING | 1 | |
| 12 | 850H69-0 | DHS680 NAME PLATE | 1 | |
| 13 | 632D90-5 | STATOR UNIT | 1 | |
| 013-1 | 629348-7 | STATOR UNIT | 1 | |
| 013-2 | 629B61-9 | STATOR | 1 | |
| 14 | 644808-8 | TERMINAL | 1 | |
| 15 | 632D81-6 | SWITCH UNIT | 1 | |
| 16 | 455440-1 | BAFFLE PLATE | 1 | |
| 17 | 911263-2 | PAN HEAD SCREW M5X40 | 1 | |
| 18 | 183A15-9 | HANDLE SET | 1 | |
| 18 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 18 | D10 | INC. 3 | ||
| 19 | 266091-3 | TAPPING SCREW 4X50 | 2 | |
| 20 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 21 | 455483-3 | DUCT | 1 | |
| 22 | 123269-0 | HOOK ASSEMBLY | 1 | |
| 23 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 024A | 142942-3 | BLADE CASE COMPLETE | 1 | |
| 024A | C10 | 213953-6 | O RING 24 | 1 |
| 024C | 142942-3 | BLADE CASE COMPLETE | 1 | |
| 024C | C10 | 213953-6 | O RING 24 | 1 |
| 024-1A | 143256-3 | BLADE CASE COMPLETE | 1 | |
| 024-1A | C10 | 213953-6 | O RING 24 | 1 |
| 024-1C | 143256-3 | BLADE CASE COMPLETE | 1 | |
| 024-1C | C10 | 213953-6 | O RING 24 | 1 |
| 024-1D | 143256-3 | BLADE CASE COMPLETE | 1 | |
| 024-1D | C10 | 213953-6 | O RING 24 | 1 |
| 25 | 519359-9 | ROTOR ASS'Y | 1 | |
| 25 | D10 | INC. 26-28 | ||
| 025-1 | 519359-9 | ROTOR ASS'Y | 1 | |
| 025-1 | D10 | INC. 26-28 | ||
| 26 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 27 | 240045-8 | FAN 55 | 1 | |
| 28 | 210051-7 | BALL BEARING 609LLB | 1 | |
| 29 | 346837-4 | SHAFT LOCK | 1 | |
| 30 | 286275-7 | CAP | 1 | |
| 31 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 32 | 262552-1 | RUBBER SLEEVE 6 | 1 | |
| 33 | 251247-1 | + PAN HEAD SCREW M6X20 | 1 | |
| 34 | 266194-3 | FLAT HEAD SCREW M6X90 | 1 | |
| 35 | 213565-5 | O RING 42 | 1 | |
| 36 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 036-1 | 210137-7 | BALL BEARING 606ZZ | 1 | |
| 37 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 38 | 227794-4 | HELICAL GEAR 50 | 1 | |
| 39 | 257349-1 | SLEEVE 12 | 1 | |
| 40 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 41 | 319212-7 | BEARING BOX | 1 | |
| 42 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 43 | 326459-6 | SPINDLE | 1 | |
| 44 | 285845-9 | BEARING RETAINER 19-29 | 1 | |
| 45 | 231878-2 | TENSION SPRING 4 | 1 | |
| 46 | 319211-9 | SAFETY COVER | 1 | |
| 47 | 961152-1 | RETAINING RING (EXT) S-34 | 1 | |
| 48 | 224473-5 | INNER FLANGE 35 | 1 | |
| 048-1 | 224593-5 | INNER FLANGE 35 | 1 | |
| 49 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 50 | 266924-2 | HEX. SOCKET HEX. BOLT M6X18 | 1 | |
| 51 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 52 | 272282-6 | LEVER 60 | 1 | |
| 53 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 54 | 272272-9 | LEVER 45 | 1 | |
| 55 | 266735-5 | HEX.BOLT M6X20 | 1 | |
| 055-1 | 265B21-3 | HEX.BOLT M6X20 | 1 | |
| 56 | 941151-9 | FLAT WASHER 6 | 1 | |
| 57 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 58 | 346836-6 | ANGULAR GUIDE | 1 | |
| 59 | 317986-4 | STOPPER | 1 | |
| 60 | 213062-1 | O RING 9 | 1 | |
| 61 | 265084-7 | + TRUSS HEAD SCREW M5 | 1 | |
| 62 | 256480-0 | SHOULDER PIN 6-7 | 1 | |
| 063A | 911203-0 | PAN HEAD SCREW M5X8 | 1 | |
| 063C | 911203-0 | PAN HEAD SCREW M5X8 | 1 | |
| 063-1A | 911208-0 | PAN HEAD SCREW M5X10 | 1 | |
| 063-1C | 911208-0 | PAN HEAD SCREW M5X10 | 1 | |
| 063-1D | 911208-0 | PAN HEAD SCREW M5X10 | 1 | |
| 64 | 455516-4 | TOP GUIDE | 1 | |
| 65 | 266318-1 | H.S.SET SCREW(FLAT POINT)M4X6 | 2 | |
| 66 | 455517-2 | BEVEL GUIDE | 1 | |
| 67 | 251896-4 | SCREW M5X20 | 1 | |
| 68 | 231007-7 | COMPRESSION SPRING 6 | 1 | |
| 69 | 253058-0 | FLAT WASHER 7 | 1 | |
| 70 | 256511-5 | SHOULDER PIN 6-7 | 1 | |
| 71 | 346838-2 | DEPTH GUIDE | 1 | |
| 72 | 941151-9 | FLAT WASHER 6 | 1 | |
| 73 | 332126-3 | PIPE 6 | 1 | |
| 74 | 941151-9 | FLAT WASHER 6 | 1 | |
| 75 | 264103-6 | HEX. NUT M6 | 1 | |
| 76 | 272272-9 | LEVER 45 | 1 | |
| 77 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 78 | 319210-1 | BASE | 1 | |
| 078-1 | 312B04-5 | BASE | 1 | |
| 79 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 1 | |
| 80 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 1 | |
| 81 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 1 | |
| 82 | 251896-4 | SCREW M5X20 | 1 | |
| 83 | 231007-7 | COMPRESSION SPRING 6 | 1 | |
| 84 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 1 | |
| 85 | 253077-6 | FLAT WASHER 6 | 1 | |
| 86 | 620K93-3 | CONTROLLER | 1 | |
| 87 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A02 | A-85101 | T.C.T.SAW BLADE 165X24TX20 | 1 | |
| A02-1 | B-63018 | TCT BLADE 165X25T WOOD EFFICUT | 1 | |
| A03 | 164095-8 | GUIDE RULE | 1 | |
| A04C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04D | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05C | 194204-5 | BATTERY BL1830 SET | 2 | |
| A05-1C | 194204-5 | BATTERY BL1830 SET | 2 | |
| A05-1D | 196399-0 | BATTERY BL1840 SET | 2 | |
| A05-2C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A05-2D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A05-3C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A05-3D | 197265-4 | BATTERY BL1840B SET | 2 | |
| A06C | 450128-8 | BATTERY COVER | 1 | |
| A06D | 450128-8 | BATTERY COVER | 1 | |
| A07C | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A07C | C10 | 453974-8 | LATCH | 4 |
| A07D | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A07D | C10 | 453974-8 | LATCH | 4 |
| A08C | 838182-6 | INNER TRAY | 1 | |
| A08D | 838182-6 | INNER TRAY | 1 | |
| A09C | 805V72-0 | DHS680RFJ INDICATION LABEL | 1 | |
| A09D | 805V45-3 | DHS680RMJ INDICATION LABEL | 1 | |
| A10C | 805V74-6 | DHS680RFJ PLASTIC CASE LABEL | 2 | |
| A10D | 805V46-1 | DHS680RMJ PLASTIC CASE LABEL | 2 | |
| A10-1C | 806G48-0 | DHS680RFJ PLASTIC CASE LABEL | 2 | |
| A10-1D | 805V77-0 | DHS680RMJ PLASTIC CASE LABEL | 2 | |
| F08-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F09-3 | 197600-6 | BATTERY BL1830B SET | 1 | |
| F10-4 | 197599-5 | BATTERY BL1830B SET | 1 | |
| F11-3 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F12-3 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F13 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F14 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F16 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F18 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F21 | 194416-0 | SHEET 10000 SET | 1 | |
| F22 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F23 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F25 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F37 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F38 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F41 | 191B17-7 | GUIDE RAIL ADAPTER D SET | 1 |
