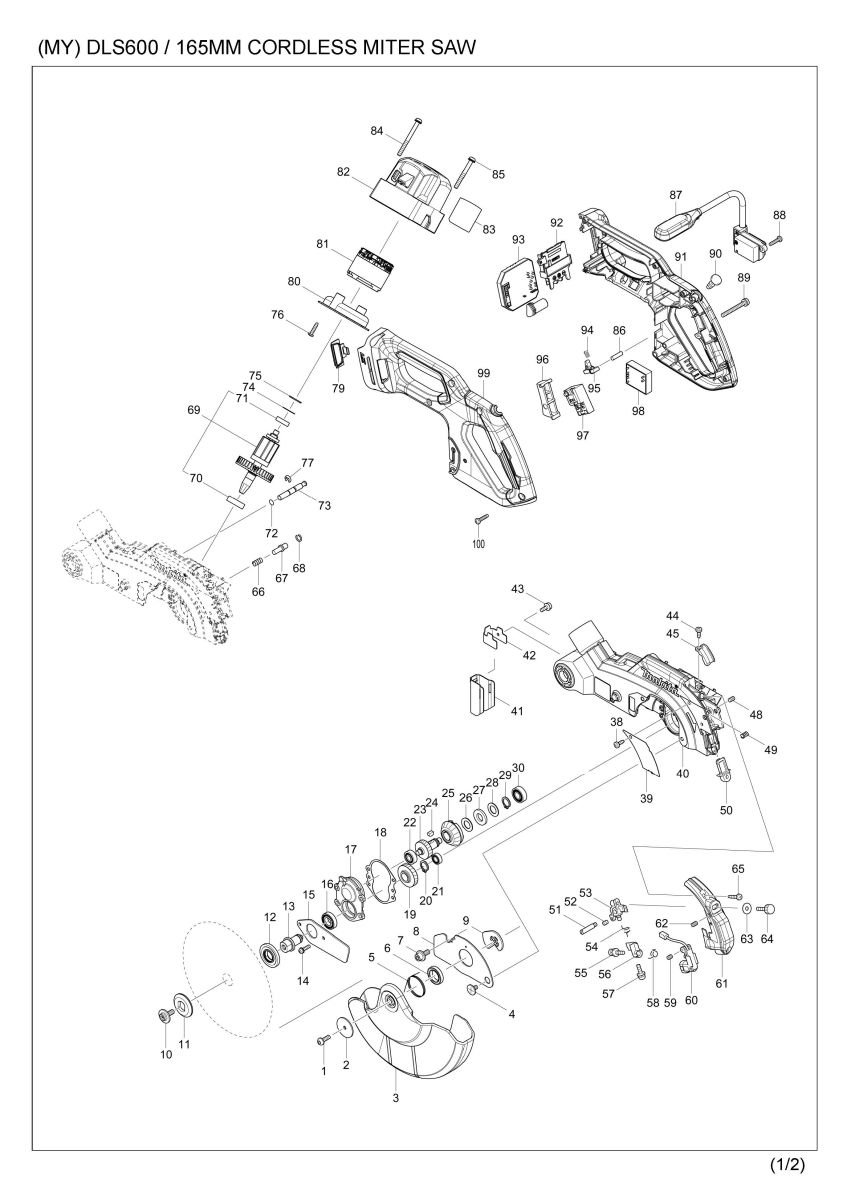

Part Diagram
Total: 182 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 1 | |
| 2 | 267136-0 | FLAT WASHER 5 | 1 | |
| 3 | 458077-3 | SAFETY COVER | 1 | |
| 4 | 265008-3 | + FLAT HEAD SCREW M5 | 1 | |
| 5 | 232311-7 | TORSION SPRING 30 | 1 | |
| 6 | 210150-5 | BALL BEARING 6803DDW | 1 | |
| 7 | 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 8 | 347060-4 | CENTER COVER | 1 | |
| 9 | 347059-9 | CENTER PLATE | 1 | |
| 10 | 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | |
| 11 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 12 | 224593-5 | INNER FLANGE 35 | 1 | |
| 13 | 325866-0 | SPINDLE | 1 | |
| 14 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | |
| 15 | 347295-7 | BEARING RETAINER | 1 | |
| 16 | 211288-9 | BALL BEARING 6901DDW | 1 | |
| 17 | 318534-2 | BEARING BOX | 1 | |
| 18 | 442152-5 | GASKET | 1 | |
| 19 | 227727-9 | HELICAL GEAR 39 | 1 | |
| 20 | 961052-5 | RETAINING RING S-12 | 1 | |
| 21 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 22 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 23 | 227726-1 | HELICAL GEAR 31 | 1 | |
| 24 | 254011-9 | WOODRUFF KEY 4 | 1 | |
| 25 | 227565-9 | SPIRAL BEVEL GEAR 35 | 1 | |
| 26 | 253744-3 | FLAT WASHER 12 | 1 | |
| 27 | 261104-5 | RUBBER WASHER 12 | 1 | |
| 28 | 253744-3 | FLAT WASHER 12 | 1 | |
| 29 | 961052-5 | RETAINING RING S-12 | 1 | |
| 30 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 38 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 39 | 346171-2 | COVER PLATE | 1 | |
| 40 | 144796-4 | BLADE CASE COMPLETE | 1 | |
| 40 | C10 | 263002-9 | RUBBER PIN 4 | 4 |
| 40 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 41 | 424870-7 | GUARD | 1 | |
| 42 | 347057-3 | GUARD PLATE | 1 | |
| 43 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 44 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 45 | 458075-7 | LEAD COVER | 1 | |
| 48 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 49 | 233471-8 | COMPRESSION SPRING 6 | 1 | |
| 50 | 418104-8 | LENS | 1 | |
| 51 | 266306-8 | SHOULDER SCREW M5 | 1 | |
| 52 | 266318-1 | H.S.SET SCREW(FLAT POINT)M4X6 | 1 | |
| 53 | 419379-2 | BLOCK C | 1 | |
| 54 | 231664-1 | TORSION SPRING 9 | 1 | |
| 55 | 911003-8 | PAN HEAD SCREW M3X6 | 1 | |
| 56 | 419378-4 | BLOCK B | 1 | |
| 57 | 911003-8 | PAN HEAD SCREW M3X6 | 1 | |
| 58 | 231664-1 | TORSION SPRING 9 | 1 | |
| 59 | 266318-1 | H.S.SET SCREW(FLAT POINT)M4X6 | 1 | |
| 60 | 638442-4 | LASER CIRCUIT COMPLETE | 1 | |
| 61 | 140344-7 | LASER COVER COMPLETE | 1 | |
| 62 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 63 | 253807-5 | FLAT WASHER 5 | 1 | |
| 64 | 265753-0 | THUMB SCREW M5X24 | 1 | |
| 65 | 266042-6 | TAPPING SCREW BIND CT 4X20 | 2 | |
| 66 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 67 | 256633-1 | PIN 6 | 1 | |
| 68 | 231928-3 | RING SPRING 8 | 1 | |
| 69 | 519400-8 | ROTOR ASSEMBLY | 1 | |
| 69 | D10 | INC. 70,71 | ||
| 70 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 71 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 72 | 213021-5 | O RING 5 | 1 | |
| 73 | 326769-1 | STOPPER PIN | 1 | |
| 74 | 253842-3 | FLAT WASHER 14 | 1 | |
| 75 | 261153-2 | URETHAN WASHER 15 | 1 | |
| 76 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 77 | 961018-5 | STOP RING E-5 | 1 | |
| 79 | 144033-6 | INDICATION PLATE COMPLETE | 1 | |
| 80 | 456908-0 | BAFFLE PLATE | 1 | |
| 81 | 629215-6 | STATOR | 1 | |
| 82 | 456910-3 | MOTOR HOUSING | 1 | |
| 83 | 853T32-4 | DLS600 NAME PLATE | 1 | |
| 84 | 911278-9 | PAN HEAD SCREW M5X55 | 2 | |
| 85 | 911268-2 | PAN HEAD SCREW M5X45 | 2 | |
| 86 | 256123-4 | PIN 5 | 1 | |
| 87 | 620558-9 | LED CIRCUIT | 1 | |
| 88 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 89 | 911268-2 | PAN HEAD SCREW M5X45 | 1 | |
| 90 | 417113-4 | SWITCH BUTTON | 1 | |
| 91 | 183E52-7 | HANDLE SET | 1 | |
| 91 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 91 | D10 | INC. 99 | ||
| 92 | 643874-2 | TERMINAL | 1 | |
| 93 | 620761-2 | CONTROLLER A | 1 | |
| 94 | 231026-3 | COMPRESSION SPRING 4 | 1 | |
| 95 | 416533-9 | LOCK OFF LEVER | 1 | |
| 96 | 416534-7 | SWITCH LEVER | 1 | |
| 97 | 650705-8 | SWITCH TG73BDS-1 | 1 | |
| 98 | 620551-3 | POWER SUPPLY CIRCUIT | 1 | |
| 99 | 183E52-7 | HANDLE SET | 1 | |
| 99 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 99 | D10 | INC. 91 | ||
| 100 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 101 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 102 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 103 | 331350-5 | PIN 16-90 | 1 | |
| 104 | 416535-5 | SLEEVE 17 | 1 | |
| 105 | 232310-9 | TORSION SPRING 28 | 1 | |
| 106 | 416535-5 | SLEEVE 17 | 1 | |
| 107 | 961018-5 | STOP RING E-5 | 1 | |
| 108 | 253804-1 | FLAT WASHER 6 | 1 | |
| 109 | 257163-5 | RING 6 | 1 | |
| 110 | 144791-4 | LINK PLATE COMPLETE | 1 | |
| 111 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 112 | 253804-1 | FLAT WASHER 6 | 1 | |
| 113 | 257163-5 | RING 6 | 1 | |
| 114 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 115 | 347058-1 | INDICATION PLATE | 1 | |
| 115-1 | 458646-0 | INDICATION PLATE | 1 | |
| 116 | 144795-6 | ARM COMPLETE | 1 | |
| 116 | C10 | 816438-7 | OPERATIONAL INDICATION LABEL | 1 |
| 117 | 687045-1 | STRAIN RELIEF | 1 | |
| 118 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 119 | 416006-2 | LEVER 100 | 1 | |
| 120 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 121 | 251495-2 | HEX. BOLT M10 | 1 | |
| 122 | 253024-7 | FLAT WASHER 10 | 1 | |
| 123 | 272266-4 | LEVER 25 | 1 | |
| 124 | 233563-3 | TORSION SPRING 8 | 1 | |
| 125 | 415208-7 | RELEASE BUTTON | 1 | |
| 126 | 233031-6 | COMPRESSION SPRING 12 | 1 | |
| 127 | 253726-5 | FLAT WASHER 6 | 1 | |
| 128 | 961018-5 | STOP RING E-5 | 1 | |
| 129 | 318533-4 | STOPPER | 1 | |
| 130 | 231646-3 | TORSION SPRING 14 | 1 | |
| 131 | 253744-3 | FLAT WASHER 12 | 1 | |
| 132 | 961052-5 | RETAINING RING S-12 | 1 | |
| 133 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 4 | |
| 134 | 456907-2 | KERF BOARD | 2 | |
| 135 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 136 | 816128-2 | POINTER | 1 | |
| 137 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 138 | 941151-9 | FLAT WASHER 6 | 1 | |
| 139 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 140 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 141 | 251966-9 | H.S.SET SCREW(FLATPOINT)M10X12 | 1 | |
| 142 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 143 | 144028-9 | TURN BASE COMPLETE | 1 | |
| 144 | 346169-9 | FENCE PLATE | 2 | |
| 145 | 213021-5 | O RING 5 | 2 | |
| 146 | 265156-8 | +COUNTERSUNK HEAD SCREW M | 2 | |
| 147 | 318537-6 | GUIDE FENCE | 1 | |
| 148 | 265785-7 | THUMB SCREW M5X10 | 1 | |
| 149 | 216008-6 | STEEL BALL 4 | 1 | |
| 150 | 256034-3 | PIN 4 | 1 | |
| 151 | 922344-7 | H.S.H.BOLT M6X25 WITH WG | 4 | |
| 152 | 265785-7 | THUMB SCREW M5X10 | 1 | |
| 153 | 450138-5 | SLIDE PLATE | 1 | |
| 154 | 231038-6 | COMPRESSION SPRING 6 | 1 | |
| 155 | 216004-4 | STEEL BALL 7.9 | 1 | |
| 156 | 144792-2 | BASE COMPLETE | 1 | |
| 156 | C10 | 809V03-1 | MITER SCALE PLATE | 1 |
| 156 | C20 | 813L22-1 | CAUTION LABEL | 2 |
| 156 | C30 | 810486-8 | CAUTION LABEL | 1 |
| 156 | C40 | 810064-4 | LASER BEAM CAUTION LABEL | 1 |
| 157 | 286255-3 | CAP 13 | 4 | |
| 158 | 921352-5 | HEX. BOLT M6X30 | 1 | |
| 159 | 144034-4 | SUB PLATE COMPLETE | 1 | |
| 160 | 912222-9 | COUNTERSUNK HEAD SCREW M5X16 | 2 | |
| 161 | 257163-5 | RING 6 | 1 | |
| A01 | 122940-3 | VICE ASS'Y | 1 | |
| A01 | C10 | 251887-5 | SCREW M6X10 | 1 |
| A01 | C20 | 326006-3 | VISE ROD | 1 |
| A01 | C30 | 265733-6 | THUMB SCREW M10X60 | 1 |
| A01 | C40 | 316938-2 | VISE ARM | 1 |
| A01 | C50 | 253804-1 | FLAT WASHER 6 | 1 |
| A01 | C60 | 343651-9 | VISE PLATE | 1 |
| A01 | C70 | 251370-2 | + PAN HEAD SCREW M5 | 1 |
| A02 | 122884-7 | DUST BAG ASSEMBLY | 1 | |
| A02 | C10 | 410602-8 | FASTENER | 1 |
| A03 | 762001-3 | TRIANGULAR RULE | 1 | |
| A04 | 783208-8 | HEX. WRENCH 2.5 | 1 | |
| A05 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A07 | B-56487 | TCT SAW BLADE 165X20X64T WOOD | 1 | |
| A08B | 450128-8 | BATTERY COVER | 2 | |
| A09B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A10-1B | 197280-8 | BATTERY BL1850B SET | 2 |
