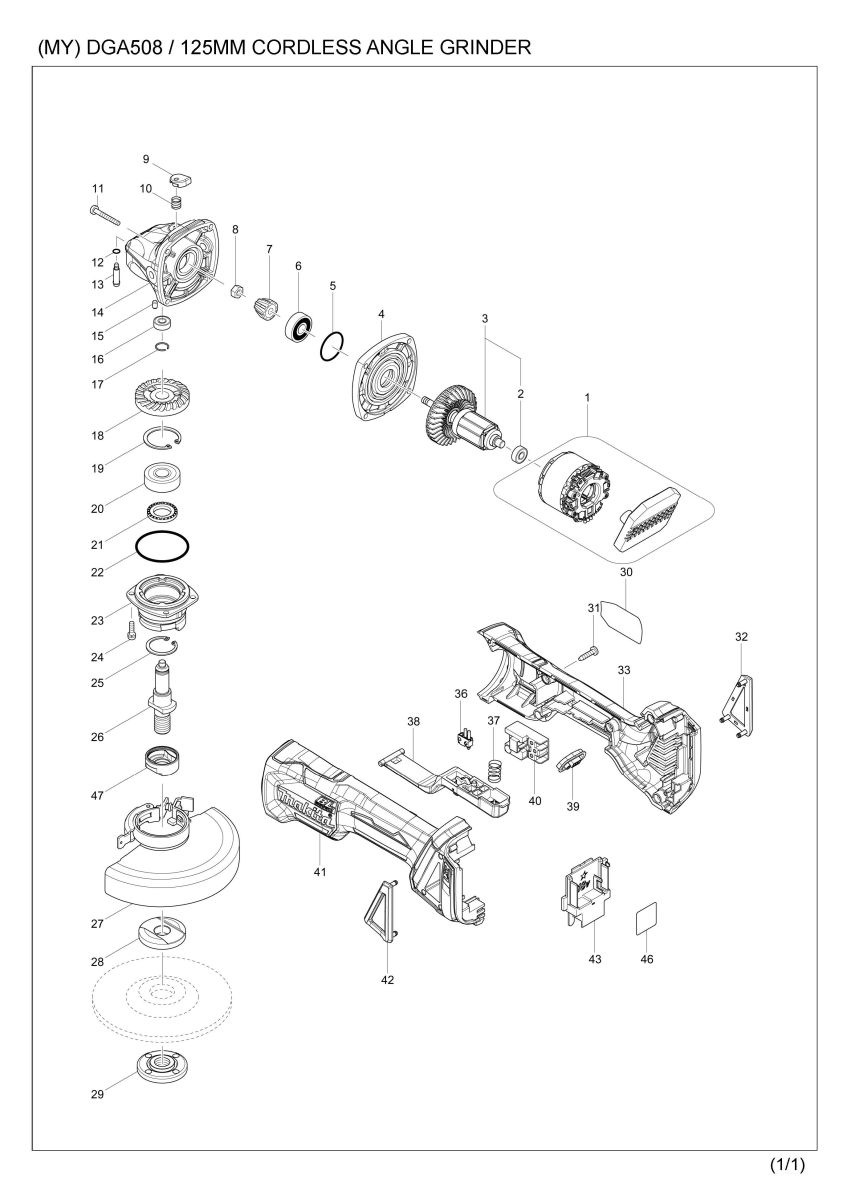

Part Diagram
Total: 75 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 629203-3 | STATOR COMPLETE | 1 | |
| 2 | 210034-7 | BALL BEARING 607LLB | 1 | |
| 002-1 | 210169-4 | BALL BEARING 607LLB | 1 | |
| 3 | 519378-5 | ROTOR ASS'Y | 1 | |
| 3 | D10 | INC. 2 | ||
| 003-1 | 510329-1 | ROTOR ASS'Y | 1 | |
| 003-1 | D10 | INC. 2 | ||
| 4 | 319214-3 | GEAR HOUSING COVER | 1 | |
| 5 | 213445-5 | O-RING 26 | 1 | |
| 6 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 7 | 227541-3 | SPIRAL BEVEL GEAR 10 | 1 | |
| 007-1 | 226861-2 | SPIRAL BEVEL GEAR 10 | 1 | |
| 8 | 252186-8 | HEX. NUT M6 | 1 | |
| 9 | 417771-6 | PIN CAP | 1 | |
| 10 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 11 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 12 | 213960-9 | O RING 5 | 1 | |
| 13 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 14 | 319213-5 | GEAR HOUSING | 1 | |
| 15 | 263002-9 | RUBBER PIN 4 | 1 | |
| 16 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 17 | 233950-6 | RING SPRING 11 | 1 | |
| 18 | 227641-9 | SPIRAL BEVEL GEAR 37 | 1 | |
| 018-1 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 19 | 962151-6 | RETAINING RING R-32 | 1 | |
| 20 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 21 | 262153-5 | FELT RING 16 | 1 | |
| 22 | 213622-9 | O RING 45 | 1 | |
| 23 | 319399-5 | BEARING BOX | 1 | |
| 24 | 911121-2 | PAN HEAD SCREW M4X14 | 4 | |
| 25 | 962105-3 | RETAINING RING R-26 | 1 | |
| 26 | 326672-6 | SPINDLE | 1 | |
| 27 | 123099-9 | WHEEL COVER 125AK ASSEMBLY | 1 | |
| 27 | C10 | 213009-5 | O RING 4 | 1 |
| 27 | C20 | 265180-1 | PAN HEAD SCREW M5X16 | 1 |
| 28 | 224447-6 | INNER FLANGE 42B | 1 | |
| 29 | 224554-5 | LOCK NUT 14-45 | 1 | |
| 30 | 852A28-8 | DGA508 NAME PLATE | 1 | |
| 31 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 32 | 455450-8 | DUST COVER R | 1 | |
| 33 | 183A52-3 | MOTOR HOUSING SET | 1 | |
| 33 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 33 | D10 | INC. 41 | ||
| 033-1 | 183J40-4 | MOTOR HOUSING SET | 1 | |
| 033-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 033-1 | D10 | INC. 41 | ||
| 36 | 632E12-1 | SWITCH UNIT | 1 | |
| 37 | 234357-9 | COMPRESSION SPRING 11 | 1 | |
| 38 | 142976-6 | SWITCH LEVER COMPLETE | 1 | |
| 39 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | |
| 40 | 650734-1 | SWITCH TG73BDS-2 | 1 | |
| 41 | 183A52-3 | MOTOR HOUSING SET | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 41 | D10 | INC. 33 | ||
| 041-1 | 183J40-4 | MOTOR HOUSING SET | 1 | |
| 041-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041-1 | D10 | INC. 33 | ||
| 42 | 455449-3 | DUST COVER L | 1 | |
| 43 | 643899-6 | TERMINAL | 1 | |
| 46 | 852A36-9 | DGA508 SERIAL NO. LABEL | 1 | |
| 47 | 310514-4 | LEAD FLANGE | 1 | |
| A01 | A-80656 | GRINDING WHEEL 125 WA36N | 1 | |
| A02 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A03 | 782423-1 | LOCK NUT WRENCH 35 | 1 | |
| A04B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05-1B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A05-2B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A06B | 450128-8 | BATTERY COVER | 1 | |
| A07B | 821636-0 | PLASTIC CASE | 1 | |
| A07B | C10 | 162315-4 | LATCH | 2 |
| A07-1B | 821734-0 | PLASTIC CASE | 1 | |
| A07-1B | C10 | 162315-4 | LATCH | 2 |
| A07-2B | 821817-6 | PLASTIC CASE | 1 | |
| A07-2B | C10 | 162315-4 | LATCH | 2 |
