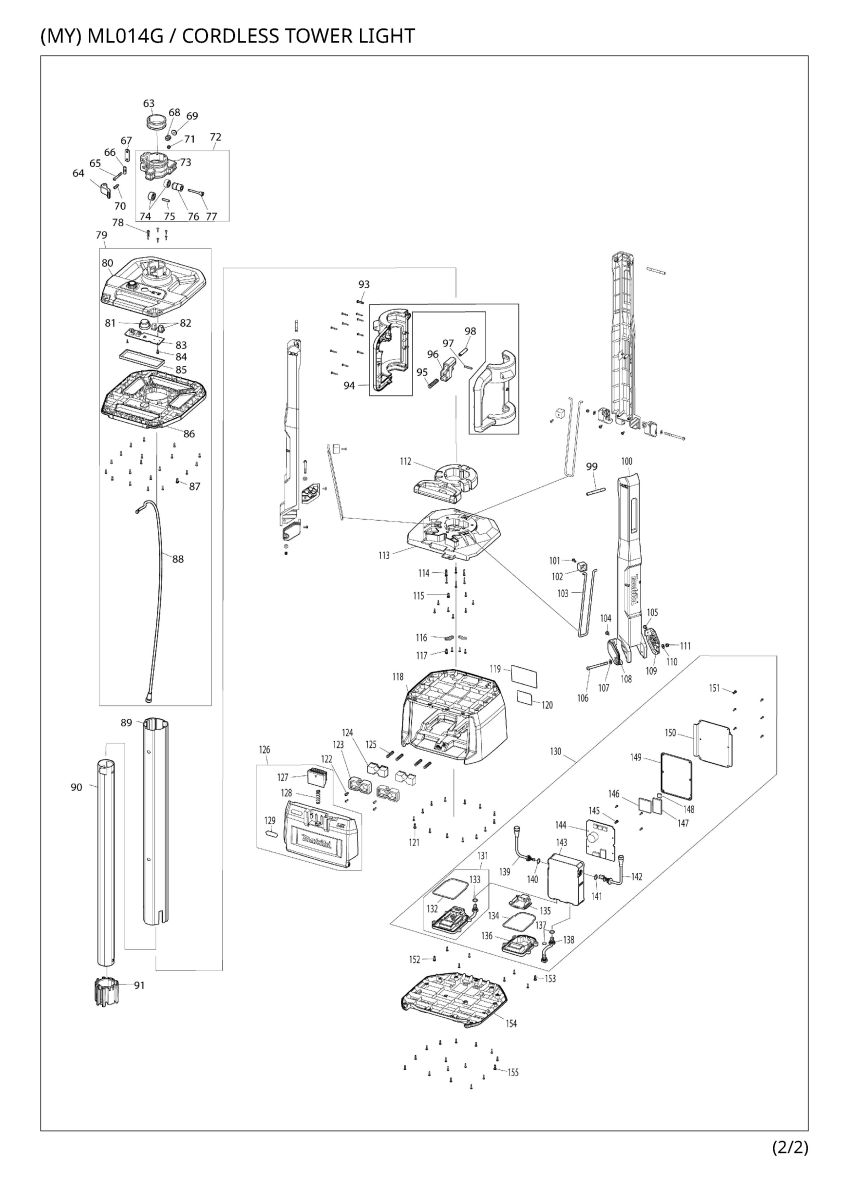

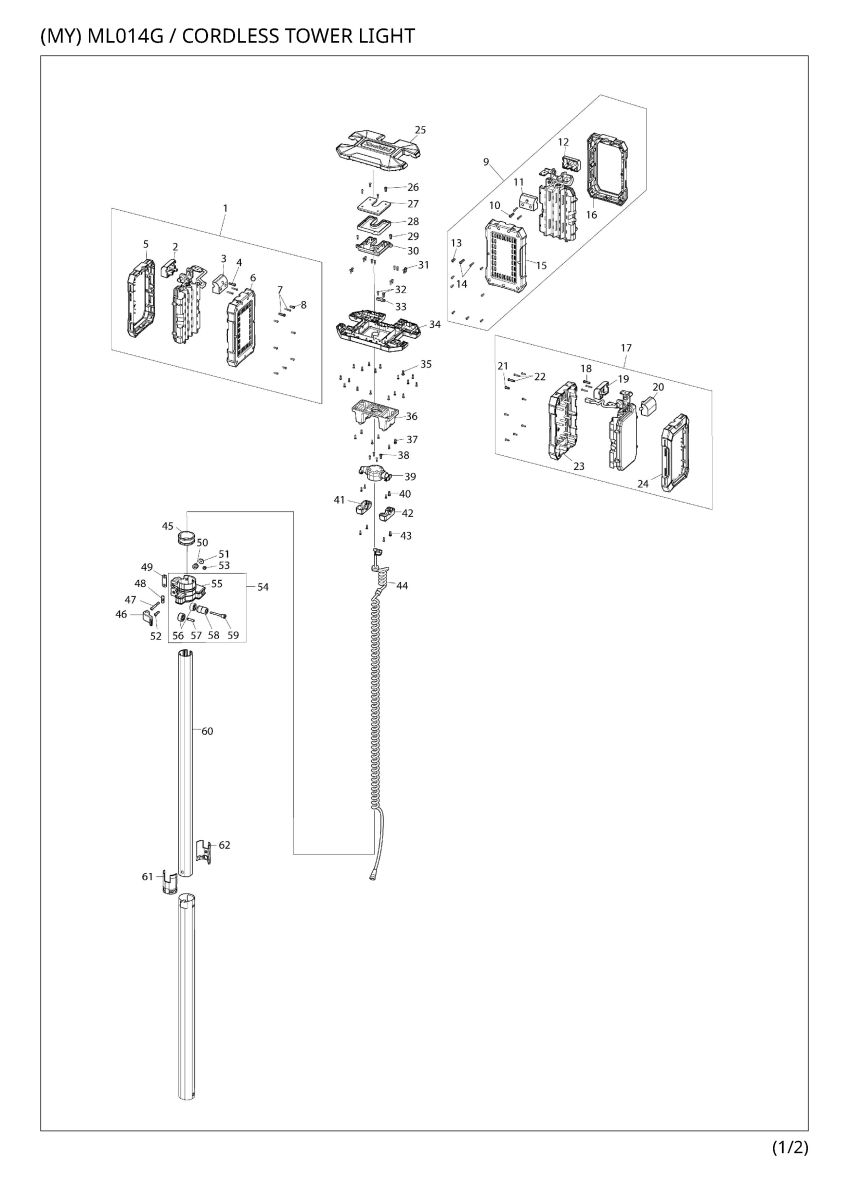

Part Diagram
Total: 165 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | TD00000304 | LIGHT UNIT ASSY SAME L & R | 1 | |
| 001 | D10 | INC. 2-8 | ||
| 002 | TD00000219 | UPPER HINGE COVER FOR LIGHT | 1 | |
| 003 | TD00000221 | LOWER HINGE COVER FOR LIGHT | 1 | |
| 004 | TD00000223 | TAPPING SCREW 3.5X17 | 3 | |
| 005 | TD00000220 | LIGHT HOUSING LED SIDE | 1 | |
| 006 | TD00000222 | LIGHT HOUSING HEAT SINK SIDE | 1 | |
| 007 | TD00000223 | TAPPING SCREW 3.5X17 | 2 | |
| 008 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 7 | |
| 009 | TD00000305 | LIGHT UNIT ASSY FRONT SIDE | 1 | |
| 009 | D10 | INC. 10-16 | ||
| 010 | TD00000223 | TAPPING SCREW 3.5X17 | 3 | |
| 011 | TD00000221 | LOWER HINGE COVER FOR LIGHT | 1 | |
| 012 | TD00000219 | UPPER HINGE COVER FOR LIGHT | 1 | |
| 013 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 7 | |
| 014 | TD00000223 | TAPPING SCREW 3.5X17 | 2 | |
| 015 | TD00000222 | LIGHT HOUSING HEAT SINK SIDE | 1 | |
| 016 | TD00000220 | LIGHT HOUSING LED SIDE | 1 | |
| 017 | TD00000304 | LIGHT UNIT ASSY SAME L & R | 1 | |
| 017 | D10 | INC. 18-24 | ||
| 018 | TD00000223 | TAPPING SCREW 3.5X17 | 3 | |
| 019 | TD00000221 | LOWER HINGE COVER FOR LIGHT | 1 | |
| 020 | TD00000219 | UPPER HINGE COVER FOR LIGHT | 1 | |
| 021 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 7 | |
| 022 | TD00000223 | TAPPING SCREW 3.5X17 | 2 | |
| 023 | TD00000222 | LIGHT HOUSING HEAT SINK SIDE | 1 | |
| 024 | TD00000220 | LIGHT HOUSING LED SIDE | 1 | |
| 025 | TD00000225 | LAMP BASE UPPER SIDE | 1 | |
| 026 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 4 | |
| 027 | TD00000226 | TERMINAL BOX UPPER SIDE | 1 | |
| 028 | TD00000227 | TERMINAL BOX GASKET | 1 | |
| 029 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 2 | |
| 030 | TD00000228 | TERMINAL BOX LOWER SIDE | 1 | |
| 031 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 12 | |
| 032 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 2 | |
| 033 | TD00000018 | CORD CLAMP | 1 | |
| 034 | TD00000229 | LAMP BASE LOWER SIDE | 1 | |
| 035 | TD00000325 | TAPPING SCREW 3.5X12 BLACK | 18 | |
| 035-1 | TD00000326 | TAPPING SCREW 3.5X12 BLACK | 18 | |
| 036 | TD00000230 | LAMP BASE HINGE BASE | 1 | |
| 037 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 6 | |
| 038 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 4 | |
| 039 | TD00000231 | LAMP BASE HINGE | 1 | |
| 040 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 4 | |
| 041 | TD00000233 | LAMP BASE HINGE CAP LEFT | 1 | |
| 042 | TD00000232 | LAMP BASE HINGE CAP RIGHT | 1 | |
| 043 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 4 | |
| 044 | TD00000234 | SPIRAL CABLE | 1 | |
| 045 | TD00000133 | BUSH B | 1 | |
| 046 | TD00000248 | TENSIONER LEVER | 1 | |
| 047 | TD00000239 | PAN HEAD SCREW M4X38 | 1 | |
| 048 | TD00000138 | PIN | 1 | |
| 049 | TD00000238 | CONNECTOR WASHER FOR QR CO- … | 1 | |
| 050 | TD00000139 | SPRING | 1 | |
| 051 | TD00000137 | LOCK NUT | 1 | |
| 052 | TD00000240 | PAN HEAD SCREW M4X16 | 1 | |
| 053 | TD00000068 | NUT M4 | 1 | |
| 054 | TD00000306 | ELEVATOR STOPER SMALL ASSY | 1 | |
| 054 | D10 | INC. 55-59 | ||
| 055 | TD00000241 | ELEVATOR STOPPER SMALL BODY | 1 | |
| 056 | TD00000242 | ROLLER WHEEL COMPLETE | 2 | |
| 057 | TD00000245 | KNURLING PIN 4X21 | 1 | |
| 058 | TD00000243 | ONE WAY CLUTCH COMPLETE | 1 | |
| 059 | TD00000244 | ONE WAY SHAFT | 1 | |
| 060 | TD00000235 | UPPER PIPE | 1 | |
| 061 | TD00000237 | UPPER PIPE SPACER REAR SIDE | 1 | |
| 062 | TD00000236 | UPPER PIPE SPACER FRONT SIDE | 1 | |
| 063 | TD00000132 | BUSH A | 1 | |
| 064 | TD00000248 | TENSIONER LEVER | 1 | |
| 065 | TD00000239 | PAN HEAD SCREW M4X38 | 1 | |
| 066 | TD00000138 | PIN | 1 | |
| 067 | TD00000238 | CONNECTOR WASHER FOR QR CO- … | 1 | |
| 068 | TD00000139 | SPRING | 1 | |
| 069 | TD00000137 | LOCK NUT | 1 | |
| 070 | TD00000240 | PAN HEAD SCREW M4X16 | 1 | |
| 071 | TD00000068 | NUT M4 | 1 | |
| 072 | TD00000307 | ELEVATOR STOPER LARGE ASSY | 1 | |
| 072 | D10 | INC. 73-77 | ||
| 073 | TD00000249 | ELEVATOR STOPPER LARGE BODY | 1 | |
| 074 | TD00000242 | ROLLER WHEEL COMPLETE | 2 | |
| 075 | TD00000245 | KNURLING PIN 4X21 | 1 | |
| 076 | TD00000243 | ONE WAY CLUTCH COMPLETE | 1 | |
| 077 | TD00000244 | ONE WAY SHAFT | 1 | |
| 078 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 6 | |
| 079 | TD00000308 | CENTRAL CONTROL SYSTEM ASSY | 1 | |
| 079 | D10 | INC. 80-88 | ||
| 080 | TD00000250 | SWITCH HOUSING UPPER SIDE ASSY | 1 | |
| 081 | TD00000252 | SWITCH BUTTON | 1 | |
| 082 | TD00000251 | LENZ | 2 | |
| 083 | TD00000253 | SWITCH PCB | 1 | |
| 084 | TD00000255 | TAPPING SCREW 3X10 | 2 | |
| 085 | TD00000254 | SWITCH PCB SECTION GASKET | 1 | |
| 086 | TD00000256 | SWITCH HOUSING LOWER SIDE | 1 | |
| 087 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 20 | |
| 088 | TD00000318 | SWITCH-CONTRILLER CABLE | 1 | |
| 089 | TD00000263 | LOWER PIPE | 1 | |
| 090 | TD00000246 | CENTER PIPE | 1 | |
| 091 | TD00000247 | CENTER PIPE CENTER SPACER | 1 | |
| 093 | TD00000223 | TAPPING SCREW 3.5X17 | 10 | |
| 094 | TD00000319 | TRIPOD BASE SET | 1 | |
| 095 | TD00000261 | COMPRESSION SPRING | 1 | |
| 096 | TD00000260 | TRIPOD STOPPER LEVER | 1 | |
| 097 | TD00000262 | PIN 3x23 | 1 | |
| 098 | TD00000259 | LOCK PIN 7X37 COMPLETE | 1 | |
| 099 | TD00000264 | KNURLING PIN 6X58 | 3 | |
| 100 | TD00000269 | LEG | 3 | |
| 101 | TD00000224 | TAPPING SCREW 3.5X10 BLACK | 3 | |
| 102 | TD00000028 | CHECK BLOCK | 3 | |
| 103 | TD00000265 | SUPPORT STAY FOR LEG | 3 | |
| 104 | TD00000266 | FLANGED TAPPING SCREW 3.5X10 | 3 | |
| 105 | TD00000266 | FLANGED TAPPING SCREW 3.5X10 | 3 | |
| 106 | TD00000270 | PAN HEAD SCREW M5X62 INOX | 3 | |
| 107 | TD00000271 | FLAT WASHER 5 INOX | 3 | |
| 108 | TD00000267 | OUTSOLE LEFT | 3 | |
| 109 | TD00000268 | OUTSOLE RIGHT | 3 | |
| 110 | TD00000271 | FLAT WASHER 5 INOX | 3 | |
| 111 | TD00000272 | HEX LOCK NUT M5 INOX | 3 | |
| 112 | TD00000273 | BATTERY BOX HANDLE | 1 | |
| 113 | TD00000274 | BATTERY BOX UPPER PANEL | 1 | |
| 114 | TD00000223 | TAPPING SCREW 3.5X17 | 6 | |
| 115 | TD00000275 | TAPPING SCREW 3.5X10 | 8 | |
| 116 | TD00000018 | CORD CLAMP | 2 | |
| 117 | TD00000275 | TAPPING SCREW 3.5X10 | 4 | |
| 118 | TD00000276 | BATTERY BOX | 1 | |
| 119 | TD00000277 | WARNING LABEL | 1 | |
| 120 | TD00000281 | NAMEPLATE BR US VN | 1 | |
| 121 | TD00000275 | TAPPING SCREW 3.5X10 | 14 | |
| 122 | TD00000275 | TAPPING SCREW 3.5X10 | 4 | |
| 123 | TD00000284 | BATTERY EJECTOR FIX RING | 2 | |
| 124 | TD00000283 | BATTERY EJECTOR | 2 | |
| 125 | TD00000282 | COMPRESSION SPRING | 4 | |
| 126 | TD00000311 | BATTERY BOX LID ASSY | 1 | |
| 126 | D10 | INC. 127-129 | ||
| 127 | TD00000285 | BATTERY BOX LATCH | 1 | |
| 128 | TD00000286 | COMPRESSION SPRING | 1 | |
| 129 | 8025F3-0 | XGT logo label | 1 | |
| 130 | TD00000313 | MAIN CONTROLLER PCB ASSY | 1 | |
| 130 | D10 | INC. 131,134-151 | ||
| 131 | TD00000287 | BATTERY TERMINAL XGT ASSY | 1 | |
| 131 | D10 | INC. 132,133 | ||
| 132 | TD00000288 | GASKET FOR XGT TERMINAL | 1 | |
| 133 | TD00000289 | SILICONE RING 10 | 1 | |
| 134 | TD00000291 | GASKET FOR LXT TERMINAL | 1 | |
| 135 | TD00000292 | BATTERY TERMINAL LXT | 1 | |
| 136 | TD00000290 | FIX PLATE FOR LXT TERMINAL | 1 | |
| 137 | TD00000289 | SILICONE RING 10 | 2 | |
| 138 | TD00000320 | CABLE ASSY FOR LXT TERMINAL | 1 | |
| 139 | TD00000321 | CABLE ASSY FOR CONT.PANEL 6PIN | 1 | |
| 140 | TD00000289 | SILICONE RING 10 | 1 | |
| 141 | TD00000289 | SILICONE RING 10 | 1 | |
| 142 | TD00000322 | CABLE ASSY FOR LIGHT 7PIN | 1 | |
| 143 | TD00000295 | MAIN CONTROLLER PCB HOUSING | 1 | |
| 144 | TD00000297 | MAIN CONTROLLER PCB | 1 | |
| 145 | TD00000255 | TAPPING SCREW 3X10 | 4 | |
| 146 | TD00000324 | THERMAL CONDUCTIVE SHEET 36X36 | 1 | |
| 147 | TD00000323 | THERMAL CONDUCTIVE SH. 43.5X26 | 1 | |
| 148 | TD00000300 | THERMAL CONDUCTIVE SHEET 10X10 | 1 | |
| 149 | TD00000301 | GASKET FOR CONT, PCB HOUSING | 1 | |
| 150 | TD00000302 | HEAT SINK FOR CONT, PCB | 1 | |
| 151 | TD00000255 | TAPPING SCREW 3X10 | 6 | |
| 152 | TD00000275 | TAPPING SCREW 3.5X10 | 4 | |
| 153 | TD00000275 | TAPPING SCREW 3.5X10 | 4 | |
| 154 | TD00000303 | BATTERY BOX LOWER PANEL | 1 | |
| 155 | TD00000275 | TAPPING SCREW 3.5X10 | 15 | |
| A01 | TD00000002 | SHOULDER BELT | 1 |
