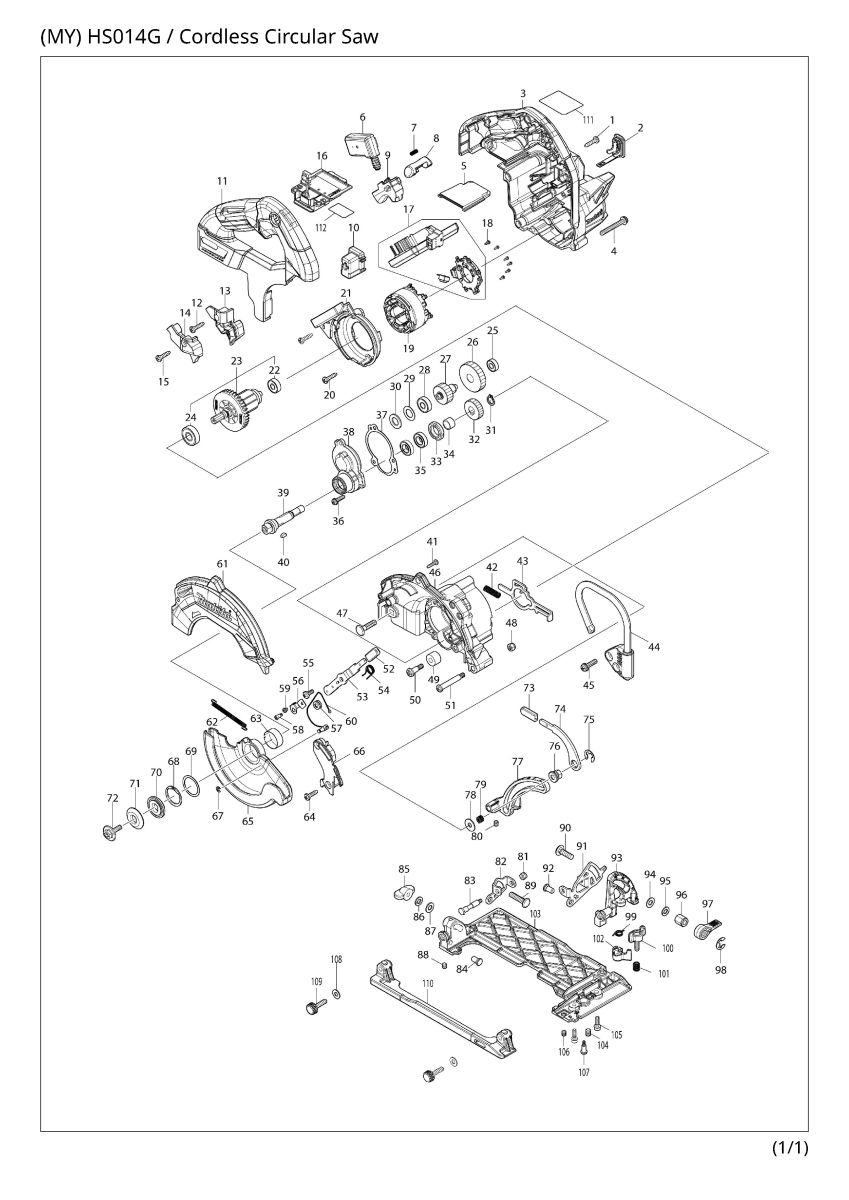

Part Diagram
Total: 146 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | Binding head tapping screw 4X18 | 6 | |
| 002 | 140F99-0 | Cap complete | 1 | |
| 002 | C10 | 213A05-9 | O-ring 16 | 1 |
| 003 | 1832F3-4 | MOTOR HOUSING SET | 1 | |
| 003 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 003 | D10 | INC. 11 | ||
| 003-1 | 1832W2-5 | MOTOR HOUSING SET | 1 | |
| 003-1 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 003-1 | D10 | INC. 11 | ||
| 004 | 911263-2 | Pan head screw M5X40 WR | 3 | |
| 005 | 413J82-7 | Cover | 1 | |
| 006 | 650039-9 | Switch C3XB-1LPSPM | 1 | |
| 007 | 231433-0 | Compression spring 4 | 1 | |
| 008 | 459264-7 | Lock off button | 1 | |
| 009 | 413975-8 | Switch lever | 1 | |
| 010 | 459256-6 | Holder | 1 | |
| 011 | 1832F3-4 | MOTOR HOUSING SET | 1 | |
| 011 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 011 | D10 | INC. 3 | ||
| 011-1 | 1832W2-5 | MOTOR HOUSING SET | 1 | |
| 011-1 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 011-1 | D10 | INC. 3 | ||
| 012 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 013 | 4135H2-7 | LIGHT CASE | 1 | |
| 014 | 4135H3-5 | LIGHT COVER | 1 | |
| 015 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 016 | 632P65-6 | Terminal unit | 1 | |
| 017 | 620T80-6 | CONTROLLER | 1 | |
| 018 | 652119-7 | Pan head screw M2X6 | 6 | |
| 019 | 629C17-8 | Stator | 1 | |
| 020 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 021 | 412740-2 | Baffle plate | 1 | |
| 022 | 211012-0 | Ball bearing 606ZZ | 1 | |
| 023 | 519640-8 | Rotor assembly | 1 | |
| 023 | D10 | INC. 22,24 | ||
| 024 | 210051-7 | Ball bearing 609LLB | 1 | |
| 025 | 210033-9 | Ball bearing 696ZZ | 1 | |
| 026 | 226883-2 | Helical gear 45 | 1 | |
| 027 | 226881-6 | Helical gear 21 | 1 | |
| 028 | 210062-2 | Ball bearing 607ZZ | 1 | |
| 029 | 253376-6 | Flat washer 11 | 1 | |
| 030 | 262180-2 | Rubber ring 11 | 1 | |
| 031 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 032 | 226882-4 | Helical gear 22 | 1 | |
| 033 | 285847-5 | Bearing retainer 14-23 | 1 | |
| 034 | 257493-4 | Sleeve 10 | 1 | |
| 035 | 211485-7 | Ball bearing 6800LLU | 2 | |
| 036 | 911128-8 | Pan head screw M4X16 WR | 3 | |
| 037 | 459253-2 | Gasket | 1 | |
| 038 | 137488-2 | BEARING BOX ASS'Y | 1 | |
| 038 | C10 | 263002-9 | Rubber pin 4 | 1 |
| 039 | 327G69-4 | SPINDLE | 1 | |
| 040 | 254031-3 | Woodruff key 3 | 1 | |
| 041 | 266404-8 | Binding head tapping screw 3X14 | 3 | |
| 042 | 233117-6 | Compression spring 6 | 1 | |
| 043 | 347643-0 | Shaft lock | 1 | |
| 044 | 122L07-9 | HOOK ASSEMBLY | 1 | |
| 045 | 911233-1 | Pan head screw M5X20 WR | 2 | |
| 046 | 1413H8-0 | GEAR HOUSING COMPLETE | 1 | |
| 046 | C10 | 213953-6 | O-ring 24 | 1 |
| 047 | 266931-5 | Flat head square neck bolt M6X25 | 1 | |
| 048 | 252103-8 | Hex. lock nut M5-8 | 1 | |
| 049 | 262511-5 | Rubber sleeve 6 | 1 | |
| 050 | 265115-2 | Pan head shoulder screw M5X19 | 1 | |
| 051 | 265056-2 | Pan head shoulder screw M5 | 1 | |
| 052 | 286036-5 | Cap | 1 | |
| 053 | 347E94-7 | OPEN LEVER | 1 | |
| 054 | 232854-9 | Torsion spring 10 | 1 | |
| 055 | 265028-7 | Pan head shoulder screw M4X11 | 1 | |
| 056 | 347E95-5 | ROLLER PLATE | 1 | |
| 057 | 4135H0-1 | ROLLER | 1 | |
| 058 | 251484-7 | Flat head shoulder screw M3X4 | 1 | |
| 059 | 265040-7 | Pan head screw M3X4 | 1 | |
| 060 | 162E52-0 | Wire rope | 1 | |
| 061 | 4135G8-8 | BLADE COVER | 1 | |
| 062 | 232994-3 | Tension spring 3 | 1 | |
| 063 | 347F01-6 | THICKNESS LING 23 | 1 | |
| 064 | 266034-5 | Binding head tapping screw 4X16 | 2 | |
| 065 | 4135G9-6 | SAFETY COVER | 1 | |
| 066 | 4135H1-9 | BLOWER COVER | 1 | |
| 067 | 961017-7 | Stop ring (EXT) E-3 | 1 | |
| 068 | 961122-0 | Retaining ring (EXT) round S-22 | 1 | |
| 069 | 267471-6 | Flat washer 23 | 1 | |
| 070 | 224417-5 | Inner flange 28 | 1 | |
| 071 | 224421-4 | Outer flange 28 | 1 | |
| 072 | 266458-5 | Hex. socket hex. head flange bolt … | 1 | |
| 073 | 286036-5 | Cap | 1 | |
| 074 | 347087-4 | Lever plate | 1 | |
| 075 | 257982-9 | Bow stop ring (EXT) E-8 | 1 | |
| 076 | 252265-2 | Hex. nut M6 | 1 | |
| 077 | 312K08-1 | DEPTH GUIDE | 1 | |
| 078 | 253047-5 | Flat washer 6 | 1 | |
| 079 | 232556-7 | Compression spring 6 | 1 | |
| 080 | 266264-8 | Hex. socket set screw (flat point) M- … | 1 | |
| 081 | 252126-6 | Hex. lock nut M4-7 | 1 | |
| 082 | 347511-7 | Rear angular guide | 1 | |
| 083 | 266932-3 | Hex. head bolt M4 | 1 | |
| 084 | 256336-7 | Shoulder pin 6-7 | 1 | |
| 085 | 252631-3 | Thumb nut M6 | 1 | |
| 086 | 253473-8 | Wave spring washer 6 | 1 | |
| 087 | 941151-9 | Flat washer 6 | 1 | |
| 088 | 266264-8 | Hex. socket set screw (flat point) M- … | 1 | |
| 089 | 266309-2 | Flat head square neck bolt M6X26 | 1 | |
| 090 | 251919-8 | Flat head square neck bolt M6X20 | 1 | |
| 091 | 347510-9 | Angular guide | 1 | |
| 092 | 256336-7 | Shoulder pin 6-7 | 1 | |
| 093 | 312K07-3 | ANGULAR PLATE | 1 | |
| 094 | 941151-9 | Flat washer 6 | 1 | |
| 095 | 253473-8 | Wave spring washer 6 | 1 | |
| 096 | 252133-9 | Hex. nut M6 | 1 | |
| 097 | 272251-7 | Lever 30 | 1 | |
| 098 | 961014-3 | Stop ring (EXT) E-8 | 1 | |
| 099 | 231661-7 | Torsion spring 9 | 1 | |
| 100 | 265761-1 | Thumb screw M5X16 | 1 | |
| 101 | 231456-8 | Compression spring 7 | 1 | |
| 102 | 317574-7 | Stopper | 1 | |
| 103 | 312K04-9 | BASE | 1 | |
| 104 | 266225-8 | Hex. socket set screw (flat point) M- … | 1 | |
| 105 | 251501-3 | Hex. socket head bolt M4X14 | 2 | |
| 106 | 266264-8 | Hex. socket set screw (flat point) M- … | 1 | |
| 107 | 265A32-2 | Pan head shoulder screw M3 | 1 | |
| 108 | 941101-4 | Flat washer 5 | 2 | |
| 109 | 252272-5 | Thumb screw M5X21 | 2 | |
| 110 | 1413H7-2 | SUB BASE COMPLETE | 1 | |
| 111 | 8155X6-1 | HS014G NAME PLATE | 1 | |
| 112 | 8155X7-9 | HS014G SERIAL NO. LABEL | 1 | |
| A01 | 194202-9 | Dust nozzle set | 1 | |
| A01 | C10 | 911128-8 | Pan head screw M4X16 WR | 1 |
| A02 | E-28880 | TCT SAW EFFI 125X25T | 1 | |
| A03 | 783217-7 | Hex. wrench 5 | 1 | |
| F07 | 1913K5-7 | Push clamp set | 1 | |
| F12 | 1918P3-6 | GUIDE RULE SET | 1 | |
| F13 | 194202-9 | Dust nozzle set | 1 | |
| F14 | 194367-7 | Guide rail 3000 set | 1 | |
| F15 | 194368-5 | Guide rail 1400 set | 1 | |
| F16 | 194385-5 | Clamp set | 1 | |
| F17 | 194416-0 | Sheet 10000 set | 1 | |
| F18 | 194417-8 | Rubber sheet 10000 set | 1 | |
| F19 | 194418-6 | Position sheet 1400 set | 1 | |
| F20 | 194419-4 | Position sheet 3000 set | 1 | |
| F21 | 194910-2 | Position sheet 1900 set | 1 | |
| F23 | 194925-9 | Guide rail 1900 set | 1 | |
| F25 | 198885-7 | Guide rail connector set | 1 | |
| F26 | 199140-0 | Guide rail 1000 set | 1 | |
| F27 | 199141-8 | Guide rail 1500 set | 1 | |
| F28 | 199826-6 | Ratchet clamp set | 1 |
