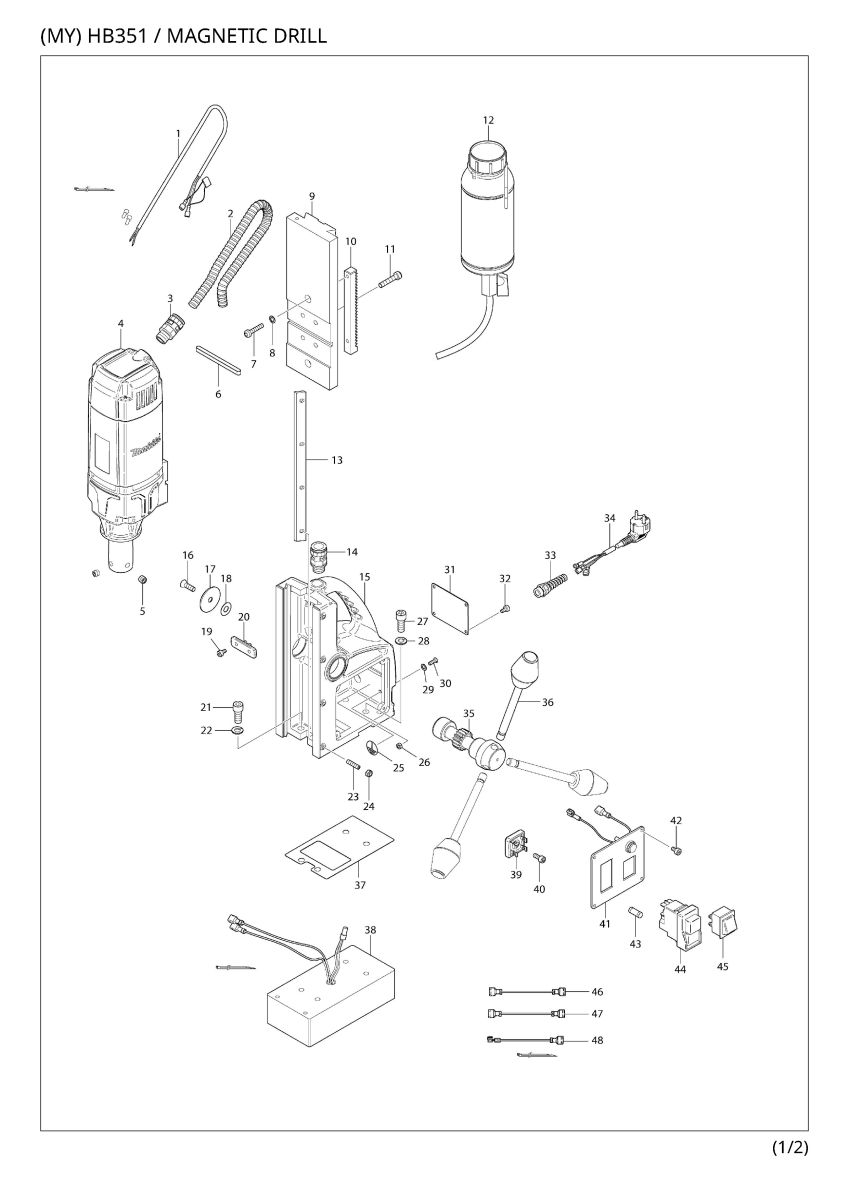

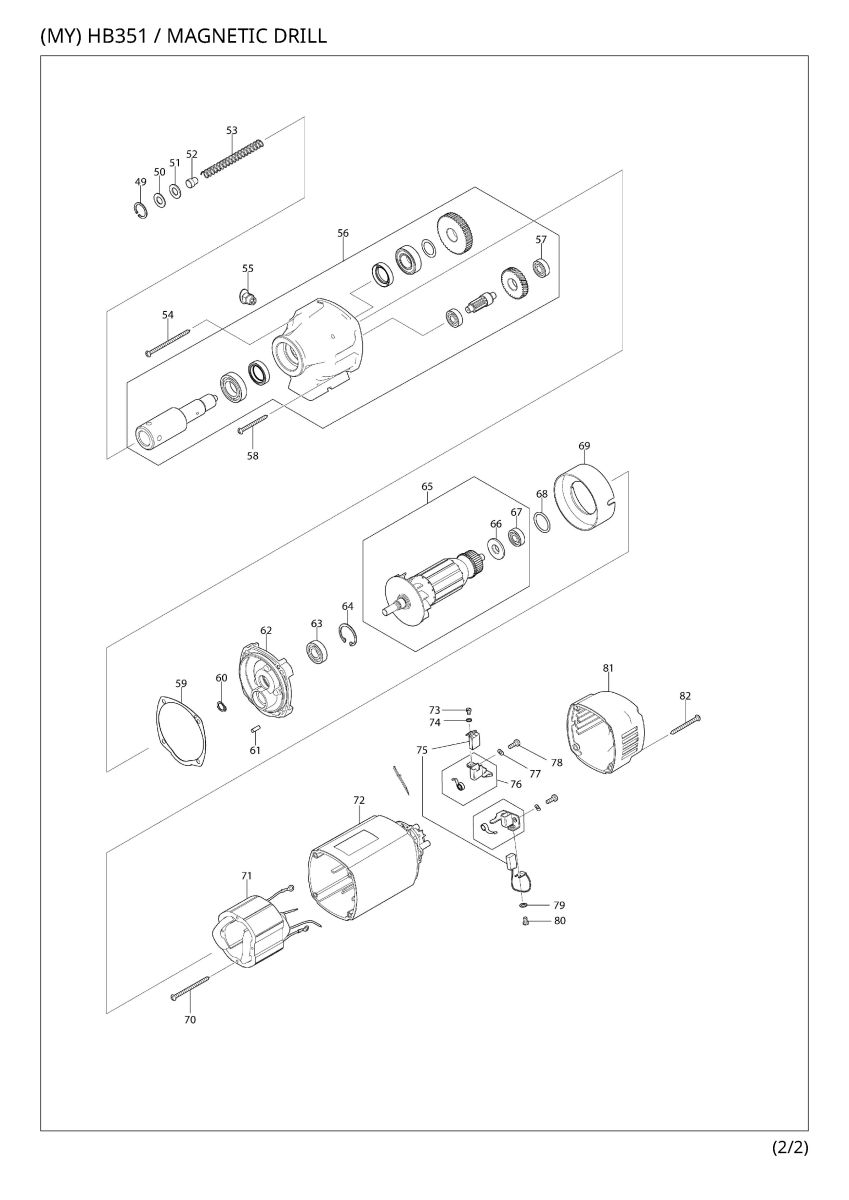

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | ES00000073 | H05VV-F CABLE 3X1X0.7 ASSY | 1 | |
| 002 | ES00000062 | CORRUGATED TUBE 10X300 | 1 | |
| 003 | ES00000050 | CABLE GLAND PG9 | 1 | |
| 004 | ES00000049 | DRILL UNIT | 1 | |
| 004 | D10 | INC. 49-56,58-65,68-82 | ||
| 005 | ES00000121 | HEX SOCKET HEAD SET SCREW M10X | 2 | |
| 005-1 | ES00000066 | HEX SOCKET HEAD SET SCREW M10X | 2 | |
| 006 | ES00000039 | KEY 6-6-80 | 1 | |
| 007 | ES00000060 | HEX SOCKET HEAD BOLT M5X25 | 2 | |
| 008 | ES00000061 | TOOTHED WASHER 5 | 2 | |
| 009 | ES00000040 | GUIDE PLATE | 1 | |
| 010 | ES00000059 | RACK | 1 | |
| 011 | ES00000041 | HEX SOCKET HEAD BOLT M6X30 | 4 | |
| 012 | ES00000051 | COOLANT BOTTLE ASSY | 1 | |
| 013 | ES00000057 | GUIDE GIB PLATE BRASS | 1 | |
| 014 | ES00000050 | CABLE GLAND PG9 | 1 | |
| 015 | ES00000042 | MAIN BODY ASSY | 1 | |
| 016 | ES00000052 | COUNTERSUNK SCREW M6X16 | 1 | |
| 017 | ES00000053 | RETAINER PLATE 36 | 1 | |
| 018 | ES00000054 | THIN FLAT WASHER 9 | 1 | |
| 019 | ES00000038 | HEX SOCKET HEAD SCREW M4X8 | 2 | |
| 020 | ES00000055 | CORD CLAMP | 1 | |
| 021 | ES00000044 | HEX SOCKET HEAD SCREW M8X20 | 2 | |
| 022 | ES00000043 | TOOTHED WASHER 8 | 2 | |
| 023 | ES00000046 | HEX SOCKET SET SCREW M5X20 | 4 | |
| 024 | ES00000047 | HEX NUT M5 | 4 | |
| 025 | ES00000072 | EARTH MARK LABEL | 1 | |
| 026 | ES00000068 | HEX NUT M4 | 1 | |
| 027 | ES00000045 | HEX SOCKET HEAD SCREW M8X25 | 2 | |
| 028 | ES00000043 | TOOTHED WASHER 8 | 2 | |
| 029 | ES00000006 | TOOTHED WASHER 4 | 1 | |
| 030 | ES00000067 | COUNTERSUNK HEAD SCREW M4X20 | 1 | |
| 031 | ES00000056 | NAME PLATE | 1 | |
| 032 | ES00000038 | HEX SOCKET HEAD SCREW M4X8 | 4 | |
| 033 | ES00000058 | SPIRAL CABLE GLAND | 1 | |
| 034 | ES00000227 | POWER CABLE H05VV-F 3X1X3.1UK | 1 | |
| 035 | ES00000048 | PINION GEAR SHAFT FOR LIFTING | 1 | |
| 036 | ES00000032 | HANDLE LEVER | 3 | |
| 037 | ES00000065 | GASKET | 1 | |
| 038 | ES00000031 | ELECTROMAGNETIC BASE ASSY | 1 | |
| 039 | ES00000063 | BRIDGE RECTIFIER | 1 | |
| 040 | ES00000064 | HEX SOCKET HEAD BOLT M5X12 | 1 | |
| 041 | ES00000034 | SWITCH PLATE WITH FUSE HOLDER | 1 | |
| 042 | ES00000038 | HEX SOCKET HEAD SCREW M4X8 | 4 | |
| 043 | ES00000035 | FUSE CERAMIC 2A 250VAC 5X20MM | 1 | |
| 044 | ES00000037 | SWITCH FOR DRILL | 1 | |
| 045 | ES00000036 | SWITCH FOR MAGNET | 1 | |
| 046 | ES00000069 | LEAD WIRE ASSY BLACK | 1 | |
| 047 | ES00000070 | LEAD WIRE ASSY RED | 1 | |
| 048 | ES00000071 | LEAD WIRE ASSY YELLOW | 1 | |
| 049 | ES00000029 | RETAINING RING R-19 | 1 | |
| 050 | ES00000028 | ALUMINUM WASHER | 1 | |
| 051 | ES00000027 | RUBBER RING | 1 | |
| 052 | ES00000026 | PISTON | 1 | |
| 053 | ES00000025 | COMPRESSION SPRING | 1 | |
| 054 | ES00000024 | TAPPING SCREW 4.8X70 | 2 | |
| 055 | ES00000030 | 1/8 PUSH JOINT | 1 | |
| 056 | ES00000023 | GEAR BOX ASSY | 1 | |
| 056 | D10 | INC. 57 | ||
| 057 | ES00000014 | BALL BEARING 608ZZ | 1 | |
| 058 | ES00000007 | TAPPING SCREW 4.8X45 | 2 | |
| 059 | ES00000021 | GASKET | 1 | |
| 060 | ES00000020 | RETAINING RING S-10 | 1 | |
| 061 | ES00000022 | LOCATING PIN 4X12 | 1 | |
| 062 | ES00000019 | GEAR HOUSING COVER | 1 | |
| 063 | ES00000018 | BALL BEARING 6001ZZ | 1 | |
| 064 | ES00000017 | RETAINING RING R-28 | 1 | |
| 065 | ES00000016 | ARMATURE ASSY 220-240V | 1 | |
| 065 | D10 | INC. 66,67 | ||
| 066 | ES00000015 | INSULATION WASHER | 1 | |
| 067 | ES00000014 | BALL BEARING 608ZZ | 1 | |
| 068 | ES00000013 | O RING | 1 | |
| 069 | ES00000012 | BAFFLE PLATE | 1 | |
| 070 | ES00000011 | TAPPING SCREW 3.9X65 | 2 | |
| 071 | ES00000010 | STATOR ASSY 220-240V | 1 | |
| 072 | ES00000009 | MOTOR HOUSING | 1 | |
| 073 | ES00000005 | PAN HEAD SCREW M4X8 BRASS | 1 | |
| 074 | ES00000006 | TOOTHED WASHER 4 | 1 | |
| 075 | ES00000001 | AUTO CUT-OFF CARBON BRUSH PAIR | 1 | |
| 076 | ES00000002 | BRUSH HOLDER ASSY | 2 | |
| 077 | ES00000004 | WAVE WASHER 4 | 4 | |
| 078 | ES00000003 | PAN HEAD SCREW M4X12 | 4 | |
| 079 | ES00000006 | TOOTHED WASHER 4 | 1 | |
| 080 | ES00000005 | PAN HEAD SCREW M4X8 BRASS | 1 | |
| 081 | ES00000008 | BRUSH HOLDER COVER | 1 | |
| 082 | ES00000007 | TAPPING SCREW 4.8X45 | 6 | |
| A01 | ES00000080 | PLASTIC CASE | 1 | |
| A02 | ES00000075 | CENTER PIN 6.3 | 1 | |
| A02-1 | ES00000075 | CENTER PIN 6.3 | 1 | |
| A03 | ES00000076 | CENTER PIN 7.9 | 1 | |
| A03-1 | ES00000076 | CENTER PIN 7.9 | 1 | |
| A04 | ES00000077 | CENTER PIN CASE | 2 | |
| A05 | ES00000066 | HEX SOCKET HEAD SET SCREW M10X | 4 | |
| A05-1 | ES00000066 | HEX SOCKET HEAD SET SCREW M10X | 4 | |
| A06 | ES00000074 | SAFETY BELT | 1 | |
| A07 | ES00000035 | FUSE CERAMIC 2A 250VAC 5X20MM | 1 | |
| A08 | 783208-8 | Hex. wrench 2.5 | 1 | |
| A09 | 783201-2 | Hex. wrench 3 | 1 | |
| A10 | 783202-0 | Hex. wrench 4 | 1 | |
| A11 | ES00000078 | COMBINATION WRENCH 8MM | 1 | |
| A12 | ES00000079 | CHUCK ADAPTER 1/2-20UNF | 1 | |
| F01 | B-90641 | TCT CORE CUTTER 12MMX35MM | 1 | |
| F02 | B-90657 | TCT CORE CUTTER 14MMX35MM | 1 | |
| F03 | B-90663 | TCT CORE CUTTER 16MMX35MM | 1 | |
| F04 | B-90679 | TCT CORE CUTTER 18MMX35MM | 1 | |
| F05 | B-90685 | TCT CORE CUTTER 20MMX35MM | 1 | |
| F06 | B-90691 | TCT CORE CUTTER 22MMX35MM | 1 | |
| F07 | B-90700 | TCT CORE CUTTER 24MMX35MM | 1 | |
| F08 | B-90716 | TCT CORE CUTTER 26MMX35MM | 1 | |
| F09 | B-90722 | TCT CORE CUTTER 28MMX35MM | 1 | |
| F10 | B-90738 | TCT CORE CUTTER 32MMX35MM | 1 | |
| F11 | B-90744 | TCT CORE CUTTER 36MMX35MM | 1 | |
| F12 | B-90750 | TCT CORE CUTTER 40MMX35MM | 1 | |
| F13 | B-90766 | TCT CORE CUTTER 50MMX35MM | 1 | |
| F14 | B-90772 | TCT CORE CUTTER 12MMX50MM | 1 | |
| F15 | B-90788 | TCT CORE CUTTER 14MMX50MM | 1 | |
| F16 | B-90794 | TCT CORE CUTTER 16MMX50MM | 1 | |
| F17 | B-90803 | TCT CORE CUTTER 18MMX50MM | 1 | |
| F18 | B-90819 | TCT CORE CUTTER 20MMX50MM | 1 | |
| F19 | B-90825 | TCT CORE CUTTER 22MMX50MM | 1 | |
| F20 | B-90831 | TCT CORE CUTTER 24MMX50MM | 1 | |
| F21 | B-90847 | TCT CORE CUTTER 26MMX50MM | 1 | |
| F22 | B-90853 | TCT CORE CUTTER 28MMX50MM | 1 | |
| F23 | B-90869 | TCT CORE CUTTER 32MMX50MM | 1 | |
| F24 | B-90875 | TCT CORE CUTTER 36MMX50MM | 1 | |
| F25 | B-90881 | TCT CORE CUTTER 40MMX50MM | 1 | |
| F26 | B-90897 | TCT CORE CUTTER 50MMX50MM | 1 | |
| F27 | B-90906 | TCT CORE CUTTER 60MMX50MM | 1 |
