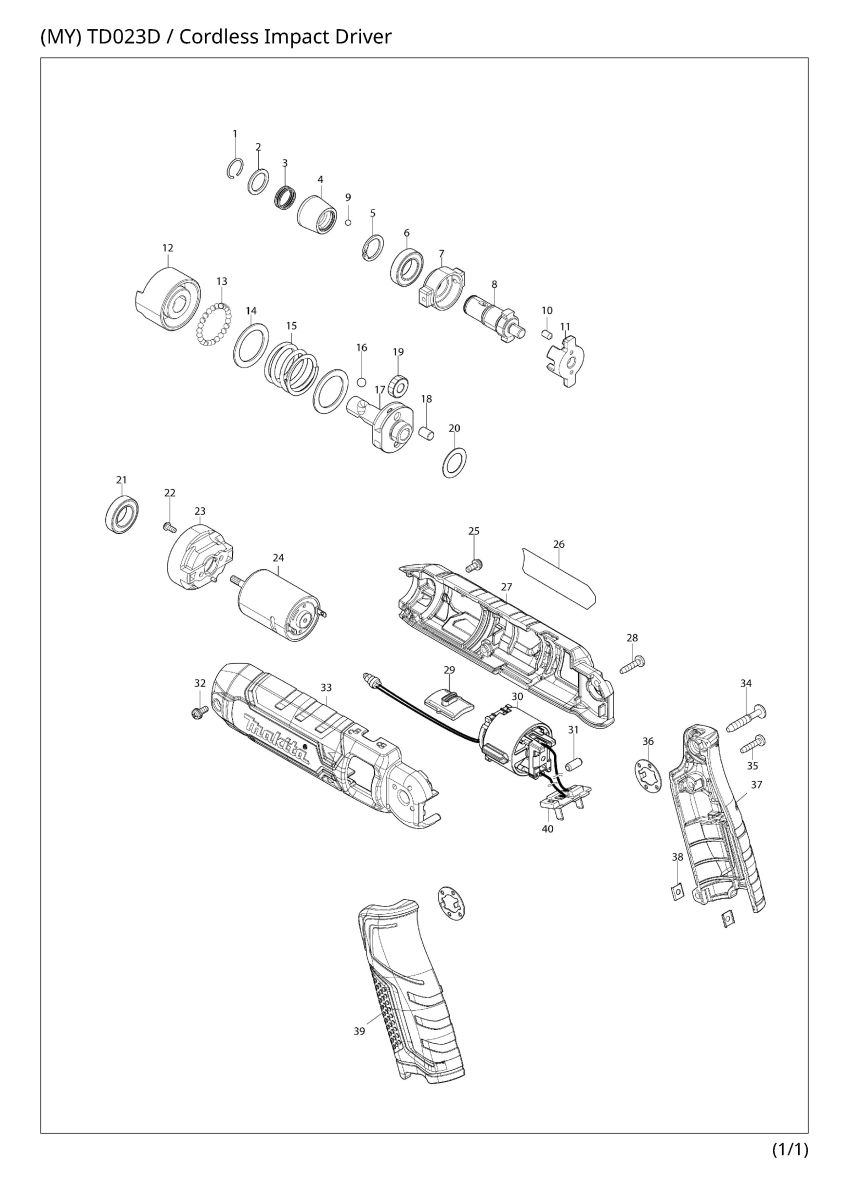

Part Diagram
Total: 53 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 231965-7 | Ring spring 10 | 1 | |
| 002 | 267143-3 | Flat washer 11 | 1 | |
| 003 | 234347-2 | Compression spring 11 | 1 | |
| 004 | 327G71-7 | Bit sleeve | 1 | |
| 004-1 | 327H92-5 | BIT SLEEVE | 1 | |
| 005 | 961072-9 | Retaining ring (EXT) round S-12 | 1 | |
| 006 | 210108-4 | Ball bearing 6801LLU | 1 | |
| 007 | 313136-9 | Lock ring | 1 | |
| 008 | 327G72-5 | Spindle N | 1 | |
| 009 | 216019-1 | Steel ball 3 | 2 | |
| 010 | 268160-6 | Pin 3.5 | 2 | |
| 011 | 324713-2 | Anvil | 1 | |
| 012 | 324714-0 | Hammer | 1 | |
| 013 | 216019-1 | Steel ball 3 | 23 | |
| 014 | 267335-4 | Flat washer 20 | 2 | |
| 015 | 233481-5 | Compression spring 20 | 1 | |
| 016 | 216002-8 | Steel ball 4.8 | 2 | |
| 017 | 324715-8 | Spindle | 1 | |
| 018 | 268161-4 | Pin 5 | 2 | |
| 019 | 227173-6 | Spur gear 27 | 2 | |
| 020 | 253052-2 | Flat washer 12 | 1 | |
| 021 | 210108-4 | Ball bearing 6801LLU | 1 | |
| 022 | 265172-0 | Pan head screw M2.6X6 | 2 | |
| 023 | 451522-7 | Internal gear case | 1 | |
| 024 | 629235-0 | DC motor | 1 | |
| 025 | 265173-8 | Pan head screw M3X8 | 1 | |
| 026 | 8155K1-0 | TD023D NAME PLATE | 1 | |
| 027 | 1832J1-6 | MOTOR HOUSING SET | 1 | |
| 027 | D10 | INC. 33 | ||
| 028 | 266404-8 | Binding head tapping screw 3X14 | 3 | |
| 029 | 451523-5 | Lock lever | 1 | |
| 030 | 650783-8 | Switch C3YW | 1 | |
| 030 | D10 | INC. 40 | ||
| 031 | 263027-3 | Rubber pin 4 | 2 | |
| 032 | 265173-8 | Pan head screw M3X8 | 1 | |
| 033 | 1832J1-6 | MOTOR HOUSING SET | 1 | |
| 033 | D10 | INC. 27 | ||
| 034 | 266374-1 | Binding head tapping screw 4X25 | 1 | |
| 035 | 266404-8 | Binding head tapping screw 3X14 | 2 | |
| 036 | 267803-7 | Lock washer | 2 | |
| 037 | 1832H0-4 | HANDLE SET | 1 | |
| 037 | D10 | INC. 39 | ||
| 038 | 345749-8 | Set plate | 2 | |
| 039 | 1832H0-4 | HANDLE SET | 1 | |
| 039 | D10 | INC. 37 | ||
| 040 | 643817-4 | Terminal | 1 | |
| A01 | 784043-7 | Bit 2-45 | 1 | |
| A02A | ***DC10WA | DC10WA BATTERY CHARGER | 1 | |
| A02A | D10 | COMPO-PARTS | ||
| A03A | 1913W2-7 | Battery BL0715 set | 2 | |
| A04A | 831277-4 | Tool bag | 1 | |
| A06A | 168435-2 | Holster | 1 | |
| F01 | 194731-2 | Rebar binding attachment set | 1 |
