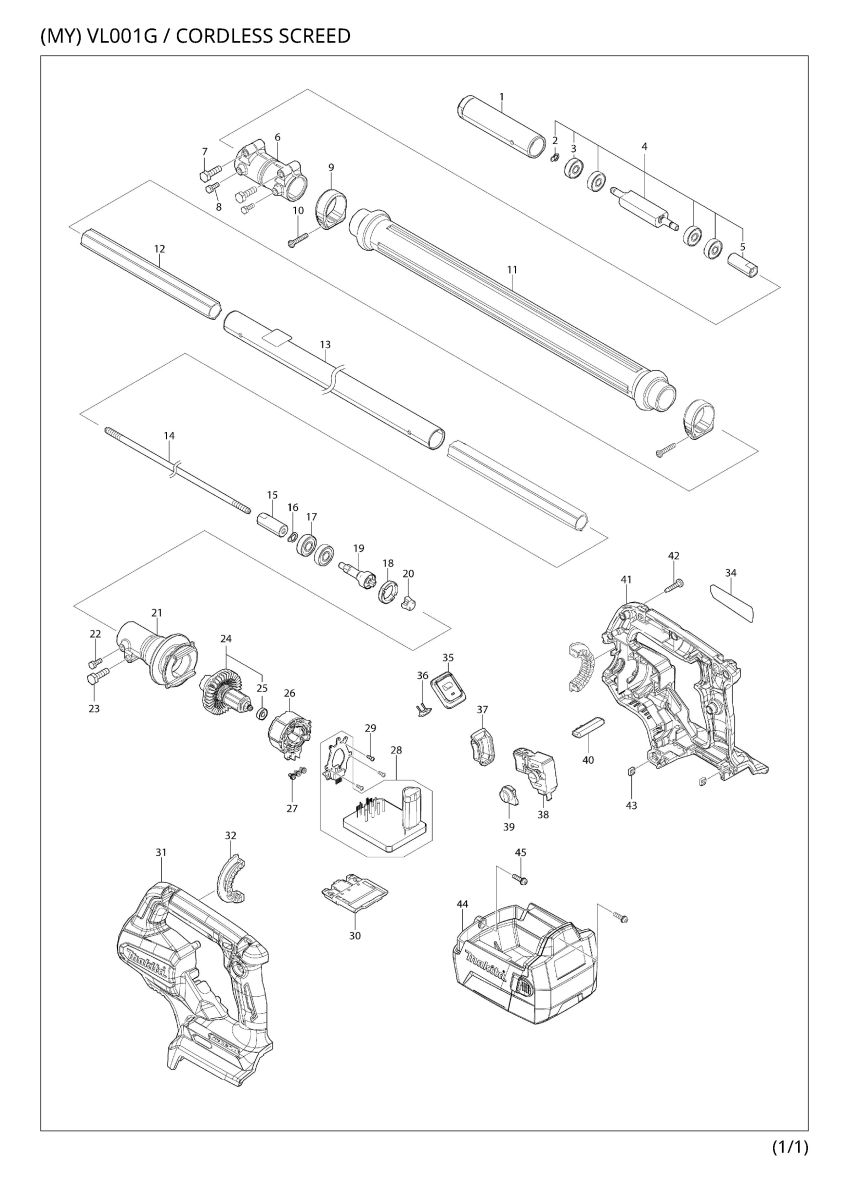

Part Diagram
Total: 58 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1413R0-6 | Pipe 27 complete | 1 | |
| 002 | 961003-8 | Retaining ring (EXT) S-7 | 1 | |
| 003 | 211027-7 | Ball bearing 627ZZ | 4 | |
| 004 | 137433-7 | UNBALANCER ASSY | 1 | |
| 004 | D10 | INC. 2,3,5 | ||
| 005 | 327G48-2 | Joint | 1 | |
| 006 | 312J88-1 | Joint 25-27 | 1 | |
| 007 | 265E92-8 | Hex. head bolt M6X25 | 2 | |
| 008 | 265E91-0 | Hex. head bolt M4X12 | 2 | |
| 009 | 454270-7 | Band | 2 | |
| 010 | 911148-2 | Pan head screw M4X25 WR | 2 | |
| 011 | 273044-5 | Grip | 1 | |
| 012 | 4135A3-6 | Liner 16 | 2 | |
| 013 | 1412Y2-5 | Pipe complete | 1 | |
| 013 | C10 | 8096X0-9 | CAUTION LABEL | 1 |
| 014 | 327G45-8 | Shaft | 1 | |
| 015 | 327G48-2 | Joint | 1 | |
| 016 | 961005-4 | Retaining ring (EXT) S-9 | 1 | |
| 017 | 210217-9 | Ball bearing 609ZZ | 2 | |
| 018 | 285053-2 | Bearing retainer 19-26 | 1 | |
| 019 | 141K76-5 | Spindle complete | 1 | |
| 020 | 424833-3 | Spacer | 1 | |
| 021 | 312J87-3 | Pipe holder 25 | 1 | |
| 022 | 265E91-0 | Hex. head bolt M4X12 | 1 | |
| 023 | 265E92-8 | Hex. head bolt M6X25 | 1 | |
| 024 | 136692-0 | Rotor assembly | 1 | |
| 024 | D10 | INC. 25 | ||
| 025 | 210039-7 | Ball bearing 695DDW | 1 | |
| 026 | 629B21-1 | Stator | 1 | |
| 027 | 652069-6 | Flat head screw M3X6 | 3 | |
| 028 | 620T64-4 | Controller | 1 | |
| 029 | 266490-9 | Pan head tapping screw 2X6 | 3 | |
| 030 | 632P65-6 | Terminal unit | 1 | |
| 031 | 1832G4-9 | HOUSING SET | 1 | |
| 031 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 031 | D10 | INC. 41 | ||
| 032 | 422910-5 | Rubber ring | 2 | |
| 034 | 8155R2-7 | VL001G NAME PLATE | 1 | |
| 035 | 137431-1 | INDICATION PLATE ASS'Y | 1 | |
| 036 | 620T65-2 | LED circuit | 1 | |
| 037 | 422966-8 | Switch cover | 1 | |
| 038 | 651493-0 | Switch C3JW-4CM-1L | 1 | |
| 039 | 458819-5 | Lock on button cover | 1 | |
| 040 | 458822-6 | Lock lever | 1 | |
| 041 | 1832G4-9 | HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 041 | D10 | INC. 31 | ||
| 042 | 266045-0 | Binding head tapping screw 4X20 | 11 | |
| 043 | 252173-7 | Square nut | 2 | |
| 044 | 137467-0 | BATTERY CASE S ASS'Y | 1 | |
| 044 | C10 | 810196-7 | Caution label | 1 |
| 044 | C20 | 8095E9-2 | CAUTION LABEL | 1 |
| 045 | 911128-8 | Pan head screw M4X16 WR | 2 | |
| F01 | 1910J1-0 | Battery case L set | 1 | |
| F03 | 1910J4-4 | Battery case H set | 1 | |
| F05 | 1917D3-6 | Blade 1800 set | 1 | |
| F06 | 1917D4-4 | Blade 1400 set | 1 | |
| F07 | 1917D5-2 | Blade 900 set | 1 |
