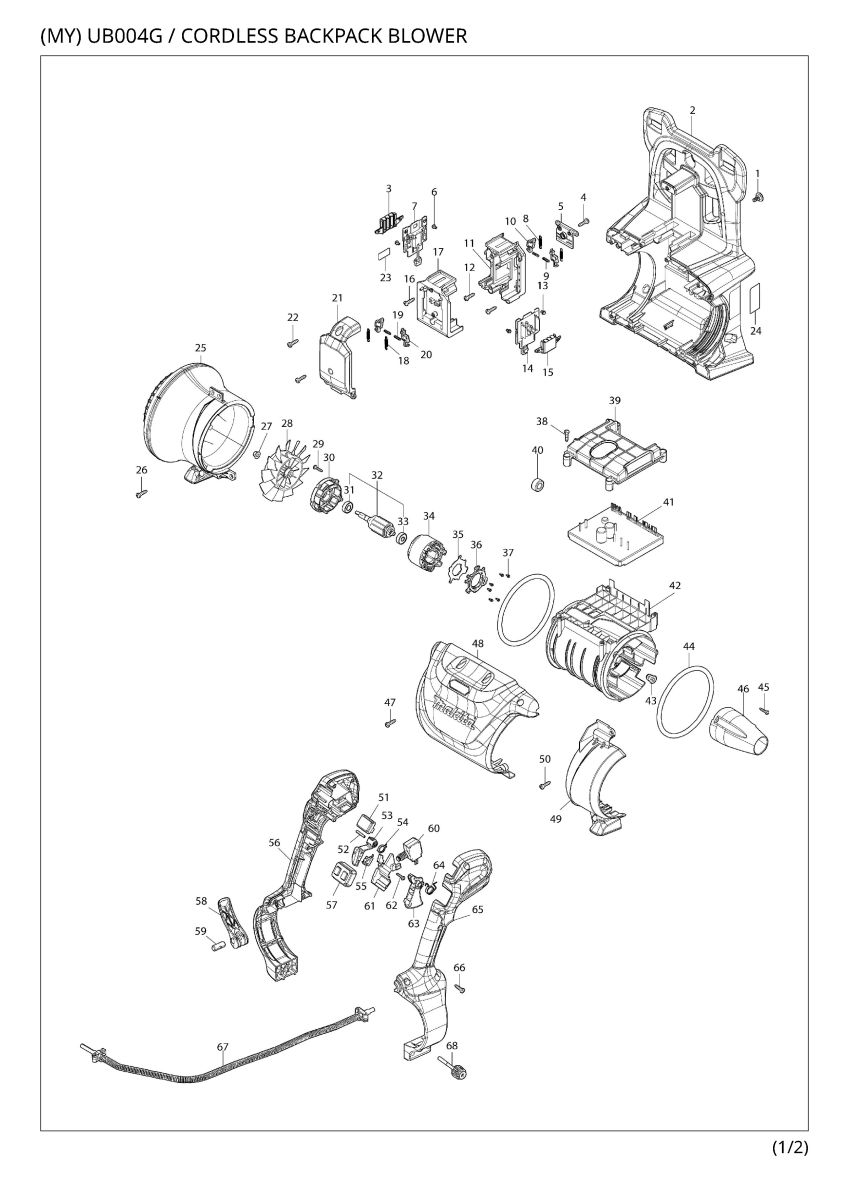

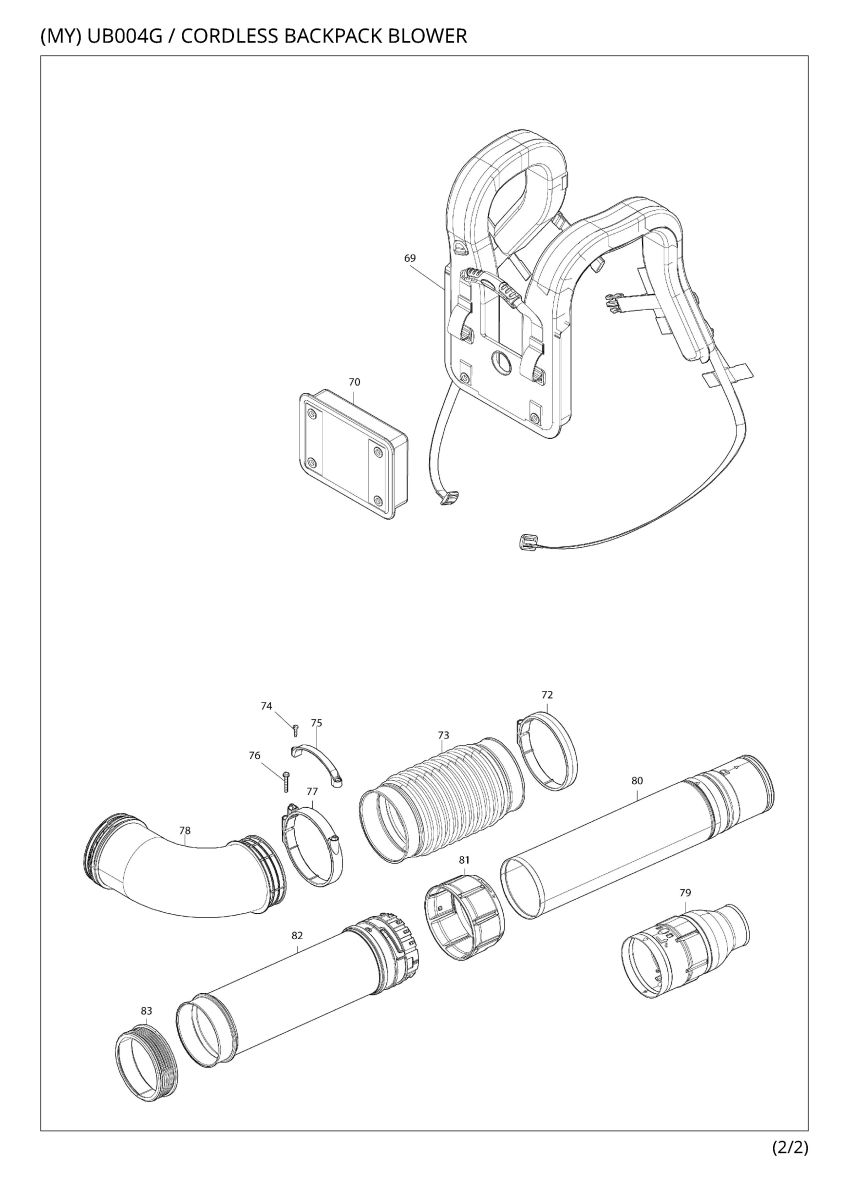

Part Diagram
Total: 100 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 265F07-1 | SHOULDER FLAT HEAD SCREW M5X10 | 6 | |
| 002 | 1412T5-4 | FRAME COMPLETE | 1 | |
| 003 | 413B40-5 | Terminal cover | 1 | |
| 004 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 005 | 4134P9-3 | LOCK COVER | 1 | |
| 006 | 652031-1 | Pan head screw M3X6 | 2 | |
| 007 | 632W79-7 | TERMINAL UNIT | 1 | |
| 008 | 232722-6 | Tension spring 4 | 2 | |
| 009 | 232472-3 | Compression spring 2 | 2 | |
| 010 | 413B41-3 | Lock lever | 2 | |
| 011 | 1832G5-7 | TERMINAL BOX SET | 1 | |
| 011 | C10 | 263005-3 | Rubber pin 6 | 4 |
| 011 | D10 | INC. 17 | ||
| 012 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 013 | 652031-1 | Pan head screw M3X6 | 2 | |
| 014 | 632W79-7 | TERMINAL UNIT | 1 | |
| 015 | 413B40-5 | Terminal cover | 1 | |
| 016 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 017 | 1832G5-7 | TERMINAL BOX SET | 1 | |
| 017 | C10 | 263005-3 | Rubber pin 6 | 4 |
| 017 | D10 | INC. 11 | ||
| 018 | 232722-6 | Tension spring 4 | 2 | |
| 019 | 232472-3 | Compression spring 2 | 2 | |
| 020 | 413B41-3 | Lock lever | 2 | |
| 021 | 4134P6-9 | TERMINAL BOX COVER | 1 | |
| 022 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 023 | 8155T7-1 | UB004G SERIAL NO. LABEL | 1 | |
| 024 | 8155S9-0 | UB004G NAME PLATE | 1 | |
| 025 | 122K65-9 | REAR HOUSING ASSEMBLY | 1 | |
| 025 | C10 | 4136U9-0 | REAR COVER | 1 |
| 025 | C20 | 266326-2 | Binding head tapping screw 4X18 | 4 |
| 026 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 027 | 252286-4 | Collared hex. lock nut M5-8 | 1 | |
| 028 | 240237-9 | Fan 110 | 1 | |
| 029 | 266130-9 | Binding head tapping screw 3X16 | 4 | |
| 030 | 413W41-9 | Motor housing cover | 1 | |
| 031 | 211166-3 | Ball bearing 698DDW | 1 | |
| 032 | 519938-3 | ROTOR ASS'Y | 1 | |
| 032 | D10 | INC. 31,33 | ||
| 033 | 210310-9 | Ball bearing 626DDW | 1 | |
| 034 | 629C44-5 | Stator | 1 | |
| 035 | 620T28-8 | CONTROLLER B | 1 | |
| 036 | 638A33-7 | Lead unit | 1 | |
| 037 | 652119-7 | Pan head screw M2X6 | 6 | |
| 038 | 266326-2 | Binding head tapping screw 4X18 | 4 | |
| 039 | 413M52-4 | Controller case cover | 1 | |
| 041 | 620T27-0 | CONTROLLER | 1 | |
| 042 | 137434-5 | MOTOR HOUSING ASSEMBLY | 1 | |
| 042 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 043 | 422879-3 | Grommet | 1 | |
| 044 | 424721-4 | Rubber ring 115 | 2 | |
| 045 | 266130-9 | Binding head tapping screw 3X16 | 3 | |
| 046 | 413W36-2 | Cap | 1 | |
| 047 | 266326-2 | Binding head tapping screw 4X18 | 6 | |
| 048 | 137425-6 | UPPER HOUSING ASSEMBLY | 1 | |
| 049 | 4134R2-1 | ELBOW SUPPORT | 1 | |
| 050 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 051 | 620T30-1 | INDICATION CIRCUIT | 1 | |
| 052 | 256221-4 | Pin 3 | 1 | |
| 053 | 4134R0-5 | SWITCH PLATE | 1 | |
| 054 | 232980-4 | TORSION SPRING 12 | 1 | |
| 055 | 632G60-2 | Switch unit | 1 | |
| 056 | 1832K7-1 | LEVER CASE SET | 1 | |
| 056 | D10 | INC. 65 | ||
| 057 | 620T29-6 | SWITCH CIRCUIT | 1 | |
| 058 | 413Y06-3 | Lever | 1 | |
| 059 | 256A58-5 | Pin 9 | 1 | |
| 060 | 650085-2 | SWITCH C3JR-1AV-PAXD3-3 | 1 | |
| 061 | 4134R5-5 | SWITCH COVER | 1 | |
| 062 | 266130-9 | Binding head tapping screw 3X16 | 1 | |
| 063 | 4134R1-3 | SWITCH LEVER | 1 | |
| 064 | 232853-1 | Torsion spring 12 | 1 | |
| 065 | 1832K7-1 | LEVER CASE SET | 1 | |
| 065 | D10 | INC. 56 | ||
| 066 | 266326-2 | Binding head tapping screw 4X18 | 6 | |
| 067 | 699262-1 | POWER SUPPLY CORD UNIT | 1 | |
| 068 | 413Y07-1 | Thumb screw M5X45 | 1 | |
| 069 | 162E36-8 | BAND COMPLETE | 1 | |
| 070 | 162E37-6 | CUSHION PAD COMPLETE | 1 | |
| 072 | 122G27-3 | Hose clamp 120 assembly | 1 | |
| 072 | C10 | 252103-8 | Hex. lock nut M5-8 | 1 |
| 072 | C20 | 911258-5 | Pan head screw M5X35 WR | 1 |
| 073 | 413X99-4 | Flexible pipe 118 | 1 | |
| 074 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 075 | 4134R6-3 | HOSE CLAMP PLATE | 1 | |
| 076 | 911258-5 | Pan head screw M5X35 WR | 1 | |
| 077 | 4134R3-9 | HOSE CLAMP 120 | 1 | |
| 077 | C10 | 252103-8 | Hex. lock nut M5-8 | 1 |
| 078 | 4134P3-5 | ELBOW | 1 | |
| 079 | 4134R4-7 | END NOZZLE 71 | 1 | |
| 080 | 413Y02-1 | Middle pipe | 1 | |
| 081 | 413Y52-6 | Lock ring | 1 | |
| 082 | 141V13-5 | Pipe complete | 1 | |
| 083 | 413Y01-3 | Swivel ring | 1 | |
| A01 | 162D24-9 | Pipe support belt complete | 1 | |
| A02 | 162D25-7 | Pipe belt complete | 1 | |
| A03 | 413Y09-7 | FLAT NOZZLE | 1 | |
| F01 | 1917R0-0 | BATTERY HOLDER SET | 1 | |
| F02 | 1917R2-6 | CUSHION BELT COMPLETE SET | 1 | |
| F03 | 1918E9-7 | END NOZZLE 81 SET | 1 |
