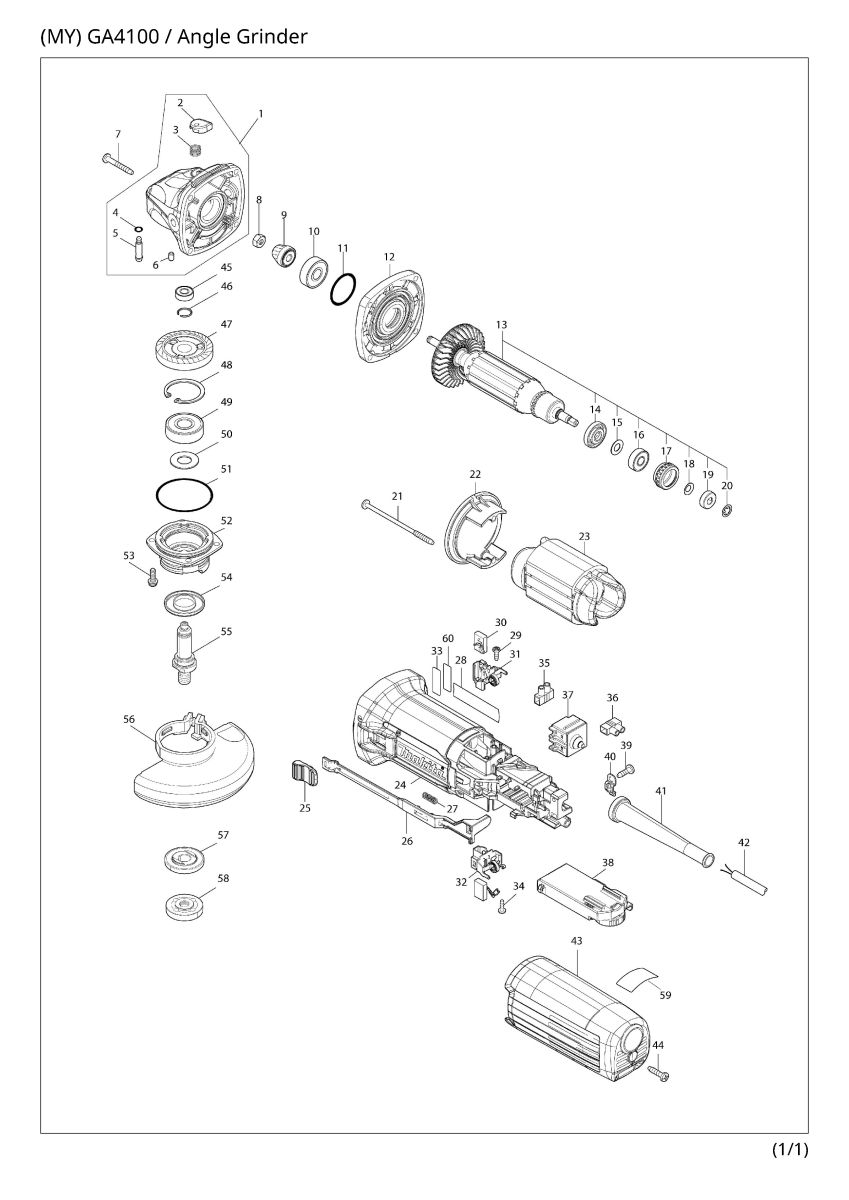

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 137018-9 | Gear housing assembly | 1 | |
| 001 | D10 | INC. 2-6 | ||
| 002 | 417771-6 | Pin cap | 1 | |
| 003 | 233376-2 | Compression spring 8 | 1 | |
| 004 | 213960-9 | O-ring 5 | 1 | |
| 005 | 256546-6 | Shoulder pin 4 | 1 | |
| 006 | 263002-9 | Rubber pin 4 | 1 | |
| 007 | 266361-0 | Binding head tapping screw 4X30 | 4 | |
| 008 | 252186-8 | Hex. nut M6 | 1 | |
| 009 | 226861-2 | Spiral bevel gear 10 | 1 | |
| 010 | 211092-6 | Ball bearing 629DDW | 1 | |
| 011 | 213445-5 | O-ring 26 | 1 | |
| 012 | 317821-6 | Gear housing cover | 1 | |
| 013 | 511B03-6 | Armature assembly 220-240V | 1 | |
| 013 | D10 | INC. 14-20 | ||
| 014 | 681636-0 | Insulation washer | 1 | |
| 015 | 253186-1 | Flat washer 7 | 1 | |
| 016 | 210017-7 | Ball bearing 607DDW | 1 | |
| 017 | 422768-2 | Labyrinth rubber ring 19 | 1 | |
| 018 | 267756-0 | Wave washer 6 | 1 | |
| 019 | 688117-5 | Magnet sleeve | 1 | |
| 020 | 259039-2 | Self lock 6 | 1 | |
| 021 | 266345-8 | Binding head tapping screw 4X80 | 2 | |
| 022 | 457137-8 | Baffle plate | 1 | |
| 023 | 621C89-9 | Field | 1 | |
| 024 | 413R11-8 | Motor housing | 1 | |
| 025 | 413R14-2 | Switch knob | 1 | |
| 026 | 413R12-6 | Switch lever | 1 | |
| 027 | 233121-5 | Compression spring 4 | 1 | |
| 028 | 8141L4-4 | Name plate GA4100 | 1 | |
| 029 | 266007-8 | Binding head tapping screw 3X10 | 2 | |
| 030 | 194074-2 | Carbon brush set CB-325 | 1 | |
| 030-1 | 194074-2 | Carbon brush set CB-325 | 1 | |
| 031 | 644014-5 | Brush holder | 1 | |
| 032 | 644014-5 | Brush holder | 1 | |
| 033 | 8141L7-8 | Serial No. label GA4100 | 1 | |
| 034 | 266007-8 | Binding head tapping screw 3X10 | 2 | |
| 035 | 654544-8 | Terminal block 1P | 1 | |
| 036 | 654544-8 | Terminal block 1P | 1 | |
| 037 | 650046-2 | Switch 1247.0304 | 1 | |
| 037-1 | 650046-2 | Switch 1247.0304 | 1 | |
| 037-2 | 650087-8 | SWITCH 1247.0306 | 1 | |
| 038 | 620M10-5 | Controller | 1 | |
| 039 | 266385-6 | Binding head tapping screw 4X14 | 1 | |
| 040 | 687681-3 | Strain relief | 1 | |
| 041 | 682559-5 | Cord guard 8 | 1 | |
| 042 | 692021-2 | Power supply cord 1.0-2-2.5 | 1 | |
| 043 | 413R13-4 | Rear cover | 1 | |
| 044 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 045 | 210033-9 | Ball bearing 696ZZ | 1 | |
| 046 | 233950-6 | Ring spring 11 | 1 | |
| 047 | 226862-0 | Spiral bevel gear 37 | 1 | |
| 048 | 962151-6 | Retaining ring (INT) R-32 | 1 | |
| 049 | 211129-9 | Ball bearing 6201DDW | 1 | |
| 050 | 267238-2 | Flat washer 12 | 1 | |
| 051 | 213622-9 | O-ring 45 | 1 | |
| 052 | 318331-6 | Bearing box | 1 | |
| 053 | 265099-4 | Pan head screw M4X14 | 4 | |
| 054 | 345464-4 | Labyrinth ring | 1 | |
| 055 | 324956-6 | Spindle | 1 | |
| 056 | 141P26-0 | Wheel cover 100AK complete | 1 | |
| 056 | C10 | 213009-5 | O-ring 4 | 1 |
| 056 | C20 | 265180-1 | Pan head screw M5X16 | 1 |
| 056 | C30 | 8050A1-8 | Caution label | 1 |
| 057 | 224314-5 | Inner flange 30 | 1 | |
| 057-1 | 224491-3 | Inner flange 29 | 1 | |
| 058 | 224559-5 | Lock nut 10-30 | 1 | |
| 058-1 | 224610-1 | Lock nut 10-29 | 1 | |
| 059 | 898444-4 | Operation label | 1 | |
| 060 | 807G78-4 | Clear label | 1 | |
| A01 | 191V54-1 | Cutting wheel cover attachment 1- … | 1 | |
| A02 | 153489-2 | Grip 36 complete | 1 | |
| A03 | D-18443 | GRINDING WHEEL 100X6 A24R | 1 | |
| A04 | 782420-7 | Lock nut wrench 20 | 1 |
