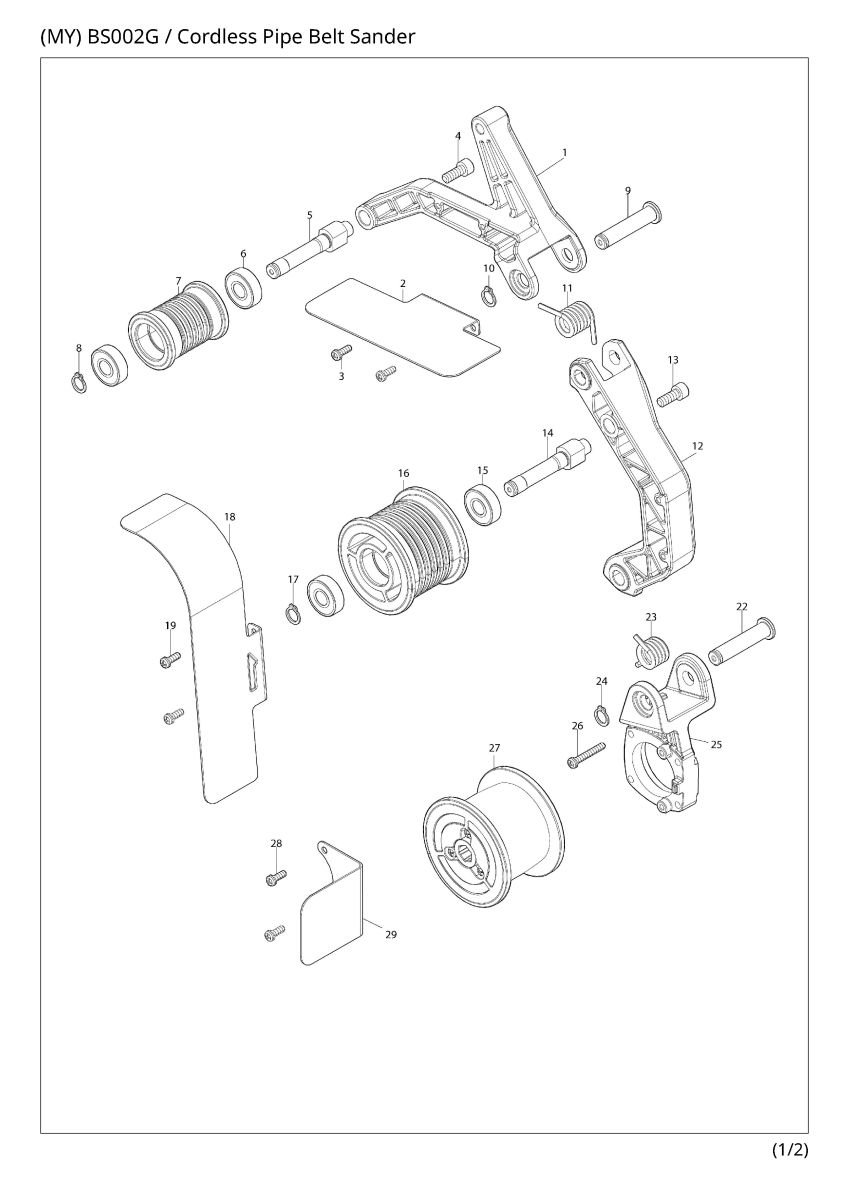

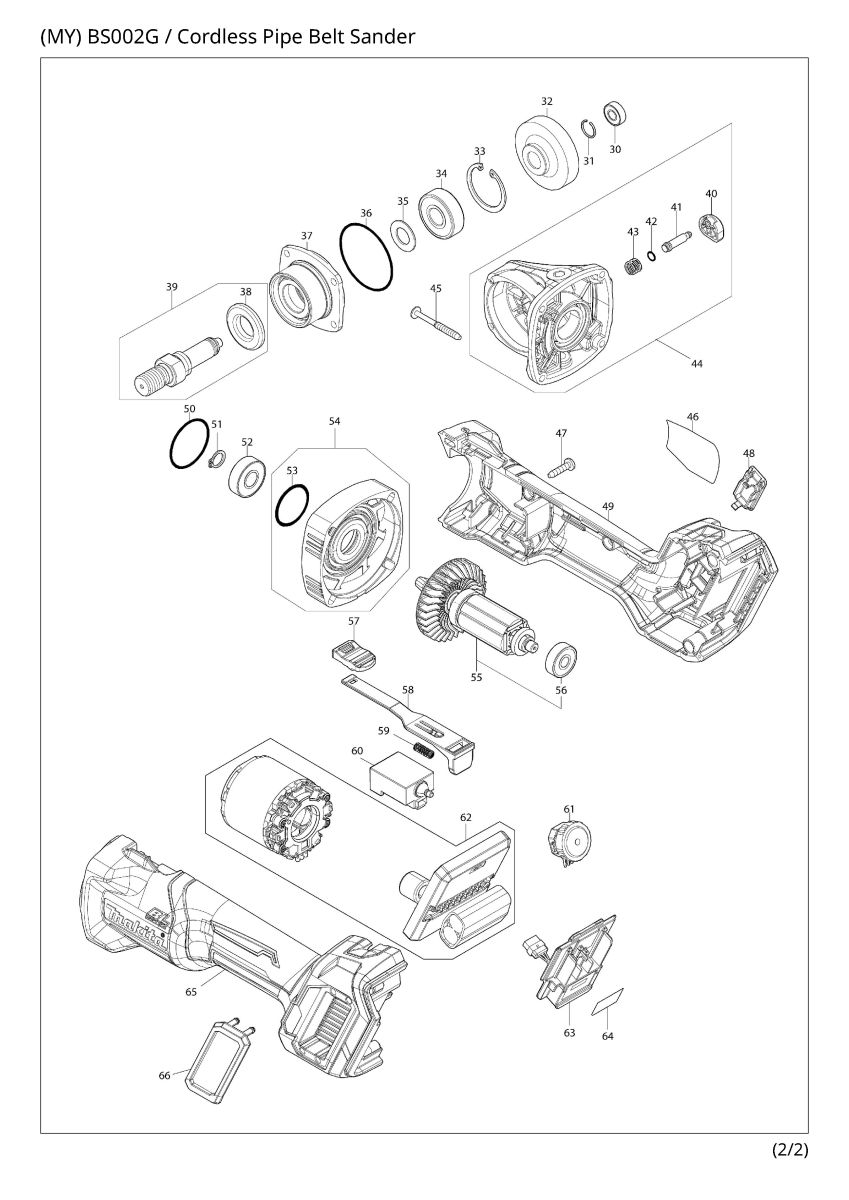

Part Diagram
Total: 79 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 312H83-9 | ARM B | 1 | |
| 002 | 347D55-1 | SAFETY COVER C | 1 | |
| 003 | 911116-5 | Pan head screw M4X12 W | 2 | |
| 004 | 265A36-4 | Hex. socket head bolt M6X16 | 1 | |
| 005 | 327E84-6 | ROLLER SHAFT | 1 | |
| 006 | 210332-9 | Ball bearing 6000DDW | 2 | |
| 007 | 4132D2-1 | GUIDE ROLLER A | 1 | |
| 008 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 009 | 256A99-1 | SHOULDER PIN 10 | 1 | |
| 010 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 011 | 232928-6 | TORSION SPRING 12B | 1 | |
| 012 | 1413R8-0 | ARM A COMPLETE | 1 | |
| 012 | C10 | 422C21-4 | FELT A | 1 |
| 013 | 265A36-4 | Hex. socket head bolt M6X16 | 1 | |
| 014 | 327E84-6 | ROLLER SHAFT | 1 | |
| 015 | 210332-9 | Ball bearing 6000DDW | 2 | |
| 016 | 4132D3-9 | GUIDE ROLLER B | 1 | |
| 017 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 018 | 347D54-3 | SAFETY COVER B | 1 | |
| 019 | 911116-5 | Pan head screw M4X12 W | 2 | |
| 022 | 256A99-1 | SHOULDER PIN 10 | 1 | |
| 023 | 232927-8 | TORSION SPRING 12A | 1 | |
| 024 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 025 | 1413R7-2 | HOLDER COMPLETE | 1 | |
| 025 | C10 | 422C22-2 | FELT B | 1 |
| 026 | 911151-3 | Pan head screw M4X28 W | 4 | |
| 027 | 122J04-3 | DRIVING ROLLER ASSEMBLY | 1 | |
| 027 | C10 | 4132R7-9 | COVER | 2 |
| 027 | C20 | 911128-8 | Pan head screw M4X16 WR | 6 |
| 028 | 911116-5 | Pan head screw M4X12 W | 2 | |
| 029 | 347D53-5 | SAFETY COVER A | 1 | |
| 030 | 210033-9 | Ball bearing 696ZZ | 1 | |
| 031 | 233950-6 | Ring spring 11 | 1 | |
| 032 | 227C68-1 | SPIRAL BEVEL GEAR 48 | 1 | |
| 033 | 962151-6 | Retaining ring (INT) R-32 | 1 | |
| 034 | 211129-9 | Ball bearing 6201DDW | 1 | |
| 035 | 253464-9 | Flat washer 12 | 1 | |
| 036 | 213622-9 | O-ring 45 | 1 | |
| 037 | 312H86-3 | BEARING BOX | 1 | |
| 038 | 347640-6 | Labyrinth ring | 1 | |
| 039 | 136260-9 | Spindle assembly | 1 | |
| 039 | D10 | INC. 38 | ||
| 040 | 417771-6 | Pin cap | 1 | |
| 041 | 256546-6 | Shoulder pin 4 | 1 | |
| 042 | 213960-9 | O-ring 5 | 1 | |
| 043 | 233072-2 | Compression spring 8 | 1 | |
| 044 | 137435-3 | GEAR HOUSING ASS'Y | 1 | |
| 044 | C10 | 263002-9 | Rubber pin 4 | 1 |
| 044 | D10 | INC. 40-43 | ||
| 045 | 266048-4 | Binding head tapping screw 4X40 | 4 | |
| 046 | 8154Y4-6 | BS002G NAME PLATE | 1 | |
| 047 | 266326-2 | Binding head tapping screw 4X18 | 5 | |
| 048 | 4132B6-9 | CAP | 1 | |
| 049 | 183W44-4 | Motor housing set | 1 | |
| 049 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 049 | D10 | INC. 65 | ||
| 050 | 213A32-6 | O-ring 32 | 1 | |
| 051 | 961006-2 | Retaining ring (EXT) S-10 | 1 | |
| 052 | 211097-6 | Ball bearing 6000LLB | 1 | |
| 053 | 213445-5 | O-ring 26 | 1 | |
| 054 | 136989-7 | Gear housing cover assembly | 1 | |
| 054 | D10 | INC. 53 | ||
| 055 | 519945-6 | ROTOR ASS'Y | 1 | |
| 055 | D10 | INC. 56 | ||
| 056 | 210325-6 | Ball bearing 627DDW | 1 | |
| 057 | 455447-7 | Switch knob | 1 | |
| 058 | 412233-9 | Switch lever | 1 | |
| 059 | 233121-5 | Compression spring 4 | 1 | |
| 060 | 651445-1 | Switch FPM-1130 | 1 | |
| 061 | 620T37-7 | DIAL CIRCUIT | 1 | |
| 062 | 629D70-0 | STATOR COMPLETE | 1 | |
| 063 | 632P65-6 | Terminal unit | 1 | |
| 064 | 8154Y6-2 | BS002G SERIAL NO. LABEL | 1 | |
| 065 | 183W44-4 | Motor housing set | 1 | |
| 065 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 065 | D10 | INC. 49 | ||
| 066 | 422610-7 | Dust cover | 1 | |
| A01 | 1910X6-8 | Grip 35 set | 1 | |
| E01 | 8098E7-4 | INDICATION LABEL | 1 |
