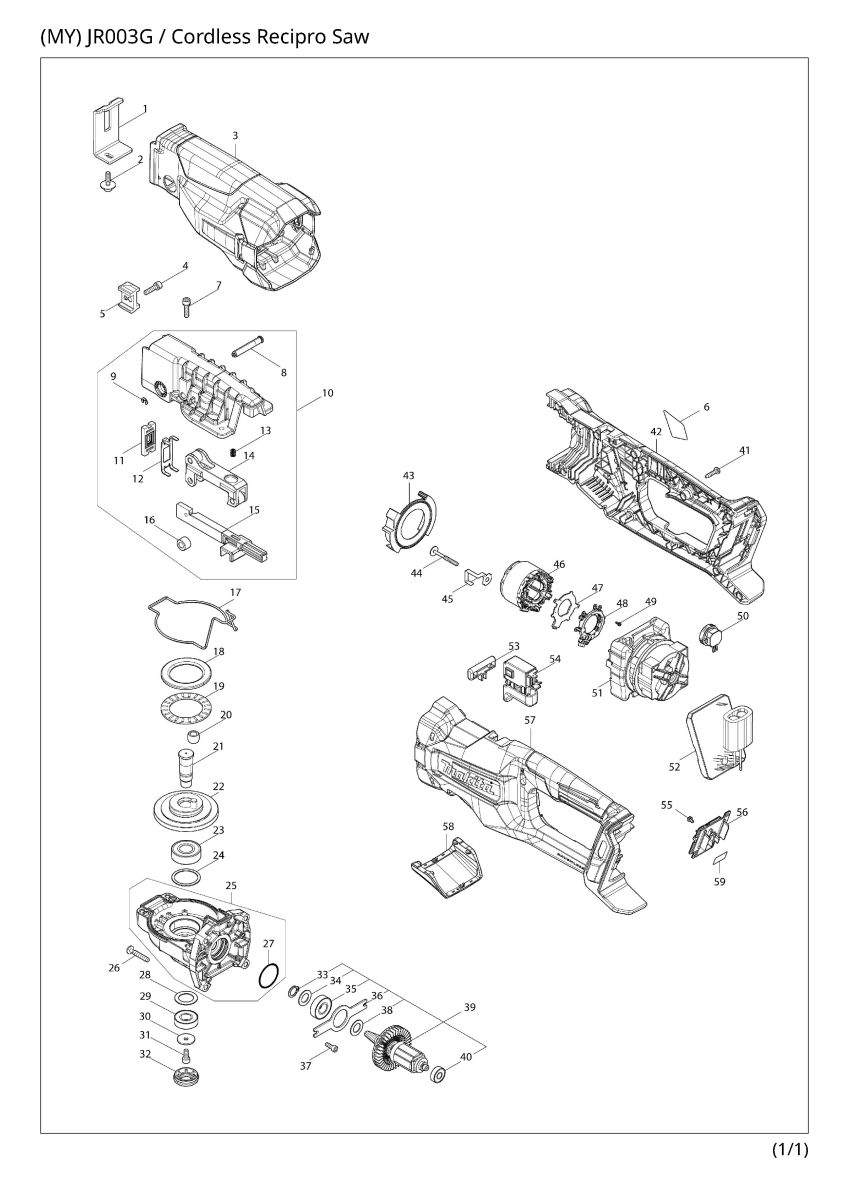

Part Diagram
Total: 85 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 347E19-1 | SHOE | 1 | |
| 001-1 | 347F00-8 | SHOE | 1 | |
| 002 | 265E43-1 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 003 | 422C76-9 | INSULATION COVER | 1 | |
| 004 | 922231-0 | Hex. socket head bolt M5X20 W | 1 | |
| 005 | 313637-7 | BLADE CLAMP | 1 | |
| 006 | 8151V8-9 | Name plate JR003G | 1 | |
| 007 | 266464-0 | Hex. socket head bolt M5X20 | 4 | |
| 008 | 256B17-5 | HD. PIN 7 | 1 | |
| 009 | 961011-9 | Stop ring (EXT) E-4 | 1 | |
| 010 | 122K20-1 | GEAR HOUSING COVER ASSEMBLY | 1 | |
| 010 | D10 | INC. 8,9,11-16 | ||
| 010-1 | 122L72-8 | GEAR HOUSING COVER ASSEMBLY | 1 | |
| 010-1 | D10 | INC. 8,9,11-16 | ||
| 011 | 422C84-0 | SEAL | 1 | |
| 011-1 | 422D38-3 | SEAL | 1 | |
| 012 | 347E18-3 | SEAL SUPPORT | 1 | |
| 013 | 232958-7 | COMPRESSION SPRING 4 | 1 | |
| 014 | 1412D9-4 | SLIDER SUPPORT COMPLETE | 1 | |
| 015 | 313634-3 | SLIDER | 1 | |
| 016 | 257A62-7 | SLEEVE 7 | 1 | |
| 017 | 422C85-8 | SEAL RING | 1 | |
| 018 | 253637-4 | FLAT WASHER 40 | 1 | |
| 019 | 216067-0 | THRUST NEEDLE CAGE 4060 | 1 | |
| 020 | 257A63-5 | SLEEVE 7.5 | 1 | |
| 021 | 327F90-7 | GEAR SHAFT | 1 | |
| 022 | 227C39-8 | SPIRAL BEVEL GEAR 59 | 1 | |
| 023 | 211228-7 | Ball bearing 6202DDW | 1 | |
| 024 | 253638-2 | FLAT WASHER 28 | 1 | |
| 025 | 137366-6 | Gear housing assembly | 1 | |
| 025 | D10 | INC. 27 | ||
| 026 | 266553-1 | Binding head tapping screw 5X30 | 4 | |
| 027 | 213437-4 | O-ring 28 | 1 | |
| 028 | 253636-6 | FLAT WASHER 18 | 1 | |
| 029 | 211131-2 | Ball bearing 6001DDW | 1 | |
| 030 | 253462-3 | Flat washer 5 | 1 | |
| 031 | 265903-7 | Hex. socket head bolt M5X12 | 1 | |
| 032 | 422C86-6 | CAP | 1 | |
| 033 | 961052-5 | Retaining ring (EXT) S-12 | 1 | |
| 034 | 253744-3 | Flat washer 12 | 1 | |
| 035 | 211131-2 | Ball bearing 6001DDW | 1 | |
| 036 | 285062-1 | BEARING RETAINER 80 | 1 | |
| 037 | 265353-6 | Hex. socket head bolt M4X12 | 2 | |
| 038 | 253744-3 | Flat washer 12 | 1 | |
| 039 | 519918-9 | Rotor assembly | 1 | |
| 039 | D10 | INC. 33-36,38,40 | ||
| 040 | 210062-2 | Ball bearing 607ZZ | 1 | |
| 041 | 266326-2 | Binding head tapping screw 4X18 | 10 | |
| 042 | 1831X2-6 | Handle set | 1 | |
| 042 | C10 | 263002-9 | Rubber pin 4 | 1 |
| 042 | C20 | 263005-3 | Rubber pin 6 | 5 |
| 042 | D10 | INC. 57 | ||
| 043 | 4133J8-7 | BAFFLE PLATE | 1 | |
| 044 | 265679-6 | Tapping screw 4X40 | 2 | |
| 046 | 629C99-0 | Stator | 1 | |
| 047 | 620S41-0 | CONTROLLER B | 1 | |
| 048 | 638B13-9 | LEAD UNIT | 1 | |
| 049 | 652119-7 | Pan head screw M2X6 | 6 | |
| 050 | 620S42-8 | DIAL CIRCUIT | 1 | |
| 051 | 4133E0-8 | MOTOR HOUSING | 1 | |
| 052 | 620S11-9 | CONTROLLER | 1 | |
| 053 | 4133J9-5 | LOCK OFF BUTTON | 1 | |
| 054 | 651439-6 | Switch C3JR-4B-2 | 1 | |
| 055 | 652031-1 | Pan head screw M3X6 | 2 | |
| 056 | 632T07-4 | Terminal unit | 1 | |
| 057 | 1831X2-6 | Handle set | 1 | |
| 057 | C10 | 263002-9 | Rubber pin 4 | 1 |
| 057 | C20 | 263005-3 | Rubber pin 6 | 5 |
| 057 | D10 | INC. 42 | ||
| 058 | 422C77-7 | DUST COVER | 1 | |
| 059 | 8151W0-2 | Serial No. label JR003G | 1 | |
| A01 | 122J60-3 | VISE ASSEMBLY | 1 | |
| A01 | C10 | 1412D8-6 | CHAIN HOLDER COMPLETE | 1 |
| A01 | C20 | 232957-9 | LEAF SPRING | 2 |
| A01 | C30 | 265353-6 | Hex. socket head bolt M4X12 | 2 |
| A02 | 265E43-1 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| A03 | 273042-9 | FRONT GRIP | 1 | |
| A04 | 327F91-5 | GRIP SHAFT | 1 | |
| A05 | 783202-0 | Hex. wrench 4 | 1 | |
| A06 | 821937-6 | Plastic case | 1 | |
| A06 | C10 | 162271-8 | Latch | 2 |
| F01 | 1916C6-7 | Blade clamp S set | 1 | |
| F27 | 1916F0-0 | CLAMP VISE 50 SET | 1 | |
| F28 | 1916F1-8 | CLAMP VISE 100 SET | 1 | |
| F29 | 1916F2-6 | CLAMP VISE 150 SET | 1 |
