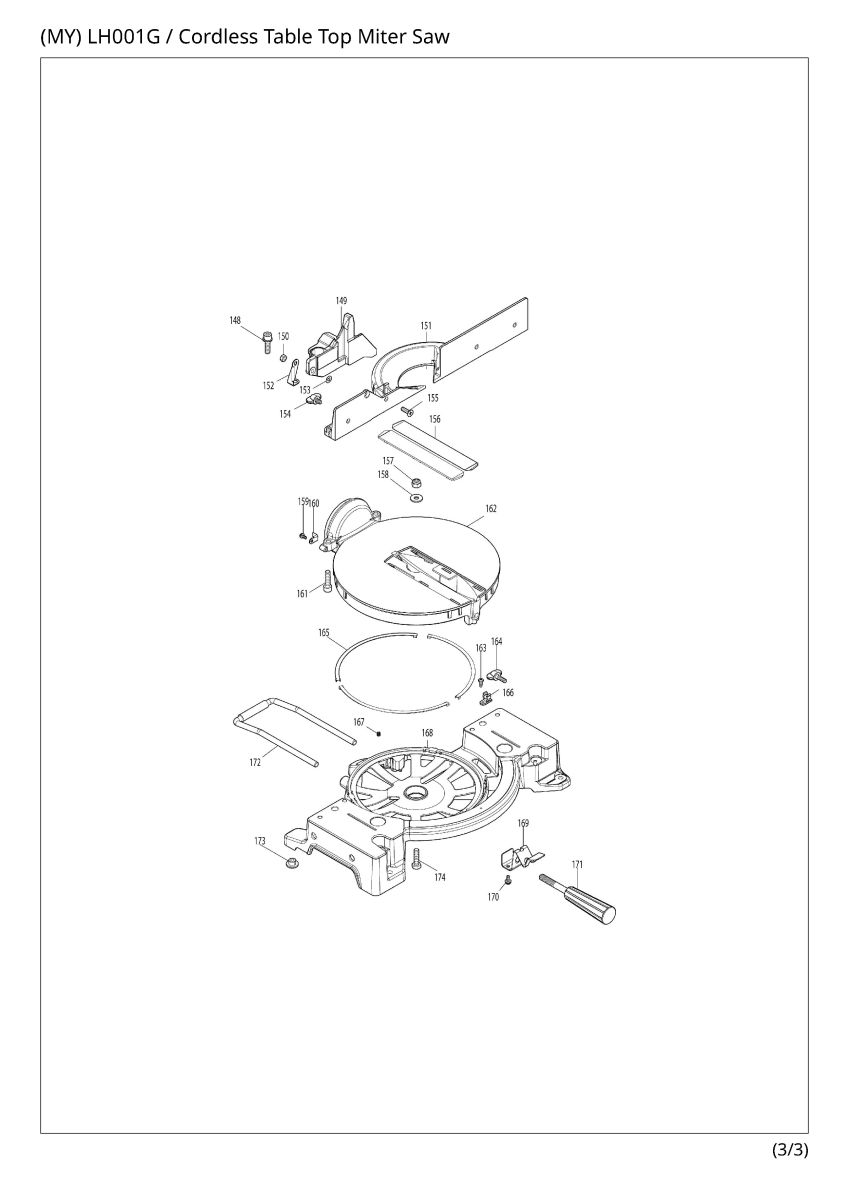

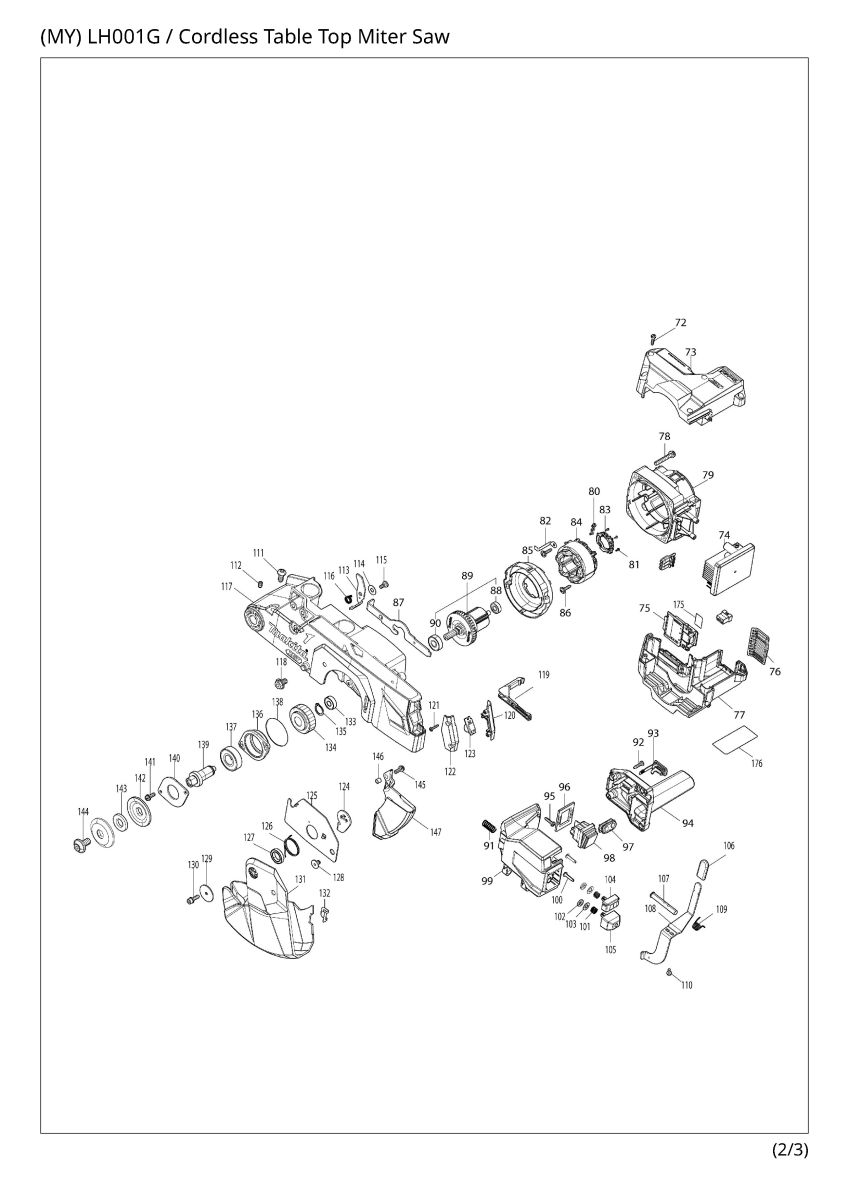

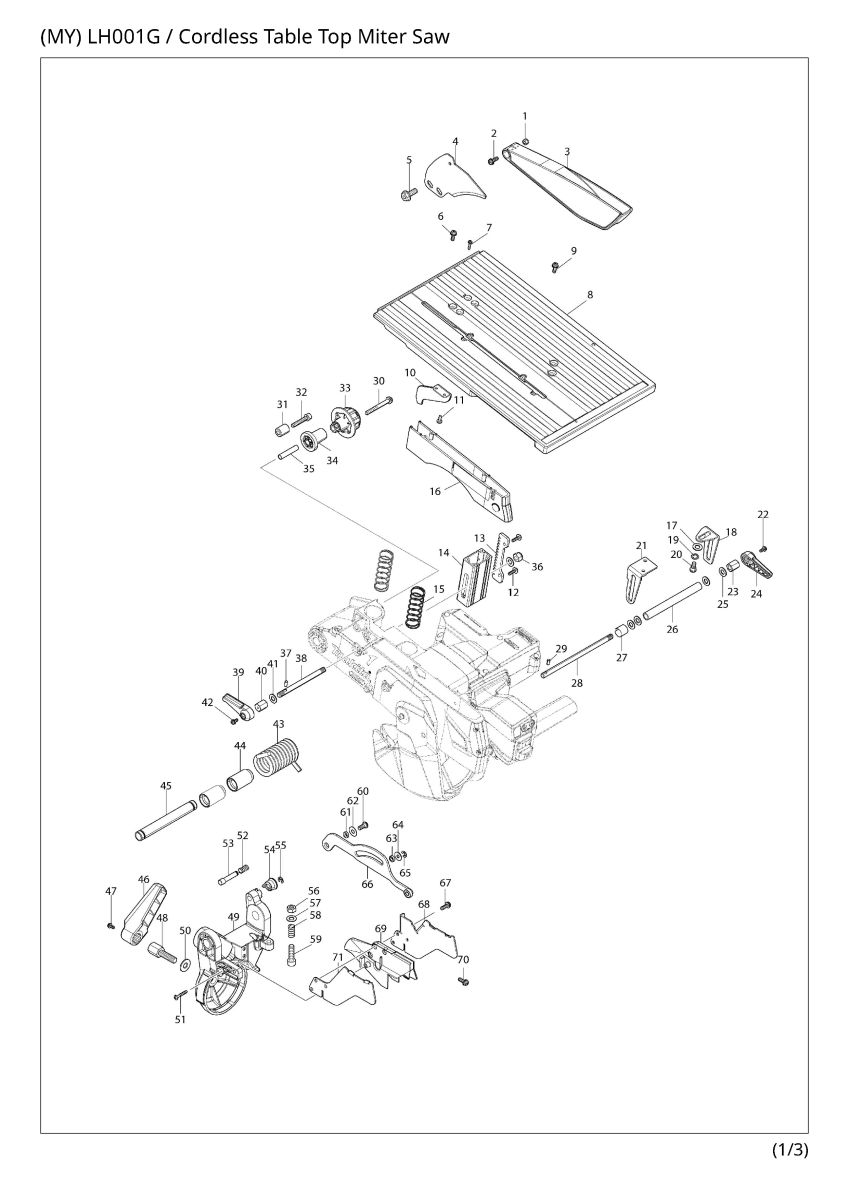

Part Diagram
Total: 207 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 252103-8 | Hex. lock nut M5-8 | 1 | |
| 002 | 911223-4 | Pan head screw M5X16 WR | 1 | |
| 003 | 1412K6-9 | COVER COMPLETE | 1 | |
| 003 | C10 | 817283-3 | Caution label | 1 |
| 003 | C20 | 890408-4 | Caution label | 1 |
| 004 | 345423-8 | Riving knife | 1 | |
| 005 | 266283-4 | Hex. socket hex. head flange bolt … | 2 | |
| 006 | 911223-4 | Pan head screw M5X16 WR | 4 | |
| 007 | 266130-9 | Binding head tapping screw 3X16 | 4 | |
| 008 | 1412K4-3 | TABLE COMPLETE | 1 | |
| 009 | 911223-4 | Pan head screw M5X16 WR | 2 | |
| 010 | 347E72-7 | GUARD PLATE | 1 | |
| 011 | 266026-4 | Binding head tapping screw 4X12 | 2 | |
| 012 | 911129-6 | Pan head screw M4X16 WG | 2 | |
| 013 | 347E59-9 | RACK PLATE | 1 | |
| 014 | 327G16-5 | TABLE SUPPORT | 1 | |
| 015 | 232973-1 | COMPRESSION SPRING 21 | 2 | |
| 016 | 1412K8-5 | UPPER GUARD COMPLETE | 1 | |
| 016 | C10 | 8024V4-4 | Caution label | 1 |
| 016 | C20 | 810063-6 | Caution label | 1 |
| 017 | 941202-8 | Flat washer 8 | 1 | |
| 018 | 347E60-4 | SUPPORT PLATE B | 1 | |
| 019 | 253948-7 | Wave washer 8 | 1 | |
| 020 | 251267-5 | Pan head shoulder screw M6 | 1 | |
| 021 | 162E33-4 | SUPPORT PLATE A | 1 | |
| 022 | 911113-1 | Pan head screw M4X10 WR | 1 | |
| 023 | 252362-4 | HEX.NUT M8-13 | 1 | |
| 024 | 271488-3 | LEVER 54 | 1 | |
| 025 | 941202-8 | Flat washer 8 | 4 | |
| 026 | 331683-8 | Pipe 9-126 | 1 | |
| 027 | 347E61-2 | COLLER | 1 | |
| 028 | 327G14-9 | FRONT LOCK BOLT M8 | 1 | |
| 029 | 256226-4 | Pin 4 | 1 | |
| 030 | 911378-5 | Pan head screw M6X55 WR | 1 | |
| 031 | 257A66-9 | SLEEVE 7 | 1 | |
| 032 | 922356-0 | Hex. socket head bolt M6X35 W | 1 | |
| 033 | 273043-7 | GRIP 42 | 1 | |
| 034 | 227C54-2 | SPUR GEAR 15 | 1 | |
| 035 | 257734-8 | Sleeve 6 | 1 | |
| 036 | 252105-4 | Hex. lock nut M8-13 | 1 | |
| 037 | 256226-4 | Pin 4 | 1 | |
| 038 | 327G15-7 | REAR LOCK BOLT M8 | 1 | |
| 039 | 271488-3 | LEVER 54 | 1 | |
| 040 | 252362-4 | HEX.NUT M8-13 | 1 | |
| 041 | 941202-8 | Flat washer 8 | 2 | |
| 042 | 911113-1 | Pan head screw M4X10 WR | 1 | |
| 043 | 232974-9 | TORSION SPRING 28 | 1 | |
| 044 | 4134D6-5 | SLEEVE 17-40 | 2 | |
| 045 | 327G12-3 | ROD 16 | 1 | |
| 046 | 416006-2 | Lever 100 | 1 | |
| 047 | 911113-1 | Pan head screw M4X10 WR | 1 | |
| 048 | 265437-0 | Hex. head bolt M10 | 1 | |
| 049 | 1412K2-7 | ARM COMPLETE | 1 | |
| 050 | 253024-7 | Flat washer 10 | 1 | |
| 051 | 266374-1 | Binding head tapping screw 4X25 | 1 | |
| 052 | 234316-3 | Compression spring 7 | 1 | |
| 053 | 327702-6 | Lock pin 7-9 | 1 | |
| 054 | 271428-1 | Knob 20 | 1 | |
| 055 | 961018-5 | Stop ring (EXT) E-5 | 1 | |
| 056 | 931401-0 | Hex. nut M8 | 1 | |
| 057 | 941202-8 | Flat washer 8 | 1 | |
| 058 | 231025-5 | Compression spring 8 | 1 | |
| 059 | 265681-9 | Hex. socket head bolt M8X30 | 1 | |
| 060 | 265984-1 | Hex. socket button head bolt M6X14 | 1 | |
| 061 | 257162-7 | Ring 7 | 1 | |
| 062 | 253823-7 | Flat washer 7 | 1 | |
| 063 | 257163-5 | Ring 6 | 1 | |
| 064 | 253804-1 | Flat washer 6 | 1 | |
| 065 | 961018-5 | Stop ring (EXT) E-5 | 1 | |
| 066 | 1412K0-1 | LINK PLATE COMPLETE | 1 | |
| 067 | 911223-4 | Pan head screw M5X16 WR | 3 | |
| 068 | 347E55-7 | REAR GUARD R | 1 | |
| 069 | 4134D7-3 | REAR GUARD HOLDER | 1 | |
| 070 | 911223-4 | Pan head screw M5X16 WR | 2 | |
| 071 | 347E54-9 | REAR GUARD L | 1 | |
| 072 | 265995-6 | Binding head tapping screw 4X18 | 5 | |
| 073 | 1831X8-4 | BATTERY HOUSING SET | 1 | |
| 073 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 073 | D10 | INC. 77 | ||
| 074 | 620S91-5 | CONTROLLER | 1 | |
| 075 | 632P65-6 | Terminal unit | 1 | |
| 076 | 4134E4-6 | INLET PLATE | 1 | |
| 077 | 1831X8-4 | BATTERY HOUSING SET | 1 | |
| 077 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 077 | D10 | INC. 73 | ||
| 078 | 911363-8 | Pan head screw M6X40 WR | 4 | |
| 079 | 4134D2-3 | MOTOR HOUSING | 1 | |
| 080 | 652031-1 | Pan head screw M3X6 | 3 | |
| 081 | 652119-7 | Pan head screw M2X6 | 3 | |
| 083 | 620P30-7 | Sensor unit | 1 | |
| 084 | 629C70-4 | Stator | 1 | |
| 085 | 4134D5-7 | BAFFLE PLATE | 1 | |
| 086 | 251530-6 | Binding head tapping screw 4X18 | 2 | |
| 087 | 347E57-3 | SHAFT LOCK | 1 | |
| 088 | 210169-4 | Ball bearing 607LLB | 1 | |
| 089 | 519932-5 | ROTOR ASS'Y | 1 | |
| 089 | D10 | INC. 88,90 | ||
| 090 | 210332-9 | Ball bearing 6000DDW | 1 | |
| 091 | 231297-2 | Compression spring 9 | 1 | |
| 092 | 265995-6 | Binding head tapping screw 4X18 | 4 | |
| 093 | 140G30-2 | Cap complete | 1 | |
| 093 | C10 | 213A05-9 | O-ring 16 | 1 |
| 094 | 1412K5-1 | HANDLE COMPLETE | 1 | |
| 095 | 265995-6 | Binding head tapping screw 4X18 | 4 | |
| 096 | 4134E3-8 | SWITCH HOLDER | 1 | |
| 097 | 620T56-3 | SWITCH CIRCUIT COMPLETE | 1 | |
| 098 | 650082-8 | SWITCH DRH-03S-DDK32-03R | 1 | |
| 099 | 1412K9-3 | SWITCH BOX COMPLETE | 1 | |
| 100 | 4134E7-0 | PIN | 2 | |
| 101 | 231025-5 | Compression spring 8 | 2 | |
| 102 | 443103-1 | Felt ring 6 | 2 | |
| 103 | 253186-1 | Flat washer 7 | 2 | |
| 104 | 4134E2-0 | SWITCH BUTTON ON | 1 | |
| 105 | 418617-9 | Switch button off | 1 | |
| 106 | 421589-9 | Cap | 1 | |
| 107 | 324496-4 | Lock pin 8 | 1 | |
| 108 | 347E58-1 | LOCK LEVER | 1 | |
| 109 | 231674-8 | Torsion spring 9 | 1 | |
| 110 | 911113-1 | Pan head screw M4X10 WR | 2 | |
| 111 | 265E73-2 | H.S.BUTTON HEAD BOLT M8X19 | 1 | |
| 112 | 251961-9 | Hex. socket set screw (flat point) M- … | 1 | |
| 113 | 346605-5 | Cam plate | 1 | |
| 114 | 253823-7 | Flat washer 7 | 1 | |
| 115 | 265011-4 | Binding head shoulder screw M5 | 1 | |
| 116 | 231684-5 | Torsion spring 11 | 1 | |
| 117 | 137380-2 | BLADE CASE ASSEMBLY | 1 | |
| 117 | C10 | 263005-3 | Rubber pin 6 | 1 |
| 118 | 265682-7 | Hex. socket hex. head bolt M8X12 | 1 | |
| 119 | 4134E1-2 | LEAD COVER | 1 | |
| 120 | 4134E0-4 | LED COVER R | 1 | |
| 121 | 266130-9 | Binding head tapping screw 3X16 | 2 | |
| 122 | 4134D9-9 | LED COVER L | 1 | |
| 123 | 620S92-3 | LED CIRCUIT | 1 | |
| 124 | 347E62-0 | CENTER PLATE | 1 | |
| 125 | 347E56-5 | CENTER COVER | 1 | |
| 126 | 232311-7 | Torsion spring 30 | 1 | |
| 127 | 210322-2 | Ball bearing 6803DDW | 1 | |
| 128 | 265985-9 | Hex. socket shoulder head bolt M6X9 | 1 | |
| 129 | 267136-0 | Flat washer 5 | 1 | |
| 130 | 922228-9 | Hex. socket head bolt M5X18 WR | 1 | |
| 131 | 4134E5-4 | SAFETY COVER | 1 | |
| 132 | 347E63-8 | HOOK PLATE | 1 | |
| 133 | 211031-6 | Ball bearing 608LLB | 1 | |
| 134 | 227C53-4 | HELICAL GEAR 45 | 1 | |
| 135 | 961057-5 | Retaining ring (EXT) S-17 | 1 | |
| 136 | 316821-3 | Bearing box | 1 | |
| 137 | 211278-2 | Ball bearing 6203DDW | 1 | |
| 138 | 213621-1 | O-ring 46 | 1 | |
| 139 | 327G13-1 | SPINDLE | 1 | |
| 140 | 285685-5 | Bearing retainer 64 | 1 | |
| 141 | 911223-4 | Pan head screw M5X16 WR | 2 | |
| 142 | 224432-9 | Outer flange 53 | 2 | |
| 143 | 257060-5 | Ring 15.88 | 1 | |
| 144 | 266755-9 | Hex. socket head flange bolt M10X20 | 1 | |
| 145 | 911223-4 | Pan head screw M5X16 WR | 1 | |
| 146 | 257539-6 | Sleeve 5 | 1 | |
| 147 | 4134D8-1 | FRONT GUARD | 1 | |
| 148 | 922453-2 | Hex. socket head bolt M8X30 WR | 4 | |
| 149 | 1412K7-7 | SUB FENCE COMPLETE | 1 | |
| 149 | C10 | 810967-2 | Caution label | 1 |
| 150 | 252268-6 | Hex. nut M6 | 1 | |
| 151 | 312J61-1 | GUIDE FENCE | 1 | |
| 152 | 344476-4 | Sub fence plate | 1 | |
| 153 | 253715-0 | Flat washer 6 | 1 | |
| 154 | 251887-5 | Thumb screw M6X10 | 1 | |
| 155 | 265031-8 | Countersunk head screw M6X20 | 1 | |
| 156 | 4134E6-2 | KERF BOARD | 2 | |
| 157 | 252105-4 | Hex. lock nut M8-13 | 1 | |
| 158 | 253762-1 | Flat washer 8 | 1 | |
| 159 | 911113-1 | Pan head screw M4X10 WR | 1 | |
| 160 | 344385-7 | Pointer | 1 | |
| 161 | 265681-9 | Hex. socket head bolt M8X30 | 2 | |
| 162 | 312J60-3 | TURN BASE | 1 | |
| 163 | 266026-4 | Binding head tapping screw 4X12 | 1 | |
| 164 | 265708-5 | Thumb screw M6X20 | 1 | |
| 165 | 343799-7 | Slide plate | 3 | |
| 166 | 416536-3 | Wrench holder | 1 | |
| 167 | 266264-8 | Hex. socket set screw (flat point) M- … | 1 | |
| 168 | 1412K1-9 | BASE COMPLETE | 1 | |
| 168 | C10 | 817283-3 | Caution label | 1 |
| 169 | 344381-5 | Knock spring | 1 | |
| 170 | 911213-7 | Pan head screw M5X12 WR | 2 | |
| 171 | 273495-2 | Grip 32 | 1 | |
| 172 | 162E48-1 | HOLDER 90 | 1 | |
| 173 | 286212-1 | Cap 20 | 4 | |
| 174 | 921452-1 | Hex. head bolt M8X30 | 1 | |
| 175 | 8154B8-7 | LH001G SERIAL NO. LABEL | 1 | |
| 176 | 8154B4-5 | LH001G NAME PLATE | 1 | |
| A01 | 122K39-0 | RIP FENCE ASSEMBLY | 1 | |
| A02 | 122K40-5 | BLADE COVER ASSEMBLY | 1 | |
| A03 | 345709-0 | Set plate | 1 | |
| A04 | 251887-5 | Thumb screw M6X10 | 1 | |
| A05 | 122536-0 | Vise assembly | 1 | |
| A05 | C10 | 251370-2 | Pan head shoulder screw M5X15.5 | 1 |
| A05 | C20 | 251887-5 | Thumb screw M6X10 | 1 |
| A05 | C30 | 253804-1 | Flat washer 6 | 1 |
| A05 | C40 | 271286-5 | Knob 40 | 1 |
| A05 | C50 | 316938-2 | Vise arm | 1 |
| A05 | C60 | 322313-2 | Vise rod | 1 |
| A05 | C70 | 343651-9 | Vise plate | 1 |
| A06 | 122852-0 | Dust bag assembly | 1 | |
| A06 | C10 | 410602-8 | Fastener | 1 |
| A07 | 322312-4 | Holder | 1 | |
| A08 | 416772-1 | Push stick | 1 | |
| A09 | E-27779 | TCT SAW EFFI 260X45T | 1 | |
| A10 | 781044-6 | Hex. wrench 6 | 1 | |
| F04 | 199393-1 | Wireless unit set | 1 |
