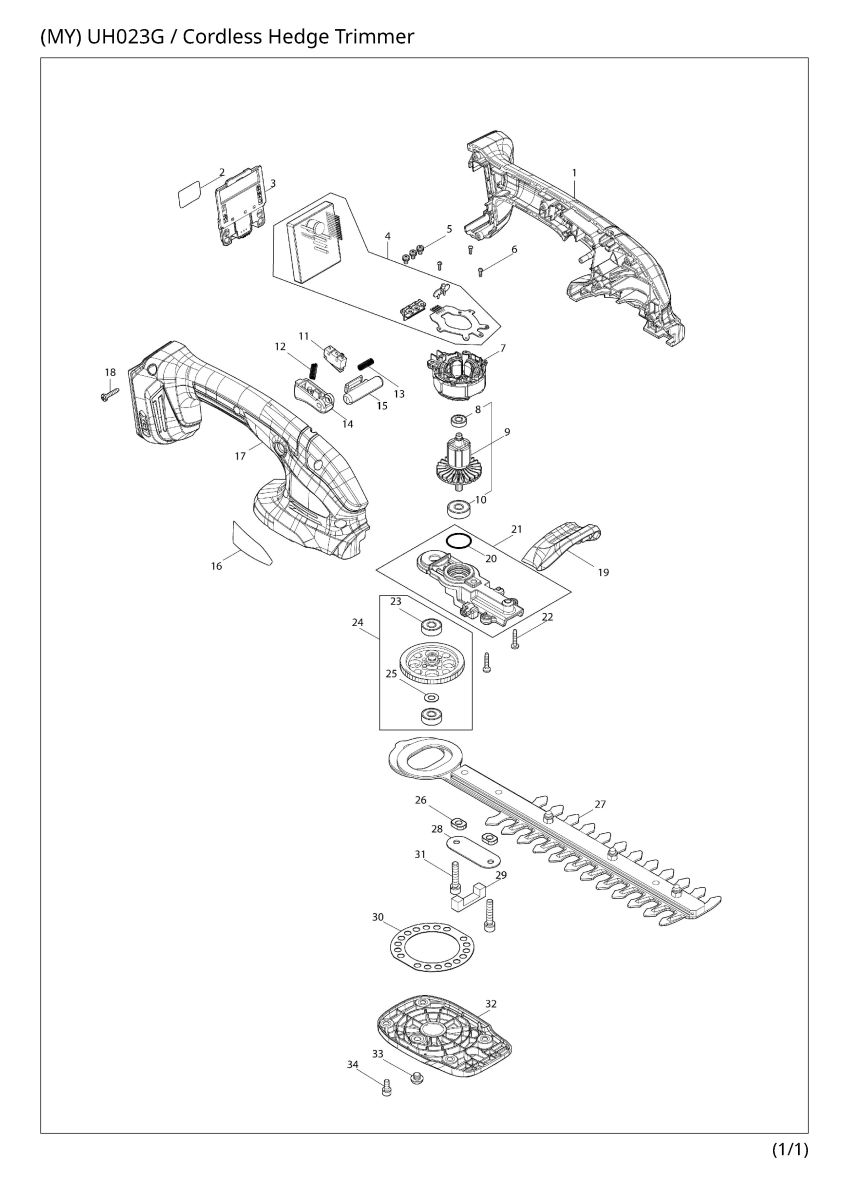

Part Diagram
Total: 52 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1831Y1-5 | HOUSING SET | 1 | |
| 001 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 001 | D10 | INC. 17 | ||
| 002 | 8153L1-5 | UH023G SERIAL NO. LABEL | 1 | |
| 003 | 632W77-1 | TERMINAL UNIT | 1 | |
| 004 | 620T12-3 | CONTROLLER | 1 | |
| 005 | 652069-6 | Flat head screw M3X6 | 3 | |
| 006 | 266490-9 | Pan head tapping screw 2X6 | 3 | |
| 007 | 629D51-4 | STATOR | 1 | |
| 008 | 210278-9 | Ball bearing 695DDW | 1 | |
| 009 | 519923-6 | ROTOR ASS'Y | 1 | |
| 009 | D10 | INC. 8,10 | ||
| 010 | 210022-4 | Ball bearing 626DDW | 1 | |
| 011 | 632L94-5 | Switch unit | 1 | |
| 012 | 231473-8 | Compression spring 4 | 1 | |
| 013 | 231473-8 | Compression spring 4 | 1 | |
| 014 | 4133X2-7 | SWITCH LEVER | 1 | |
| 015 | 413A16-6 | Lock off button | 1 | |
| 016 | 8153K9-2 | UH023G NAME PLATE | 1 | |
| 017 | 1831Y1-5 | HOUSING SET | 1 | |
| 017 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 017 | D10 | INC. 1 | ||
| 018 | 266429-2 | Binding head tapping screw 3X16 | 6 | |
| 019 | 1412T8-8 | PROTECTOR COMPLETE E | 1 | |
| 019 | C10 | 8094R2-1 | CAUTION LABEL | 1 |
| 020 | 213325-5 | O-ring 19 | 1 | |
| 021 | 137411-7 | BEARING HOUSING ASS'Y | 1 | |
| 021 | D10 | INC. 20 | ||
| 022 | 266429-2 | Binding head tapping screw 3X16 | 2 | |
| 023 | 210028-2 | Ball bearing 606ZZ | 2 | |
| 024 | 137412-5 | GEAR ASS'Y | 1 | |
| 024 | D10 | INC. 23,25 | ||
| 025 | 253715-0 | Flat washer 6 | 1 | |
| 026 | 313436-7 | Spacer | 2 | |
| 027 | 1916V9-4 | SHEAR BLADE 200 SET | 1 | |
| 027 | C10 | 253571-8 | Flat washer 5 | 3 |
| 027 | C20 | 257876-8 | Ring 5 | 3 |
| 027 | C30 | 264013-7 | Hex. lock nut M5-8 | 3 |
| 027 | C40 | 265A40-3 | Truss head screw M5X20 | 3 |
| 027 | C50 | 313436-7 | Spacer | 2 |
| 027 | C60 | 199450-5 | Grease vessel set | 1 |
| 028 | 347E45-0 | LOWER PLATE | 1 | |
| 029 | 422A85-6 | Sponge seal | 1 | |
| 030 | 347E44-2 | PLATE | 1 | |
| 031 | 922241-7 | Hex. socket head bolt M5X25 W | 2 | |
| 032 | 1413C0-1 | UNDER COVER COMPLETE E | 1 | |
| 032 | C10 | 8094A9-8 | CAUTION LABEL | 1 |
| 033 | 266559-9 | Hex. socket button head bolt M6X4 | 1 | |
| 034 | 922111-0 | Hex. socket head bolt M4X10 W | 4 | |
| A01 | 122K28-5 | CHIP SWEEPER ASSEMBLY 200 | 1 | |
| A02 | 1412F2-2 | LADE COVER COMPLETE 200 | 1 | |
| F01 | 1916V9-4 | SHEAR BLADE 200 SET | 1 |
