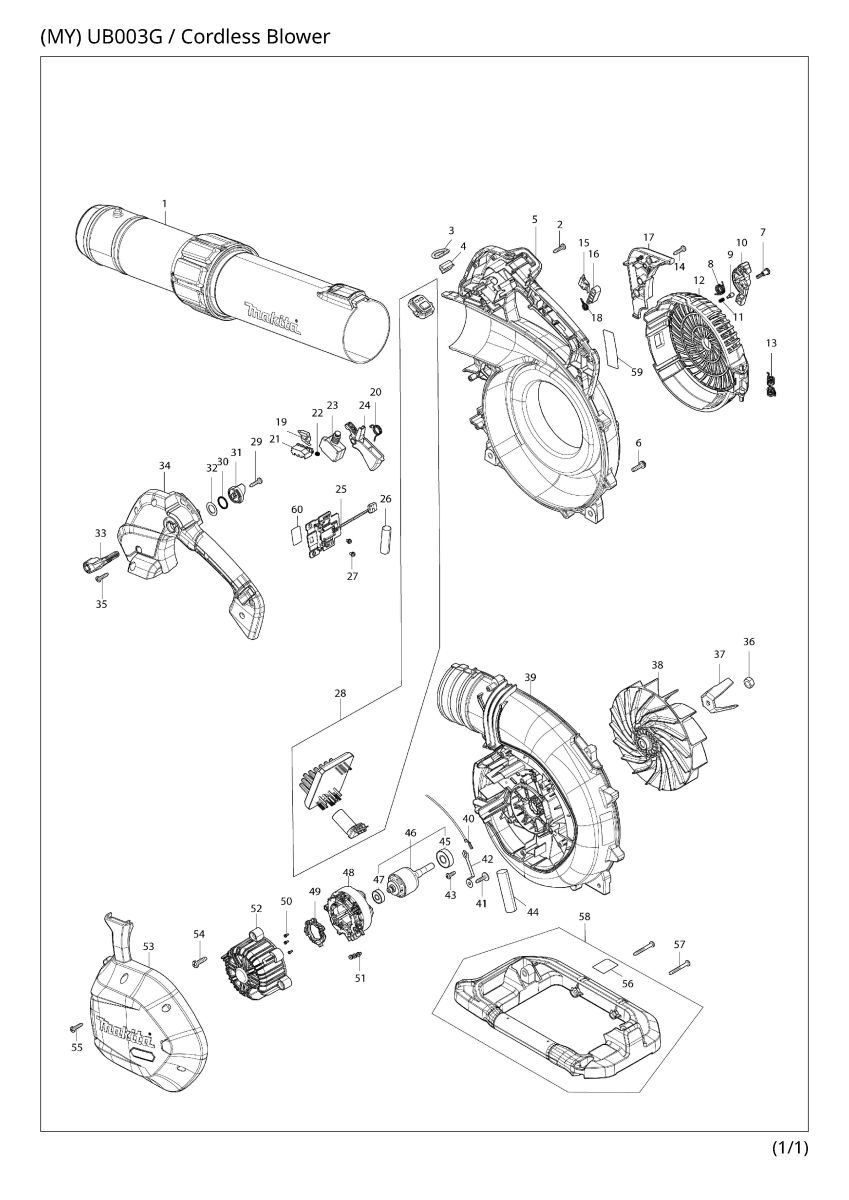

Part Diagram
Total: 81 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 122J57-2 | BLOWER PIPE ASSEMBLY | 1 | |
| 002 | 266326-2 | Binding head tapping screw 4X18 | 7 | |
| 003 | 327742-4 | D ring 20 | 1 | |
| 004 | 347783-4 | Ring support | 1 | |
| 005 | 1832A0-5 | VOLUTE CASE SET | 1 | |
| 005 | C10 | 8093Y9-0 | CAUTION LABEL | 1 |
| 005 | D10 | INC. 39 | ||
| 006 | 911233-1 | Pan head screw M5X20 WR | 2 | |
| 007 | 265090-2 | Pan head shoulder screw M4X20 | 1 | |
| 008 | 232589-2 | Torsion spring 12 | 1 | |
| 009 | 4134F6-9 | PIN | 1 | |
| 010 | 4133P2-1 | LOCK LEVER | 1 | |
| 011 | 233438-6 | Compression spring 4 | 1 | |
| 012 | 4133P3-9 | FAN COVER | 1 | |
| 013 | 232966-8 | TORSION SPRING 8 | 1 | |
| 014 | 266326-2 | Binding head tapping screw 4X18 | 2 | |
| 015 | 632W81-0 | SWITCH UNIT | 1 | |
| 016 | 4133P0-5 | PUSHER B | 1 | |
| 017 | 4133P1-3 | FIXED COVER | 1 | |
| 018 | 232753-5 | Torsion spring 8 | 1 | |
| 019 | 632W81-0 | SWITCH UNIT | 1 | |
| 020 | 232830-3 | Torsion spring 12 | 1 | |
| 021 | 4133N8-5 | PUSHER A | 1 | |
| 022 | 233118-4 | Compression spring 4 | 1 | |
| 023 | 650077-1 | SWITCH | 1 | |
| 024 | 413W37-0 | Switch lever | 1 | |
| 025 | 632T07-4 | Terminal unit | 1 | |
| 026 | 683A50-2 | POLYETHYLENE TUBE 11-40 | 1 | |
| 027 | 652031-1 | Pan head screw M3X6 | 2 | |
| 028 | 620S52-5 | CONTROLLER | 1 | |
| 029 | 266326-2 | Binding head tapping screw 4X18 | 1 | |
| 030 | 213154-6 | O-ring 14 | 1 | |
| 031 | 412754-1 | Link | 1 | |
| 032 | 253798-0 | Flat washer 13 | 1 | |
| 033 | 413W40-1 | Control lever | 1 | |
| 034 | 4133N0-1 | HANDLE L | 1 | |
| 035 | 266326-2 | Binding head tapping screw 4X18 | 7 | |
| 036 | 252154-1 | Hex. nut M8-13 | 1 | |
| 037 | 347E24-8 | SHREDDER | 1 | |
| 038 | 240265-4 | FAN 160 | 1 | |
| 039 | 1832A0-5 | VOLUTE CASE SET | 1 | |
| 039 | C10 | 8093Y9-0 | CAUTION LABEL | 1 |
| 039 | D10 | INC. 5 | ||
| 040 | 638B15-5 | LEAD UNIT | 1 | |
| 041 | 265620-9 | Flange tapping screw 4X18 | 2 | |
| 042 | 347E25-6 | EARTH PLATE | 1 | |
| 043 | 266427-6 | Binding head tapping screw 4X12 | 1 | |
| 044 | 683A70-6 | POLYETHYLENE TUBE 14-60 | 1 | |
| 045 | 210059-1 | Ball bearing 6000DDW | 1 | |
| 046 | 519922-8 | ROTOR ASS'Y | 1 | |
| 046 | D10 | INC. 45,47 | ||
| 047 | 210017-7 | Ball bearing 607DDW | 1 | |
| 048 | 629D50-6 | STATOR | 1 | |
| 049 | 620F73-9 | Sensor unit | 1 | |
| 050 | 652119-7 | Pan head screw M2X6 | 3 | |
| 051 | 652069-6 | Flat head screw M3X6 | 3 | |
| 052 | 4133N3-5 | MOTOR HOUSING | 1 | |
| 053 | 137368-2 | MOTOR COVER ASSEMBLY | 1 | |
| 053 | C10 | 263005-3 | Rubber pin 6 | 2 |
| 054 | 266021-4 | Binding head tapping screw 5X20 | 3 | |
| 055 | 266326-2 | Binding head tapping screw 4X18 | 6 | |
| 056 | 8094L0-3 | INDICATION LABEL | 1 | |
| 057 | 266351-3 | Binding head tapping screw 4X35 | 2 | |
| 058 | 137414-1 | SUB HANDLE ASS'Y | 1 | |
| 058 | D10 | INC. 56 | ||
| 059 | 8153N3-5 | UB003G NAME PLATE | 1 | |
| 060 | 8153N5-1 | UB003G SERIAL NO. LABEL | 1 | |
| A01 | 122H18-0 | BAND ASSEMBLY | 1 | |
| A02 | 1916T9-0 | VACUUM KIT SET | 1 | |
| A02 | C10 | 122J58-0 | BENT PIPE ASSEMBLY | 1 |
| A02 | C20 | 1413M5-1 | VACUUM PIPE A COMPLETE | 1 |
| A02 | C30 | 162E22-9 | DUST BAG | 1 |
| A02 | C40 | 266743-6 | Hex. socket head bolt M5X20 | 1 |
| A02 | C50 | 4133P6-3 | VACUUM PIPE B | 1 |
| A02 | C60 | 783202-0 | Hex. wrench 4 | 1 |
| A03 | 1916V7-8 | FLAT NOZZLE SET | 1 | |
| F01 | 191B03-8 | Gutter nozzle set | 1 | |
| F02 | 191L13-5 | Adapter pipe 80-72 set | 1 | |
| F03 | 191P40-6 | Dust bag set | 1 | |
| F04 | 1916T9-0 | VACUUM KIT SET | 1 | |
| F05 | 1916V7-8 | FLAT NOZZLE SET | 1 |
