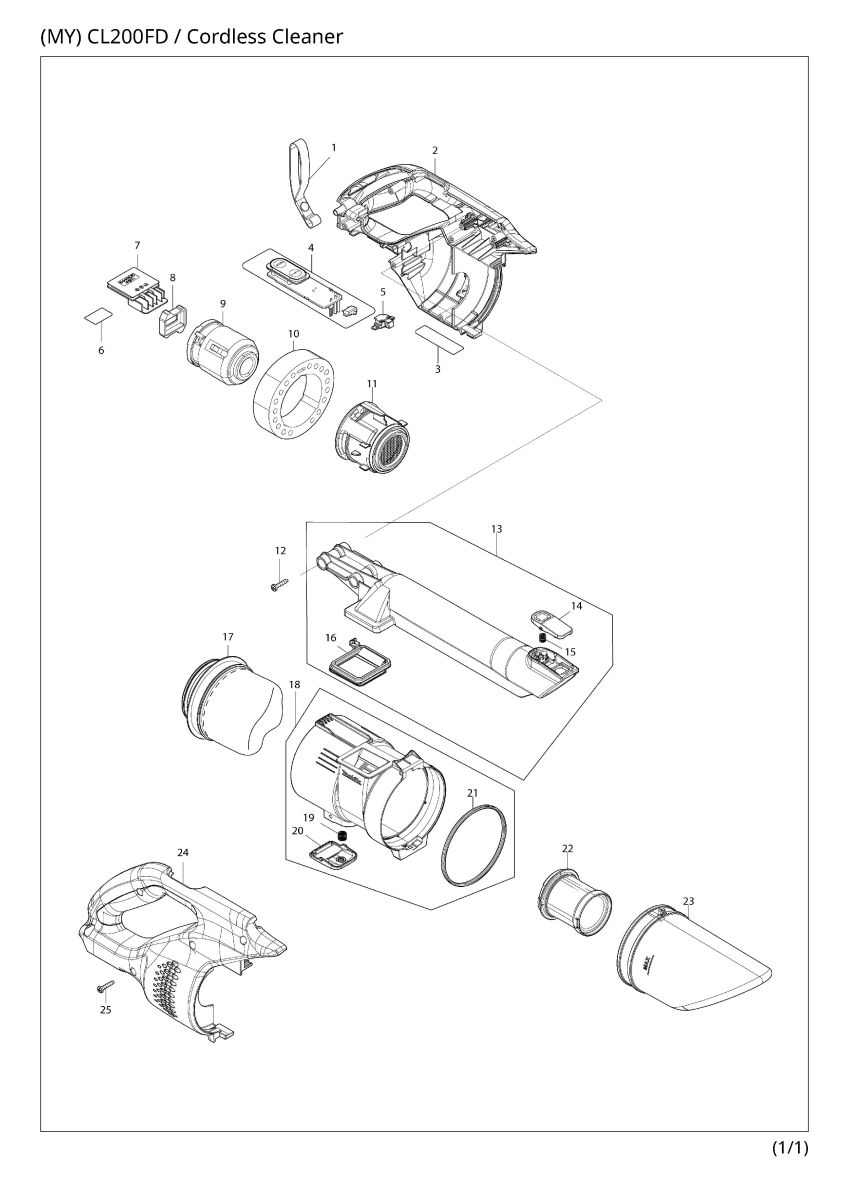

Part Diagram
Total: 66 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 002 | 1831V1-4 | HOUSING SET | 1 | |
| 002 | C10 | 422C98-9 | SPONGE SHEET 11-28 | 1 |
| 002 | C20 | 422C99-7 | SPONGE SHEET 16-75 | 2 |
| 002 | D10 | INC. 24 | ||
| 003 | 8153A0-0 | CL200FD NAME PLATE | 1 | |
| 004 | 620S84-2 | CONTROLLER COMPLETE | 1 | |
| 005 | 141H09-2 | LED case complete | 1 | |
| 006 | 8153A1-8 | CL200FD SERIAL NO. LABEL | 1 | |
| 007 | 644813-5 | Terminal | 1 | |
| 008 | 422C95-5 | MOTOR SUPPORT | 1 | |
| 009 | 629D67-9 | MOTOR ASSEMBLY | 1 | |
| 010 | 422C97-1 | SPONGE SHEET | 1 | |
| 011 | 137399-1 | MOTOR COVER ASSEMBLY | 1 | |
| 011 | C10 | 263039-6 | Rubber pin 4 | 3 |
| 012 | 266429-2 | Binding head tapping screw 3X16 | 2 | |
| 013 | 137349-6 | INLET ASSEMBLY | 1 | |
| 013 | D10 | INC. 14-16 | ||
| 013-1 | 137349-6 | INLET ASSEMBLY | 1 | |
| 013-1 | D10 | INC. 14-16 | ||
| 014 | 4132F8-3 | Button | 1 | |
| 014-1 | 4132F8-3 | Button | 1 | |
| 015 | 232485-4 | Compression spring 5 | 1 | |
| 016 | 422C96-3 | INLET SEAL | 1 | |
| 017 | 1915P0-4 | High performance filter set | 1 | |
| 018 | 137347-0 | FILTER CASE ASSEMBLY | 1 | |
| 018 | D10 | INC. 19-21 | ||
| 018-1 | 137347-0 | FILTER CASE ASSEMBLY | 1 | |
| 018-1 | D10 | INC. 19-21 | ||
| 019 | 232460-0 | Compression spring 7 | 1 | |
| 020 | 4133R5-9 | STOPPER | 1 | |
| 021 | 422C27-2 | Seal ring 76 | 1 | |
| 022 | 4133R3-3 | PRE FILTER | 1 | |
| 023 | 4133R2-5 | DUST BOX | 1 | |
| 024 | 1831V1-4 | HOUSING SET | 1 | |
| 024 | C10 | 422C98-9 | SPONGE SHEET 11-28 | 1 |
| 024 | C20 | 422C99-7 | SPONGE SHEET 16-75 | 2 |
| 024 | D10 | INC. 2 | ||
| 025 | 266429-2 | Binding head tapping screw 3X16 | 6 | |
| A01 | 127825-8 | Nozzle assembly | 1 | |
| A01 | C10 | 268208-4 | Pin 3 | 4 |
| A01 | C20 | 451410-8 | Roller | 4 |
| A01 | C30 | 422963-4 | Wiper | 1 |
| A01-1 | 127825-8 | Nozzle assembly | 1 | |
| A01-1 | C10 | 268208-4 | Pin 3 | 4 |
| A01-1 | C20 | 451410-8 | Roller | 4 |
| A01-1 | C30 | 422963-4 | Wiper | 1 |
| A02 | 413770-6 | Sash nozzle | 1 | |
| A03 | 459353-8 | Pipe | 1 | |
| A04 | 459354-6 | Nozzle holder | 1 | |
| A05B | 456128-6 | Battery cover | 1 | |
| A06B | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 197396-9 | Battery BL1021B set | 1 | |
| F03 | 191D76-3 | Straight pipe 340 set | 1 | |
| F04 | 191D79-7 | Straight pipe 320 set | 1 | |
| F05 | 191X06-4 | Nozzle assembly set | 1 | |
| F06 | 1910Y3-1 | Telescopic pipe set | 1 | |
| F07 | 1915P0-4 | High performance filter set | 1 | |
| F08 | 1915P2-0 | Filter H set | 1 | |
| F08-1 | 1915P2-0 | Filter H set | 1 | |
| F09 | 198868-7 | Flexible hose set | 1 | |
| F10 | 198873-4 | Shelf brush set | 1 | |
| F11 | 198878-4 | Round brush set | 1 | |
| F12 | 198919-6 | Long corner nozzle set | 1 | |
| F13 | 199038-1 | Seat nozzle set | 1 | |
| F14 | 199439-3 | Crevice nozzle 415 set | 1 |
