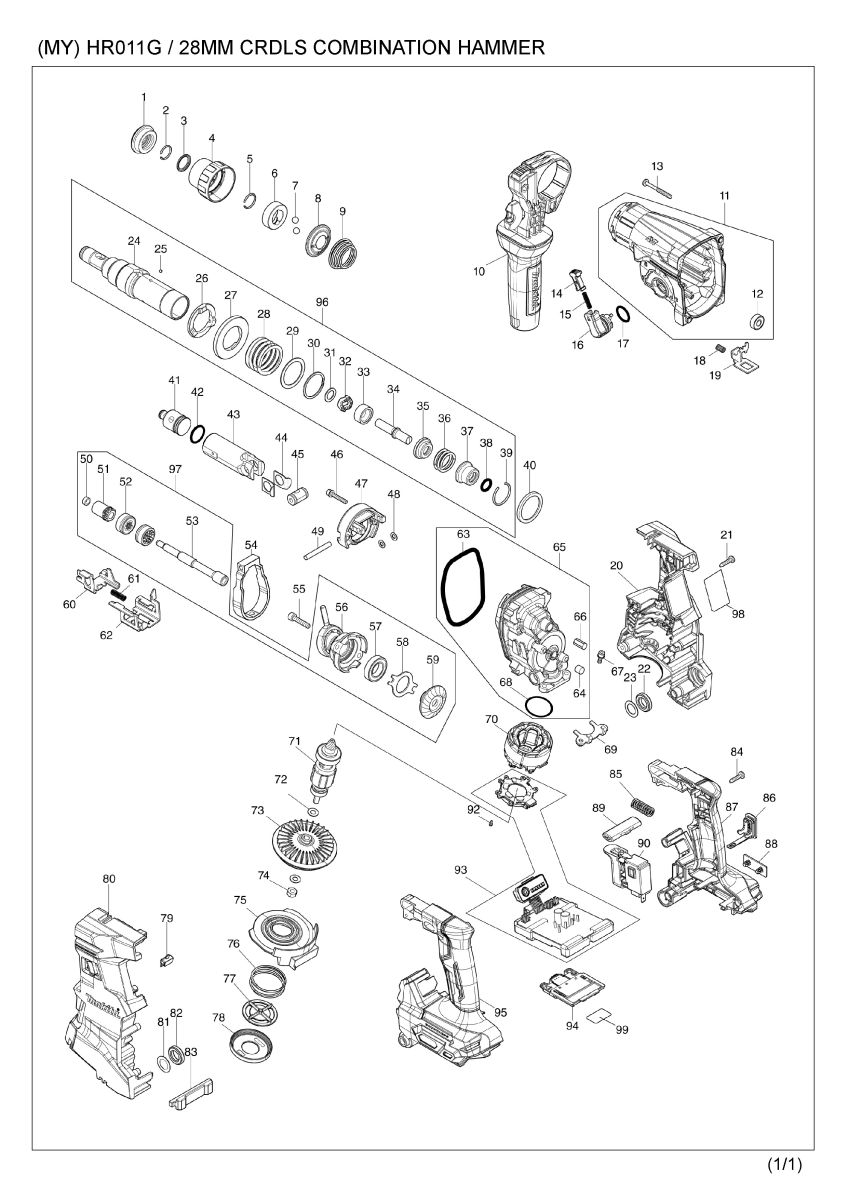

Part Diagram
Total: 129 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | |
| 002 | 233989-9 | RING SPRING 14 | 1 | |
| 003 | 346834-0 | WASHER 16 | 1 | |
| 004 | 4130J0-5 | CHUCK COVER | 1 | |
| 005 | 233992-0 | RING SPRING 15 | 1 | |
| 006 | 327269-4 | RING 17 | 1 | |
| 007 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 008 | 347944-6 | GUIDE WASHER | 1 | |
| 009 | 232503-8 | CONICAL COMP. SPRING 21-34 | 1 | |
| 010 | 122K22-7 | GRIP ASSEMBLY | 1 | |
| 010 | C10 | 265625-9 | THUMB SCREW M6X50 | 1 |
| 011 | 137389-4 | GEAR HOUSING SET | 1 | |
| 011 | D10 | INC. 12 | ||
| 012 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 013 | 266560-4 | TAPPING SCREW 4X40 | 4 | |
| 014 | 457709-9 | LOCK BUTTON | 1 | |
| 015 | 234264-6 | COMPRESSION SPRING 3 | 1 | |
| 016 | 161656-5 | CHANGE LEVER COMPLETE | 1 | |
| 017 | 213278-8 | O RING 17 | 1 | |
| 018 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 019 | 347E07-8 | LOCK PLATE | 1 | |
| 020 | 1831S4-7 | HOUSING SET | 1 | |
| 020 | D10 | INC. 80 | ||
| 021 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 022 | 459184-5 | CUSHION RING 12 | 1 | |
| 023 | 253798-0 | FLAT WASHER 13 | 1 | |
| 024 | 1412E3-3 | TOOL HOLDER COMPLETE | 1 | |
| 025 | 216068-8 | STEEL BALL 3 | 3 | |
| 026 | 327D75-1 | DRIVING FLANGE | 1 | |
| 027 | 227C33-0 | SPUR GEAR 40 | 1 | |
| 028 | 232952-9 | COMPRESSION SPRING 31 | 1 | |
| 029 | 267153-0 | FLAT WASHER 30 | 1 | |
| 030 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 031 | 253634-0 | FLAT WASHER 11 | 1 | |
| 032 | 422C70-1 | CUSHION SLEEVE 11 | 1 | |
| 033 | 327F69-8 | SLEEVE 9 | 1 | |
| 034 | 327F71-1 | IMPACT BOLT A | 1 | |
| 035 | 327F73-7 | WASHER 10 | 1 | |
| 036 | 232969-2 | COMPRESSION SPRING 20 | 1 | |
| 037 | 327F72-9 | O-RING CASE | 1 | |
| 038 | 213073-6 | O RING 9 | 1 | |
| 039 | 233979-2 | RING SPRING 28 | 1 | |
| 040 | 347D13-7 | RING 30 | 1 | |
| 041 | 327F70-3 | STRIKER | 1 | |
| 042 | 213258-4 | O RING 17.5 | 1 | |
| 043 | 312J32-8 | PISTON CYLINDER | 1 | |
| 044 | 347E05-2 | GUIDE PLATE | 2 | |
| 045 | 327F74-5 | PISTON JOINT | 1 | |
| 046 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | |
| 047 | 1412E1-7 | INNER SUPPORT COMPLETE | 1 | |
| 048 | 253811-4 | FLAT WASHER 5 | 2 | |
| 049 | 256573-3 | PIN 5 | 1 | |
| 050 | 257A41-5 | RING 6 | 1 | |
| 051 | 227B56-2 | SPUR GEAR 9 | 1 | |
| 052 | 327F77-9 | CLUTCH CAM | 2 | |
| 053 | 327F75-3 | CAM SHAFT | 1 | |
| 054 | 313664-4 | COUNTER WEIGHT | 1 | |
| 055 | 265F03-9 | HEX.SOCKET HEAD BOLT M5X25 | 2 | |
| 056 | 219041-7 | SWASH BEARING 10 | 1 | |
| 057 | 210302-8 | BALL BEARING 6903ZZ | 1 | |
| 058 | 347E06-0 | BEARING RETAINER B | 1 | |
| 059 | 227C31-4 | SPIRAL BEVEL GEAR 29 | 1 | |
| 060 | 347E09-4 | CHANGE PLATE B | 1 | |
| 061 | 234343-0 | COMPRESSION SPRING 5 | 1 | |
| 062 | 347E08-6 | CHANGE PLATE A | 1 | |
| 063 | 213850-6 | O-RING 74 | 1 | |
| 064 | 443153-6 | FELT | 1 | |
| 065 | 137392-5 | INNER HOUSING ASS'Y | 1 | |
| 065 | D10 | INC. 63,64,66,68 | ||
| 066 | 263045-1 | RUBBER PIN 8 | 1 | |
| 067 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 068 | 213415-4 | O RING 28 | 1 | |
| 069 | 347E10-9 | BEARING RETAINER A | 1 | |
| 070 | 629D40-9 | STATOR | 1 | |
| 071 | 619911-4 | ROTOR | 1 | |
| 072 | 253715-0 | FLAT WASHER 6 | 2 | |
| 073 | 240262-0 | FAN 65 | 1 | |
| 074 | 252186-8 | HEX. NUT M6 | 1 | |
| 075 | 4133C3-8 | AIR DUCT | 1 | |
| 076 | 232796-7 | COMPRESSION SPRING 37 | 1 | |
| 077 | 413N14-8 | VALVE | 1 | |
| 078 | 413N15-6 | CAP | 1 | |
| 079 | 620S12-7 | LED CIRCUIT | 1 | |
| 080 | 1831S4-7 | HOUSING SET | 1 | |
| 080 | D10 | INC. 20 | ||
| 081 | 253798-0 | FLAT WASHER 13 | 1 | |
| 082 | 459184-5 | CUSHION RING 12 | 1 | |
| 083 | 422C71-9 | BATTERY CUSHION | 1 | |
| 084 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 085 | 232953-7 | COMPRESSION SPRING 8 | 1 | |
| 086 | 140G30-2 | CAP COMPLETE | 1 | |
| 086 | C10 | 213A05-9 | O-RING16 | 1 |
| 087 | 1831S1-3 | HANDLE SET | 1 | |
| 087 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 087 | D10 | INC. 95 | ||
| 088 | 459753-2 | CAP | 1 | |
| 089 | 453124-5 | F/R CHANGE LEVER | 1 | |
| 090 | 651439-6 | SWITCH C3JR-4B-2 | 1 | |
| 092 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 093 | 137396-7 | CONTROLLER ASS'Y | 1 | |
| 094 | 632P64-8 | TERMINAL UNIT | 1 | |
| 095 | 1831S1-3 | HANDLE SET | 1 | |
| 095 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 095 | D10 | INC. 87 | ||
| 096 | 137390-9 | TOOL HOLDER ASS'Y | 1 | |
| 096 | D10 | INC. 24-39 | ||
| 097 | 137391-7 | CAM SHAFT ASS'Y | 1 | |
| 097 | D10 | INC. 50-53,56-59 | ||
| 098 | 8152F2-5 | HR011G NAME PLATE | 1 | |
| 099 | 8152F4-1 | HR011G SERIAL NO. LABEL | 1 | |
| A01 | 331886-4 | DEPTH GAUGE | 1 | |
| A02 | 194683-7 | GREASE VESSEL SET | 1 | |
| A04B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A05B | 836491-7 | INNER TRAY | 1 | |
| A06B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 412393-7 | BATTERY COVER | 2 | |
| A08B | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A09B | ***DX17 | DX17 DUST COLLECTION SYSTEM | 1 | |
| A09B | D10 | COMPO-PARTS | ||
| A10B | 422784-4 | SEALING CAP | 5 | |
| F03 | 1914L7-6 | DUSTCUP SET | 1 | |
| F04 | 1914L9-2 | DUSTCUP SET | 1 | |
| F05 | 191W90-3 | HOOK SET | 1 | |
| F06 | 1916C0-9 | DUST CASE SET | 1 | |
| F14 | 194254-0 | KEYLESS DRILL CHUCK SET | 1 | |
| F19 | 199393-1 | WIRELESS UNIT SET | 1 | |
| F21 | 199596-7 | FILTER SET | 1 |
