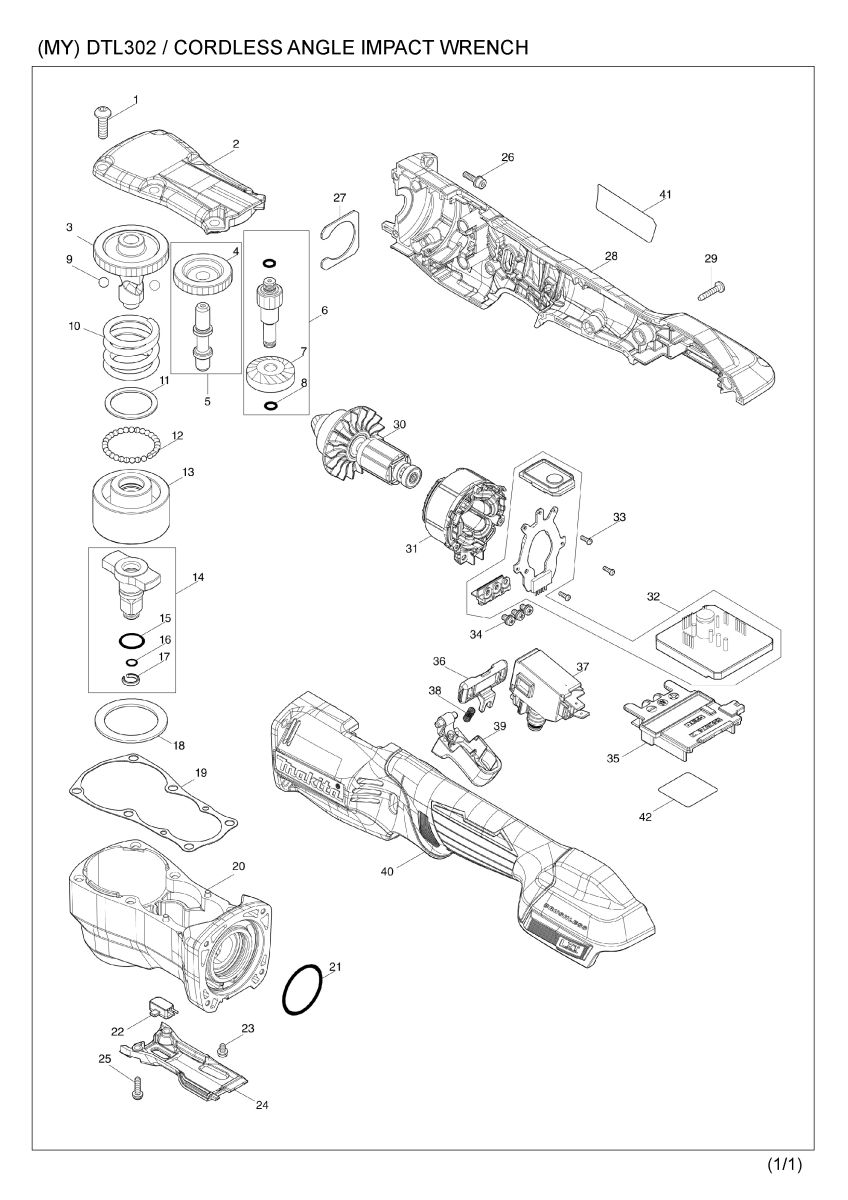

Part Diagram
Total: 51 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 265E34-2 | HEX.SOCKETBUTTONHEADBOLTM5X1 | 6 | |
| 002 | 1411P3-4 | HEAD COVER COMPLETE | 1 | |
| 003 | 327F38-9 | SPINDLE | 1 | |
| 004 | 227C28-3 | SPUR GEAR 20 | 1 | |
| 005 | 137357-7 | SPINDLE B ASS'Y | 1 | |
| 005 | D10 | INC. 4 | ||
| 006 | 137356-9 | SPINDLE A ASS'Y | 1 | |
| 006 | D10 | INC. 7,8 | ||
| 007 | 227C25-9 | SPIRAL BEVEL GEAR 26 | 1 | |
| 008 | 213021-5 | O RING 5 | 2 | |
| 009 | 216011-7 | STEEL BALL 5.6 | 2 | |
| 010 | 232615-7 | COMPRESSION SPRING 25 | 1 | |
| 011 | 267175-0 | FLAT WASHER 24 | 1 | |
| 012 | 216019-1 | STEEL BALL 3 | 29 | |
| 013 | 327F39-7 | HAMMER | 1 | |
| 014 | 137379-7 | ANVIL ASS'Y | 1 | |
| 014 | D10 | INC. 15-17 | ||
| 015 | 213118-0 | O RING 12 | 1 | |
| 016 | 213960-9 | O RING 5 | 1 | |
| 017 | 233943-3 | RING SPRING 8 | 1 | |
| 018 | 267354-0 | FLAT WASHER 31 | 1 | |
| 019 | 422C56-5 | GASKET | 1 | |
| 020 | 1411P5-0 | ANGLE HEAD COMPLETE | 1 | |
| 020-1 | 137403-6 | ANGLE HEAD ASS'Y | 1 | |
| 020-1 | D10 | INC. 21 | ||
| 021 | 213437-4 | O RING 28 | 1 | |
| 022 | 620S46-0 | LED CIRCUIT | 1 | |
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 1 | |
| 024 | 4132X5-5 | COVER | 1 | |
| 025 | 266816-5 | + PAN HEAD SCREW M3X12 WITH WR | 2 | |
| 026 | 251510-2 | H. S. HEAD BOLT M3X12 WITH WRM | 4 | |
| 027 | 347D88-6 | PLATE | 1 | |
| 028 | 1831M9-5 | HOUSING SET | 1 | |
| 028 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 028 | D10 | INC. 40 | ||
| 029 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 030 | 619906-7 | ROTOR | 1 | |
| 031 | 629D61-1 | STATOR | 1 | |
| 032 | 620S54-1 | CONTROLLER COMPLETE | 1 | |
| 033 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 034 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 035 | 643874-2 | TERMINAL | 1 | |
| 036 | 457469-3 | F/R CHANGE LEVER | 1 | |
| 037 | 650075-5 | SWITCH C3JW-6B-PA-8 | 1 | |
| 038 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 039 | 4132W2-4 | SWITCH LEVER | 1 | |
| 040 | 1831M9-5 | HOUSING SET | 1 | |
| 040 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 040 | D10 | INC. 28 | ||
| 041 | 8151T4-3 | DTL302 NAME PLATE | 1 | |
| 042 | 8151T8-5 | DTL302 SERIAL NO. LABEL | 1 |
