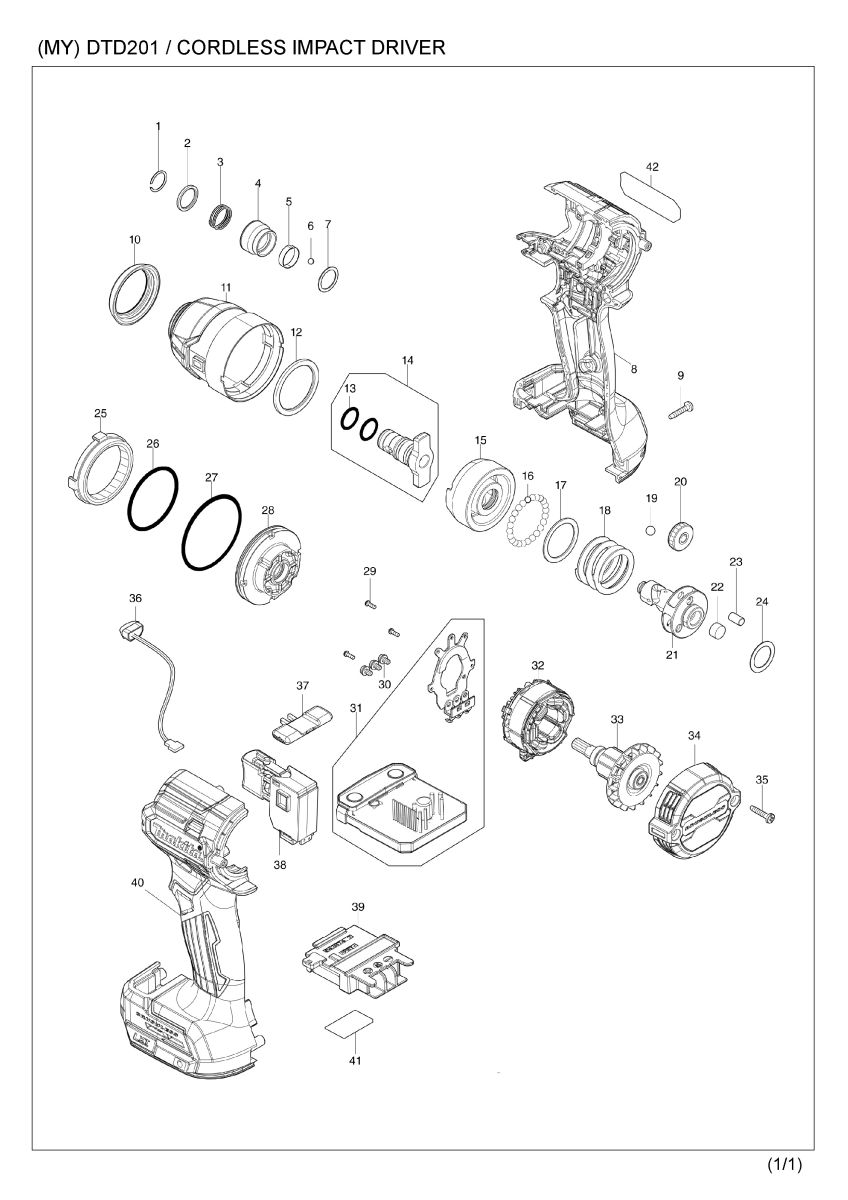

Part Diagram
Total: 64 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 232993-5 | RING SPRING 12 | 1 | |
| 002 | 347E43-4 | RING 13 | 1 | |
| 003 | 232970-7 | COMPRESSION SPRING 14 | 1 | |
| 004 | 327B23-8 | BIT SLEEVE | 1 | |
| 005 | 232800-2 | LEAF SPRING | 1 | |
| 006 | 216040-0 | STEEL BALL 3.5 | 2 | |
| 007 | 253575-0 | FLAT WASHER 13 | 1 | |
| 008 | 1832B0-2 | HOUSING SET | 1 | |
| 008 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 008 | C20 | 263027-3 | RUBBER PIN 4 | 2 |
| 008 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 008 | D10 | INC. 40 | ||
| 009 | 266429-2 | TAPPING SCREW 3X16 | 7 | |
| 010 | 422A03-4 | BUMPER | 1 | |
| 011 | 1412E5-9 | HAMMER CASE COMPLETE | 1 | |
| 012 | 261160-5 | NYLON WASHER 30 | 1 | |
| 013 | 213166-9 | O RING 12.5 | 2 | |
| 014 | 137387-8 | ANVIL N ASS'Y | 1 | |
| 014 | D10 | INC. 13 | ||
| 015 | 327B60-2 | HAMMER | 1 | |
| 016 | 216040-0 | STEEL BALL 3.5 | 24 | |
| 017 | 267175-0 | FLAT WASHER 24 | 1 | |
| 018 | 232967-6 | COMPRESSION SPRING 24 | 1 | |
| 019 | 216011-7 | STEEL BALL 5.6 | 2 | |
| 020 | 227362-3 | SPUR GEAR 22 | 3 | |
| 021 | 327G02-6 | SPINDLE | 1 | |
| 022 | 422B40-4 | FELT | 1 | |
| 023 | 256253-1 | PIN 5 | 3 | |
| 024 | 267194-6 | FLAT WASHER 15 | 1 | |
| 025 | 227A92-2 | INTERNAL GEAR 51 | 1 | |
| 026 | 213507-9 | O RING 40 | 1 | |
| 027 | 213606-7 | O RING 48 | 1 | |
| 028 | 141M87-2 | BEARING BOX COMPLETE | 1 | |
| 029 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 030 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 031 | 620S74-5 | CONTROLLER COMPLETE | 1 | |
| 032 | 629D60-3 | STATOR | 1 | |
| 033 | 619877-8 | ROTOR | 1 | |
| 034 | 413L86-1 | REAR COVER | 1 | |
| 035 | 266429-2 | TAPPING SCREW 3X16 | 2 | |
| 036 | 620521-2 | LED CIRCUIT | 1 | |
| 037 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 038 | 650005-6 | SWITCH TGRK1-1 | 1 | |
| 038-1 | 650005-6 | SWITCH TGRK1-1 | 1 | |
| 039 | 643874-2 | TERMINAL | 1 | |
| 040 | 1832B0-2 | HOUSING SET | 1 | |
| 040 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 040 | C20 | 263027-3 | RUBBER PIN 4 | 2 |
| 040 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 040 | D10 | INC. 8 | ||
| 041 | 8153H6-7 | DTD201 SERIAL NO. LABEL | 1 | |
| 042 | 8153H4-1 | DTD201 NAME PLATE | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03A | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A03A | C10 | 453974-8 | LATCH | 4 |
| A04A | 837670-0 | INNER TRAY | 1 | |
| A05A | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05A | D10 | COMPO-PARTS | ||
| A06A | 450128-8 | BATTERY COVER | 1 | |
| A07A | 197280-8 | BATTERY BL1850B SET | 2 | |
| F01 | 191K57-9 | TOOL HANGER SET | 1 | |
| F02 | 194649-7 | BATTERY PROTECTOR | 1 | |
| F03 | 194654-4 | HOOK SET | 1 |
