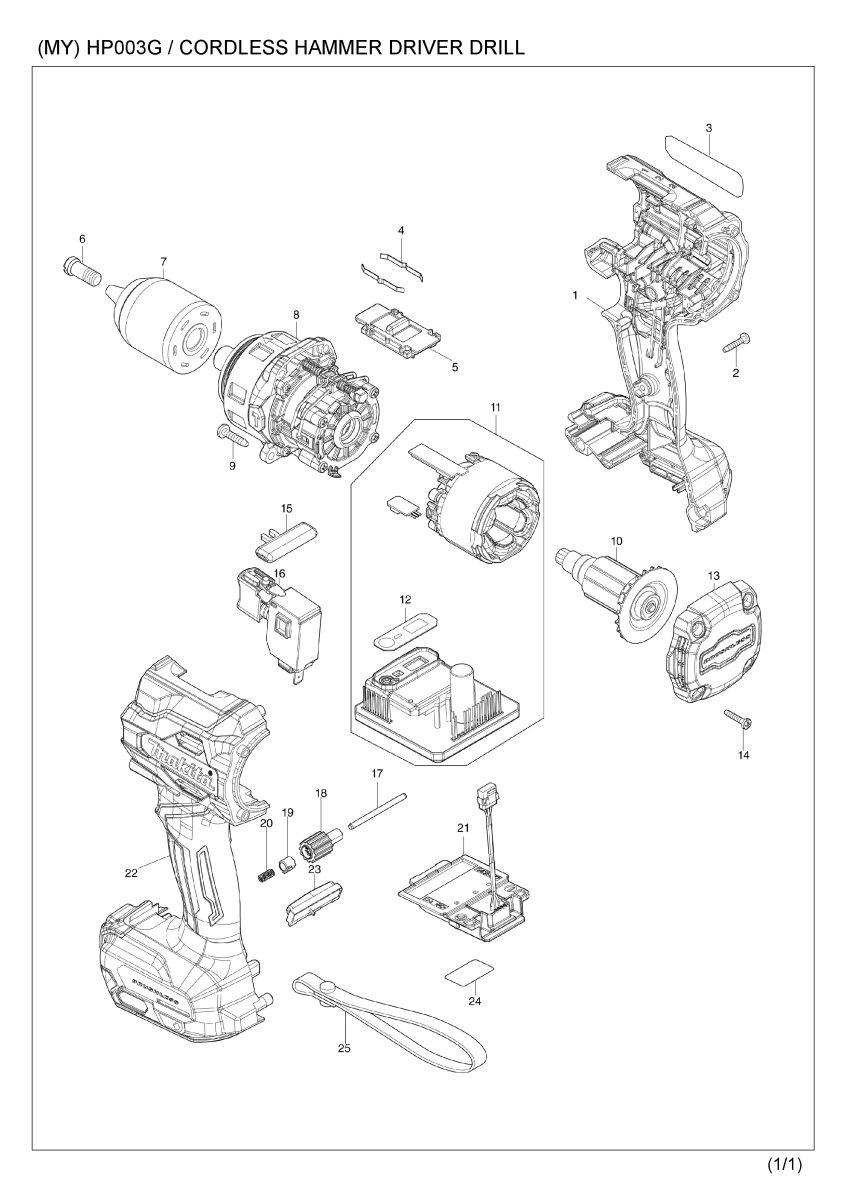

Part Diagram
Total: 41 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1831V5-6 | HOUSING SET | 1 | |
| 001 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001 | C20 | 422569-8 | SPONGE SHEET | 2 |
| 001 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 22 | ||
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | |
| 003 | 8152B3-5 | HP003G NAME PLATE | 1 | |
| 004 | 232220-0 | LEAF SPRING | 2 | |
| 005 | 162E02-5 | SPEED CHANGE LEVER COMPLETE | 1 | |
| 006 | 265E30-0 | - COUNTERSUNK HEAD SCREW M8X2 | 1 | |
| 007 | 763269-4 | KEYLESS DRILL CHUCK 13 | 1 | |
| 008 | 122J18-2 | GEAR ASSEMBLY | 1 | |
| 009 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 010 | 619907-5 | ROTOR | 1 | |
| 011 | 529D23-8 | STATOR ASS'Y 36V | 1 | |
| 011 | D10 | INC. 12 | ||
| 012 | 8091G8-4 | SWITCH LABEL | 1 | |
| 013 | 4132W4-0 | REAR COVER | 1 | |
| 014 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 015 | 419041-9 | F/R CHANGE LEVER | 1 | |
| 016 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 017 | 256949-4 | ROD 3 | 1 | |
| 018 | 140R76-4 | DIAL COMPLETE | 1 | |
| 019 | 313288-6 | DIAL CAM | 1 | |
| 020 | 232597-3 | COMPRESSION SPRING 3 | 1 | |
| 021 | 632W77-1 | TERMINAL UNIT | 1 | |
| 022 | 1831V5-6 | HOUSING SET | 1 | |
| 022 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 022 | C20 | 422569-8 | SPONGE SHEET | 2 |
| 022 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 022 | D10 | INC. 1 | ||
| 023 | 620R06-6 | LED CIRCUIT | 1 | |
| 024 | 8152B5-1 | HP003G SERIAL NO. LABEL | 1 | |
| A01 | 122J20-5 | GRIP ASSEMBLY | 1 | |
| A02 | C10 | 265785-7 | THUMB SCREW M5X10 | 1 |
| A02 | 251314-2 | + TRUSS HEAD SCREW M4X12 | 2 | |
| A03 | 346317-0 | HOOK | 1 | |
| A04 | 452947-8 | BIT HOLDER | 1 | |
| A05 | 784637-8 | +- BIT 2-45 | 2 | |
| A06 | 122576-8 | STOPPER POLE ASS'Y | 1 | |
| F02 | 1917P9-8 | DRILL STAND SET | 1 |
