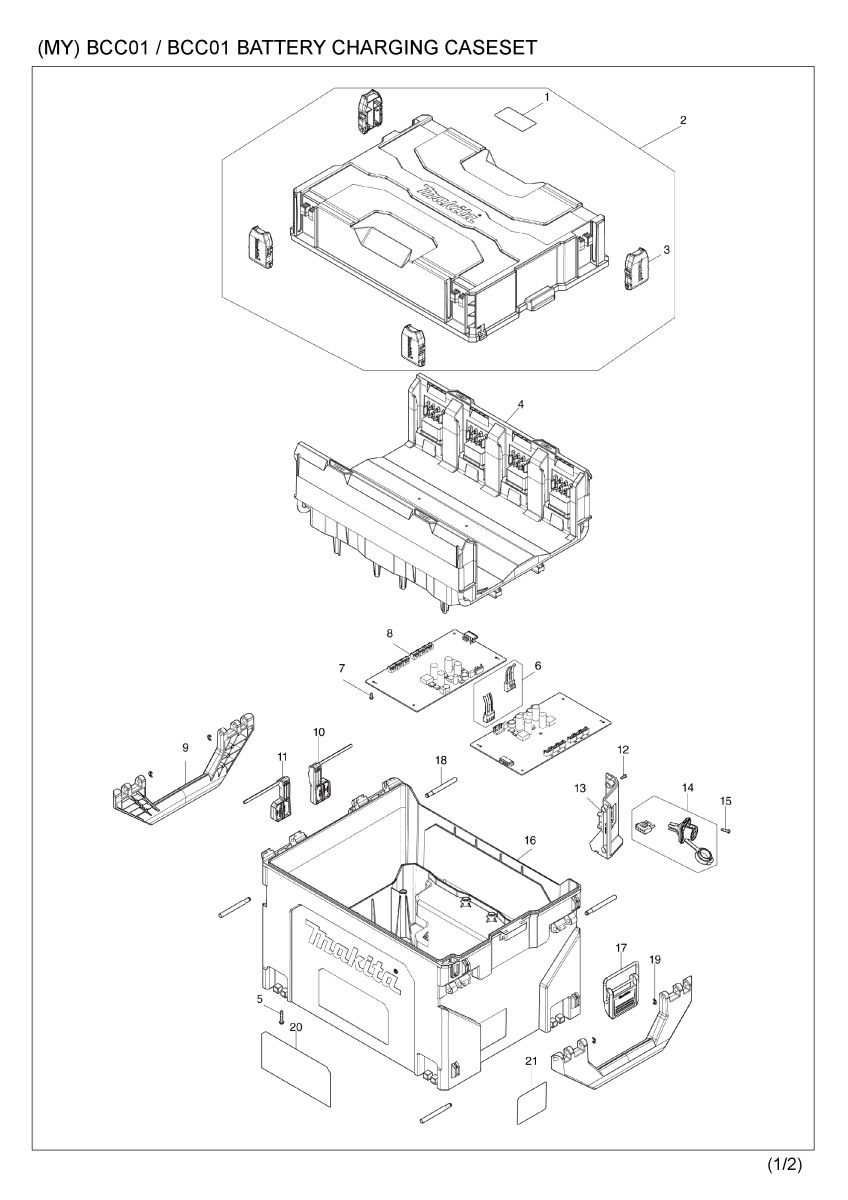

Part Diagram
Total: 39 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 8076B7-5 | CAUTION LABEL | 1 | |
| 002 | 122J39-4 | CHARGER CASE TOP ASSY | 1 | |
| 002 | D10 | INC. 1,3 | ||
| 003 | 413X57-0 | LATCH A | 4 | |
| 004 | 632V62-8 | TRAY UNIT A | 1 | |
| 004 | D10 | INC. 23,24,26-31 | ||
| 005 | 265E02-5 | TAPPING SCREW BT 4X20 | 9 | |
| 006 | 632V95-3 | LEAD UNIT | 1 | |
| 007 | 265E00-9 | TAPPING SCREW 3X8 | 10 | |
| 008 | 620P82-8 | CHARGING CIRCUIT | 2 | |
| 008-1 | 620P82-8 | CHARGING CIRCUIT | 2 | |
| 009 | 413X52-0 | HANDLE | 2 | |
| 010 | 413X60-1 | HINGE L | 1 | |
| 011 | 413X61-9 | HINGE R | 1 | |
| 012 | 265E00-9 | TAPPING SCREW 3X8 | 4 | |
| 013 | 413X59-6 | CORD COVER | 1 | |
| 014 | 632W03-0 | CHARGING CONNECTOR UNIT | 1 | |
| 014 | C10 | 286049-6 | CONNECTOR CAP | 1 |
| 015 | 265E01-7 | TAPPING SCREW 3X12 | 4 | |
| 016 | 413X50-4 | CHARGER CASE BOTTOM | 1 | |
| 017 | 141X93-3 | LATCH B COMPLETE | 1 | |
| 018 | 327D26-4 | PIN6 | 4 | |
| 019 | 259096-0 | STOP RING (EXT) E-4 | 4 | |
| 020 | 8076B5-9 | CHARGING CONDITION LABEL | 1 | |
| 021 | 8150W2-2 | BCC01 NAME PLATE | 1 | |

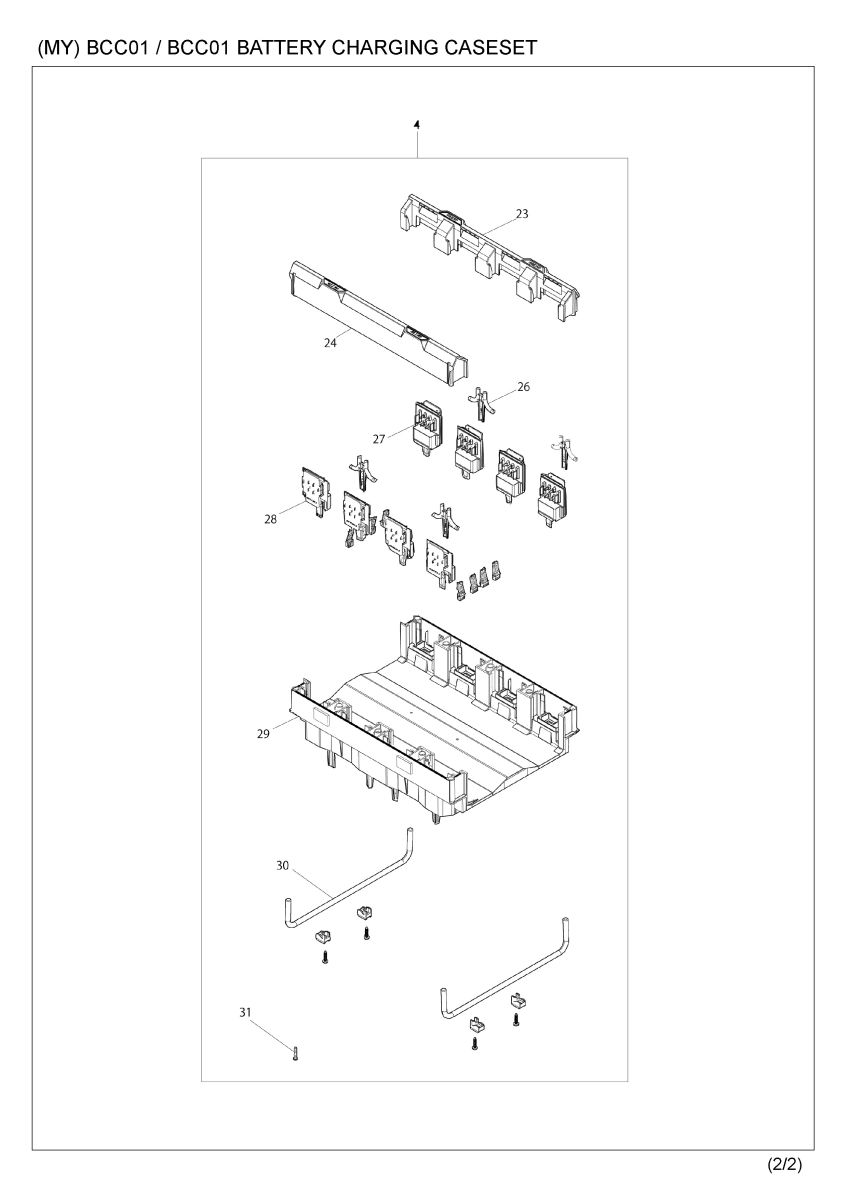

| 023 | 122J37-8 | TRAY COVER2 ASSY | 1 | |
| 023 | C10 | 8074W3-8 | LENS SEAL LABEL 2 | 2 |
| 024 | 122J36-0 | TRAY COVER1 ASSY | 1 | |
| 024 | C10 | 8073L6-9 | LENS SEAL LABEL 1 | 2 |
| 026 | 413X53-8 | LENS | 4 | |
| 027 | 620P79-7 | TERMINAL HOUSING B | 4 | |
| 028 | 620P78-9 | TERMINAL HOUSING A | 4 | |
| 029 | 1411S6-9 | TRAY A COMPLETE | 1 | |
| 029 | C10 | 4131P5-3 | RUBBER SHEET | 4 |
| 030 | 327E56-1 | SHAFT C | 2 | |
| 031 | 265E02-5 | TAPPING SCREW BT 4X20 | 10 | |
| A01 | 667235-2 | POWER SUPPLY CORD B | 1 | |
| A02 | 630E59-9 | DC4002 BATTERY CHARGER | 1 | |
| A02 | C10 | TC00000120 | FAN | 1 |
