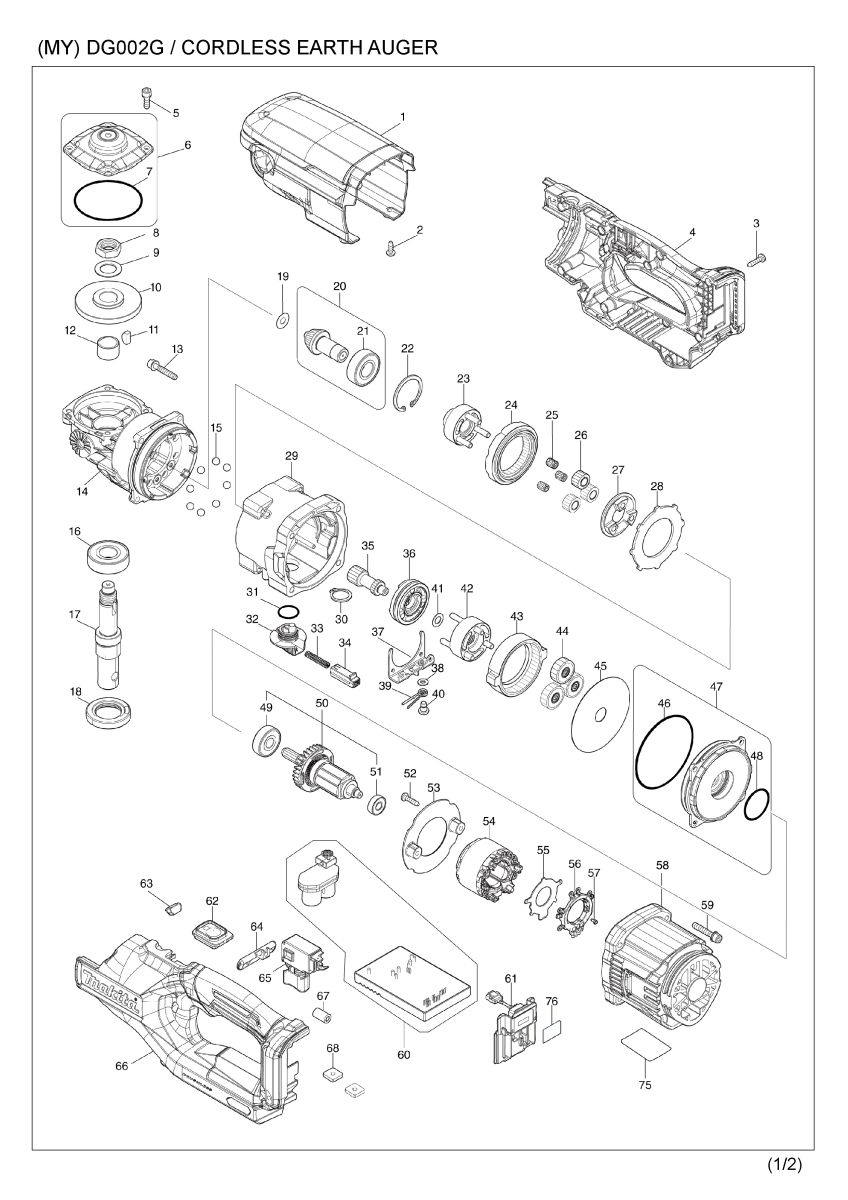

Part Diagram
Total: 104 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 458430-3 | TOP COVER | 1 | |
| 002 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 003 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 004 | 183Y57-7 | HANDLE SET | 1 | |
| 004 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 004 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 004 | C30 | 8012U4-2 | XGT LOGO LABEL | 1 |
| 004 | D10 | INC. 66 | ||
| 005 | 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 006 | 140A21-7 | GEAR HOUSING COVER COMPLETE | 1 | |
| 006 | D10 | INC. 7 | ||
| 007 | 213709-7 | O RING 63 | 1 | |
| 008 | 252267-8 | HEX. NUT M16-22 | 1 | |
| 009 | 253771-0 | FLAT WASHER 16 | 1 | |
| 010 | 227920-5 | SPIRAL BEVEL GEAR 40 | 1 | |
| 011 | 254032-1 | WOODRUFF KEY 5 | 1 | |
| 012 | 257440-5 | SLEEVE 17 | 1 | |
| 013 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 013-1 | 265D24-9 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 013-2 | 265E69-3 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 014 | 141D39-9 | GEAR HOUSING COMPLETE | 1 | |
| 014 | C10 | 213507-9 | O RING 40 | 1 |
| 014 | C20 | 213755-0 | O RING 75 | 1 |
| 015 | 216022-2 | STEEL BALL 7.0 | 8 | |
| 016 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 017 | 327C19-5 | SPINDLE | 1 | |
| 018 | 141S89-4 | BEARING RETAINER32-43 COMPLETE | 1 | |
| 019 | 253411-0 | FLAT WASHER 6 | 1 | |
| 020 | 136563-1 | SPIRAL BEVEL GEAR 13 ASS'Y | 1 | |
| 020 | D10 | INC. 21 | ||
| 021 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 022 | 962153-2 | RETAINING RING R-35 | 1 | |
| 023 | 140A13-6 | CARRIER A COMPLETE | 1 | |
| 024 | 226177-5 | INTERNAL GEAR 40 | 1 | |
| 025 | 212193-3 | NEEDLE CAGE 5810 | 3 | |
| 026 | 226176-7 | SPUR GEAR 13 | 3 | |
| 027 | 223188-1 | CAM | 1 | |
| 028 | 347365-2 | WASHER 65 | 1 | |
| 029 | 127809-6 | GEAR CASE COMPLETE | 1 | |
| 030 | 961058-3 | RETAINING RING (EXT) S-18 | 1 | |
| 031 | 213265-7 | O RING 17 | 1 | |
| 032 | 458433-7 | CHANGE LEVER | 1 | |
| 033 | 233279-0 | COMPRESSION SPRING 4 | 1 | |
| 034 | 458434-5 | LOCK BUTTON | 1 | |
| 035 | 226175-9 | SPUR GEAR 14 | 1 | |
| 036 | 310876-0 | CHANGE RING | 1 | |
| 037 | 347366-0 | CHANGE GUIDE | 1 | |
| 038 | 267010-2 | FLAT WASHER 5 | 1 | |
| 039 | 231657-8 | TORSION SPRING 6 | 1 | |
| 040 | 265628-3 | + BINDING HEAD SCREW M5 | 1 | |
| 041 | 253215-0 | FLAT WASHER 8 | 1 | |
| 042 | 140A14-4 | CARRIER B COMPLETE | 1 | |
| 043 | 226174-1 | INTERNAL GEAR 71 | 1 | |
| 044 | 140A12-8 | SPUR GEAR 29 COMPLETE | 3 | |
| 045 | 253412-8 | FLAT WASHER 15 | 1 | |
| 046 | 213755-0 | O RING 75 | 1 | |
| 047 | 140A20-9 | MOTOR BRACKET COMPLETE | 1 | |
| 047 | D10 | INC. 46,48 | ||
| 048 | 213406-5 | O RING 30 | 1 | |
| 049 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 050 | 519689-8 | ROTOR ASSY | 1 | |
| 050 | D10 | INC. 49,51 | ||
| 050-1 | 519689-8 | ROTOR ASSY | 1 | |
| 050-1 | D10 | INC. 49,51 | ||
| 051 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 052 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 053 | 458427-2 | BAFFLE PLATE | 1 | |
| 054 | 629B69-3 | STATOR | 1 | |
| 055 | 620K74-7 | CONTROLLER B | 1 | |
| 055-1 | 620R29-4 | CONTROLLER B | 1 | |
| 056 | 638A31-1 | LEAD UNIT | 1 | |
| 057 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 058 | 458426-4 | MOTOR HOUSING | 1 | |
| 059 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 059-1 | 265D24-9 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 059-2 | 265E69-3 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 060 | 620E87-2 | CONTROLLER | 1 | |
| 060-1 | 620P57-7 | CONTROLLER | 1 | |
| 060-2 | 620R37-5 | CONTROLLER | 1 | |
| 061 | 632P65-6 | TERMINAL UNIT | 1 | |
| 062 | 140A19-4 | SWITCH CIRCUIT COMPLETE | 1 | |
| 063 | 620839-1 | LED CIRCUIT | 1 | |
| 064 | 458432-9 | F/R CHANGE LEVER | 1 | |
| 065 | 651443-5 | SWITCH C3JR-4B | 1 | |
| 066 | 183Y57-7 | HANDLE SET | 1 | |
| 066 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 066 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 066 | C30 | 8012U4-2 | XGT LOGO LABEL | 1 |
| 066 | D10 | INC. 4 | ||
| 068 | 264002-2 | SQUARE NUT M5 | 2 | |

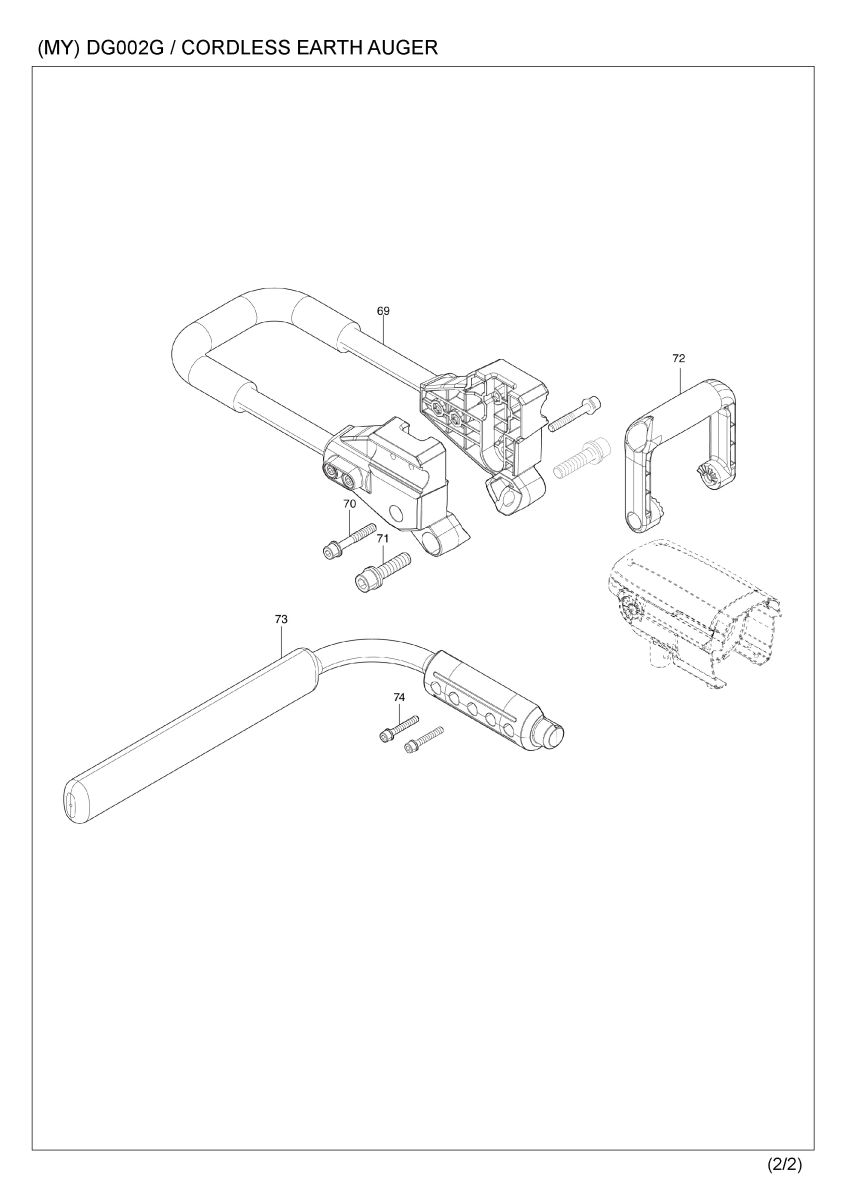

| 069 | 127688-2 | PIPE GRIP ASSEMBLY | 1 | |
| 070 | 922478-6 | H.S.H.BOLT M8X55 WITH WR | 2 | |
| 071 | 922673-8 | H.S.H.BOLT M12X50 WITH WR | 2 | |
| 072 | 458431-1 | FRONT GRIP | 1 | |
| 073 | 141N53-5 | PIPE COMPLETE | 1 | |
| 074 | 922363-3 | H.S.H.BOLT M6X40 WITH WR | 2 | |
| 075 | 8140R4-0 | DG002G NAME PLATE | 1 | |
| 076 | 8140R9-0 | DG002G SERIAL NO.LABEL | 1 | |
| A01 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A02 | 783207-0 | HEX. WRENCH 10 | 1 | |
| A03 | 783232-1 | HEX. WRENCH 5 | 1 | |
| A03-1 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A04 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | |
| F01 | 191P11-3 | HANDLE SET | 1 |
