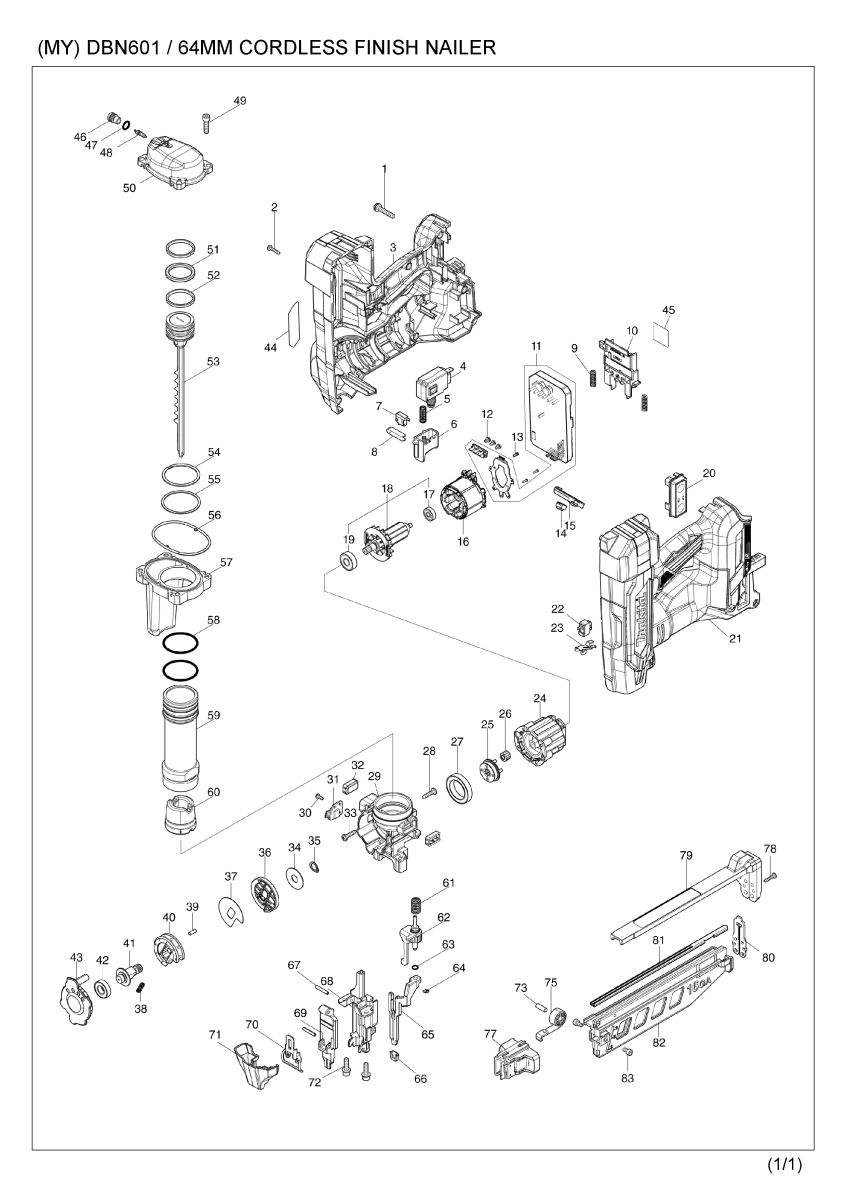

Part Diagram
Total: 101 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 911248-8 | PAN HEAD SCREW M5X28 | 1 | |
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 11 | |
| 003 | 1831D8-4 | HOUSING SET | 1 | |
| 003 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 003 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 003 | C30 | 252103-8 | HEX. LOCK NUT M5-8 | 1 |
| 003 | D10 | INC. 21 | ||
| 004 | 650060-8 | SWITCH C3JR-5BM-PAND-2 | 1 | |
| 005 | 232884-0 | COMPRESSION SPRING 7 | 1 | |
| 006 | 4130V7-5 | TRIGGER | 1 | |
| 006-1 | 1413L6-2 | TRIGGER COMPLETE | 1 | |
| 007 | 632V61-0 | SWITCH UNIT | 1 | |
| 008 | 232889-0 | LEAF SPRING | 1 | |
| 008-1 | 232889-0 | LEAF SPRING | 1 | |
| 009 | 232876-9 | COMPRESSION SPRING 7 | 2 | |
| 010 | 654908-6 | TERMINAL | 1 | |
| 011 | 620P14-5 | CONTROLLER | 1 | |
| 012 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 013 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 014 | 620P87-8 | LED CIRCUIT | 1 | |
| 015 | 4130V8-3 | LED HOLDER | 1 | |
| 016 | 629A28-1 | STATOR | 1 | |
| 017 | 210231-5 | BALL BEARING 625ZZ | 1 | |
| 018 | 519865-4 | ROTOR ASS'Y | 1 | |
| 018 | D10 | INC. 17,19 | ||
| 019 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 020 | 620P95-9 | SWITCH CIRCUIT COMPLETE | 1 | |
| 021 | 1831D8-4 | HOUSING SET | 1 | |
| 021 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 021 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 021 | C30 | 252103-8 | HEX. LOCK NUT M5-8 | 1 |
| 021 | D10 | INC. 3 | ||
| 022 | 140W22-7 | SWITCH COMPLETE | 1 | |
| 023 | 232890-5 | LEAF SPRING | 1 | |
| 024 | 122G78-6 | GEAR ASSEMBLY | 1 | |
| 025 | 141Y54-9 | CARRIER COMPLETE | 1 | |
| 026 | 227B76-6 | SPUR GEAR 11 | 4 | |
| 027 | 210168-6 | BALL BEARING 6805DDW | 1 | |
| 028 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 028-1 | 265E16-4 | TAPPING SCREW 4X18 | 2 | |
| 029 | 141Y58-1 | INNER HOUSING COMPLETE | 1 | |
| 030 | 911007-0 | PAN HEAD SCREW M3X8 | 1 | |
| 031 | 620P94-1 | SENSOR CIRCUIT | 1 | |
| 032 | 422B84-4 | SIDE CUSHION | 2 | |
| 033 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 033-1 | 265E16-4 | TAPPING SCREW 4X18 | 4 | |
| 034 | 347C87-2 | FLAT WASHER 10 | 1 | |
| 035 | 961006-2 | RETAINING RING S-10 | 1 | |
| 036 | 162D46-9 | HOLDER COMPLETE | 1 | |
| 037 | 347C81-4 | LIFTER PLATE | 1 | |
| 038 | 232885-8 | COMPRESSION SPRING 4 | 1 | |
| 039 | 256173-9 | PIN 3.5 | 7 | |
| 040 | 327E10-5 | LIFTER | 1 | |
| 041 | 327E09-0 | LIFTER SHAFT | 1 | |
| 042 | 211391-6 | BALL BEARING 6900LLU | 1 | |
| 043 | 4130V1-7 | LIFTER CAP | 1 | |
| 044 | 8148M1-9 | DBN601 NAME PLATE | 1 | |
| 045 | 8148M3-5 | DBN601 SERIAL NO. LABEL | 1 | |
| 046 | 327D23-0 | VALVE CAP | 1 | |
| 047 | 213007-9 | O RING 8 | 1 | |
| 048 | 243138-0 | VALVE CORE | 1 | |
| 049 | 922232-8 | HEX. SOCKET HEAD BOLT M5X20 | 4 | |
| 050 | 312H30-0 | TOP CAP | 1 | |
| 051 | 213A79-0 | X-RING 28 | 1 | |
| 052 | 4130U7-8 | SLIDE RING | 2 | |
| 053 | 137239-3 | DRIVER ASSEMBLY | 1 | |
| 054 | 259093-6 | SPIRAL RETAINING RING (EXT)42 | 1 | |
| 055 | 253612-0 | FLAT WASHER 42 | 1 | |
| 056 | 422B85-2 | SEAL RING | 1 | |
| 057 | 141Y59-9 | CHAMBER COMPLETE | 1 | |
| 057 | C10 | 8076U1-0 | CAUTION LABEL | 1 |
| 058 | 213513-4 | O RING 39 | 2 | |
| 058-1 | 213A96-0 | ORING 39 | 2 | |
| 059 | 327E07-4 | CYLINDER | 1 | |
| 060 | 422B83-6 | FRONT CUSHION | 1 | |
| 061 | 232886-6 | COMPRESSION SPRING 9 | 1 | |
| 062 | 141Y56-5 | ADJUSTER COMPLETE | 1 | |
| 063 | 213021-5 | O RING 5 | 1 | |
| 064 | 961017-7 | STOP RING E-3 | 1 | |
| 065 | 313594-9 | CENTER PLATE | 1 | |
| 066 | 422B86-0 | NOSE ADAPTER | 1 | |
| 067 | 951069-6 | SPRING PIN 3-20 | 2 | |
| 068 | 313570-3 | UNDER DRIVER GUIDE | 1 | |
| 069 | 313670-9 | DRIVER GUIDE | 1 | |
| 070 | 162D45-1 | LATCH | 1 | |
| 071 | 4130V2-5 | LATCH COVER | 1 | |
| 072 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 2 | |
| 073 | 268225-4 | PIN 5 | 1 | |
| 075 | 141Y52-3 | SPIRAL SPRING COMPLETE | 1 | |
| 077 | 137240-8 | PUSHER ASS'Y | 1 | |
| 077-1 | 137240-8 | PUSHER ASS'Y | 1 | |
| 078 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 079 | 141Y50-7 | MAGAZINE END COMPLETE | 1 | |
| 079 | C10 | 8082B1-6 | CAUTION LABEL | 1 |
| 080 | 347C85-6 | END PLATE | 1 | |
| 081 | 347C79-1 | NAIL RAIL | 1 | |
| 082 | 4130V3-3 | MAGAZINE | 1 | |
| 083 | 265911-8 | HEX. SOCKET HEAD BOLT M4X8 | 2 | |
| A01 | 251314-2 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | 422B86-0 | NOSE ADAPTER | 2 |
